Lenovo
Lenovo ThinkSystem ST45 V3 7DH51002NA tower server AMD EPYC 4244P 16GB TruDDR5
Tower server with AMD EPYC 4244P six-core processor, 16 GB TruDDR5 memory expandable to 64 GB, 4U form factor and four non-hot-swap drive bays supporting up to 24 TB of 3.5-inch storage
- WorkloadGeneral Purpose Server
- TypeTower
- Rack Height4U
- CPU TypeAMD EPYC 4004 Series
- CPU Speed4244P (3.80 GHz)
- Number of CPU Cores6-Core Processor
- AMD EPYC 4244P six-core processor at 3.80 GHz delivers responsive compute for general-purpose workloads
- 16 GB TruDDR5 memory at 5600 MHz with ECC support protects data integrity in critical tasks
- Expandable to 64 GB across two DIMM slots for growing memory demands
- Onboard 6 Gb SATA controller supports up to 24 TB of 3.5-inch storage capacity
- Two PCIe 3.0 expansion slots (x16 75 W and x1 25 W) enable GPU or adapter upgrades

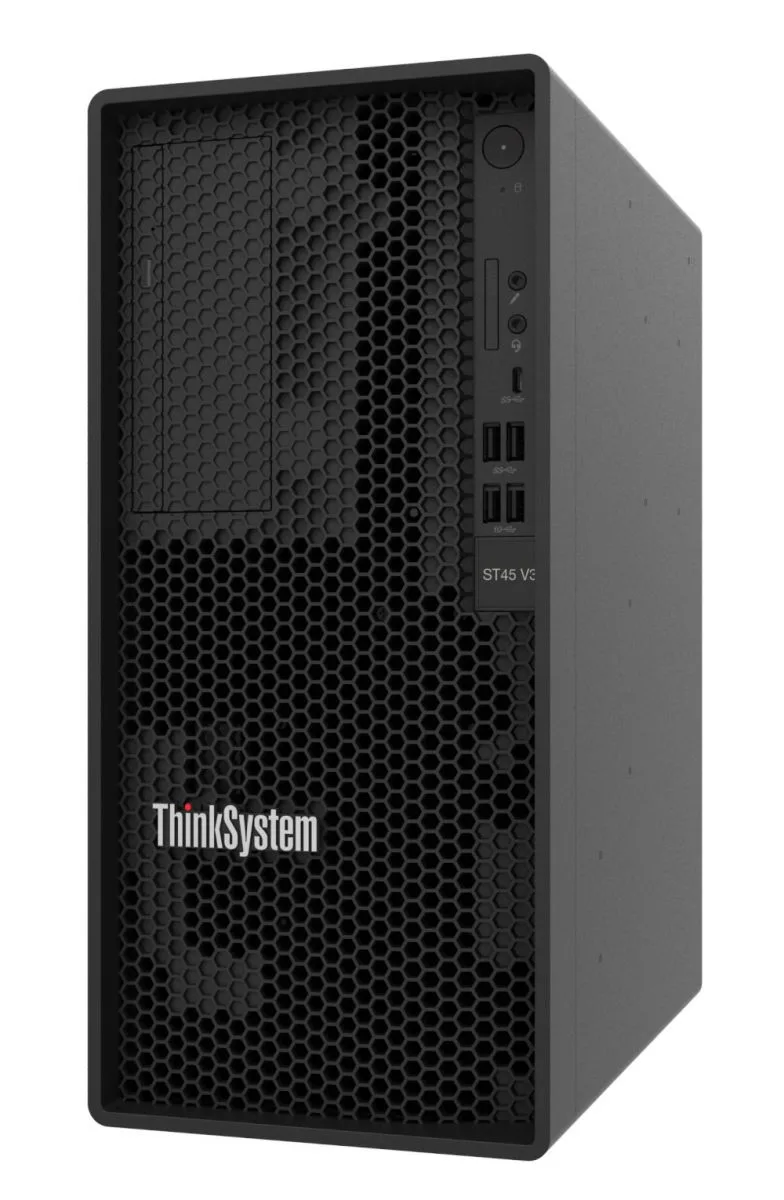

Lenovo ThinkSystem ST45 V3 Tower Server
The Lenovo ThinkSystem ST45 V3 is a tower server built for general-purpose workloads. It ships with a single AMD EPYC 4244P six-core processor running at 3.80 GHz and 16 GB of TruDDR5 memory. A 300 W Gold power supply is included. The AMD PRO-665 chipset provides the platform foundation.
Who this suits and who should look elsewhere
Small businesses needing a quiet tower for file, print or light application serving will find the 4U chassis practical. The two DIMM slots limit memory to 64 GB, so buyers who want more storage than the four non-hot-swap bays allow or who need dual-processor capacity should look elsewhere.
The specification that decides fit
Only two memory sockets are available, capping maximum RAM at 64 GB of TruDDR5 at 5600 MHz with ECC UDIMM support. If the workload requires more memory channels or higher capacity, this platform will not meet the requirement.
Points forts
- AMD EPYC 4244P six-core processor at 3.80 GHz delivers responsive compute for general-purpose workloads
- 16 GB TruDDR5 memory at 5600 MHz with ECC support protects data integrity in critical tasks
- Expandable to 64 GB across two DIMM slots for growing memory demands
- Onboard 6 Gb SATA controller supports up to 24 TB of 3.5-inch storage capacity
- Two PCIe 3.0 expansion slots (x16 75 W and x1 25 W) enable GPU or adapter upgrades
Caractéristiques
| Brand | Lenovo |
|---|---|
| Series | ThinkSystem ST45 V3 |
| Model | ST45 V3 |
| Part Number | 7DH51002NA |
| Workload | General Purpose Server |
| Type | Tower |
| Rack Height | 4U |
| CPU Type | AMD EPYC 4004 Series |
| CPU Speed | 4244P (3.80 GHz) |
| Number of CPU Cores | 6-Core Processor |
| Cache Memory | 32 MB L3 Cache |
| # of Processors Installed | 1 |
| MAX Processors | 1 |
| Chipset | AMD PRO-665 Chip |
| Installed Memory Size | 16GB |
| Memory Type | TruDDR5 |
| Max Memory Capacity | 64GB |
| Memory Features | Two DIMM sockets supporting Lenovo TruDDR5 DIMMs at 5600 MHz. Support ECC UDIMMs. |
| Number of Memory Slots | 2 |
| Hard Drive (Installed) | None |
| Storage Controller | Onboard 6 Gb SATA controller, supporting AHCI mode (non-RAID) |
| SSD (Installed) | No |
| Max HDD Capacity | 3.5-inch drives: 24TB using 3x 8TB 3.5-inch HDDs 2.5-inch drives: 960GB using 1x 960GB 2.5-inch SATA SSDs |
| Expansion Slots | Two PCIe slots as follows: Slot 1: PCIe 3.0 x16 full-height half-length (FHHL) (75W) Slot 3: PCIe 3.0 x1 full-height half-length (FHHL) (25W) |
| Expansion Bays | Up to 4x non-hot swap (NHS) drive bays: - 3x 3.5-inch NHS drive bays supporting HDDs or SSDs - 1x 2.5-inch NHS drive bay supporting an SSD |

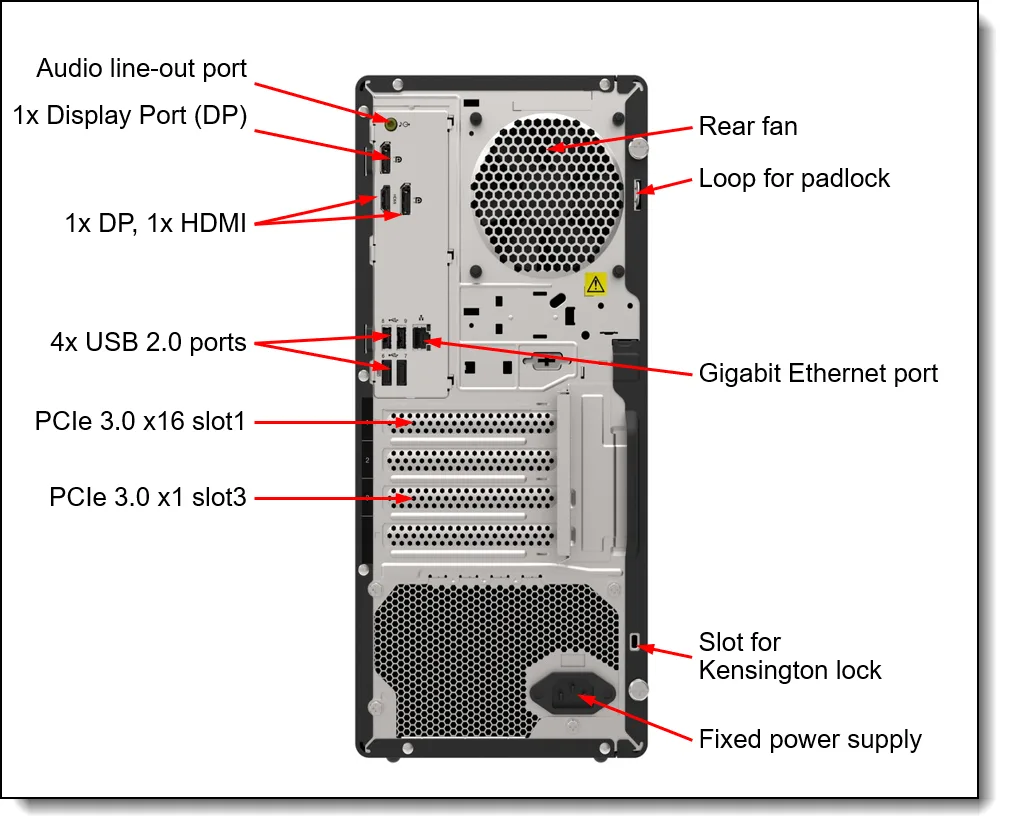

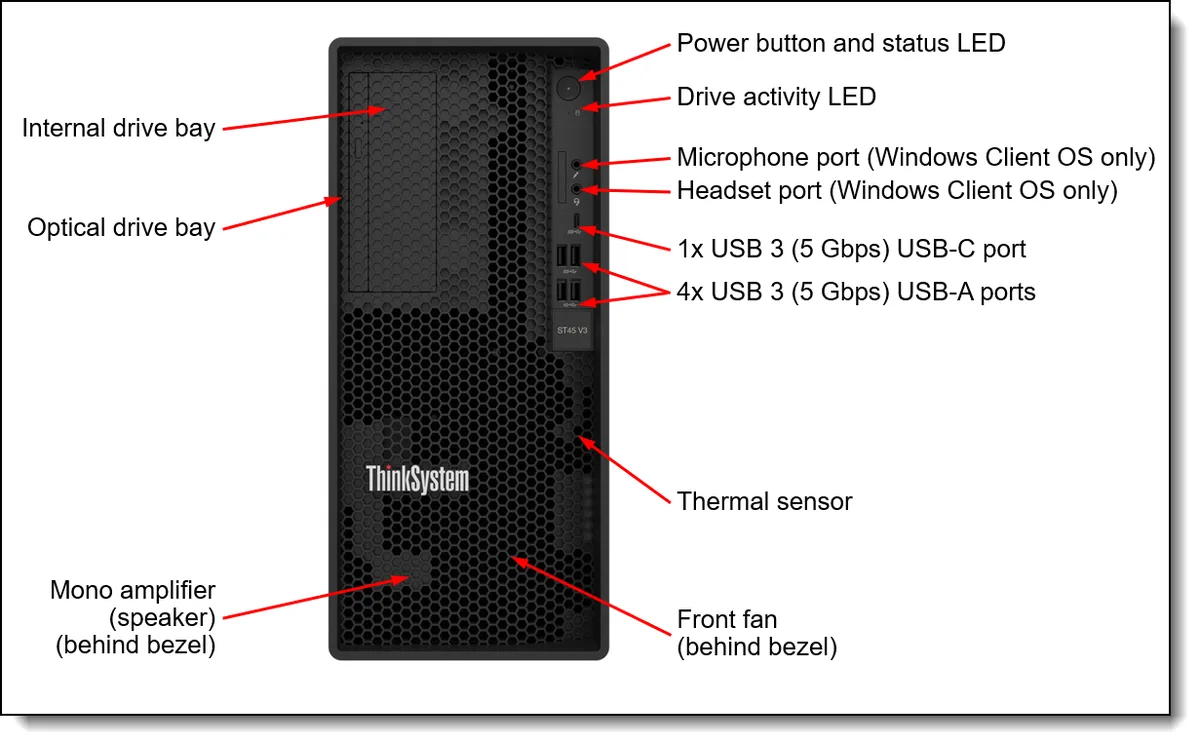

| Other ports | Front ports: Five USB ports - 1x USB 3 (5 Gb/s) with USB-C connector - 4x USB 3 (5 Gb/s) with USB-A connector Microphone port* Headset port* Rear ports: Four USB 2.0 ports Two DisplayPort 1.4 video ports One HDMI 2.1 One RJ-45 Gigabit Ethernet port One audio line-out port* * Windows 11 only; some line noise is possible |
| Power Characteristics | One fixed 300W Gold power supply |
| Temperature | Operating: 10°C to 35°C (50°F to 95°F) Storage: -20°C to 60°C (-4°F to 140°F) |
| Humidity | Operating: ASHRAE Class A2: 8% to 80% Storage: 8% to 90% |
| Dimensions | 14.8" x 6.7" x 12.4" |
| Weight | 18.9 lbs. |
| Poids d’expédition | 18.14 kg |
| Dimensions du colis | 508 × 508 × 254 mm |
Questions sur cet article
What storage drives must I supply since the tower server ships without any installed?
You need to add 3.5-inch or 2.5-inch SATA drives; the chassis accepts up to three 3.5-inch or one 2.5-inch non-hot-swap bay.
Can I keep using my existing PCIe 3.0 add-in cards in the two expansion slots?
Yes, slot one provides a PCIe 3.0 x16 FHHL connection at 75 W and slot three provides a PCIe 3.0 x1 FHHL connection at 25 W.
How do I verify the single AMD EPYC 4244P is recognised with its 32 MB L3 cache after first boot?
Enter the UEFI setup or run a hardware-inventory tool; both will show the 6-core processor running at 3.80 GHz with 32 MB L3 cache.
