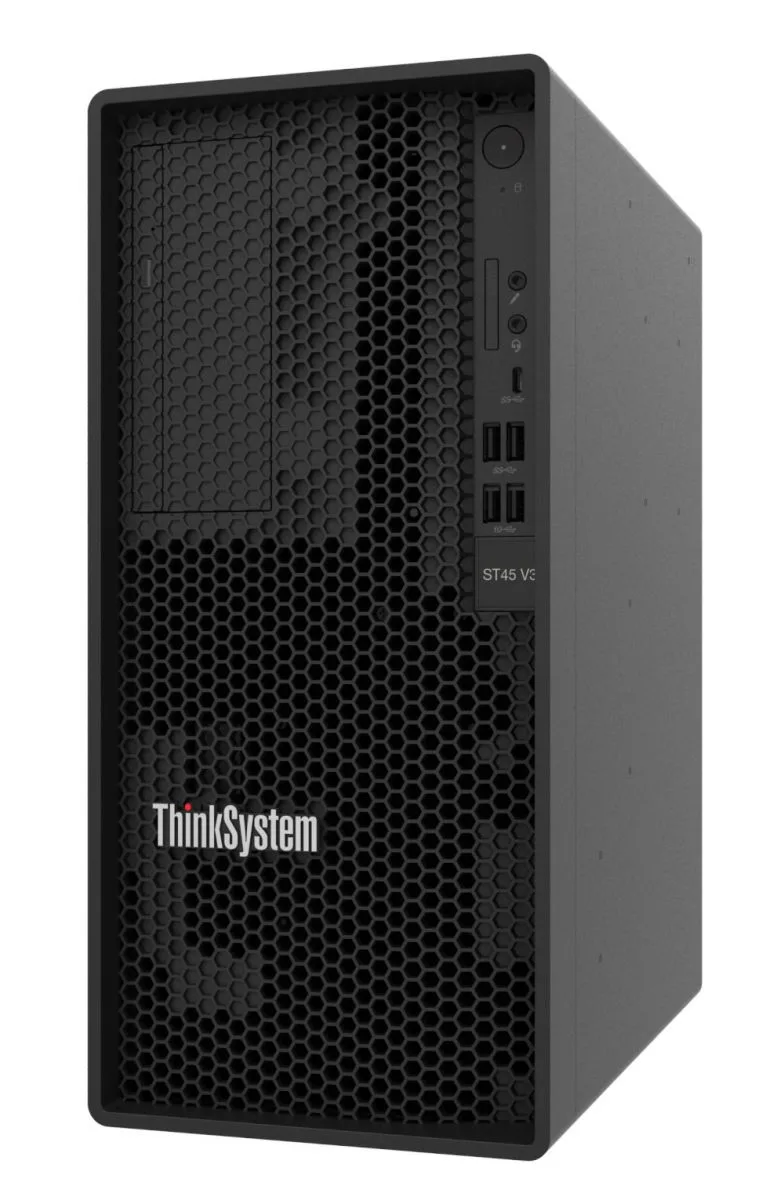

Lenovo ThinkSystem ST45 V3 7DH51003NA tower server EPYC 4244P 32 GB TruDDR5
Tower server with an AMD EPYC 4244P six-core processor at 3.80 GHz, 32 GB TruDDR5 memory expandable to 64 GB, 300 W Gold power supply.
- WorkloadGeneral Purpose Server
- TypeTower
- Rack Height4U
- CPU TypeAMD EPYC 4004 Series
- CPU Speed4244P (3.80 GHz)
- Number of CPU Cores6-Core Processor
- AMD EPYC 4244P 6-core 3.80 GHz CPU powers demanding workloads
- 32 GB TruDDR5 at 5600 MHz with ECC protects data integrity
- Expandable to 64 GB via two DIMM slots for future growth
- Four 3.5-inch non-hot-swap bays support up to 24 TB storage
- 300 W Gold fixed supply plus PCIe 3.0 x16 and x1 slots enable add-in cards
Tower server for general-purpose workloads
The Lenovo ThinkSystem ST45 V3 7DH51003NA is a 4U tower server built around a single AMD EPYC 4244P 6-core processor running at 3.80 GHz. It ships with 32 GB of TruDDR5 memory and a 300 W Gold power supply. The AMD PRO-665 chipset provides an onboard 6 Gb SATA controller in AHCI mode with no RAID capability. No drives are installed.
Suits small offices and branch sites needing
This system fits buyers who need a compact tower with ECC memory support and basic PCIe expansion. It does not suit buyers who need hot-swap drive bays, redundant power supplies, or dual-processor capability. The two DIMM slots limit memory to 64 GB maximum. Only one full-height half-length PCIe 3.0 x16 slot at 75 W and one x1 slot at 25 W are available for add-in cards.
Memory ceiling decided by two DIMM slots

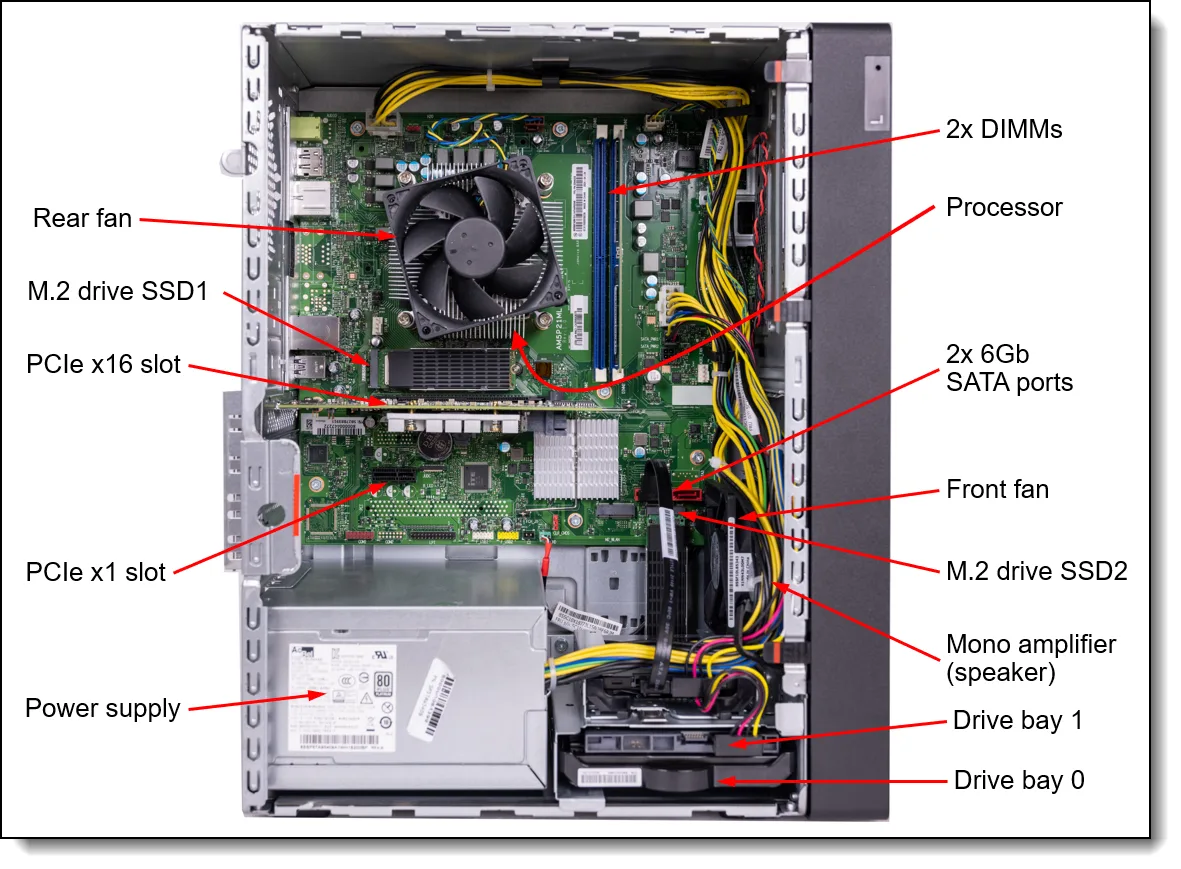

The board provides two DIMM sockets that accept Lenovo TruDDR5 ECC UDIMMs at 5600 MHz. Maximum supported capacity is 64 GB. If the workload requires more memory than 64 GB, this platform cannot meet the requirement.
Points forts
- AMD EPYC 4244P 6-core 3.80 GHz CPU powers demanding workloads
- 32 GB TruDDR5 at 5600 MHz with ECC protects data integrity
- Expandable to 64 GB via two DIMM slots for future growth
- Four 3.5-inch non-hot-swap bays support up to 24 TB storage
- 300 W Gold fixed supply plus PCIe 3.0 x16 and x1 slots enable add-in cards
Caractéristiques
| Brand | Lenovo |
|---|---|
| Series | ThinkSystem ST45 V3 |
| Model | ST45 V3 |
| Part Number | 7DH51003NA |
| Workload | General Purpose Server |
| Type | Tower |
| Rack Height | 4U |
| CPU Type | AMD EPYC 4004 Series |
| CPU Speed | 4244P (3.80 GHz) |
| Number of CPU Cores | 6-Core Processor |
| Cache Memory | 32 MB L3 Cache |
| # of Processors Installed | 1 |
| MAX Processors | 1 |
| Chipset | AMD PRO-665 Chip |
| Installed Memory Size | 32GB |
| Memory Type | TruDDR5 |
| Max Memory Capacity | 64GB |
| Memory Features | Two DIMM sockets supporting Lenovo TruDDR5 DIMMs at 5600 MHz. Support ECC UDIMMs. |
| Number of Memory Slots | 2 |
| Hard Drive (Installed) | None |
| Storage Controller | Onboard 6 Gb SATA controller, supporting AHCI mode (non-RAID) |
| SSD (Installed) | No |
| Max HDD Capacity | 3.5-inch drives: 24TB using 3x 8TB 3.5-inch HDDs 2.5-inch drives: 960GB using 1x 960GB 2.5-inch SATA SSDs |
| Expansion Slots | Two PCIe slots as follows: Slot 1: PCIe 3.0 x16 full-height half-length (FHHL) (75W) Slot 3: PCIe 3.0 x1 full-height half-length (FHHL) (25W) |
| Expansion Bays | Up to 4x non-hot swap (NHS) drive bays: - 3x 3.5-inch NHS drive bays supporting HDDs or SSDs - 1x 2.5-inch NHS drive bay supporting an SSD |

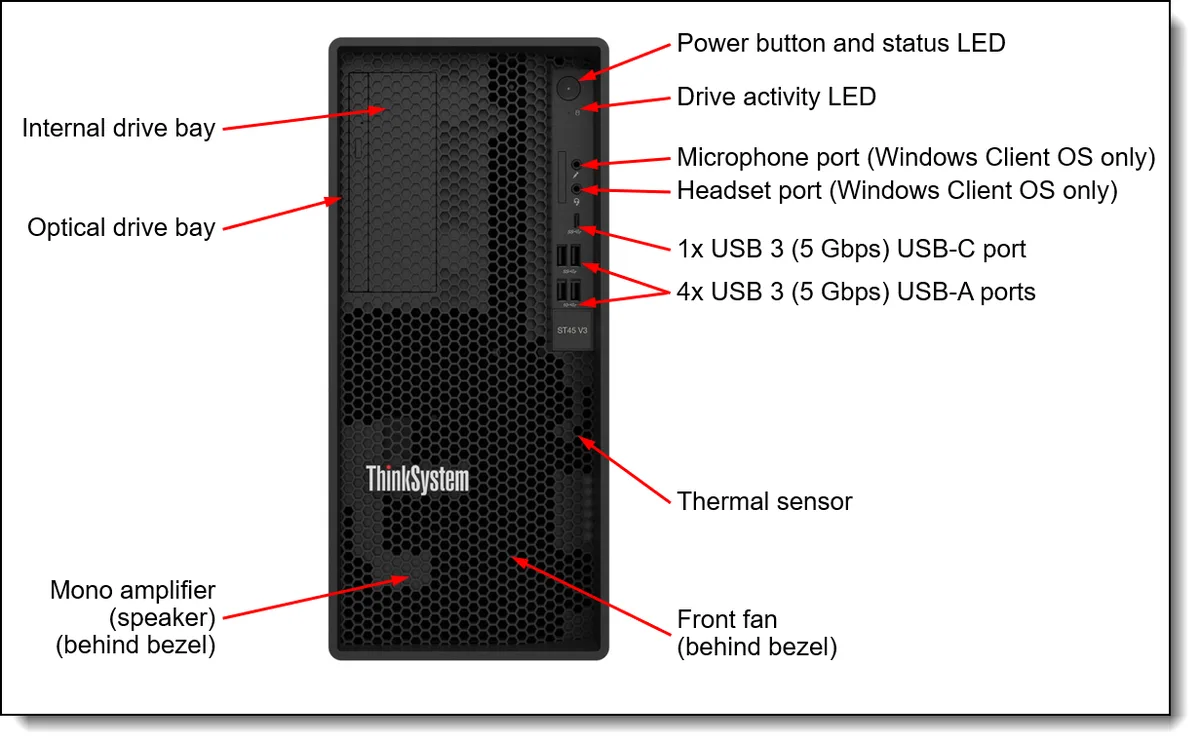

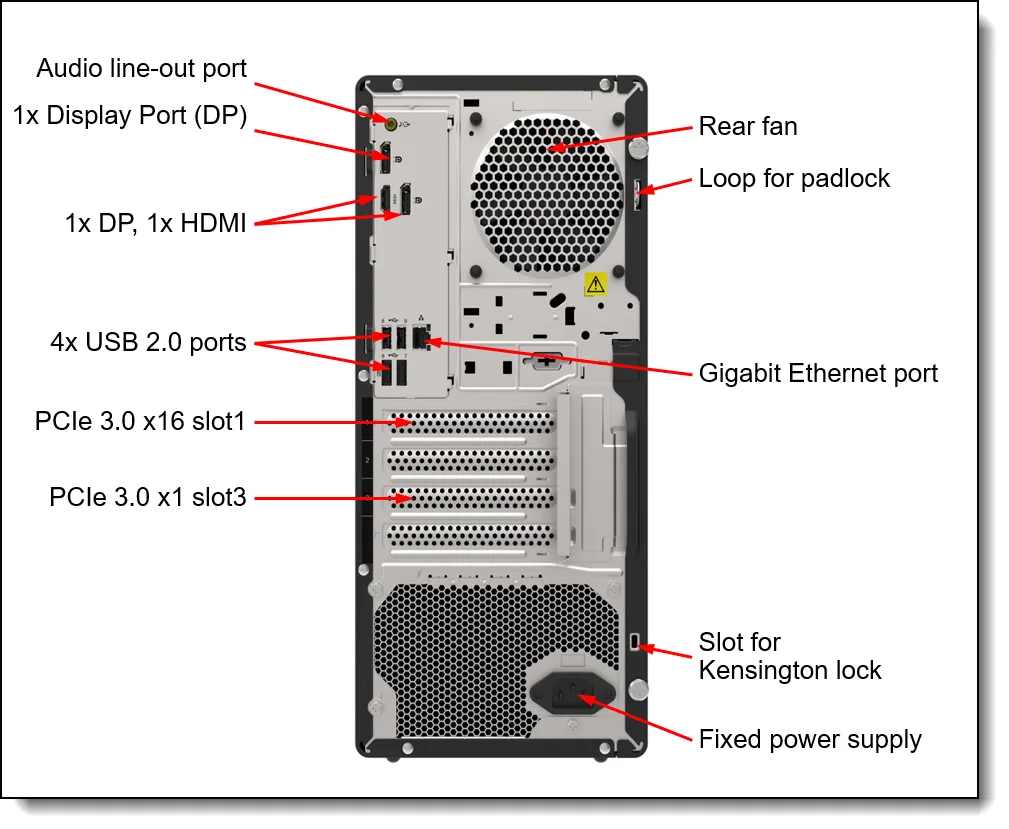

| Other ports | Front ports: Five USB ports - 1x USB 3 (5 Gb/s) with USB-C connector - 4x USB 3 (5 Gb/s) with USB-A connector Microphone port* Headset port* Rear ports: Four USB 2.0 ports Two DisplayPort 1.4 video ports One HDMI 2.1 One RJ-45 Gigabit Ethernet port One audio line-out port* * Windows 11 only; some line noise is possible |
| Power Characteristics | One fixed 300W Gold power supply |
| Temperature | Operating: 10°C to 35°C (50°F to 95°F) Storage: -20°C to 60°C (-4°F to 140°F) |
| Humidity | Operating: ASHRAE Class A2: 8% to 80% Storage: 8% to 90% |
| Dimensions | 14.8" x 6.7" x 12.4" |
| Weight | 18.9 lbs. |
| Poids d’expédition | 18.14 kg |
| Dimensions du colis | 508 × 508 × 254 mm |
Questions sur cet article
How much heat and power draw should I expect from the fixed 300W Gold power supply when the EPYC 4244P runs continuously?
The server ships with a single fixed 300W Gold-rated power supply; the 6-core EPYC 4244P at 3.80 GHz and 32 GB of TruDDR5 draw well within that budget under sustained load, so fan noise stays low in a typical office environment.
Which storage drives and controller do I need to add before the ST45 V3 can boot an operating system?
No drives are installed; you must supply 3.5-inch SATA HDDs up to 8 TB each or a 2.5-inch SATA SSD up to 960 GB, and the onboard 6 Gb SATA controller in AHCI mode will recognise them without a separate RAID card.
Can I keep using my existing PCIe 3.0 add-in cards such as a GPU or NIC in the two expansion slots?
Yes — slot 1 is a PCIe 3.0 x16 full-height half-length slot rated for 75 W, and slot 3 is a PCIe 3.0 x1 full-height half-length slot rated for 25 W, so most legacy PCIe 3.0 cards will fit and operate normally.
