Lenovo

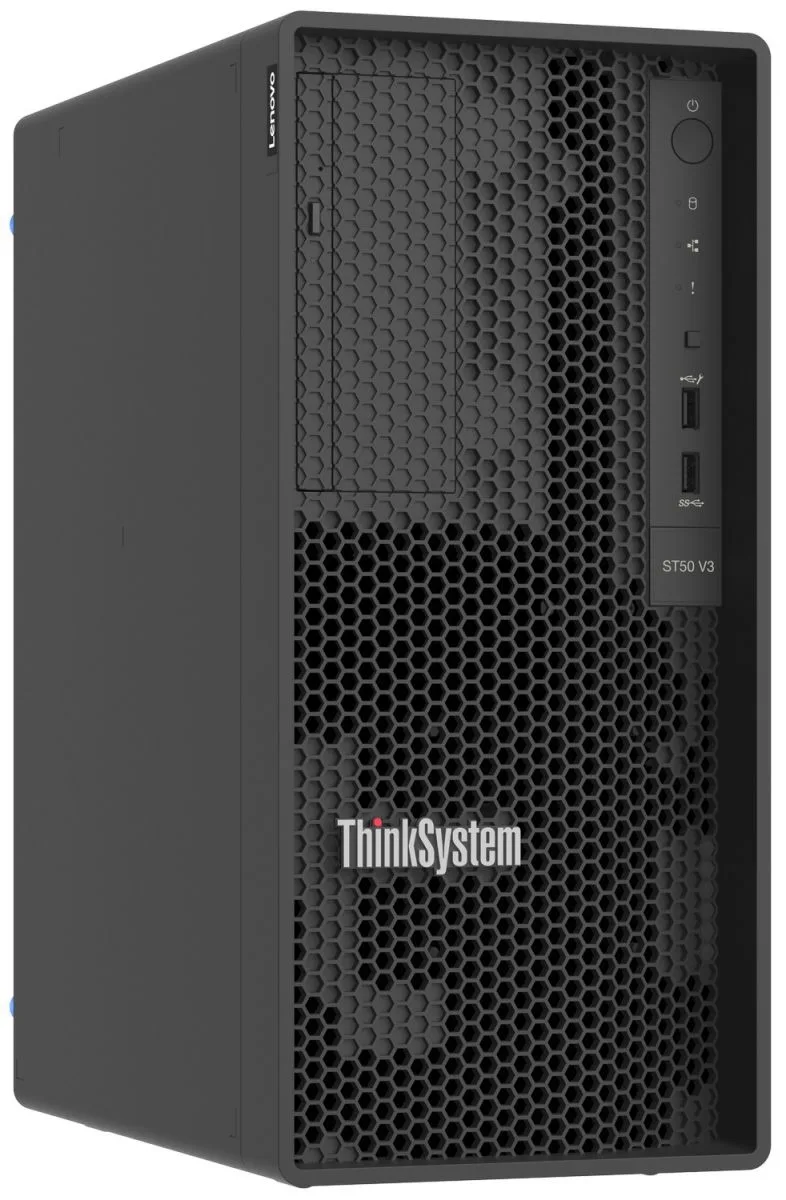

Lenovo ThinkSystem ST50 V3 7DF3A018NA Tower Server Xeon E-2434 16GB DDR5
Entry tower server with a quad-core Xeon E-2434 at 3.40 GHz, 16 GB DDR5 ECC memory expandable to 128 GB, dual 1 GbE LAN, three PCIe slots including one PCIe 5.0 x16, SATA III RAID 0/1 support.
- WorkloadGeneral Purpose Server
- TypeEntry Tower
- CPU TypeIntel Xeon E
- CPU SpeedE-2434 (3.40 GHz)
- CPU SocketLGA 1700
- Number of CPU CoresQuad-Core Processor
- Quad-core Xeon E-2434 at 3.40 GHz delivers responsive compute for entry workloads
- 16 GB DDR5 at 4400 MHz with ECC protects data integrity from day one
- Four DIMM slots support up to 128 GB TruDDR5 for future growth
- Three PCIe slots including Gen 5.0 x16 and two Gen 4.0 x4 enable flexible expansion
- Dual 1 GbE ports plus dedicated XCC2 management port simplify remote administration
Lenovo ThinkSystem ST50 V3 Entry Tower Server
The Lenovo ThinkSystem ST50 V3 is an entry-level tower server built around a single Intel Xeon E-2434 quad-core processor running at 3.40 GHz. It ships with 16 GB of DDR5 ECC UDIMM memory and supports up to 128 GB across four DIMM slots operating at 4400 MHz. The Intel C266 chipset provides SATA III connectivity and RAID 0/1 support. A fixed 300 W Gold power supply is included.
Ideal for small business workloads.
This tower server suits small offices or branch locations needing a quiet, general-purpose platform for file, print or lightweight application serving. The single-socket design and four memory slots limit compute density, so buyers who need dual-processor performance or larger memory footprints should evaluate other form factors. The 300 W power supply also restricts high-wattage add-in cards.
Single-socket LGA 1700 limits CPU upgrades
The LGA 1700 socket accepts only one processor, so the installed Xeon E-2434 defines the maximum core count and frequency available. No second CPU can be added, and future upgrades are confined to the same single-socket Intel Xeon E family supported by the C266 chipset.
Points forts
- Quad-core Xeon E-2434 at 3.40 GHz delivers responsive compute for entry workloads
- 16 GB DDR5 at 4400 MHz with ECC protects data integrity from day one
- Four DIMM slots support up to 128 GB TruDDR5 for future growth
- Three PCIe slots including Gen 5.0 x16 and two Gen 4.0 x4 enable flexible expansion
- Dual 1 GbE ports plus dedicated XCC2 management port simplify remote administration
Caractéristiques
| Brand | Lenovo |
|---|---|
| Model | ST50 V3 |
| Part Number | 7DF3A018NA |
| Workload | General Purpose Server |
| Type | Entry Tower |
| CPU Type | Intel Xeon E |
| CPU Speed | E-2434 (3.40 GHz) |
| CPU Socket | LGA 1700 |
| Number of CPU Cores | Quad-Core Processor |
| # of Processors Installed | 1 |
| Chipset | Intel C266 |
| Installed Memory Size | 16GB |
| Memory Type | DDR5 |
| Max Memory Capacity | 128GB |
| Memory Features | Four DIMM sockets supporting Lenovo TruDDR5 DIMMs at 4400 MHz (Xeon processors) or 4400 MHz (Pentium processors). Support ECC UDIMMs. |
| Number of Memory Slots | 4 |
| Hard Drive (Installed) | No Hard Drive |
| HDD Interface | SATA III |
| SSD (Installed) | No |
| Raid Level | RAID 0/1 |
| LAN Ports | 2x 1GbE Onboard Ethernet ports (Broadcom BCM5720) Rear 1 port allows remote connectivity to the XCC2 management controller |
| Expansion Slots | Three PCIe slots (1x PCIe 5.0, 2x PCIe 4.0) as follows: Slot 1: PCIe G4 x4 (x4 slot, open-ended) 25W full-height half-length (FHHL) Slot 2: PCIe G5 x16 (x16 slot, closed-ended) 75W full-height half-length (FHHL) Slot 3: PCIe G4 x4 (x4 slot, open-ended) 25W full-height half-length (FHHL) |
| Expansion Bays | 3 x 3.5" SATA: Open bay HDD |
| Other ports | Front: One USB 3.2 G1 (5 Gb/s) port One USB 2.0 port (also for XClarity Mobile connectivity for local systems management) Rear: Four USB 3.2 G1 (5 Gb/s) ports One VGA video One RJ-45 systems management Two RJ-45 GbE network ports One serial port |
| Management Port | Dedicated Ethernet port for remote management |
| Operating System | No |
| Power Characteristics | One fixed 300W Gold power supply |
| Dimensions | 12.4" x 6.7" x 14.6" w/o stand |
| Weight | 26.4 lbs. |
| Poids d’expédition | 9.07 kg |
| Dimensions du colis | 508 × 457 × 254 mm |
Questions sur cet article
What are the PCIe slot specifications for adding expansion cards to this ST50 V3?
The server provides three PCIe slots: slot 1 is PCIe 4.0 x4 open-ended at 25W full-height half-length, slot 2 is PCIe 5.0 x16 closed-ended at 75W full-height half-length, and slot 3 is PCIe 4.0 x4 open-ended full-height half-length.
How is the Intel Xeon E-2434 processor installed in the LGA 1700 socket, and what is the common mistake?
Align the processor notches with the socket keys, lower it gently without force, and secure the retention lever; the frequent error is skipping the lever lock or misaligning the notches, which can bend pins.
What memory upgrades does the four-slot DDR5 configuration support for future expansion?
Four DIMM slots accept Lenovo TruDDR5 ECC UDIMMs at 4400 MHz, allowing expansion from the installed 16 GB up to a maximum of 128 GB total capacity.
