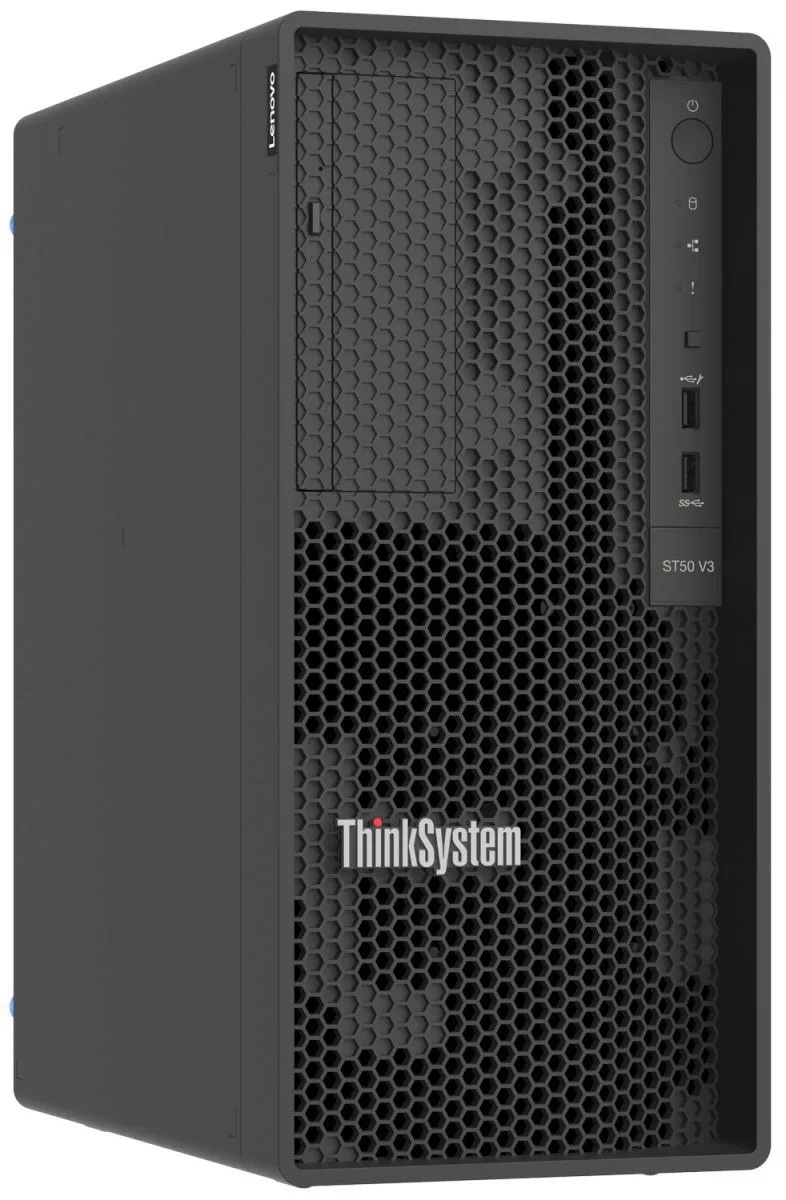

Lenovo ThinkSystem ST50 V3 tower server in matte black chassis

Lenovo

Lenovo ThinkSystem ST50 V3 Tower Server Xeon E-2456 3.2 GHz 6-Core 16GB DDR5 7DF3A00FNA

SKU CH-CZ89-HGHRJ MPN 7DF3A00FNA

Entry tower server with a 6-core Xeon E-2456 at 3.20 GHz, 16 GB DDR5-4400 ECC memory expandable to 128 GB, dual 1 GbE ports, three PCIe slots and a 300 W power supply

  • WorkloadGeneral Purpose Server
  • TypeEntry Tower
  • CPU TypeIntel Xeon E
  • CPU SpeedE-2456 (3.20 GHz)
  • CPU SocketLGA 1700
  • Number of CPU Cores6-Core Processor
  • 6-core Xeon E-2456 at 3.20 GHz handles multi-threaded workloads
  • 16 GB DDR5 at 4400 MHz with ECC protects data integrity
  • Four DIMM slots support up to 128 GB for future growth
  • Three PCIe slots including Gen 5 x16 and two Gen 4 x4 add flexibility
  • Dual 1 GbE ports plus dedicated XCC2 management port simplify remote admin

Lenovo ThinkSystem ST50 V3 Entry Tower Server

The Lenovo ThinkSystem ST50 V3 is an entry tower server built for small-business workloads. It ships with an Intel Xeon E-2456 six-core processor running at 3.20 GHz with a 5.1 GHz turbo frequency. The system includes 16 GB of DDR5 ECC UDIMM memory at 4400 MHz and a 300 W power supply. No storage drives are installed.

Suited for general-purpose file.

This configuration suits offices that need a quiet tower form factor with ECC memory protection and room to grow. It is not for buyers who want pre-installed drives or hardware RAID beyond RAID 0/1. It is not for deployments requiring redundant power supplies or rack-mount rails. It is not for workloads demanding more than one physical processor.

Memory scales to 128 GB across four DIMM slots

The four DDR5 slots support Lenovo TruDDR5 ECC UDIMMs at 4400 MHz, giving comfortable headroom for virtualisation or database caching. Storage expansion uses SATA III interfaces with onboard RAID 0/1 support. Three PCIe slots provide add-in card flexibility: one PCIe 5.0 x16 slot at 75 W and two PCIe 4.0 x4 open-ended slots at 25 W each. Network connectivity includes dual 1 GbE ports plus a dedicated management port.

Points forts

  • 6-core Xeon E-2456 at 3.20 GHz handles multi-threaded workloads
  • 16 GB DDR5 at 4400 MHz with ECC protects data integrity
  • Four DIMM slots support up to 128 GB for future growth
  • Three PCIe slots including Gen 5 x16 and two Gen 4 x4 add flexibility
  • Dual 1 GbE ports plus dedicated XCC2 management port simplify remote admin

Caractéristiques

BrandLenovo
ModelST50 V3
Part Number7DF3A00FNA
WorkloadGeneral Purpose Server
TypeEntry Tower
CPU TypeIntel Xeon E
CPU SpeedE-2456 (3.20 GHz)
CPU SocketLGA 1700
Number of CPU Cores6-Core Processor
# of Processors Installed1
ChipsetIntel C266
Installed Memory Size16GB
Memory TypeDDR5
Max Memory Capacity128GB
Memory FeaturesFour DIMM sockets supporting Lenovo TruDDR5 DIMMs at 4400 MHz (Xeon processors) or 4400 MHz (Pentium processors). Support ECC UDIMMs.
Number of Memory Slots4
Hard Drive (Installed)No Hard Drive
HDD InterfaceSATA III
SSD (Installed)No
Raid LevelRAID 0/1
LAN Ports2x 1GbE Onboard Ethernet ports (Broadcom BCM5720)
Rear 1 port allows remote connectivity to the XCC2 management controller
Expansion SlotsThree PCIe slots (1x PCIe 5.0, 2x PCIe 4.0) as follows:
Slot 1: PCIe G4 x4 (x4 slot, open-ended) 25W full-height half-length (FHHL)
Slot 2: PCIe G5 x16 (x16 slot, closed-ended) 75W full-height half-length (FHHL)
Slot 3: PCIe G4 x4 (x4 slot, open-ended) 25W full-height half-length (FHHL)
Expansion Bays3 x 3.5" SATA: Open bay HDD
Other portsFront:
One USB 3.2 G1 (5 Gb/s) port
One USB 2.0 port (also for XClarity Mobile connectivity for local systems management)
Rear:
Four USB 3.2 G1 (5 Gb/s) ports
One VGA video
One RJ-45 systems management
Two RJ-45 GbE network ports
One serial port
Management PortDedicated Ethernet port for remote management
Operating SystemNo
Power CharacteristicsOne fixed 300W Gold power supply
Dimensions12.4" x 6.7" x 14.6" w/o stand
Weight26.4 lbs.
Poids d’expédition9.07 kg
Dimensions du colis508 × 457 × 254 mm

Questions sur cet article

Which storage drives must I supply because the ST50 V3 ships without any installed?

The server includes no hard drive or SSD, so you must add SATA III drives yourself; the onboard controller supports RAID 0 and RAID 1 for those drives.

Will my existing PCIe 4.0 add-in card work in the ST50 V3 expansion slots?

Yes — the tower provides three slots: one PCIe 5.0 x16 at 75 W and two PCIe 4.0 x4 open-ended at 25 W each, all full-height half-length.

How can I verify the Xeon E-2456 is running at its 5.1 GHz turbo after setup?

Enter the UEFI or use an OS monitoring tool to confirm the processor reaches 5.1 GHz under load; the base frequency is 3.20 GHz with six cores.
