Lenovo
Lenovo ThinkSystem ST50 V3 Tower Server Xeon E-2488 3.2 GHz 8-Core 16GB DDR5 7DF3A00UNA
Tower server with 8-core Xeon E-2488 at 3.2 GHz, 16 GB DDR5 ECC, 500 W supply, dual 1 GbE and three PCIe slots
- WorkloadGeneral Purpose Server
- TypeEntry Tower
- CPU TypeIntel Xeon E
- CPU SpeedE-2488 (3.20 GHz)
- CPU SocketLGA 1700
- Number of CPU Cores8-Core Processor
- 8-core Xeon E-2488 reaches 5.6 GHz turbo for responsive compute
- 16 GB DDR5 at 4400 MHz with ECC protects data integrity
- Four DIMM slots support up to 128 GB for future growth
- Three PCIe slots including Gen 5.0 x16 and two Gen 4.0 x4 enable flexible expansion
- Dual 1 GbE ports plus dedicated XCC2 management port simplify remote administration
Product Identity

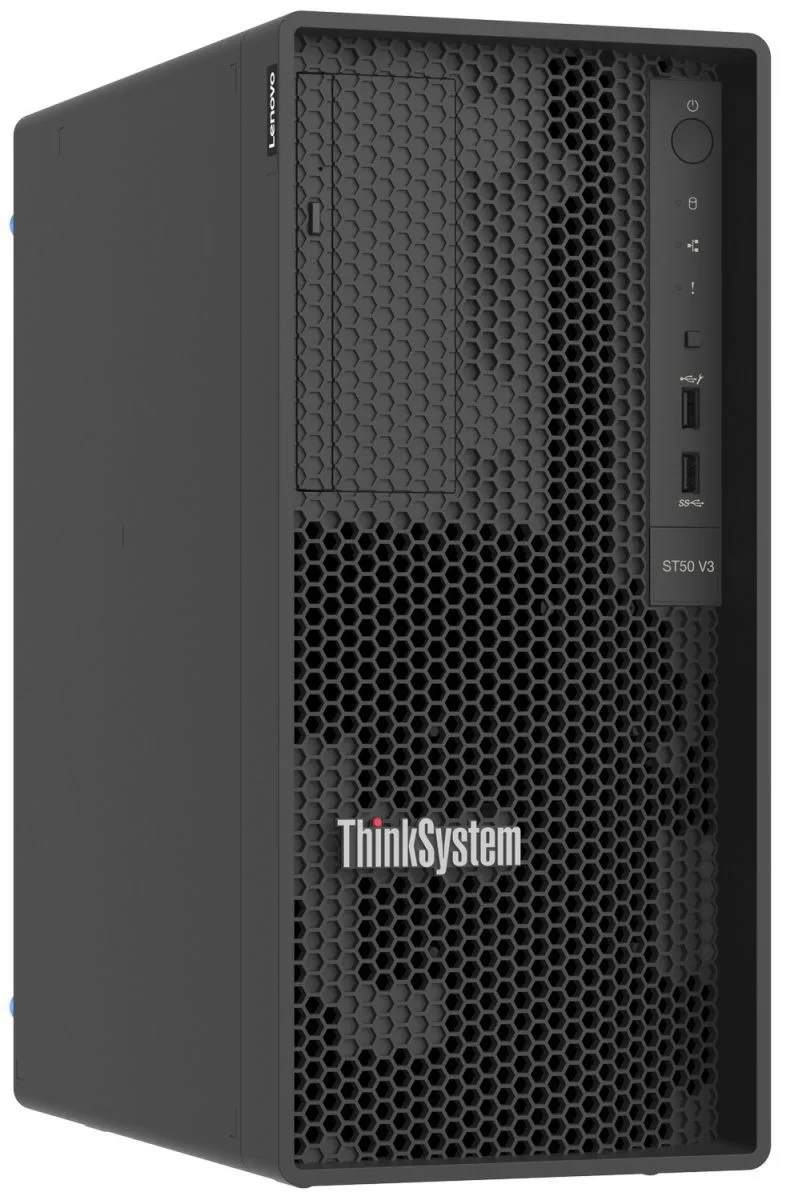

The Lenovo ThinkSystem ST50 V3 is an entry tower server built around an Intel Xeon E-2488 processor running at 3.2 GHz with 8 cores and a 5.6 GHz maximum turbo frequency. It ships with 16 GB of DDR5 ECC memory at 4400 MHz and a 500 W power supply in a chassis designed for general-purpose workloads.
Fit and Limits
This system suits small businesses or remote offices that need a quiet tower form factor with Xeon reliability and room to grow memory up to 128 GB across four DIMM slots. Buyers who require pre-installed storage, higher-speed networking or redundant power supplies should evaluate other platforms.
Deciding Specification
The single specification that determines fit is the storage configuration: no hard drives or SSDs are installed and the onboard controller provides only SATA III with RAID 0 or 1, so you must add your own drives and accept that interface limit.
Points forts
- 8-core Xeon E-2488 reaches 5.6 GHz turbo for responsive compute
- 16 GB DDR5 at 4400 MHz with ECC protects data integrity
- Four DIMM slots support up to 128 GB for future growth
- Three PCIe slots including Gen 5.0 x16 and two Gen 4.0 x4 enable flexible expansion
- Dual 1 GbE ports plus dedicated XCC2 management port simplify remote administration
Caractéristiques
| Brand | Lenovo |
|---|---|
| Model | ST50 V3 |
| Part Number | 7DF3A00UNA |
| Workload | General Purpose Server |
| Type | Entry Tower |
| CPU Type | Intel Xeon E |
| CPU Speed | E-2488 (3.20 GHz) |
| CPU Socket | LGA 1700 |
| Number of CPU Cores | 8-Core Processor |
| # of Processors Installed | 1 |
| Chipset | Intel C266 |
| Installed Memory Size | 16GB |
| Memory Type | DDR5 |
| Max Memory Capacity | 128GB |
| Memory Features | Four DIMM sockets supporting Lenovo TruDDR5 DIMMs at 4400 MHz (Xeon processors) or 4400 MHz (Pentium processors). Support ECC UDIMMs. |
| Number of Memory Slots | 4 |
| Hard Drive (Installed) | No Hard Drive |
| HDD Interface | SATA III |
| SSD (Installed) | No |
| Raid Level | RAID 0/1 |
| LAN Ports | 2x 1GbE Onboard Ethernet ports (Broadcom BCM5720) Rear 1 port allows remote connectivity to the XCC2 management controller |
| Expansion Slots | Three PCIe slots (1x PCIe 5.0, 2x PCIe 4.0) as follows: Slot 1: PCIe G4 x4 (x4 slot, open-ended) 25W full-height half-length (FHHL) Slot 2: PCIe G5 x16 (x16 slot, closed-ended) 75W full-height half-length (FHHL) Slot 3: PCIe G4 x4 (x4 slot, open-ended) 25W full-height half-length (FHHL) |
| Expansion Bays | 3 x 3.5" SATA: Open bay HDD |
| Other ports | Front: One USB 3.2 G1 (5 Gb/s) port One USB 2.0 port (also for XClarity Mobile connectivity for local systems management) Rear: Four USB 3.2 G1 (5 Gb/s) ports One VGA video One RJ-45 systems management Two RJ-45 GbE network ports One serial port |
| Management Port | Dedicated Ethernet port for remote management |
| Operating System | No |
| Power Characteristics | One fixed 300W Gold power supply |
| Dimensions | 12.4" x 6.7" x 14.6" w/o stand |
| Weight | 26.4 lbs. |
| Poids d’expédition | 9.07 kg |
| Dimensions du colis | 508 × 457 × 254 mm |
Questions sur cet article
How does the Xeon E-2488 at 3.2 GHz with 8 cores behave in a real workload?
The processor runs at a 3.2 GHz base frequency and can reach 5.6 GHz turbo across its 8 cores, delivering responsive performance for general-purpose server tasks.
What PCIe generations are available on the three expansion slots and what bandwidth do they provide?
Slot 1 and Slot 3 are PCIe 4.0 x4 open-ended at 25 W each, while Slot 2 is PCIe 5.0 x16 closed-ended at 75 W for higher-bandwidth add-in cards.
What chassis clearance and power budget do the full-height half-length PCIe slots require?
Each slot accepts full-height half-length cards; Slot 1 and Slot 3 supply up to 25 W, and Slot 2 supplies up to 75 W from the 500 W power supply.
