White mid-tower case with glass side panels and five pre-installed fans

Lian Li

Lian Li O11DMIV2FW PC case White 5 fans

SKU CH-XJPP-X15PK MPN O11DMIV2FW

Compact ATX mid-tower with slanted bottom mesh, tempered glass sides and five pre-installed 120 mm reverse-blade fans for high airflow

  • TypeATX Mid Tower
  • ColorWhite
  • Case Material2mm Aluminum Panel / 1mm Mesh Panel / 4.0mm Tempered Glass
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityATX (Back Connect) / Micro ATX / Mini ITX

Options 5 Non RGB Fans - White

  • Compact ATX mid-tower fits full-size builds in a small footprint

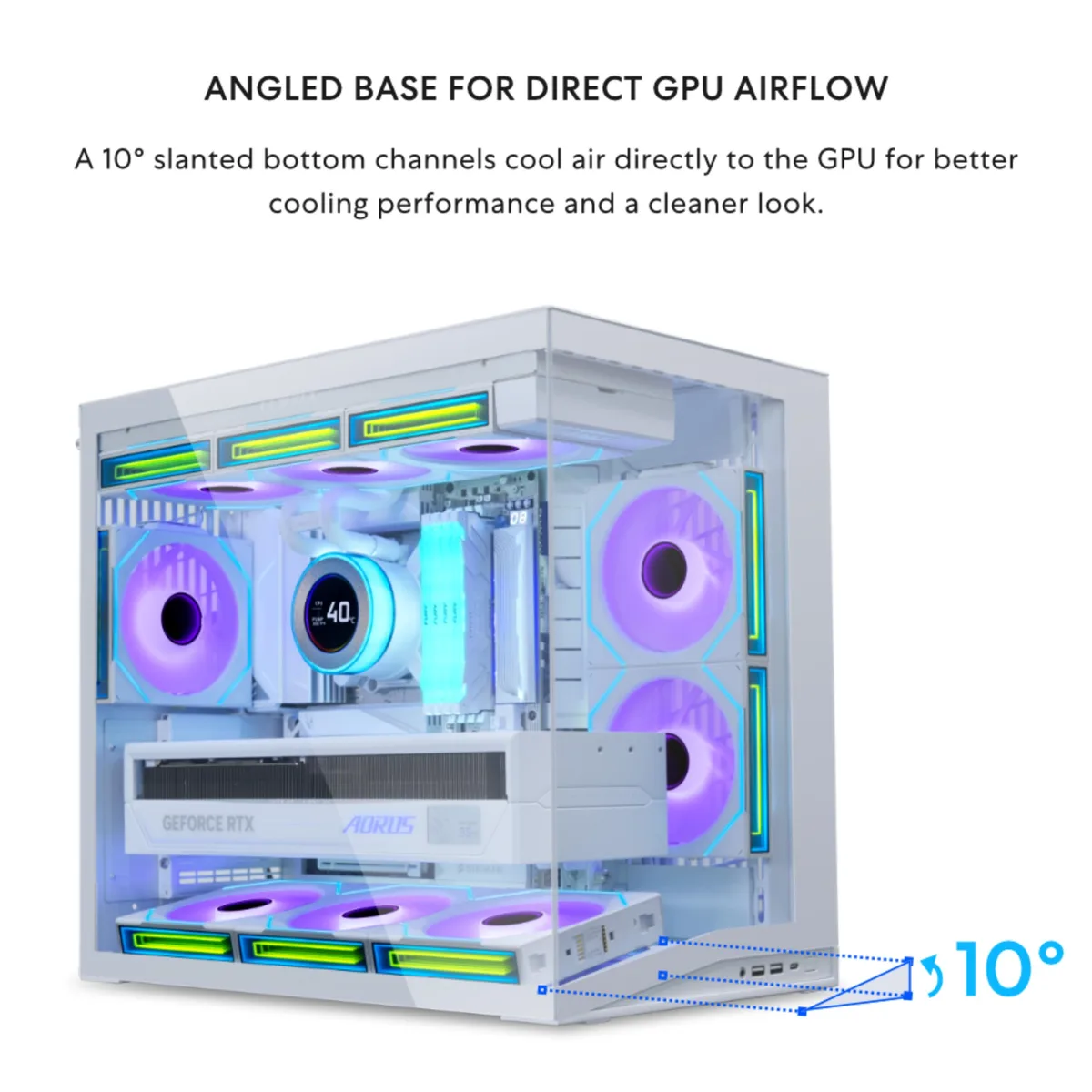

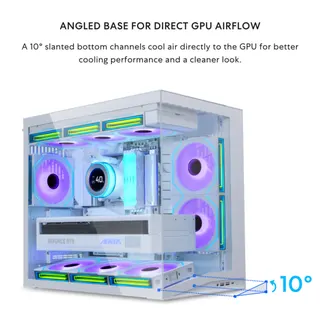

  • 10° slanted bottom panel directs cool air straight to the GPU
  • Five pre-installed 120 mm reverse-blade fans deliver high static-pressure airflow
  • Extended side mesh supports ATX power supplies up to 200 mm long

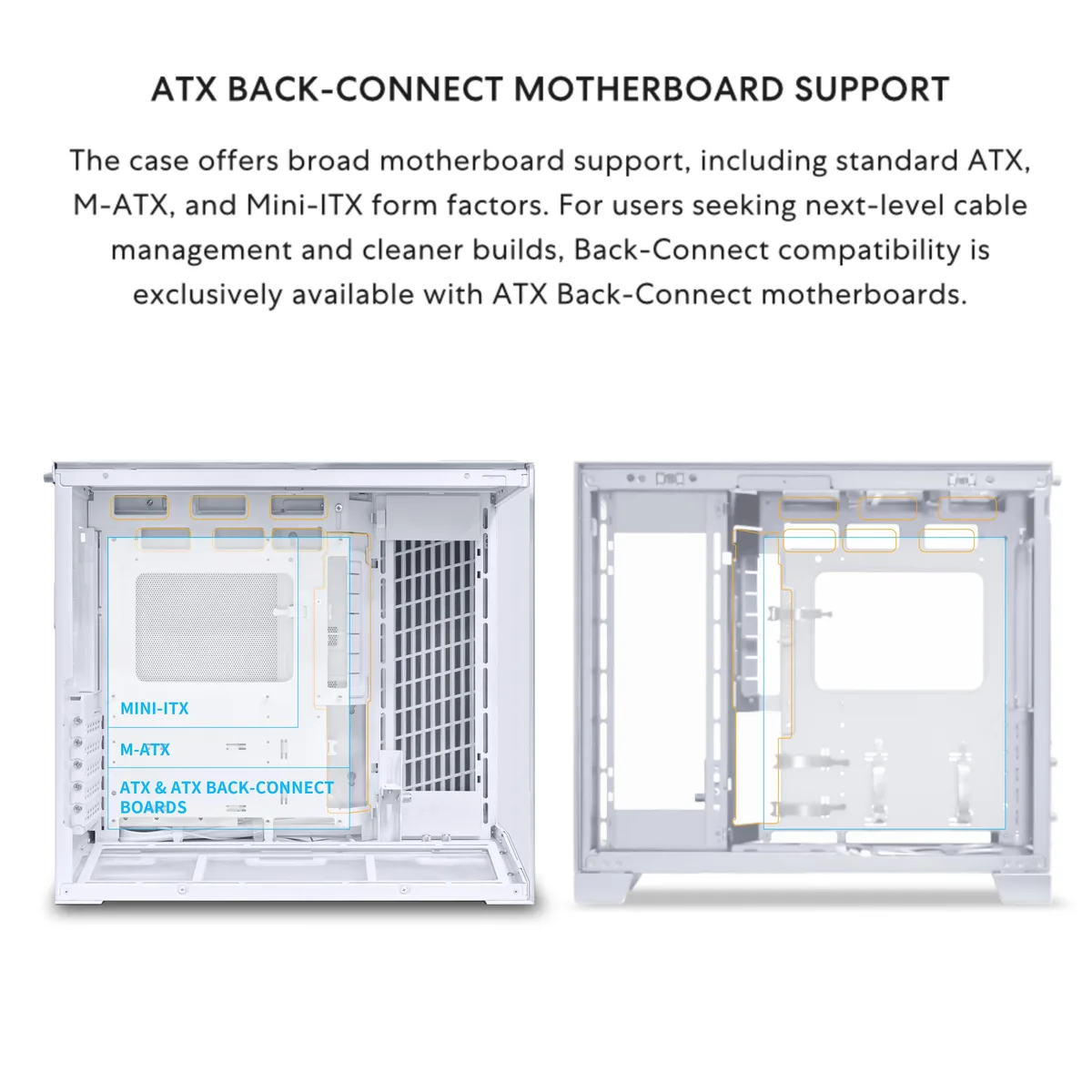

  • ATX back-connect motherboard compatibility keeps cables clean and organised

Compact ATX Mid-Tower Airflow Case

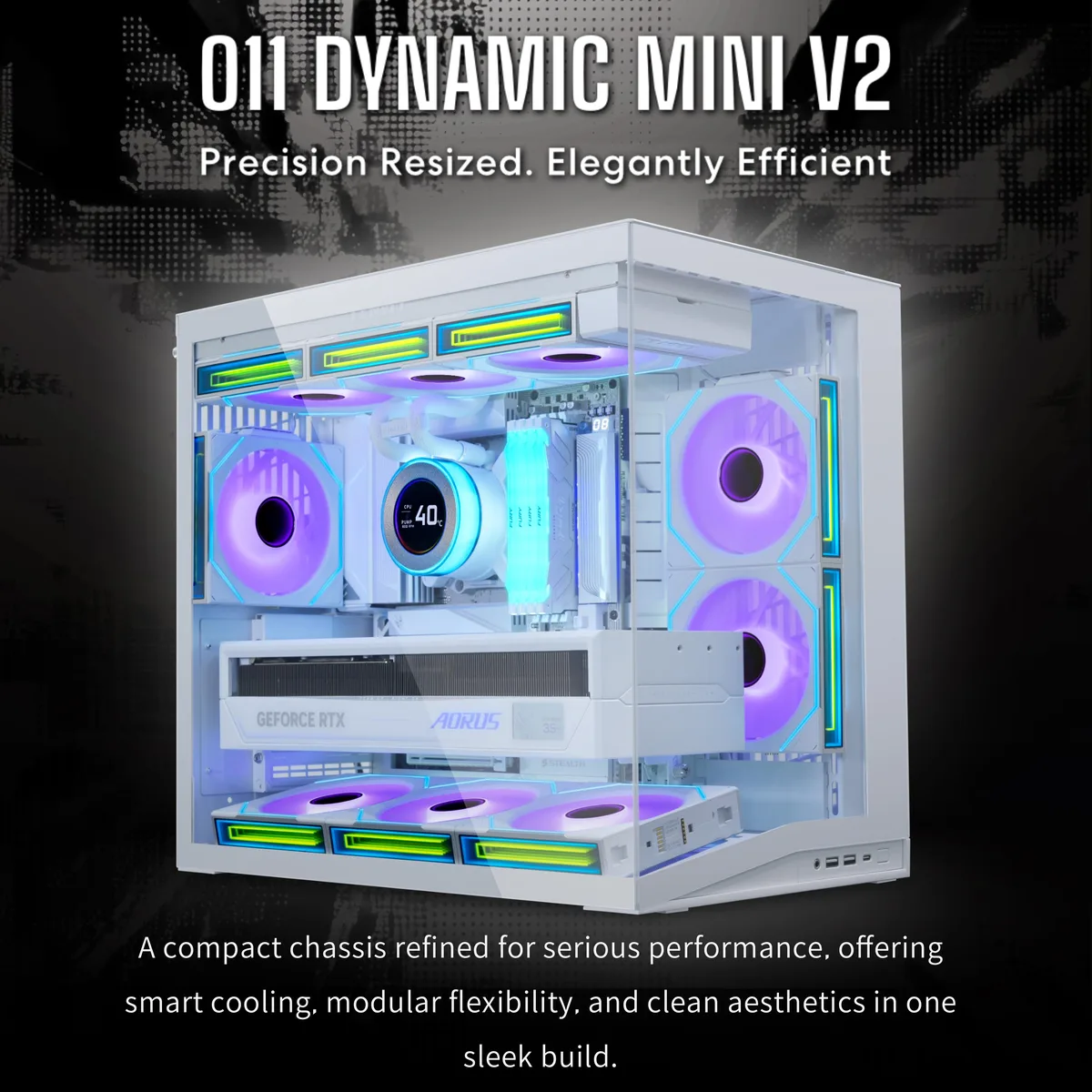

The Lian Li O11D MINI V2 Flow is a compact ATX mid-tower designed for builders who want high airflow in a smaller footprint. It arrives with five pre-installed 120mm reverse blade fans arranged for direct intake and exhaust. The white finish combines 2mm aluminum, 1mm mesh and 4.0mm tempered glass side panels for a clean look.

Radiator And Fan Mount Limits

Top mounts accept up to 280mm or 360mm radiators, or three 120mm and two 140mm fans. The side panel fits a 240mm radiator or two 120mm fans, while the bottom takes three 120mm fans. A single 120mm rear slot completes the cooling options, giving flexibility for air or liquid setups.

Build Details And Daily Use

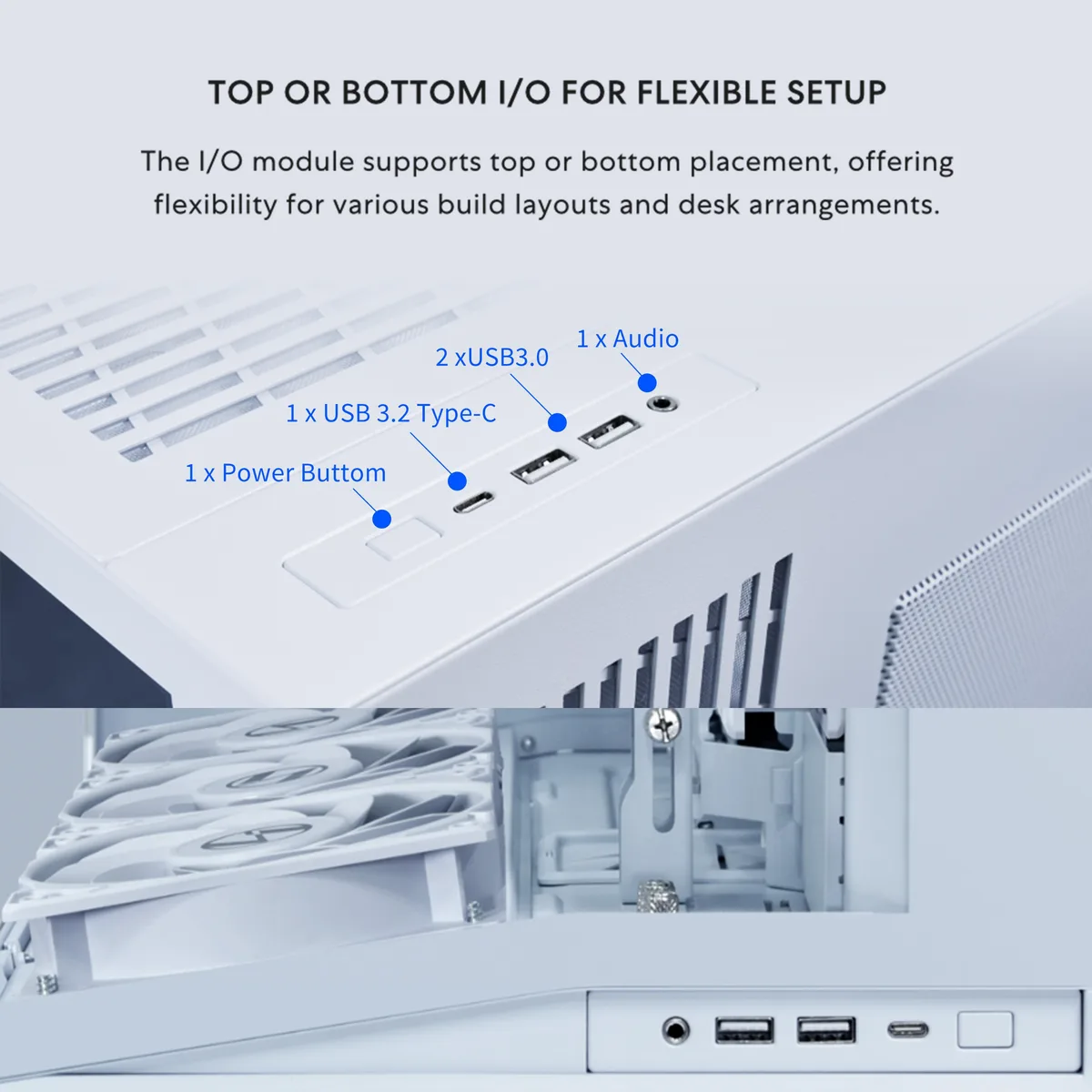

The slanted bottom panel angles intake toward the GPU, and the extended side mesh accommodates ATX power supplies up to 200mm long. Included brackets support the graphics card and the 24-pin motherboard cable to reduce strain. Front I/O provides two USB 3.0 ports, one USB 3.2 Type C, audio and a power button, with top or bottom placement available.

Points forts

  • Compact ATX mid-tower fits full-size builds in a small footprint
  • 10° slanted bottom panel directs cool air straight to the GPU
  • Five pre-installed 120 mm reverse-blade fans deliver high static-pressure airflow
  • Extended side mesh supports ATX power supplies up to 200 mm long
  • ATX back-connect motherboard compatibility keeps cables clean and organised

Caractéristiques

BrandLIAN LI
ModelO11D MINI V2 Flow
Part NumberO11DMIV2W
TypeATX Mid Tower
ColorWhite
Case Material2mm Aluminum Panel / 1mm Mesh Panel / 4.0mm Tempered Glass
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityATX (Back Connect) / Micro ATX / Mini ITX
Side Panel2 x Sides Tempered Glass Panel
LEDARGB
Dust FiltersBottom
External 3.5" Drive BaysDrive Cage: 2.5" SSD x 2 or 3.5" HDD x 2
Internal 2.5" Drive BaysBehind MB Tray: 2.5" SSD x 2
Expansion Slots5
Front Ports2 x USB 3.0
1 x USB 3.2 Type C
1 x Audio
1 x Power Button
Fan OptionsTop: 3 x 120mm or 2 x 140mm
Side: 2 x 120mm (2 x Reverse blade 120mm PWM fan included)
Bottom: 3 x 120mm (3 x Reverse blade 120mm PWM fan included)
Rear: 1 x 120mm
Pre-installed FansBottom - 3 x 120mm / Side - 2 x 120mm
Radiator OptionsSide - Up to 240mm / Top - Up to 280mm / Top - Up to 360mm
Max GPU Length400 mm
Max CPU Cooler Height160 mm
Max PSU Length200 mm

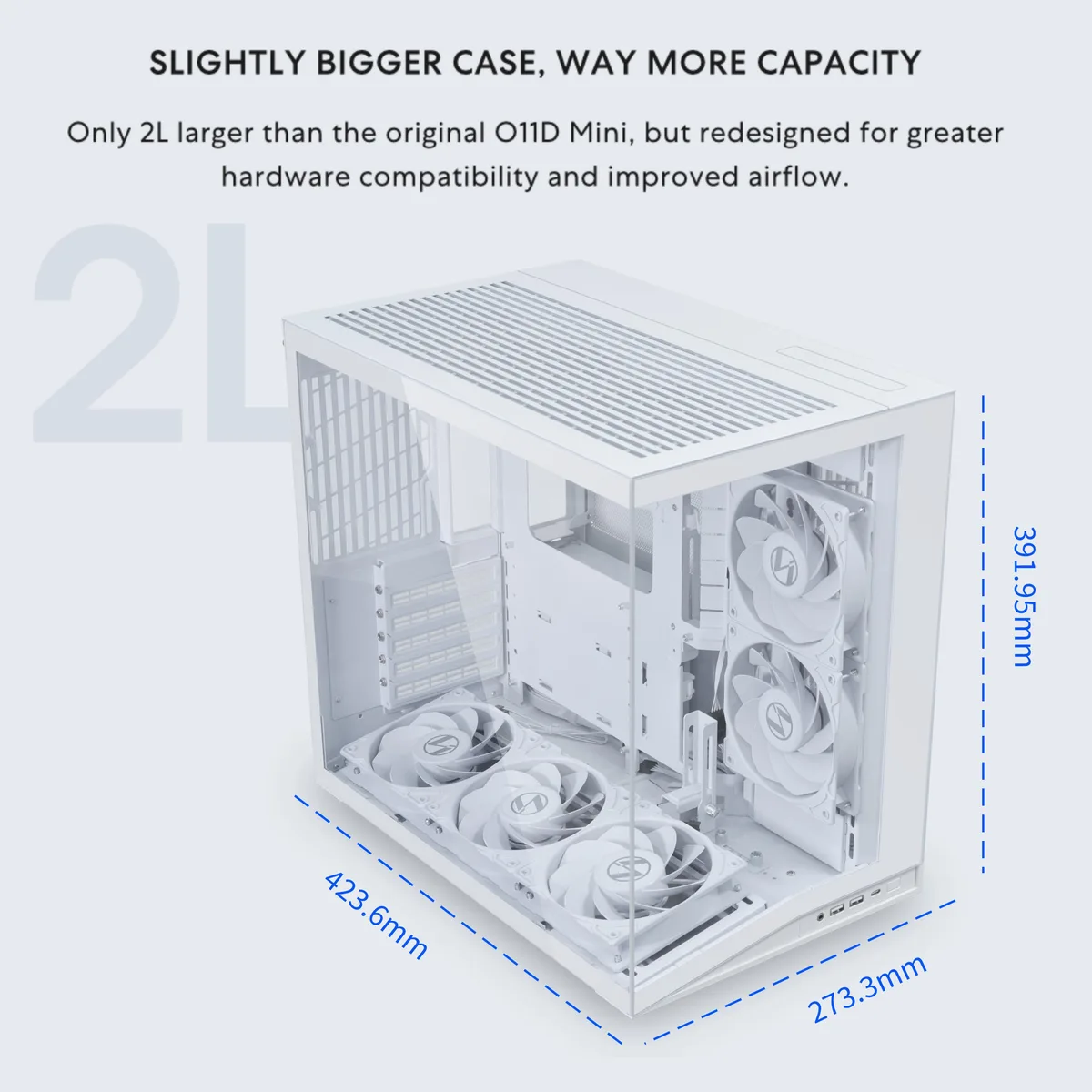

Dimensions15.43" x 10.76" x 16.68"
Weight26 lb
Poids d’expédition11.88 kg
Dimensions du colis521 × 462 × 356 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Should I pick the white or black version of the O11D Mini V2 Flow?

Only the white model (O11DMIV2FW) is listed in the data, so that is the version available.

How does the 10 degree slanted bottom affect GPU thermals inside the case?

The angled floor directs cool air from the three bottom fans straight toward the graphics card, lowering GPU temperatures under load.

What does the USB 3.2 Type C front port actually deliver in daily use?

It provides up to 10 Gbps bandwidth for fast external SSDs or docking stations, limited only by the connected device and motherboard header.
