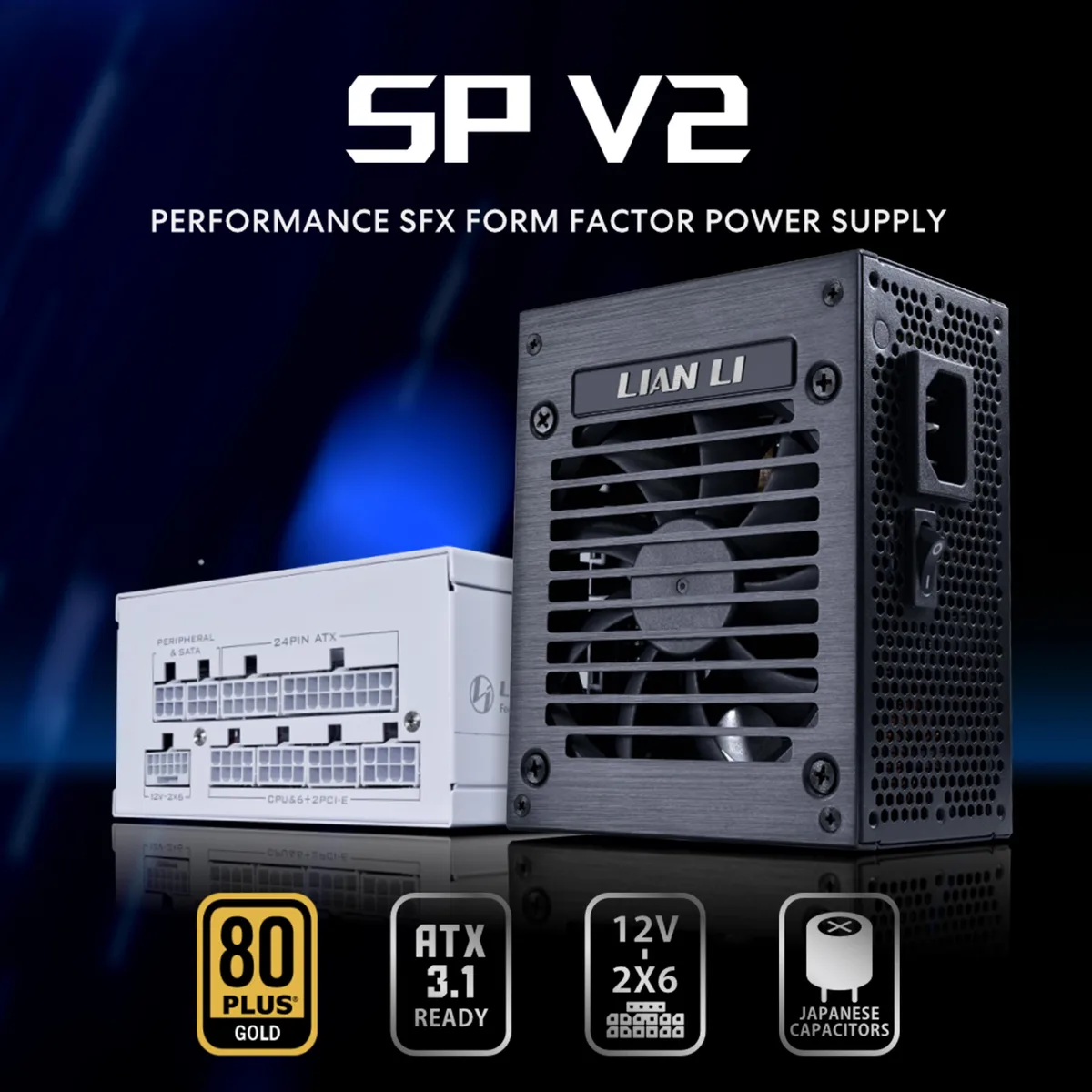

White SFX power supply, compact rectangular shape, matte finish, 92 mm fan visible on one side

Lian Li

Lian Li SP850G.W 850W SFX power supply White

SKU CH-ECQD-FWRC3 MPN SP850G.W

Compact 850W SFX unit with 80 Plus Gold efficiency, ATX 3.1 compliance and a native 12V-2x6 cable for modern GPUs

  • ColorWhite
  • TypeATX (ATX 3.1 Compatible)
  • Maximum Power850W
  • Fans1 x 92 mm FDB Fan
  • PFCActive PFC, PF > 0.90 under full load @ 115Vac, 60Hz
  • ModularFully Modular

Options SFX 80+ Gold (850W) V2 White

  • 850 W output powers demanding small-form-factor builds
  • Fully modular cabling reduces clutter and improves airflow
  • 92 mm FDB fan delivers quiet thermal performance
  • 80 Plus Gold efficiency exceeds 90 % at typical load

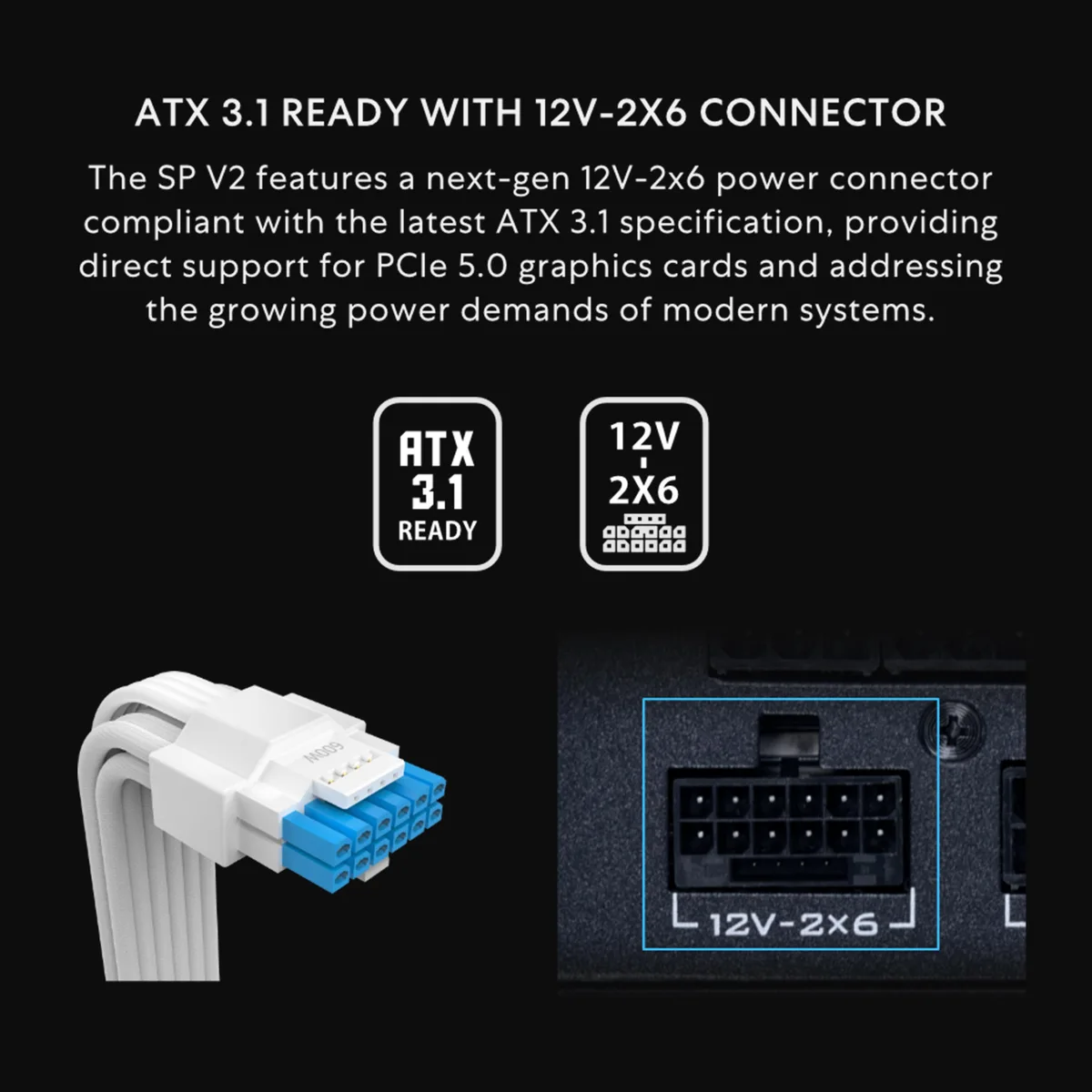

  • Native 12V-2x6 connector supports PCIe 5.0 graphics cards

Compact SFX power for small builds

The Lian Li SP850G.W is an 850W fully modular SFX power supply finished in white. It targets builders assembling compact systems that still demand high wattage for modern components. ATX 3.1 compliance and a native 12V-2x6 connector provide direct support for PCIe 5.0 graphics cards without adapters.

Thermals and efficiency in daily use

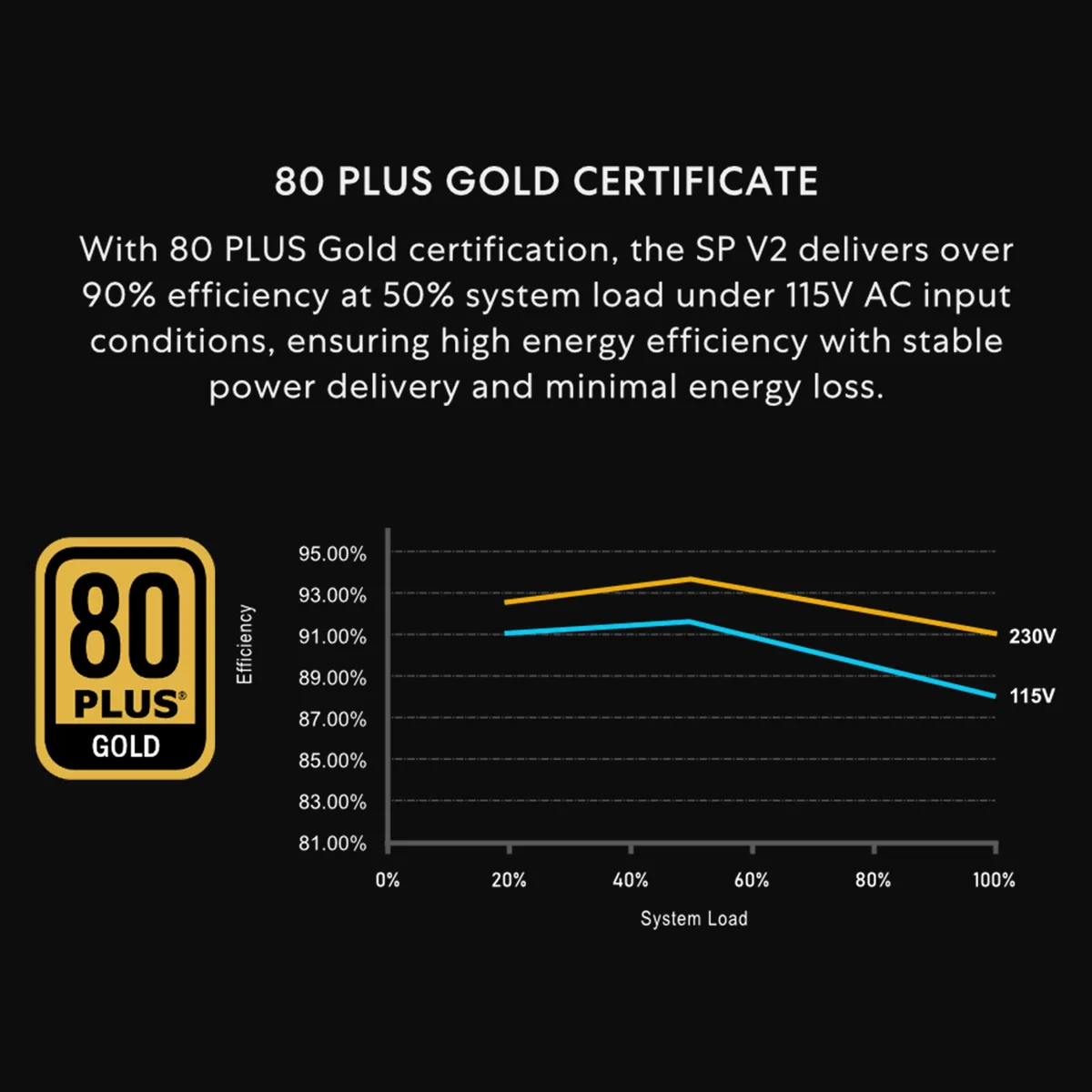

An 80 Plus Gold rating confirms over 90% efficiency at 50% load under 115V input, reducing waste heat. A single 92mm FDB fan handles cooling with a focus on low-noise operation. Active PFC maintains a power factor above .90 at full load across the 100-240Vac input range.

Build quality and cable implications

Fully modular cabling lets you install only the connectors required, keeping the interior tidy in tight chassis. The package includes two EPS cables at 600mm, two PCIe 6+2pin cables at 400mm, a 12V-2x6 to PCIe 6+2pin cable at 400mm, and a native 12V-2x6 cable at 420mm. A SATA cable chain covers drive power needs. Multiple protection circuits (OCP, OVP, OTP, OPP, SCP, UVP, NLP, SIP) guard the system.

Points forts

  • 850 W output powers demanding small-form-factor builds
  • Fully modular cabling reduces clutter and improves airflow
  • 92 mm FDB fan delivers quiet thermal performance
  • 80 Plus Gold efficiency exceeds 90 % at typical load
  • Native 12V-2x6 connector supports PCIe 5.0 graphics cards

Caractéristiques

BrandLIAN LI
SeriesSP series
ColorWhite
TypeATX (ATX 3.1 Compatible)
Maximum Power850W
Fans1 x 92 mm FDB Fan
PFCActive PFC, PF > 0.90 under full load @ 115Vac, 60Hz
ModularFully Modular
Energy-Efficient80 Plus Gold
ProtectionOCP / OVP / OTP / OPP / SCP / UVP / NLP / SIP
Input Voltage100-240Vac
Input Frequency Range60-50Hz 10-5A
Connectors20+4pin: 350mm * 1pc
CPU - EPS 8pin: 600mm * 1pc
CPU - EPS 4+4pin: 600mm * 1pc
CPU - EPS 8pin: 600mm * 1pc
PCIe 6+2pin: 400mm * 2pcs
12V-2x6 to PCIe 6+2pin: 400mm *1
12V-2x6: 420mm * 1pc
SATA+PATA: 300+15+15+15mm * 1pc
SATA+PATA: 120+120+120+120mm * 1pc
Dimensions125mm(W)x63.5mm(H)x100mm(D)
Weight3.92 lbs
Poids d’expédition1.86 kg
Dimensions du colis241 × 178 × 102 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will this SFX unit fit in a case that only accepts the 125 mm × 100 mm × 63.5 mm form factor?

Yes, the housing measures exactly 125 mm wide, 100 mm deep and 63.5 mm high, matching the standard SFX envelope.

Does the box include a native 12V-2x6 cable for a PCIe 5.0 graphics card, or do I need an adapter?

A dedicated 12V-2x6 cable 420 mm long is supplied, plus a 12V-2x6 to PCIe 6+2 pin cable 400 mm long, so no adapter is required.

How many EPS connectors are provided for a dual-CPU or high-end motherboard?

Two separate EPS cables are included: one 8-pin and one 4+4-pin, each 600 mm long.
