Lian Li

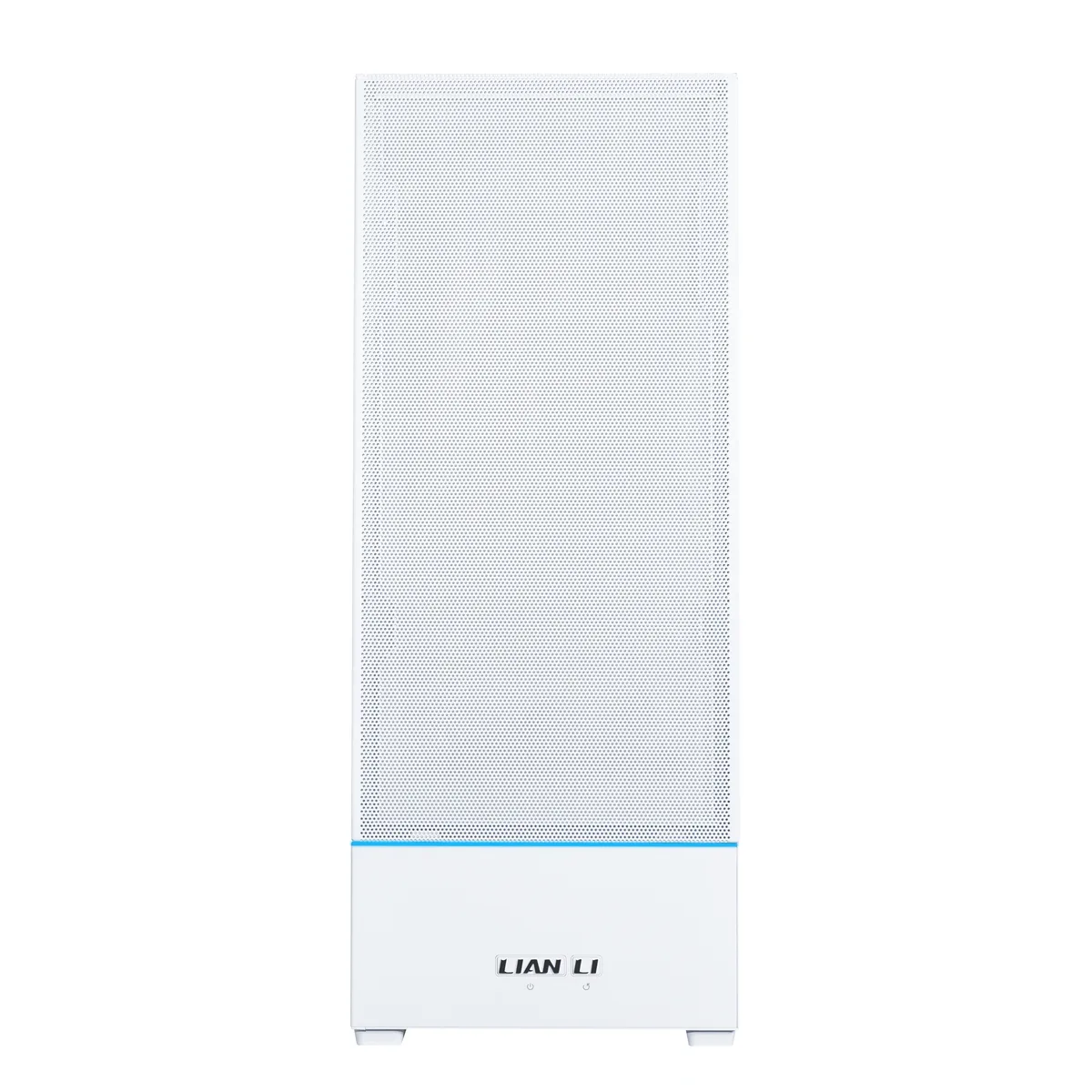

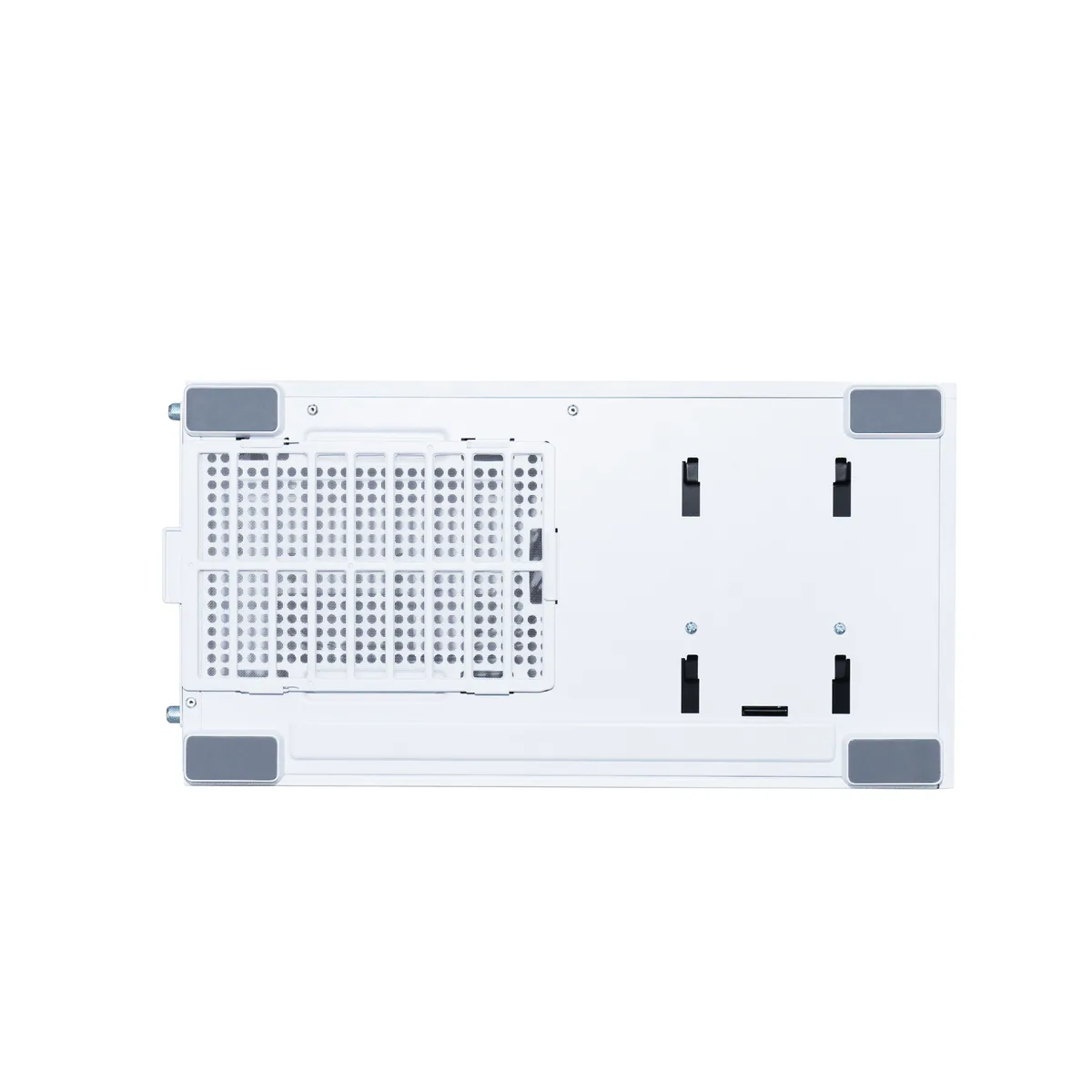

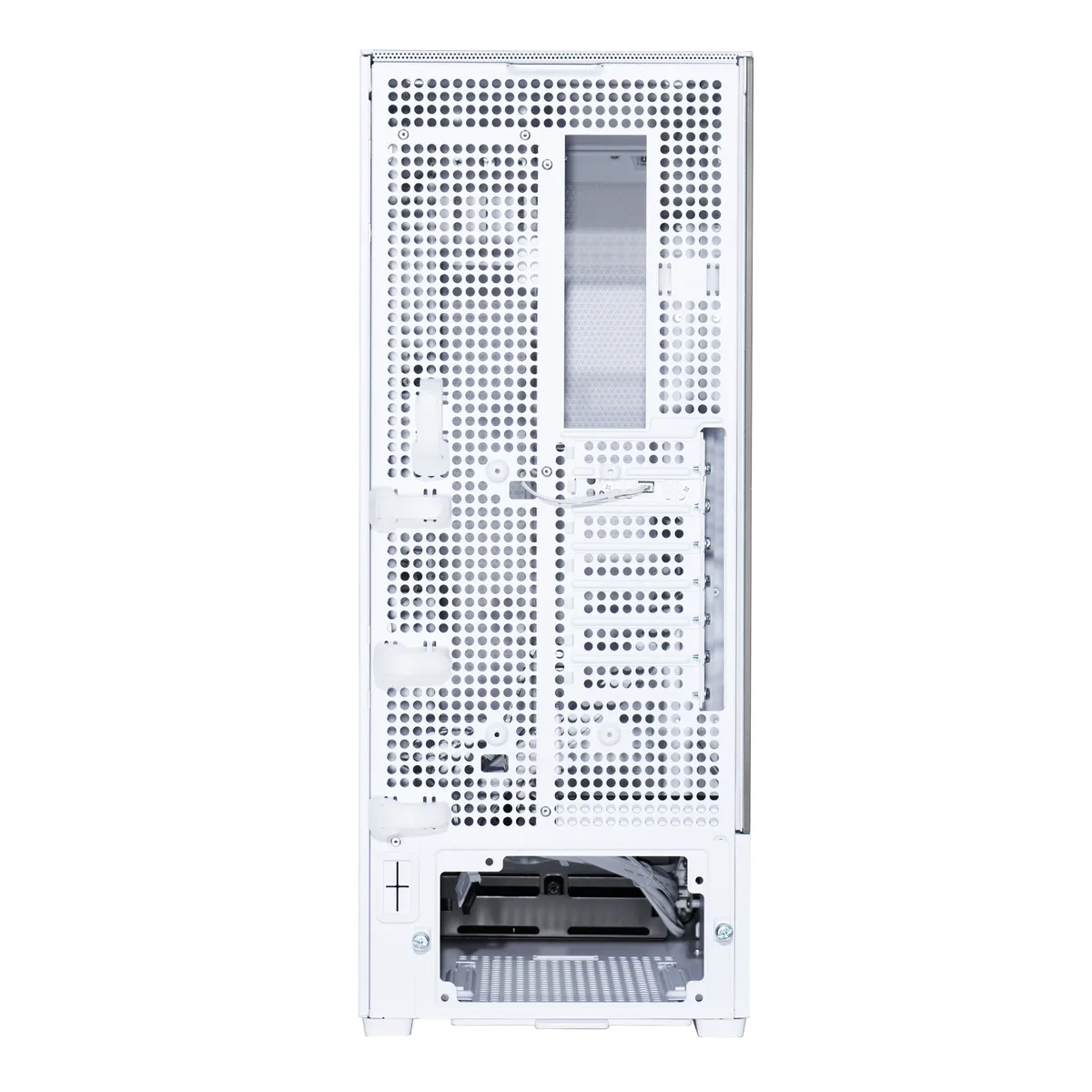

Lian Li SUP01W White ATX Mid Tower PC Case
White steel mid-tower with tempered glass side panel, pre-installed 120 mm fans, 510 mm PCIe 4.0 riser cable with aRGB strip, and room for a 360 mm radiator
- 120mm Fans3
- Fan OptionsSide 1: 3 x 120mm Side 2: 3 x 120mm or 2 x 140mm Rear exteri
- Radiator OptionsSide 2: 360mm or 280mm
- Power Supply MountedBottom
- ColorWhite
- Case MaterialSteel / Tempered Glass
Options White
- Black
- White
- Vertical stand-up design shrinks desk footprint to 45 L
- Three pre-installed 120 mm fans deliver direct GPU airflow
- 510 mm PCIe 4.0 riser cable with aRGB bracket included
- Supports 360 mm or 280 mm radiator on side panel
- Fits 400 mm GPU, 220 mm PSU and 88.2 mm CPU cooler
Vertical Layout

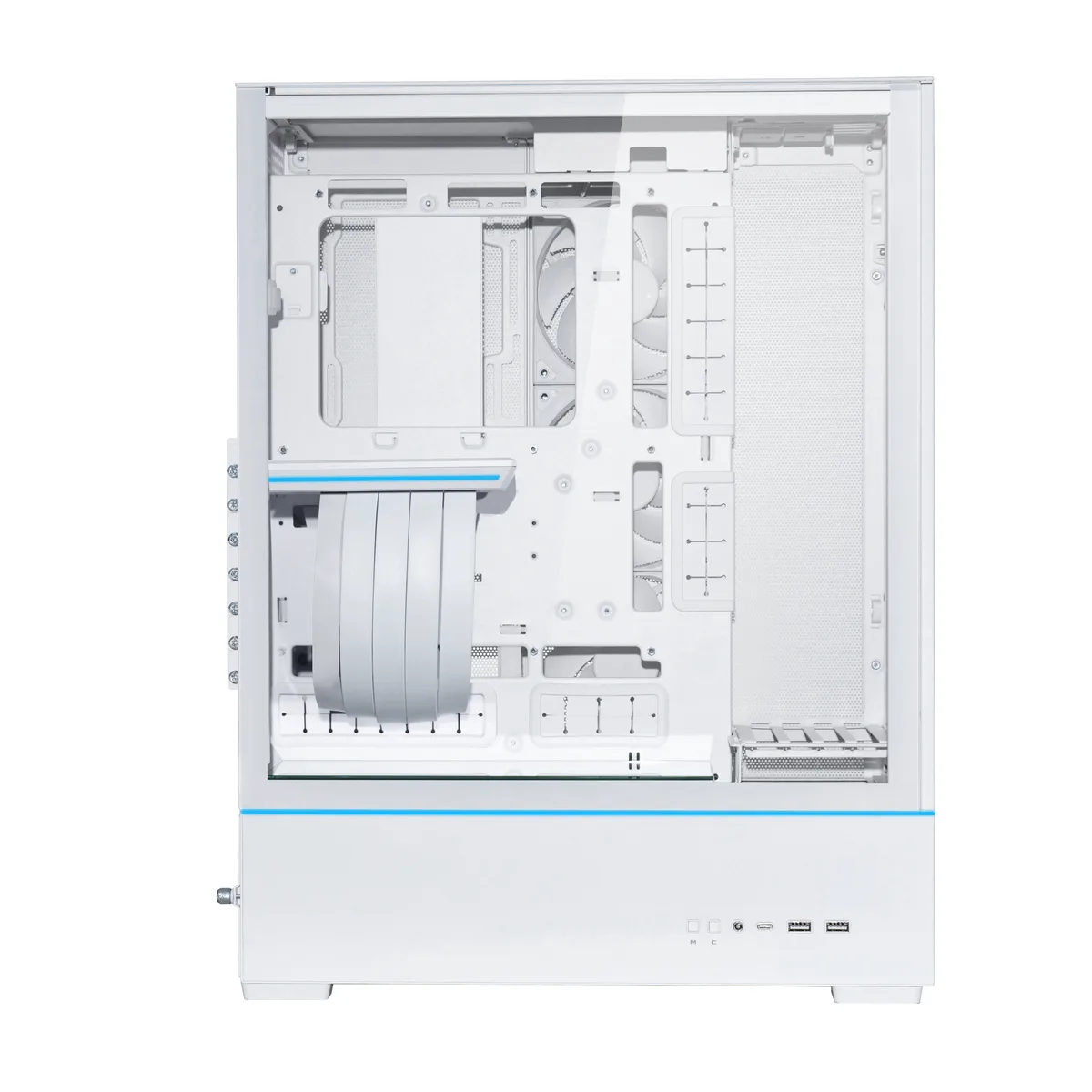

The Lian Li SUP01W is a white ATX mid-tower case that stands upright to shrink desk footprint. Its 45L internal volume fits ATX, Micro-ATX and ITX boards including back-connect variants. Three pre-installed 120mm fans and a 510mm PCIe 4.0 riser cable with an aRGB strip ship in the box.
Cooling Constraints

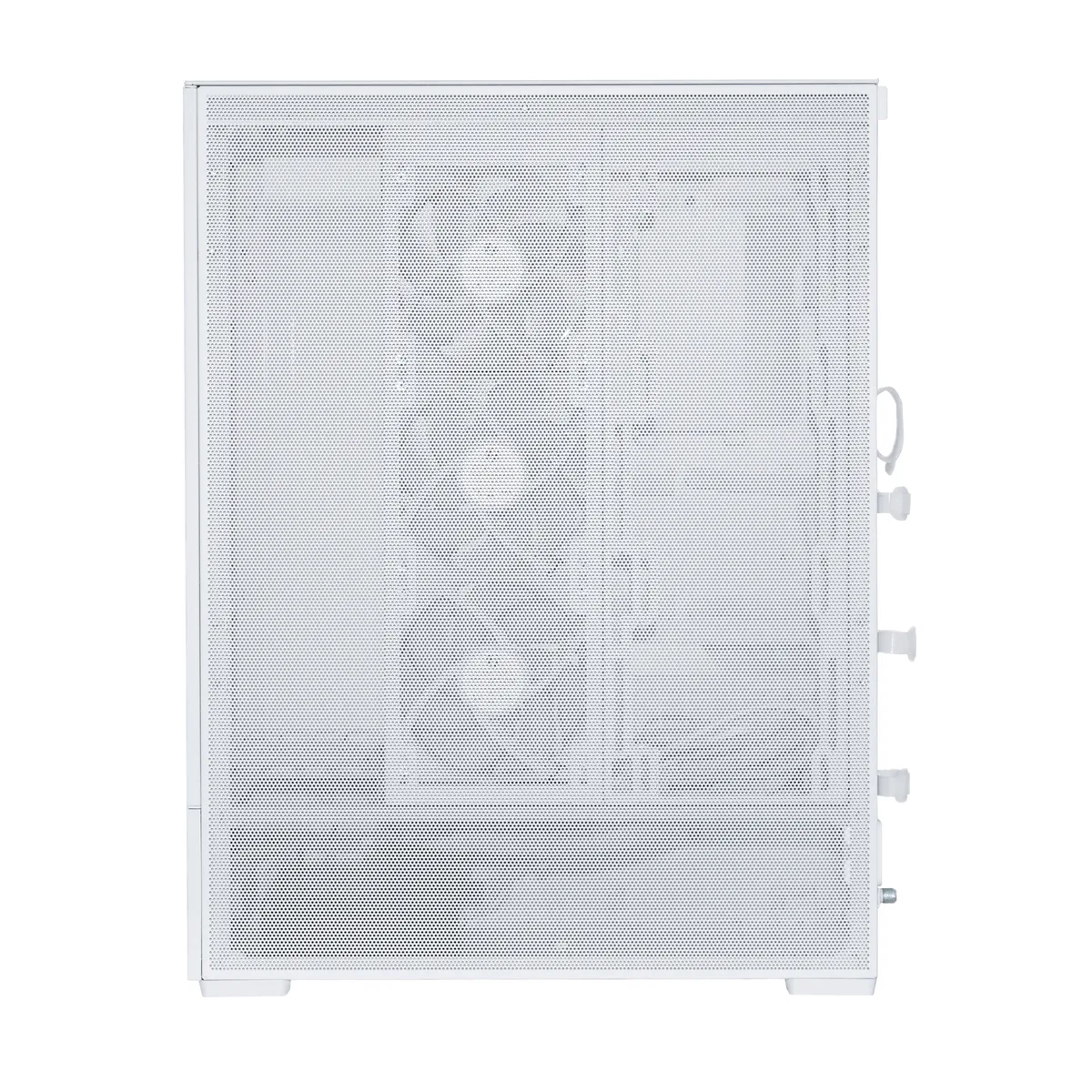

Side panels accept three 120mm fans on the first side and either three 120mm or two 140mm fans on the second side. A single 120mm rear exhaust is also available. Radiator support tops out at 360mm or 280mm on the second side panel only.
Capacity Limits
Two 3.5-inch and four 2.5-inch drive bays provide storage headroom. Graphics cards up to 400mm long are supported when the riser cable is used, but only four expansion slots remain for standard-profile cards. CPU coolers cannot exceed 88.2mm in height and power supplies are limited to 220mm depth.
Points forts
- Vertical stand-up design shrinks desk footprint to 45 L
- Three pre-installed 120 mm fans deliver direct GPU airflow
- 510 mm PCIe 4.0 riser cable with aRGB bracket included
- Supports 360 mm or 280 mm radiator on side panel
- Fits 400 mm GPU, 220 mm PSU and 88.2 mm CPU cooler
Caractéristiques
| 120mm Fans | 3 |
|---|---|
| Fan Options | Side 1: 3 x 120mm Side 2: 3 x 120mm or 2 x 140mm Rear exterior: 1x 120mm |
| Radiator Options | Side 2: 360mm or 280mm |
| Power Supply Mounted | Bottom |
| Color | White |
| Case Material | Steel / Tempered Glass |
| Type | ATX / Micro ATX Mid Tower |
| With Power Supply | No |
| Side Panel | with Side Window |
| Brand | LIAN LI |
| Model | SUP01W |
| Internal 3.5" Drive Bays | 2 |
| Internal 2.5" Drive Bays | 4 |
| Expansion Slots | 7 (for low profile card) 4 (for standard profile card with extension cable) |
| Max GPU Length | 400 mm |
| Max CPU Cooler Height | Max 88.2mm |
| Max PSU Length | 220 mm |
| Dimensions | (H) 534mm x (W) 212mm x (D) 403.45mm |
| Poids d’expédition | 4.76 kg |
| Dimensions du colis | 611 × 528 × 287 mm |
Autres versions de ce modèle
1 de plus dans cette gamme
Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.
Questions sur cet article
How do I decide between the two side-panel fan configurations?
Side 1 is fixed at three 120mm fans. Side 2 accepts either three 120mm or two 140mm fans, so choose 140mm for quieter airflow or 120mm if you prefer matching the pre-installed set.
What does the 400 mm GPU clearance mean for my graphics card choice?
Any card up to 400 mm long will fit, which covers most modern triple-fan models; measure your card before buying to be sure.
What does the PCIe 4.0 riser cable limit in practice?
The included 510 mm riser is rated for PCIe 4.0 speeds, so it will not bottleneck current-gen GPUs when installed in the vertical bracket.
