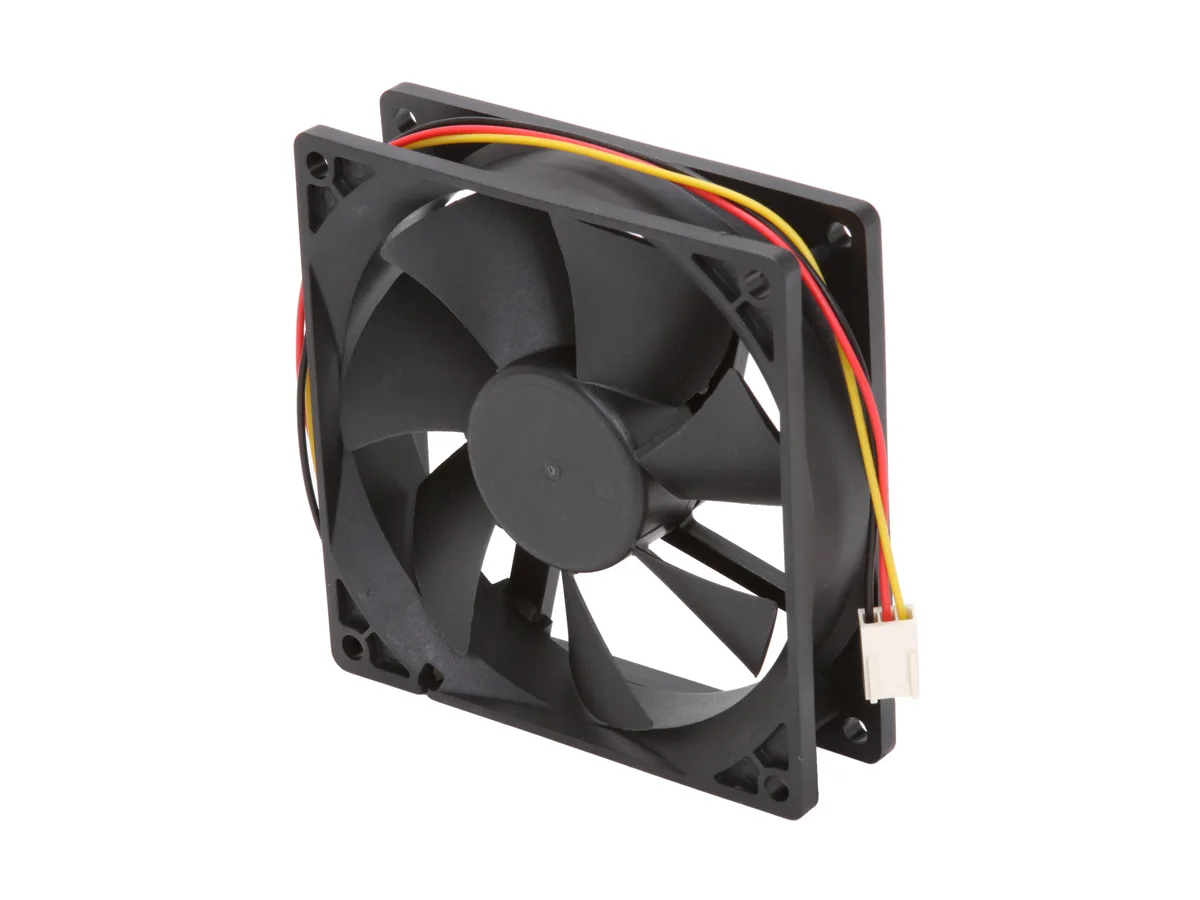

Black 92mm square case fan with black blades and three-pin connector

Link Depot Corp.

Link Depot Corp. FAN-9225-B 92mm Case Fan 2500RPM 43.5CFM 28.8dBA 3 Pin Sleeve Black

SKU CH-CT50-GSKX8 MPN FAN-9225-B

A 92mm case fan delivering 43.5CFM airflow at 2500RPM with 28.8dBA noise using a sleeve bearing and 3-pin connector

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size92mm
  • Fan Thickness25mm
  • 92 mm size fits standard case mounts
  • 2500 RPM speed delivers 43.5 CFM airflow
  • Sleeve bearing keeps noise to 28.8 dBA
  • 3 pin connector works with most motherboard headers
  • Black finish matches dark-themed builds

92mm 2500RPM case fan for compact builds

The Link Depot FAN-9225-B is a single 92mm case fan that spins at 2500RPM and moves 43.5CFM of air. It uses a sleeve bearing and a three-pin power connector. Noise is rated at 28.8dBA. The black frame measures 92 by 92 by 25mm and fits standard 92mm mounting holes. It is aimed at builders who need basic airflow in tight chassis.

Replaces slower or louder 92mm fans in existing

If a current 92mm fan runs at lower RPM, delivers less airflow or produces more noise, this unit can improve cooling without changing mount points. The jump is worth it when the old fan cannot keep component temperatures in check or its bearing has become audible. No controller is included, so speed is managed by the motherboard header.

Check 92mm mounting space

Verify the case has a 92mm fan location with 25mm clearance and that a three-pin fan header is free on the motherboard. Sleeve bearings suit moderate duty cycles; systems running fans at high speed continuously may prefer a different bearing type. The fan ships without a controller or adapter cables.

Points forts

  • 92 mm size fits standard case mounts
  • 2500 RPM speed delivers 43.5 CFM airflow
  • Sleeve bearing keeps noise to 28.8 dBA
  • 3 pin connector works with most motherboard headers
  • Black finish matches dark-themed builds

Caractéristiques

BrandLink Depot
ModelFAN-9225-B
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size92mm
Fan Thickness25mm
Bearing TypeSleeve
RPM2500RPM
Air Flow43.5CFM
Noise Level28.8dBA
Power Connector3 Pin
ColorBlack
Dimensions92 x 92 x 25mm
Poids d’expédition0.08 kg
Dimensions du colis89 × 89 × 25 mm

Questions sur cet article

Will the 92mm frame and 25mm thickness fit my case's 92mm mounting holes?

The fan measures 92 x 92 x 25mm, matching the standard 92mm square pattern used by most cases.

How do I connect the 3-pin power connector so the motherboard reads the speed correctly?

Align the three pins with the motherboard's 3-pin fan header; the keyed shroud prevents reverse insertion.

When should I expect the sleeve bearing to need replacement?

Sleeve bearings typically run quieter at 28.8dBA but may develop noise after several years of continuous 2500RPM operation.
