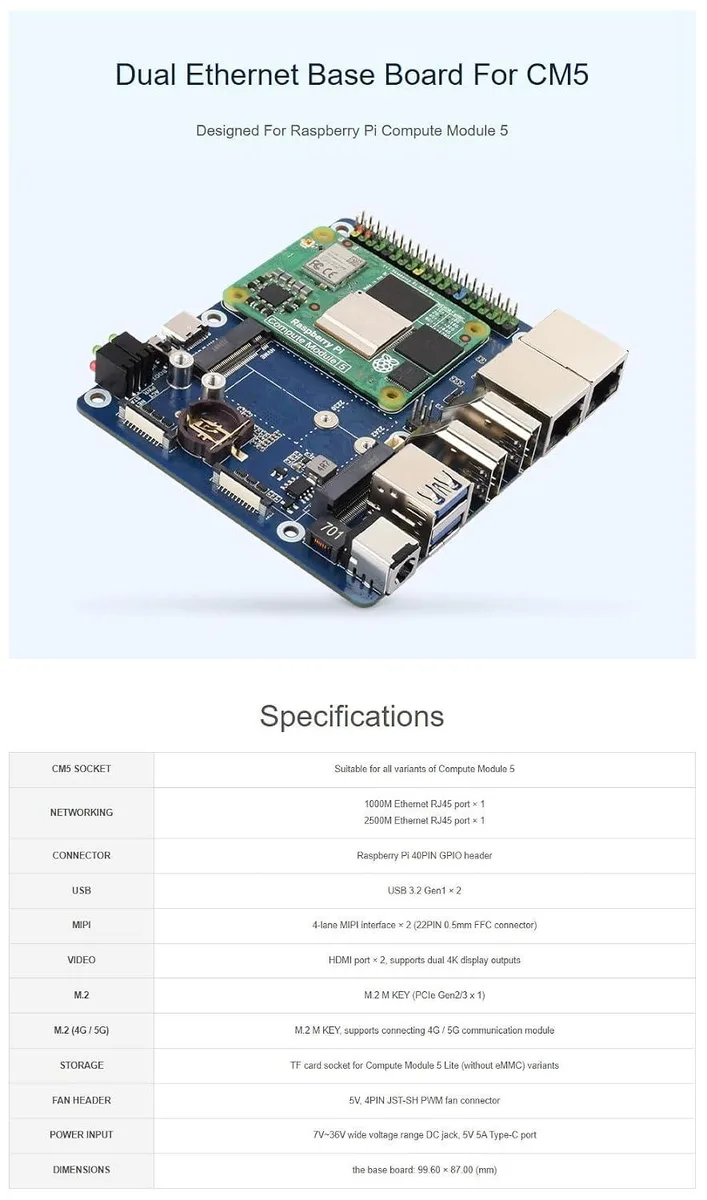

Green rectangular circuit board with dual RJ45 ports, two HDMI sockets, USB connectors and 40-pin GPIO header

LORDWORLD

LORDWORLD Dual Ethernet Base Board for Raspberry Pi CM5 development board

SKU CH-ZYJ4-PDXGC

Base board for Raspberry Pi CM5 with dual Ethernet, dual 4K HDMI, M.2 NVMe slot, dual USB 3.2 Gen1, M.2 B-Key for 4G/5G, PoE-ready, 40-pin GPIO

  • Two RJ45 ports give robust wired connectivity
  • M.2 B-Key slot accepts 4G or 5G modules
  • Dual 4K HDMI plus dual MIPI for high-resolution displays
  • M.2 NVMe slot and two USB 3.2 Gen1 ports boost storage speed
  • PoE-ready with standard CM5 socket and 40-pin GPIO header

Dual Ethernet Base Board for CM5

This base board adds two RJ45 LAN ports, dual 4K HDMI outputs and dual MIPI display interfaces to a Raspberry Pi Compute Module 5. It also provides an M.2 B-Key slot for 4G or 5G modules, an M.2 NVMe slot for fast storage and two USB 3.2 Gen1 ports for peripherals. A PoE-ready design and a standard 40PIN GPIO header complete the feature set for edge-compute deployments.

Target users and limits

The board suits OEMs and integrators building industrial, kiosk or networking appliances that need dual wired Ethernet and optional cellular connectivity. It works with CM5 Lite and eMMC variants and supports booting from an NVMe SSD. Buyers who need a single Ethernet port or who have no use for dual 4K display outputs should look at simpler carrier boards instead.

Deciding specification

The defining feature is the dual RJ45 Ethernet implementation on a CM5 carrier, giving two independent wired network interfaces in a single compact board. This directly determines whether the platform fits applications such as router appliances, network gateways or redundant-link edge nodes.

Points forts

  • Two RJ45 ports give robust wired connectivity
  • M.2 B-Key slot accepts 4G or 5G modules
  • Dual 4K HDMI plus dual MIPI for high-resolution displays
  • M.2 NVMe slot and two USB 3.2 Gen1 ports boost storage speed
  • PoE-ready with standard CM5 socket and 40-pin GPIO header

Caractéristiques

BrandLORDWORLD

Questions sur cet article

What mounting holes does the 40PIN GPIO header use?

The color-coded 40PIN GPIO header follows the standard Raspberry Pi HAT mounting pattern for direct attachment to the base board.

How is the Compute Module 5 seated, and what step is often missed?

Align the CM5 Lite or eMMC variant with the standard CM5 socket keying and press evenly until the side latches click; skipping the latch check leaves the module partially seated.

When should the NVMe SSD be replaced?

Replace the NVMe SSD when SMART health indicators show rising reallocated sectors or when sustained write performance drops below expected levels.
