Green circuit board with 40-pin header, USB 3.1 port, SIM slot, audio jack, two LEDs, and silver shielded module mounted on top

LORDWORLD

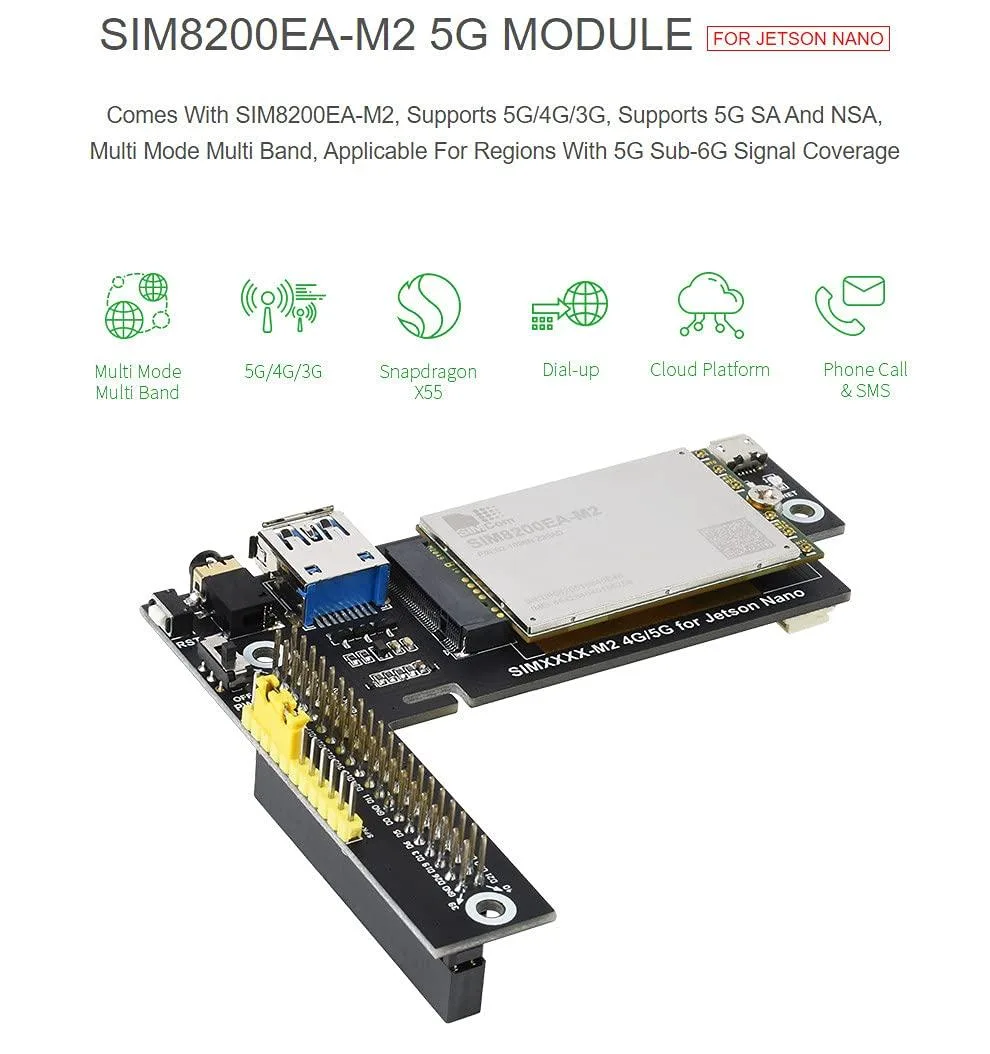

LORDWORLD SIM8200EA-M2 5G Module for Jetson Nano

SKU CH-TT16-0JTQ5

Adds 5G, 4G and 3G connectivity to a Jetson Nano via a 40-pin header, using a Snapdragon X55 module with multi-band support, USB 3.1, SIM slot, dual-band GNSS and audio

  • Direct Jetson Nano attachment via 40-pin GPIO header
  • Snapdragon X55 core delivers 5G, 4G and 3G connectivity
  • USB 3.1 port enables AT commands, data and GNSS
  • Dual-band GNSS with GPS, GLONASS, Beidou, Galileo, QZSS
  • Onboard audio jack and decoder support voice calls

Jetson Nano 5G Module

The LORDWORLD SIM8200EA-M2 adds cellular connectivity to a Jetson Nano through its standard 40PIN GPIO extension header. Developers working on edge AI projects that require mobile broadband can attach the board directly without extra wiring. It suits prototypes needing 5G, 4G or 3G links for data, voice or SMS.

Sub-6G and USB 3.1 limits

The module operates only in regions with 5G Sub-6G signal coverage and does not support mmWave bands. Its USB 3.1 port provides a path for AT command testing, GNSS data streaming and voice calls, but throughput is bounded by the USB 3.1 interface itself. The Qualcomm Snapdragon X55 baseband handles multi-mode, multi-band negotiation within those constraints.

Capacity and headroom

Dual-band GNSS covering GPS, GLONASS, Beidou, Galileo and QZSS gives broad positioning coverage for asset-tracking or robotics uses. The SIM slot accepts 1.8V and 3V cards, and two LEDs show power and network status at a glance. Audio jack and decoder enable voice calls, yet the board lacks built-in storage or Wi-Fi, so data-logging applications need an external solution.

Points forts

  • Direct Jetson Nano attachment via 40-pin GPIO header
  • Snapdragon X55 core delivers 5G, 4G and 3G connectivity
  • USB 3.1 port enables AT commands, data and GNSS
  • Dual-band GNSS with GPS, GLONASS, Beidou, Galileo, QZSS
  • Onboard audio jack and decoder support voice calls

Caractéristiques

BrandLORDWORLD

Questions sur cet article

How do I pick the right SIM card voltage for the SIM8200EA-M2 module?

The onboard SIM slot accepts both 1.8 V and 3 V cards, so choose whichever voltage your carrier provides.

What does the Snapdragon X55 platform deliver when the module is mounted on a Jetson Nano?

It enables 5G, 4G and 3G connectivity with voice calls, SMS, cloud data and multi-constellation GNSS positioning over the USB 3.1 link.

Which interface connects the module to the Jetson Nano and what throughput does it cap at?

The board uses the standard 40-pin GPIO header and a USB 3.1 port, limiting practical speed to the USB 3.1 specification.
