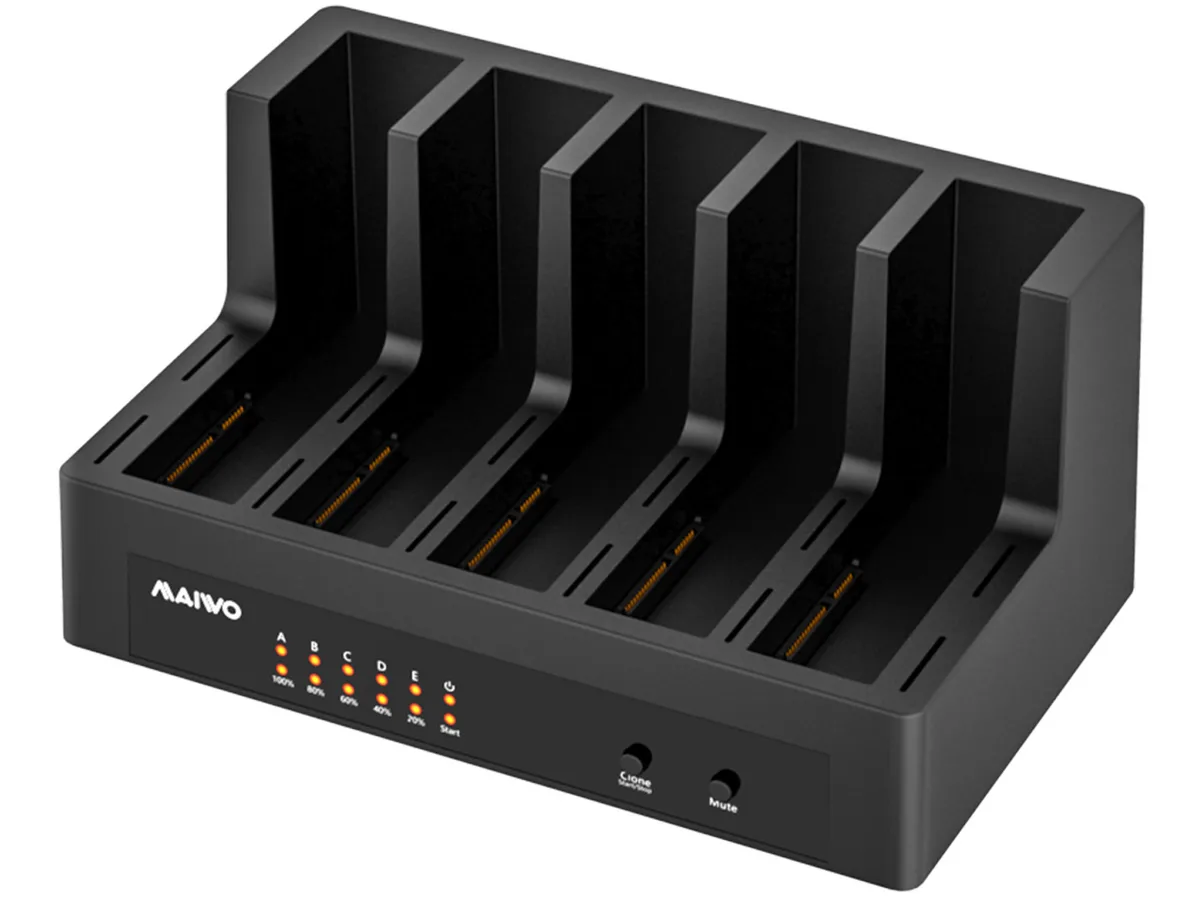

Black vertical five-bay SATA dock with cooling fan and clone switch

MAIWO

MAIWO K30945 5 Bay SATA Docking Station

SKU CH-VBP9-5JN2P

Five-bay SATA dock handles 2.5" and 3.5" drives up to 90 TB total with USB 3.0 at 5 Gbps and offline cloning

  • ColorBlack
  • Size2.5" & 3.5"
  • TypeDock
  • AC AdapterYes
  • MaterialAluminum / Plastic
  • Internal InterfaceSATA
  • Offline cloning duplicates drives without a computer
  • USB 3.0 interface delivers up to 5 Gbps transfer speed
  • Five bays accept 2.5" and 3.5" SATA drives simultaneously
  • Built-in fan and vented chassis keep drives cool
  • Total capacity scales to 90 TB across all bays

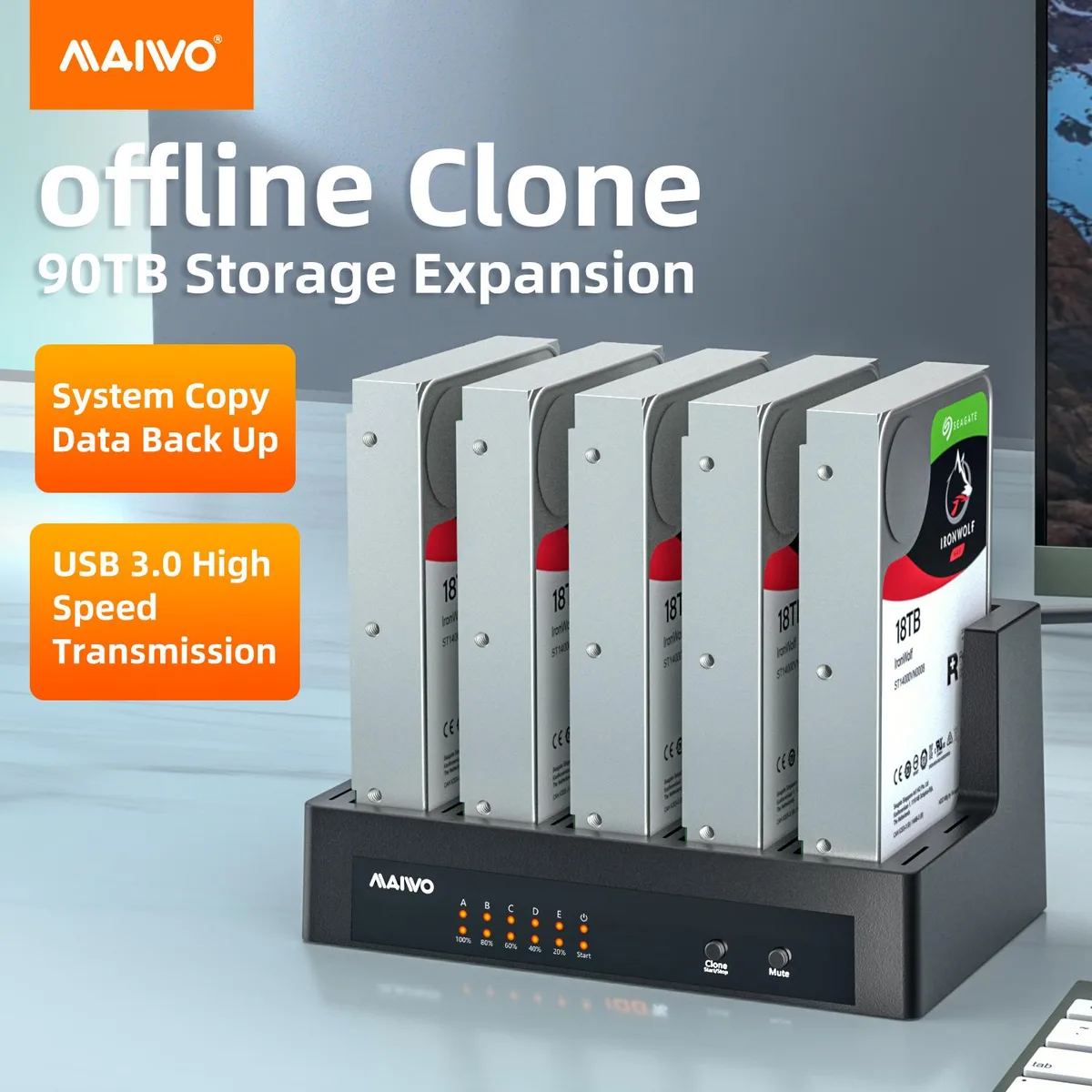

Five-Bay SATA Docking Station

The MAIWO K30945 provides five vertical bays that accept both 2.5 and 3.5 inch SATA drives, allowing up to 90 TB of total capacity with 18 TB per bay. It connects to a host via USB 3.0 at 5 Gbps and includes a 12 V power adapter plus a 3.3 ft cable for immediate use.

Replaces Single-Bay Docks and Manual Swapping

Moving from a one- or two-bay unit to this five-bay model lets you keep multiple drives online at once, removing the need to power down and swap disks during backups or archiving. The jump is worthwhile when daily workflows touch several drives and offline cloning of one source to up to three targets without a computer saves hours of copy time.

Sustained Operation with Active Cooling

Built-in fan and ventilation holes keep temperatures stable during long clone jobs or continuous read-write sessions, while a mute button silences the fan when noise is a concern. The vertical insert design promotes natural airflow across all five bays, so performance does not throttle during extended bulk transfers or overnight duplication tasks.

Points forts

  • Offline cloning duplicates drives without a computer
  • USB 3.0 interface delivers up to 5 Gbps transfer speed
  • Five bays accept 2.5" and 3.5" SATA drives simultaneously
  • Built-in fan and vented chassis keep drives cool
  • Total capacity scales to 90 TB across all bays

Caractéristiques

Brandmaiwo
SeriesMAIWO K30945
ModelMAIWO K30945
ColorBlack
Size2.5" & 3.5"
TypeDock
AC AdapterYes
MaterialAluminum / Plastic
Internal InterfaceSATA
External InterfaceUSB 3.0
HDD Count SupportedDual HDD
Number of Bay5 Bay
Maximum Capacity (per Bay)Up to 90TB
Power12V Power AC Adapter
SpecificationsFit Both 2.5" & 3.5" SATA Hard Drive & SSD
Operating Systems SupportedWindows & Mac & Linux & Unix
FeaturesTool Free USB3.0 5Gbps Hard Drive Dock allow a Reliable , Easy and Super Speed Connection . Premium 12V2.5A Power Adapter & 3.3 FT USB3.0 Cable Included
Dimensions410x260x185 MM
Weight1709g
Package Contents1x MAIWO K30945 , 1x 12V Power Adapter , 1x USB3.0 Cable , 1x User's Manual , 1x Warranty card

Questions sur cet article

How much desk space does the 410x260x185 mm dock need for its vertical drive bays?

The unit measures 410 mm wide by 260 mm deep by 185 mm high, so allow at least that footprint plus cable clearance for the five vertical SATA slots.

What is the correct sequence to start an offline clone from source bay A to target bays B, C or D?

Set the mode switch to clone, insert the source drive in bay A and target drives in the other bays, connect the 12 V power adapter, then long-press the clone button until the 0-100 % progress LEDs stay solid.

When should the included 12 V 2.5 A power adapter be replaced to keep five drives running reliably?

Replace the adapter if the dock becomes unstable under load, the fan stops spinning, or the LED indicators flicker while all five bays are populated with drives up to 18 TB each.
