Rectangular metal bench power supply with five-digit LED display and front-panel controls

Matrix

Matrix MPS-202 60V 5A 300W industrial power supply

SKU CH-HKRS-M154A

Programmable DC bench supply delivers 60 V, 5 A with 1 mV resolution, list output, nine presets and RS-232/RS-485/USB remote control

  • TypeMATRIX Switching Programmable DC Power Supply MPS-202 60V 5A
  • Watts300 watts
  • Surge Wats300 watts
  • Engine BrandMATRIX
  • Circuit BreakerMATRIX Switching Programmable DC Power Supply MPS-202 60V 5A
  • Size/Dimensions4.4 in x 9.8 in x 6.7 in
  • Precise 1mV and 0.1mA resolution for fine adjustments
  • 300 W output at 60 V and 5 A for demanding loads
  • Nine memory presets store voltage and current settings
  • List output function enables automated test sequences
  • RS-232 RS-485 and USB with SCPI and MODBUS support remote control

60 V 5 A programmable bench supply

The Matrix MPS-202 delivers up to 300 W of adjustable DC power with 1 mV and 0.1 mA resolution. A five-digit LED shows voltage, current and power at the same time. Nine memory presets and a list output function speed up repetitive test sequences. RS-232, RS-485 and USB ports support SCPI and MODBUS for remote automation.

Replaces basic fixed-output units

The supply substitutes ordinary bench supplies that lack programmable sequencing or computer control. The jump is worthwhile when a test plan needs stored set-ups, voltage compensation for lead drop, or scripted voltage and current ramps via the list editor. It also suits users who want quieter operation from the temperature-controlled fan.

Check bench space and control needs

The unit measures 4.4 in by 9.8 in by 6.7 in, so verify available bench depth before ordering. Confirm that your test software or controller can use SCPI or MODBUS over the provided serial and USB links. Ensure the device under test operates within the 60 V and 5 A limits of this model.

Points forts

  • Precise 1mV and 0.1mA resolution for fine adjustments
  • 300 W output at 60 V and 5 A for demanding loads
  • Nine memory presets store voltage and current settings
  • List output function enables automated test sequences
  • RS-232 RS-485 and USB with SCPI and MODBUS support remote control

Caractéristiques

TypeMATRIX Switching Programmable DC Power Supply MPS-202 60V 5A 300W, Variable DC Power Supply 1mV 0.1mA Resolution with List Output, 9 Memory Presets, Adjustable Brightness, Voltage Compensation, dc power supply variable programmable adjustable dc power supply 60V 5A MATRIX bench power supply benchtop power supply lab power supply MPS200
Watts300 watts
Surge Wats300 watts
Engine BrandMATRIX
Circuit BreakerMATRIX Switching Programmable DC Power Supply MPS-202 60V 5A 300W, Variable DC Power Supply 1mV 0.1mA Resolution with List Output, 9 Memory Presets, Adjustable Brightness, Voltage Compensation
Size/Dimensions4.4 in x 9.8 in x 6.7 in
Horsepower300 watts
Input VoltageMATRIX Switching Programmable DC Power Supply MPS-202 60V 5A 300W, Variable DC Power Supply 1mV 0.1mA Resolution with List Output, 9 Memory Presets, Adjustable Brightness, Voltage Compensation
Output VoltageMPS202, MATRIX Switching Programmable DC Power Supply MPS-202 60V 5A 300W, Variable DC Power Supply 1mV 0.1mA Resolution with List Output, 9 Memory Presets, Adjustable Brightness, Voltage Compensation, dc power supply variable programmable adjustable dc power supply 60V 5A MATRIX bench power supply benchtop power supply lab power supply MPS200
Output AmpsMPS202, MATRIX Switching Programmable DC Power Supply MPS-202 60V 5A 300W, Variable DC Power Supply 1mV 0.1mA Resolution with List Output, 9 Memory Presets, Adjustable Brightness, Voltage Compensation
Input AmpsMATRIX Switching Programmable DC Power Supply MPS-202 60V 5A 300W, Variable DC Power Supply 1mV 0.1mA Resolution with List Output, 9 Memory Presets, Adjustable Brightness, Voltage Compensation
Styledc power supply variable programmable adjustable dc power supply 60V 5A MATRIX bench power supply benchtop power supply lab power supply MPS200
Operating Frequencynot_applicable
MaterialMetal
Regulationnot_applicable
RippleMATRIX Switching Programmable DC Power Supply MPS-202 60V 5A 300W, Variable DC Power Supply 1mV 0.1mA Resolution with List Output, 9 Memory Presets, Adjustable Brightness, Voltage Compensation
Featuresdc power supply variable programmable adjustable dc power supply 60V 5A MATRIX bench power supply benchtop power supply lab power supply MPS200, MATRIX Switching Programmable DC Power Supply MPS-202 60V 5A 300W, Variable DC Power Supply 1mV 0.1mA Resolution with List Output, 9 Memory Presets, Adjustable Brightness, Voltage Compensation
Parts3 Years
Labor3 Years

Questions sur cet article

What bench space do the 4.4 in x 9.8 in x 6.7 in dimensions need?

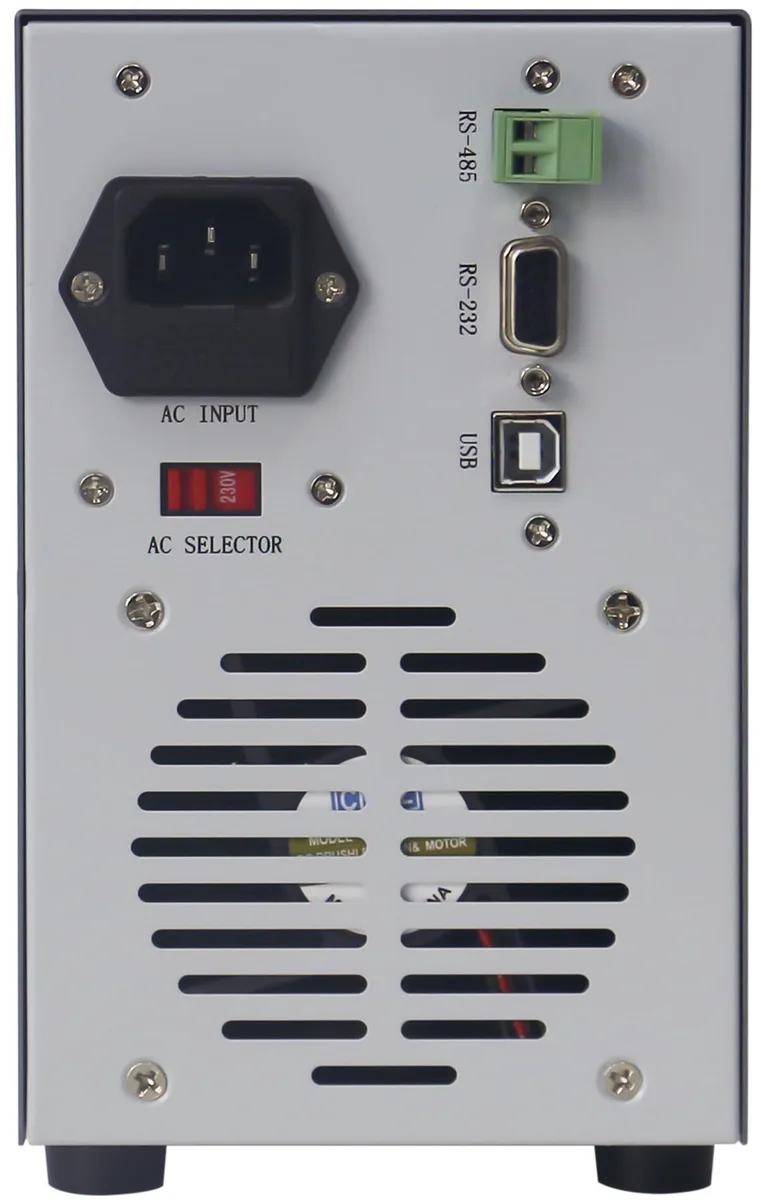

The unit fits a 4.4 in high by 9.8 in wide by 6.7 in deep footprint; allow extra clearance at the rear for the RS-232, RS-485 and USB cables and for the intelligent fan exhaust.

Which step is often missed when wiring the 60 V 5 A output terminals?

Enable the voltage compensation function after connecting the load leads so the 1 mV / 0.1 mA resolution is maintained at the device under test.

What part needs periodic attention on the MPS-202?

The intelligent temperature-control fan should be checked for dust build-up; clean the intake vents to keep cooling and noise at the specified level.
