MAXSUN
MAXSUN DIY-APE H610-KING Back-Connector YTX Intel motherboard
Intel H610 back-connector YTX board for LGA 1700 12th and 13th Gen CPUs with DDR4 3200 dual-channel support up to 64 GB, PCIe 4.0 x16, four SATA, dual M.2 with heatsinks.
- CPU Socket TypeLGA 1700
- CPU Typebuffer_43521
- ChipsetIntel H610
- Number of Memory Slots2x288pin (DDR4)
- Memory StandardDDR4 3200
- Maximum Memory Supported64GB
- Back-plug interface simplifies cable routing in compatible YTX cases
- Full-cover armour spreads heat across the board for steadier operation
- Dual DDR4 slots reach 64 GB at 3200 MT/s for responsive multitasking
- Two M.2 slots include a 22110 length for high-capacity storage
- Wi-Fi 6E and Bluetooth 5.3 ready via CNVi module for modern wireless connectivity
Hidden-Connector YTX Board

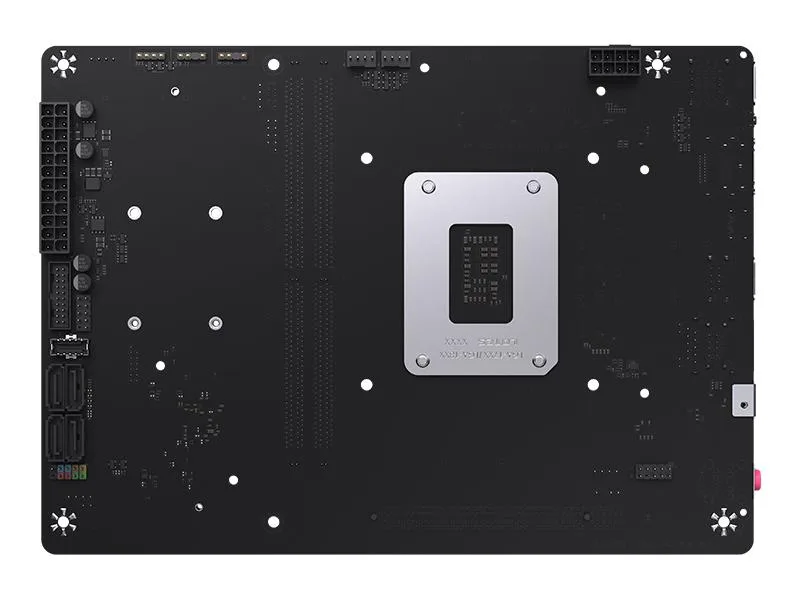

The MAXSUN DIY-APE H610-KING uses an LGA 1700 socket for Intel 12th and 13th generation processors with an H610 chipset. Its back-plug layout routes power, data and front-panel headers to the rear of the PCB for cleaner cable runs inside compatible YTX chassis. Two 288-pin slots support DDR4 dual-channel memory up to 64 GB at 3200 MT/s.
PCIe 4.0 and Storage Limits
A single PCI Express 4.0 x16 slot handles the graphics card at 4.0 speeds. Four SATA 6 Gb/s ports and two M.2 sockets (one 22110 and one 2280, both PCIe 3.0 x4) provide drive expansion. The board also includes a CNVi slot for a Wi-Fi 6E module with Bluetooth 5.3. Rear I/O supplies one RJ45 port, DP and HDMI video, one USB-C 10 Gbps, one USB 5 Gbps, four USB 2.0 and three audio jacks.
YTX Chassis Required

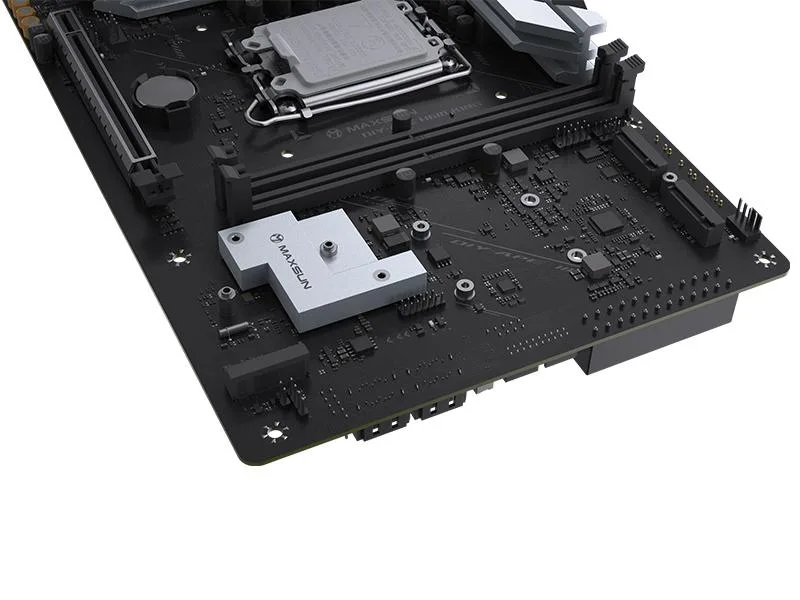

Installation is straightforward only in cases designed for back-mounted motherboards; standard ATX standoffs will not align. The full-cover armor and dual M.2 heatsinks add bulk, so verify clearance before mounting. An external BIOS reset button simplifies recovery if memory training fails. Remember the 130 W power-phase rating when choosing a CPU cooler and power supply.
Points forts
- Back-plug interface simplifies cable routing in compatible YTX cases
- Full-cover armour spreads heat across the board for steadier operation
- Dual DDR4 slots reach 64 GB at 3200 MT/s for responsive multitasking
- Two M.2 slots include a 22110 length for high-capacity storage
- Wi-Fi 6E and Bluetooth 5.3 ready via CNVi module for modern wireless connectivity
Caractéristiques
| Brand | MAXSUN |
|---|---|
| Model | DIY-APE H610-KING |
| CPU Socket Type | LGA 1700 |
| CPU Type | buffer_43521 |
| Chipset | Intel H610 |
| Number of Memory Slots | 2x288pin (DDR4) |
| Memory Standard | DDR4 3200 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 2 x M.2 |
| Back I/O Ports | RJ45 network card 1 Video output port DP+HDMI WiFi reserved CNVi USB-C 1(USB2.0) audio 3 holes BIOS reset yes (external) USB-5G 4 USB-2.0 4 |
Questions sur cet article
Should I choose the 22110 M.2 slot or the 2280 slot for my main drive?
Use the 22110 slot for the primary SSD if your drive is that length; the 2280 slot works for standard drives and both run at PCIe 3.0 x4 speeds.
What does the 130 W power rating mean for my CPU choice?
The 130 W rating covers the 4+1+1 phase VRM, so it handles 12th and 13th Gen LGA1700 processors within that thermal envelope.
Will the USB-C port on the rear I/O run at 10 Gbps or fall back to USB 2.0?
The rear USB-C is specified at 10 Gbps, while the front-panel USB-C header is limited to USB 2.0 speeds.
