MAXSUN

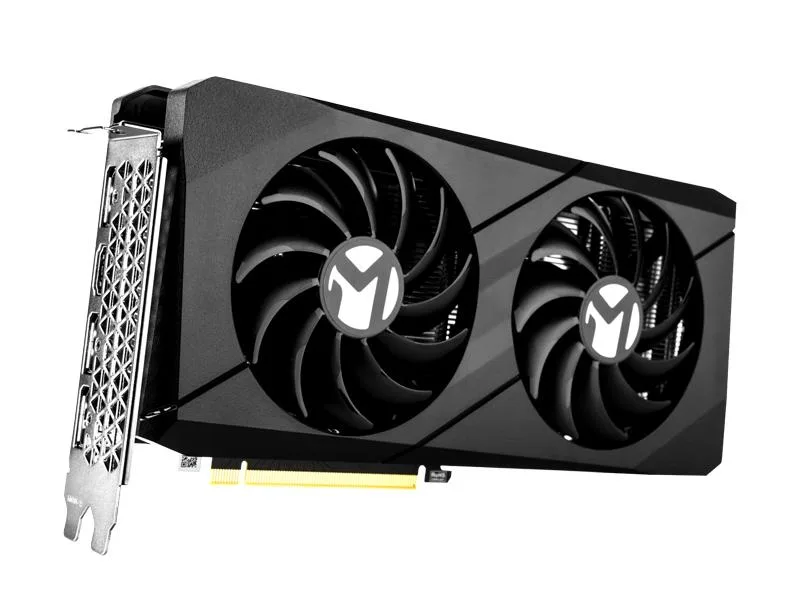

MAXSUN GeForce RTX 4060 Terminator 8G OC graphics card
An 8 GB GDDR6 graphics card with a 128-bit bus, dual 90 mm fans and a boost clock of 2490 MHz for 1080p and 1440p gaming
- InterfacePCI Express 4.0 x8
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 40 Series
- GPUGeForce RTX 4060
- Core Clock1830 MHz
- Boost Clock2460 MHz
- DLSS 3 frame generation lifts frame rates using Ada Lovelace architecture
- Boost clock reaches 2490 MHz for responsive 1080p gaming
- 8 GB GDDR6 at 17 Gbps on a 128-bit bus feeds the GPU quickly
- Dual 90 mm fans with freeze stop and metal backplate keep thermals quiet
- Four display outputs including HDMI 2.1a and three DisplayPort 1.4a drive 8K at 7680 x 4320
Terminator RTX 4060 for 1080p gaming
The MAXSUN GeForce RTX 4060 Terminator 8G OC targets 1080p gamers who want modern features without a flagship price. It uses the Ada Lovelace architecture with 3072 CUDA cores and 8GB of GDDR6 memory on a 128-bit bus. The card connects through a PCI Express 4.0 x8 interface and supports DirectX 12 Ultimate and Vulkan 1.3.
Sustained load behaviour with dual 90mm fans
Under continuous load the two 90mm fans spin up to move heat through the heatsink and metal backplate. When the GPU temperature drops the FREEZE Fan Stop feature halts the fans completely for silent idle operation. Boost clocks hold at 2460 MHz or 2490 MHz depending on power headroom and thermal limits. The 17000 MHz memory clock stays stable during long sessions.
8GB 128-bit frame buffer decides fit
The 8GB GDDR6 frame buffer on a 128-bit interface is the specification that determines whether this card suits your workload. It delivers 17 Gbps bandwidth for 1080p ultra settings and entry-level 1440p gaming. Higher resolutions or heavy texture mods will exhaust the buffer before the compute units saturate. Check your target resolution and VRAM needs against this limit.
Points forts
- DLSS 3 frame generation lifts frame rates using Ada Lovelace architecture
- Boost clock reaches 2490 MHz for responsive 1080p gaming
- 8 GB GDDR6 at 17 Gbps on a 128-bit bus feeds the GPU quickly
- Dual 90 mm fans with freeze stop and metal backplate keep thermals quiet
- Four display outputs including HDMI 2.1a and three DisplayPort 1.4a drive 8K at 7680 x 4320
Caractéristiques
| Brand | MAXSUN |
|---|---|
| Series | Terminator |
| Model | GeForce RTX 4060 |
| Interface | PCI Express 4.0 x8 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 40 Series |
| GPU | GeForce RTX 4060 |
| Core Clock | 1830 MHz |
| Boost Clock | 2460 MHz |
| CUDA Cores | 3072 |
| Effective Memory Clock | 17000 MHz (17 Gbps) |
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| HDMI | 1 x HDMI |
| DisplayPort | 3 x DisplayPort |
| Max Resolution | 7680 x 4320 |
| Cooler | Double Fans |
| Thermal Design Power | 115W |
| Recommended PSU Wattage | 550W |
| Power Connector | 8-Pin |
| Form Factor | ATX |
| Max GPU Length | 250 mm |
Questions sur cet article
Will this card fit in a compact case with two 90 mm fans?
The cooler uses two 90 mm fans and a metal backplate; measure your case length and height clearance against the card's physical dimensions before buying.
What power connector does the RTX 4060 Terminator need?
The board draws power through a single 8-pin PCIe connector; ensure your PSU has one free 8-pin lead and meets NVIDIA's recommended wattage.
Can I drive four monitors at 4K 60 Hz with the display outputs provided?
Three DisplayPort 1.4a ports and one HDMI 2.1a port support up to 7680 x 4320 resolution, so four 4K 60 Hz displays will work.
