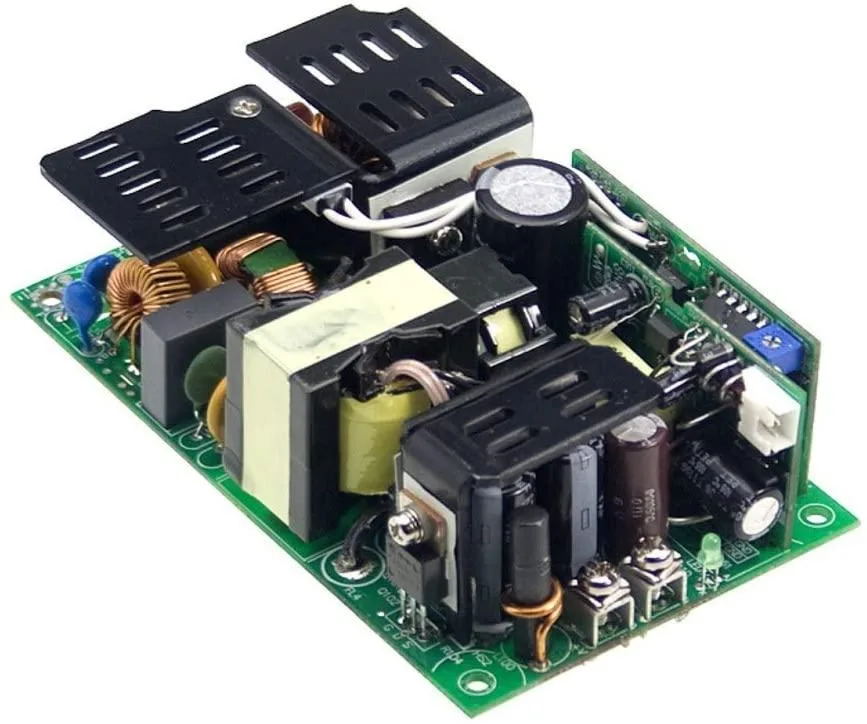

Open-frame 141.6 W 24 V 5.9 A power supply on a 4 by 2 inch PCB

Mean Well

Mean Well EPP-200-24 141.6W 24V 5.9A power supply

SKU CH-0APR-36MSQ

Open-frame AC-DC unit delivers 24 V at 5.9 A for 141.6 W continuous power

  • TypeAT
  • 6 W output powers demanding 24 V loads
  • 9 A current delivers stable energy to industrial gear
  • High-efficiency design cuts heat and lowers running cost
  • Low no-load loss saves power when idle
  • Compact 4" x 2" footprint fits tight enclosures

Industrial Open-Frame AC-DC Unit

This Mean Well EPP-200-24 is an open-frame switching power supply that delivers 141.6W at 24V and 5.9A. It is built for integration into equipment chassis, test rigs or custom enclosures where a compact AC-DC source is required. The 4 by 2 inch PCB footprint allows it to fit in tight spaces. The unit is supplied new and ready for installation.

Suitable for System Integrators

Engineers building industrial control panels, LED lighting arrays or laboratory fixtures will find the fixed 24V output and 141.6W rating a direct match. Buyers who need an adjustable voltage, multiple output rails or a fully enclosed case with IEC inlet should look at other product lines. The open-frame design also means the installer must provide mechanical mounting and safety insulation.

Fixed 24V 141.6W Output

The single rail provides 24V at up to 5.9A for a total of 141.6W, and this figure is the primary check against the load requirement. If the connected equipment draws more current or requires a different voltage, this supply will not meet the specification. Verify the load before purchase.

Points forts

  • 6 W output powers demanding 24 V loads
  • 9 A current delivers stable energy to industrial gear
  • High-efficiency design cuts heat and lowers running cost
  • Low no-load loss saves power when idle
  • Compact 4" x 2" footprint fits tight enclosures

Caractéristiques

TypeAT

Questions sur cet article

How is the open-frame 24 V 5.9 A supply mounted in a 4" x 2" footprint?

Secure the PCB with four corner screws through the mounting holes; the step often missed is leaving at least 5 mm clearance above the components for convection cooling.

Which component will need replacement first after long-term 141.6 W operation?

The electrolytic capacitors on the primary side degrade with heat and hours; plan to swap them once ripple exceeds the rated tolerance.

What thermal limit appears first when the unit runs continuously at 141.6 W?

The internal over-temperature protection triggers when the PCB hotspot exceeds its design threshold, shutting the output down until the supply cools.
