Compact black mini PC barebone with front USB ports

minisforum

minisforum DeskMini BD895i SE Ryzen 9 8945HX barebone mini PC

SKU CH-5G3H-T8ZF5

Barebone mini PC with a 16-core Ryzen 9 8945HX, dual DDR5 slots for up to 96 GB, dual PCIe 4.0 M.2 slots, 2.5 GbE, Wi-Fi 6E, and triple video outputs

  • ColorBlack
  • CPU TypeAMD Ryzen 9 8945HX
  • CPU SocketFL1
  • CPU Cores16
  • Memory installedNo Memory
  • Memory slot2

Options BD895i SE

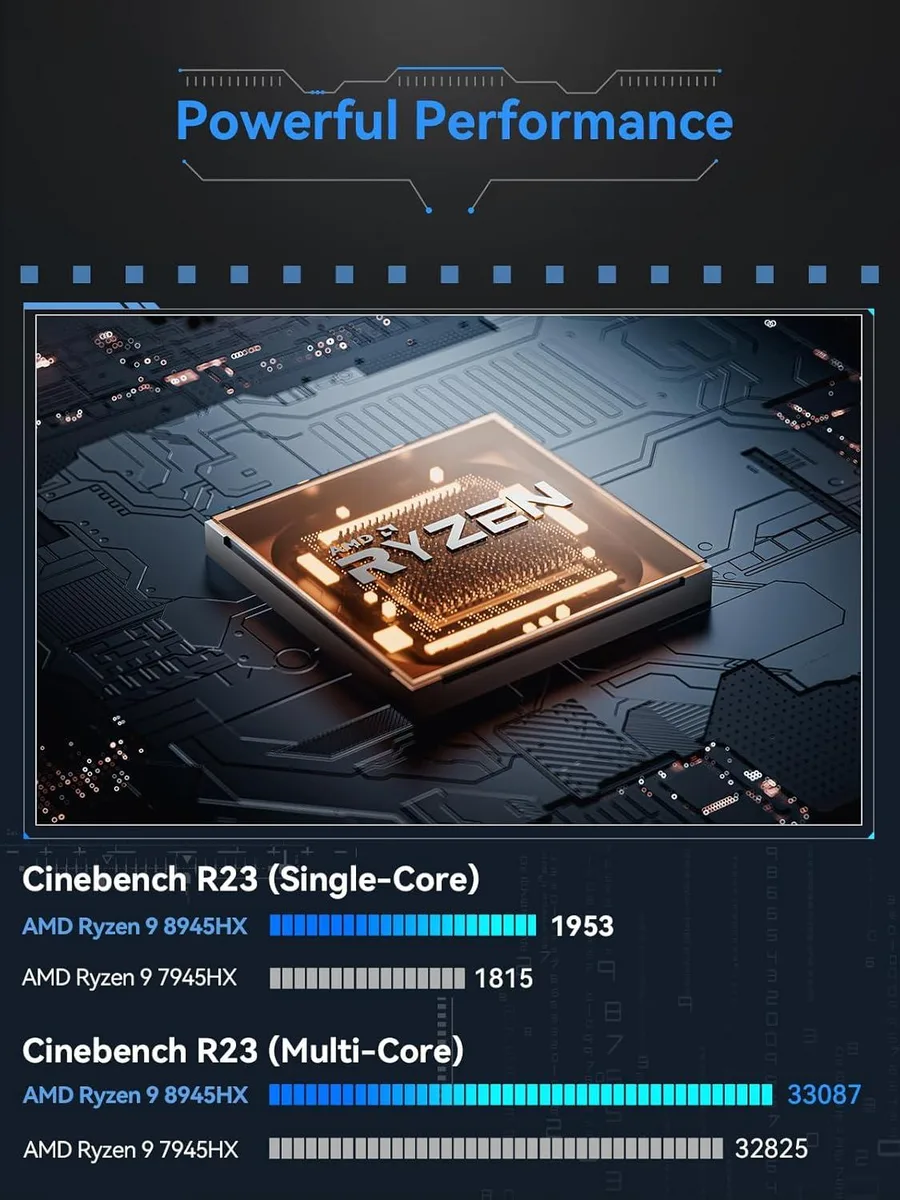

  • 16-core Ryzen 9 8945HX delivers up to 5.4 GHz boost for heavy workloads
  • Dual DDR5 5200 SODIMM slots support up to 96 GB for large memory tasks
  • Integrated Radeon 610M graphics drive triple 4K or single 8K displays
  • 5 Gbps LAN plus Wi-Fi 6E and Bluetooth for fast wired and wireless links
  • Two PCIe 4.0 x4 M.2 slots plus PCIe 5.0 x16 slot enable high-speed storage and expansion

AMD Ryzen 9 8945HX Mini-PC Barebone

This barebone board arrives with a 16-core Ryzen 9 8945HX processor soldered to the FL1 socket. Integrated Radeon 610M graphics drive up to three displays through HDMI, DisplayPort 1.4 and a USB-C port that supports 8K at 60 Hz. The unit includes 2.5 Gbps LAN, Wi-Fi 6E and Bluetooth but ships without memory, storage or an operating system.

Builders supplying their own DDR5 and storage

The board accepts two DDR5 SODIMM modules up to 96 GB total at 5200 MT/s and provides two PCIe 4.0 M.2 2280 slots plus an M.2 2230 Key E slot for wireless. Front I/O offers two USB 3.2 Gen 1 Type-A ports while the rear adds two more USB 3.2 Gen 1 Type-A and two USB 2.0 ports. Buyers who need a complete system with RAM, SSD and OS pre-installed should look at a different product.

Two DDR5 SODIMM slots up to 96 GB

Memory capacity is the decisive specification: the platform supports a maximum of 96 GB across two slots running at 5200 MT/s in dual-channel mode. Any build requiring more memory than this limit cannot use this barebone.

Points forts

  • 16-core Ryzen 9 8945HX delivers up to 5.4 GHz boost for heavy workloads
  • Dual DDR5 5200 SODIMM slots support up to 96 GB for large memory tasks
  • Integrated Radeon 610M graphics drive triple 4K or single 8K displays
  • 5 Gbps LAN plus Wi-Fi 6E and Bluetooth for fast wired and wireless links
  • Two PCIe 4.0 x4 M.2 slots plus PCIe 5.0 x16 slot enable high-speed storage and expansion

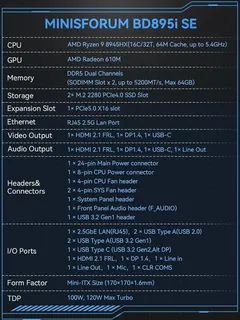

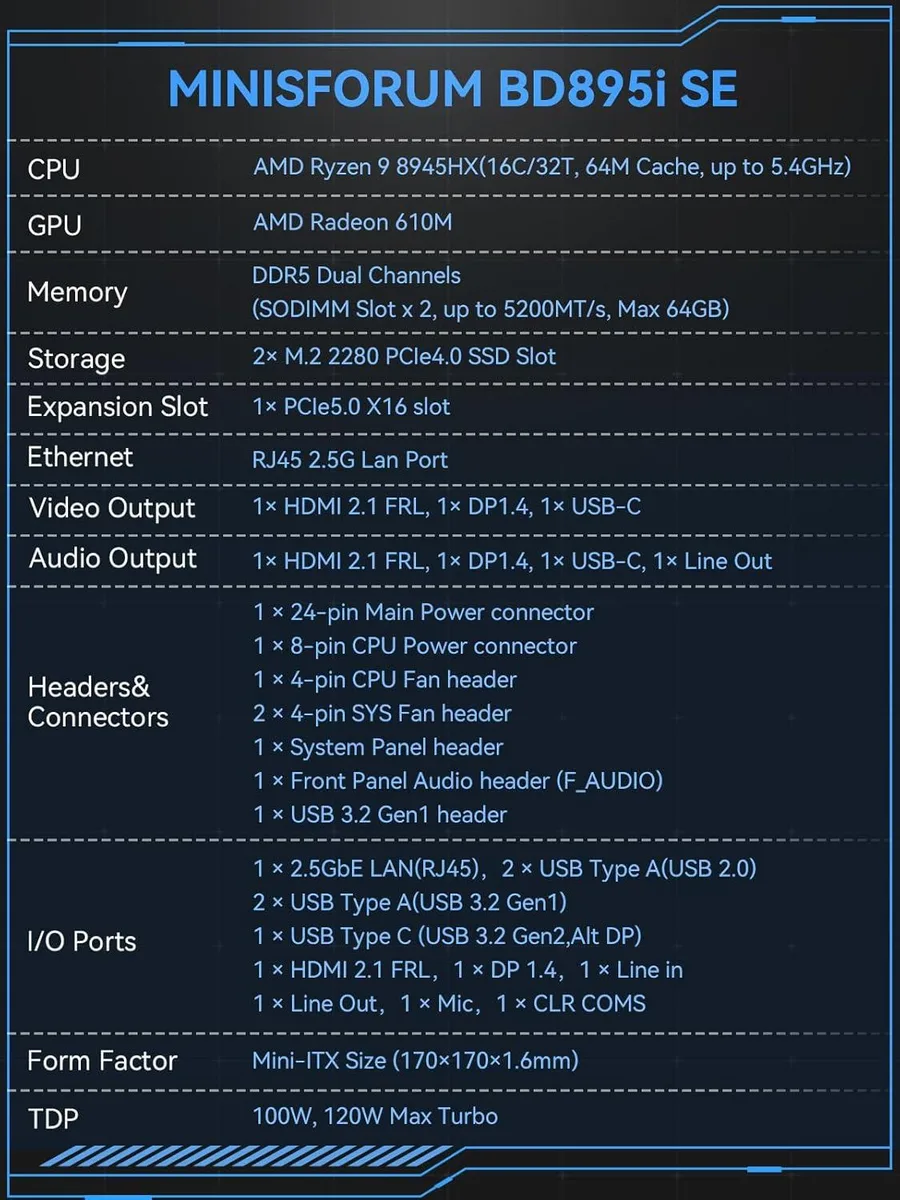

Caractéristiques

BrandMINISFORUM
ModelDeskMini
ColorBlack
CPU TypeAMD Ryzen 9 8945HX
CPU SocketFL1
CPU Cores16
Memory installedNo Memory
Memory slot2
Memory Type SupportedDDR5 5200
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Other2x PCIe4.0x4
Integrated GraphicsAMD Radeon 610M
Max LAN Speed2.5Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 6E
BluetoothYes
Front USB2
HDMI1
DisplayPort1
Rear USB2
RJ451

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What RAM and storage do I need to add before this DeskMini BD895i SE can boot?

Install one or two DDR5 5200 SODIMM modules up to 96 GB total and a PCIe 4.0 M.2 2280 SSD; the board ships with no memory or drive installed.

Can I keep using my 4K 60 Hz monitors with the HDMI and DisplayPort 1.4 outputs on this unit?

Yes, both the HDMI and DisplayPort 1.4 connectors support 4K at 60 Hz, so existing 4K displays work without adapters.

How do I confirm the Radeon 610M graphics are active after I finish the build?

Open Windows Device Manager or the AMD driver panel and verify AMD Radeon 610M appears under Display adapters with the correct driver version.
