minisforum DeskMini UM690L Slim Ryzen 9 6900HX 16GB 512GB barebone mini PC

Compact barebone for multitasking

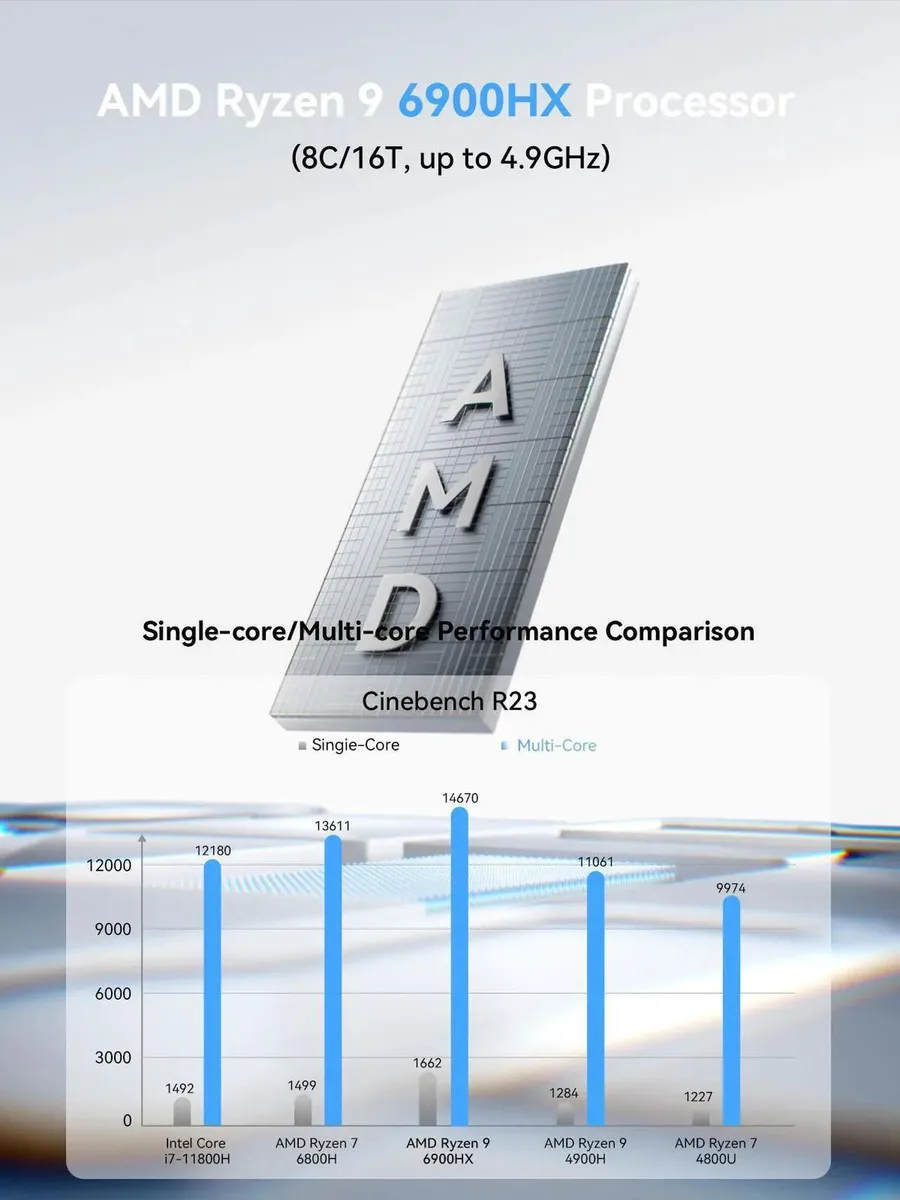

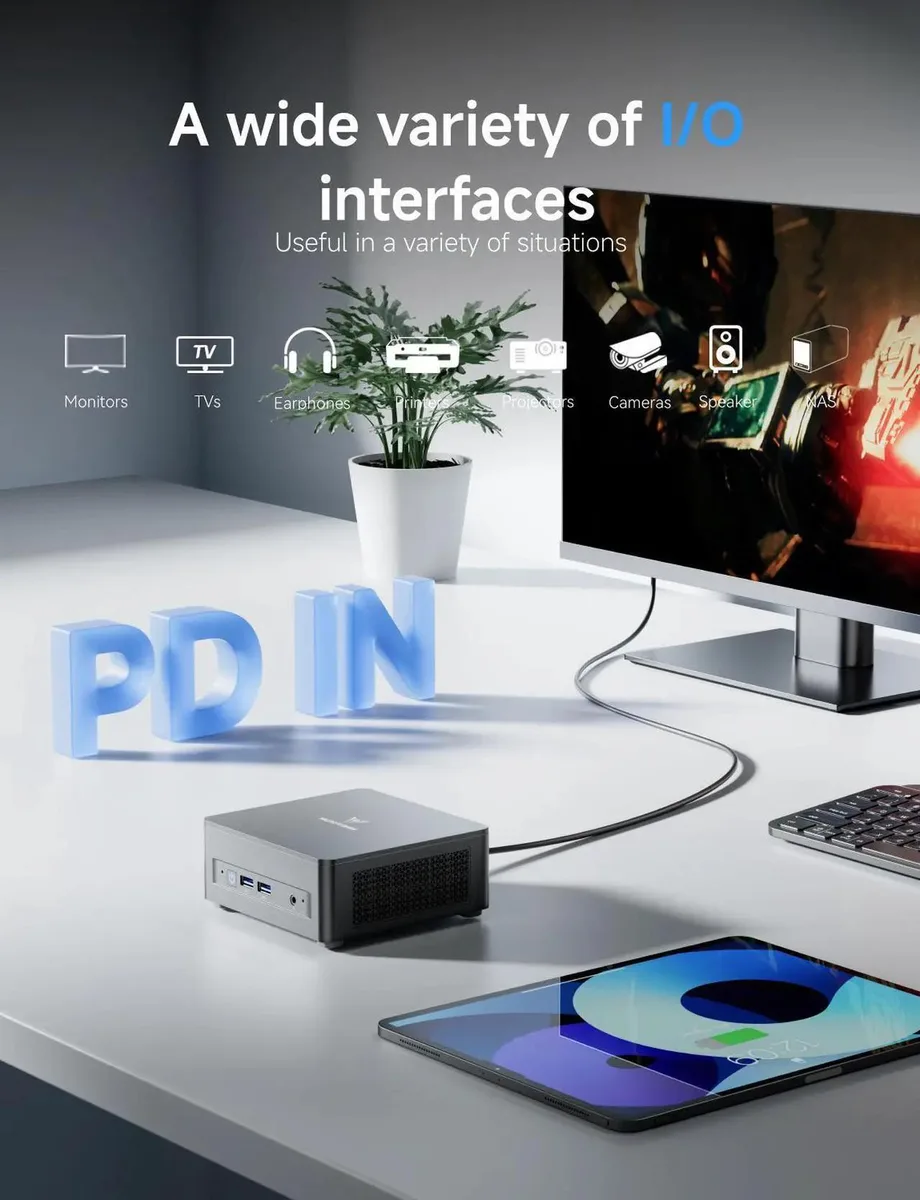

The Minisforum DeskMini UM690L Slim is a barebone mini PC built around an AMD Ryzen 9 6900HX processor with eight cores and a maximum boost of 4.9 GHz. Integrated AMD Radeon 680M graphics handle light gaming and image editing. The unit ships with 16 GB of LPDDR5 memory at 6400 MT/s and a 512 GB PCIe 4.0 SSD. Three video outputs — HDMI 2.1, DisplayPort 1.4 and USB4 — support up to three independent displays including 8K at 60 Hz over HDMI 2.1 and USB4.

Verify memory and storage limits

The 16 GB of LPDDR5 memory is soldered and cannot be upgraded, so confirm the capacity meets your workload before ordering. Two M.2 2280 PCIe 4.0 slots are available for additional storage expansion. Network connectivity includes a 2.5 Gbps RJ45 port, Wi-Fi 6E and Bluetooth 5.2. Front and rear USB ports provide four Type-A connections in total, with the USB4 port supporting power delivery input of 65–100 W and output of 15 W.

Suits space-constrained productivity builds

This system suits users who need a compact desktop for multitasking, light creative work and multi-monitor setups without a discrete graphics card. Buyers who require user-upgradable system memory or more than two M.2 storage slots should consider a larger platform. The fixed 16 GB memory ceiling also makes it unsuitable for workloads that demand higher RAM capacity.
