Silver mini PC barebone, compact square chassis, front USB-C and audio jack visible

minisforum

minisforum MF-X1Pro-470(32+2T)NoOSUS barebone mini PC

SKU CH-YBFP-C4Z6W MPN MF-X1Pro-470(32+2T)NoOSUS

AI-ready barebone with 12-core AMD Ryzen AI 9 HX 470, 32 GB DDR5, 2 TB NVME, dual 2.5 GbE, Wi-Fi 7 and quad 8K display outputs

  • ColorSilver
  • AI FeaturesAI Ready
  • CPU TypeAMD Ryzen AI 9 HX 470
  • CPU Cores12-Core
  • CPU Feature12 cores, 24 threads, max. 5.2GHz Overall TOPS: Up to 86 TOP
  • Memory installed32GB

CPU Type AMD Ryzen AI 9 HX 470

Memory Type 32GB SO-DIMM DDR5 5600

  • 0GB
  • 32GB SO-DIMM DDR5 5600

SSD Type 2TB

  • AMD Ryzen AI 9 HX 470 delivers 86 TOPS overall AI performance for demanding workloads

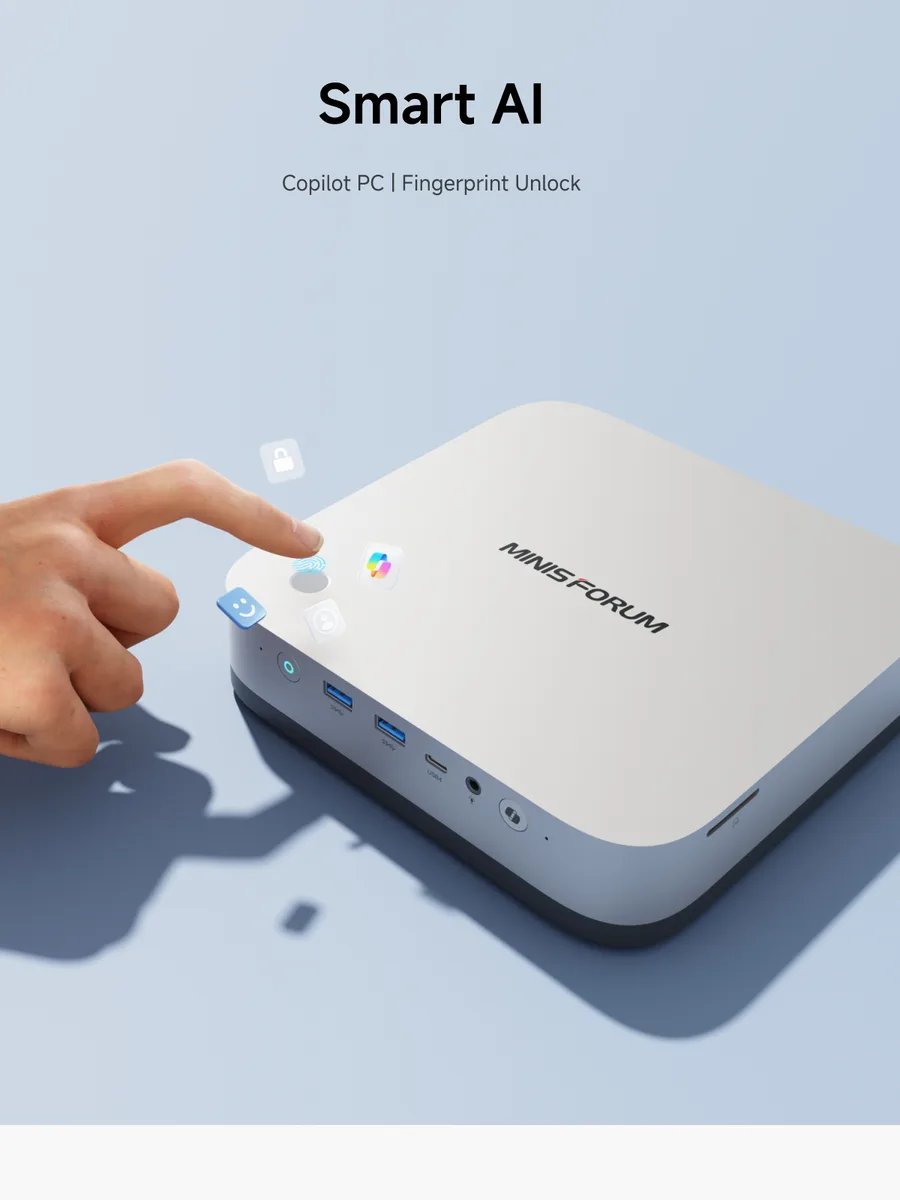

  • Dedicated Copilot button gives one-click access to Microsoft AI assistance on Windows

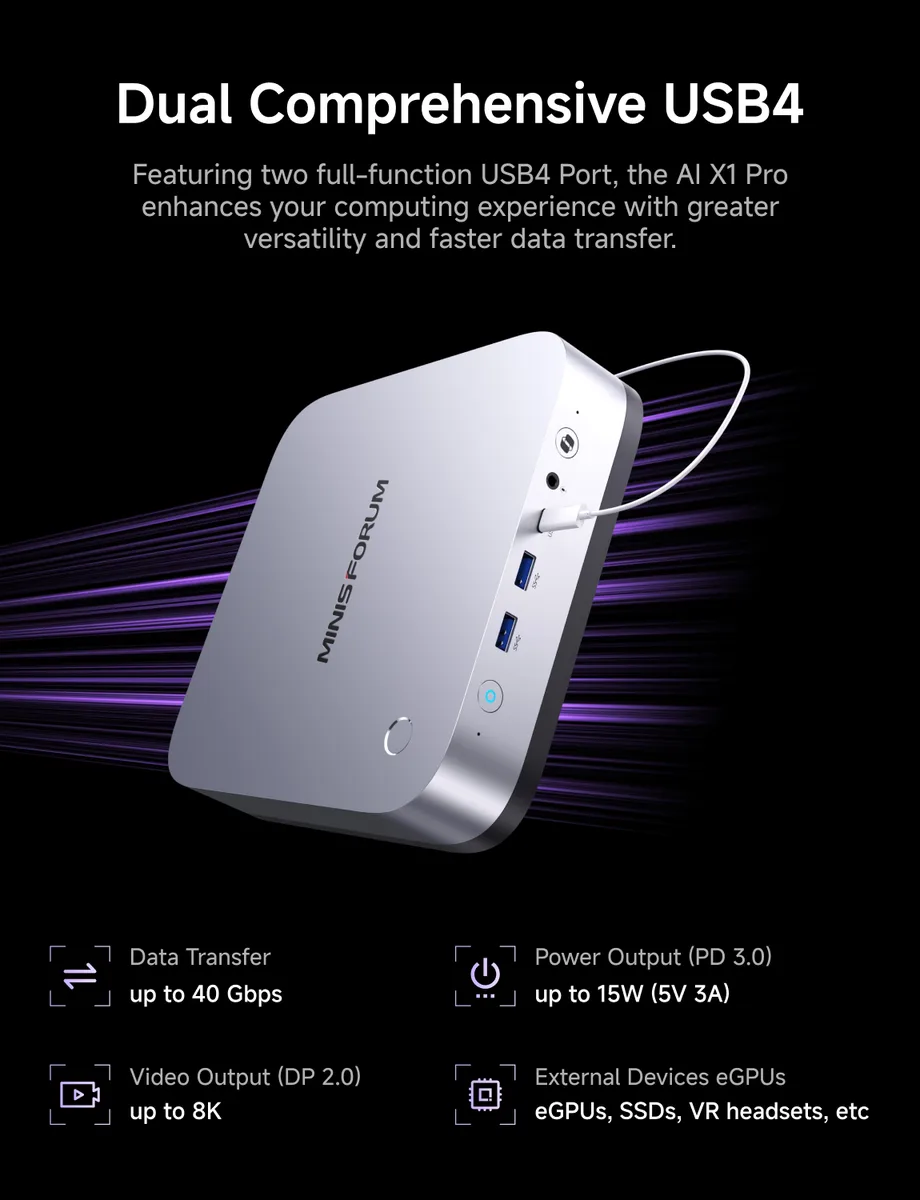

  • Quad 8K display output via HDMI 2.1, DP 2.0 and dual USB4 ports
  • Dual 2.5Gbps Ethernet, Wi-Fi 7 and Bluetooth 5.4 provide high-speed wired and wireless connectivity

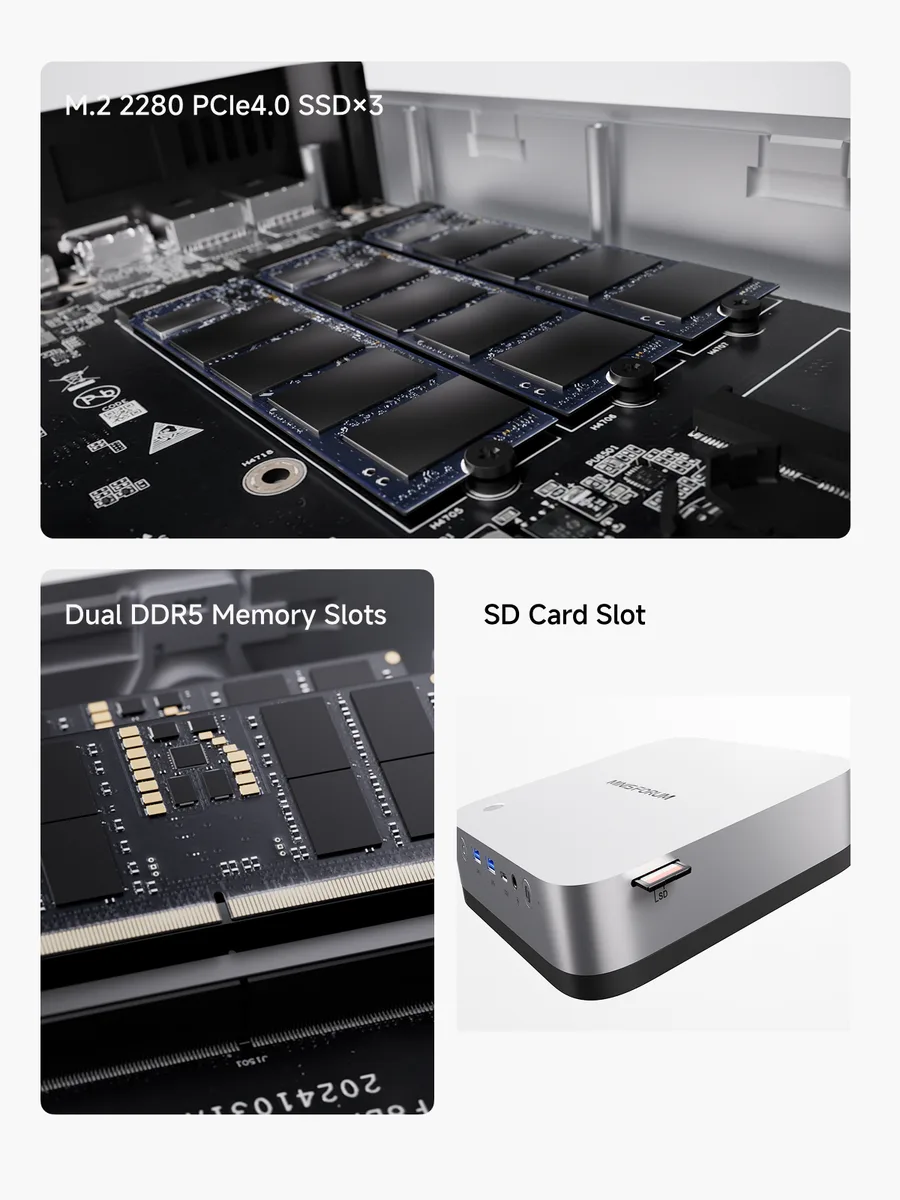

  • 32GB DDR5-5600 memory and three M.2 2280 PCIe 4.0 slots support up to 128GB RAM and 12TB storage

AI-Ready Mini PC

The minisforum X1 Pro-470 is a compact barebone system built around the AMD Ryzen AI 9 HX 470 processor with 12 cores and 24 threads. It ships with 32GB of DDR5 5600 memory and a 2TB NVME SSD installed. Integrated AMD Radeon 890M graphics and up to 86 TOPS overall performance support AI workloads and heavy multitasking in a small silver chassis.

Creative Pros and Expandability Seekers

This unit suits users who need quad 8K display output via HDMI 2.1, DisplayPort 2.0 and dual USB4 ports for digital signage or professional AV setups. The three M.2 2280 slots and dual DDR5 SO-DIMM sockets allow memory expansion to 128GB and storage growth to multiple 4TB drives. Buyers requiring discrete GPU performance or legacy port clusters should consider other form factors.

Memory and Storage Headroom

The pre-installed 32GB DDR5 5600 kit handles demanding productivity and AI-assisted tasks, while the two empty SO-DIMM slots provide a clear path to 128GB for larger datasets. The 2TB boot drive offers immediate capacity, and the three PCIe 4.0 NVME slots accept up to 4TB each for extensive media libraries. Memory bandwidth and slot count become the limiting factors for extreme virtualisation workloads.

Points forts

  • AMD Ryzen AI 9 HX 470 delivers 86 TOPS overall AI performance for demanding workloads
  • Dedicated Copilot button gives one-click access to Microsoft AI assistance on Windows
  • Quad 8K display output via HDMI 2.1, DP 2.0 and dual USB4 ports
  • Dual 2.5Gbps Ethernet, Wi-Fi 7 and Bluetooth 5.4 provide high-speed wired and wireless connectivity
  • 32GB DDR5-5600 memory and three M.2 2280 PCIe 4.0 slots support up to 128GB RAM and 12TB storage

Caractéristiques

BrandMINISFORUM
ModelX1 Pro-470
ColorSilver
AI FeaturesAI Ready
CPU TypeAMD Ryzen AI 9 HX 470
CPU Cores12-Core
CPU Feature12 cores, 24 threads, max. 5.2GHz
Overall TOPS: Up to 86 TOPS
Memory installed32GB
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 5600
Max Memory Supported128GB
Storage Installed2TB SSD
M.2 Slot2 x M.2 2280 NVME SSD Slot(Up to 4TB) (PCIe4.0x4)
1 x M.2 2280 NVME SSD Slot(Up to 4TB) (PCIe4.0x1)
Integrated GraphicsAMD Radeon 890M
Max LAN SpeedDual 2.5Gbps
Wireless LAN802.11be
WiFi GenerationWi-Fi 7
BluetoothBluetooth 5.4
Front USB2 x USB 3.2 Gen2 Type-A
1 x UBS4 (Alt PD Out 15W | 40Gbps)
Front Audio Ports1 x 3.5 mm combo jack
Card ReaderSD card slot
HDMI1 x HDMI 2.1 FRL
DisplayPort1 x DisplayPort 2.0
Rear USB1 x USB 2.0 Type-A port
1 x USB4 (Alt PD in 65-100W & PD Out 15W | 40Gbps)
RJ452
Other Rear Ports1 x OCuLink
Power SupplyAC Input 100-240V/ 50-60Hz, Internal DC Adapter 19V/7.1A 134.9W
Dimensions195 x 195 x 42.5mm
Weight1.36 kg
Packaging1 x X1 Pro-470 Mini PC
1 x US Power Adapter
1 x HDMI Cable
1 x Manual
Poids d’expédition2.40 kg
Dimensions du colis206 × 206 × 127 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What memory modules must I already have to upgrade the 32 GB DDR5 5600 that ships in the two SO-DIMM slots?

You need DDR5 5600 SO-DIMM modules; the board has two 262-pin slots and supports up to 128 GB total.

Will my existing 2.5 GbE switch and Wi-Fi 6 router work with the dual 2.5 Gbps LAN ports and Wi-Fi 7 radio?

Yes, the 2.5 GbE ports and Wi-Fi 7 (802.11be) are backward compatible with 2.5 GbE switches and Wi-Fi 6 routers.

How can I verify the AMD Radeon 890M iGPU is delivering the advertised 86 TOPS overall and 55 TOPS NPU performance after setup?

Run a Windows AI benchmark such as UL Procyon or MLPerf Client; the NPU and iGPU scores should reach the rated 55 and 86 TOPS figures.
