Black barebone mini PC, compact square chassis, front ports visible

minisforum

minisforum MS-01 i9-13900H barebone mini PC

SKU CH-K8N0-Y6CBY

Barebone mini PC with a 14-core i9-13900H, dual DDR5-5200 slots up to 96 GB, M.2 2280 PCIe 4.0 plus U.2 support, HDMI and dual USB4 video, two 10 Gbps SFP+ ports, dual 2.5 GbE LAN.

  • ColorBlack
  • CPU TypeIntel Core i9-13900H
  • CPU SocketFCBGA1744
  • CPU Cores14-Core (6P+8E)
  • Memory installedNo Memory
  • Memory slot2

Options MS01-S1390 · 0+0

Les versions barrées existent, mais ne sont pas disponibles ici.

  • 14-core i9-13900H reaches 5.4 GHz for heavy workloads
  • Dual USB4 ports drive 8K at 30 Hz or 4K at 144 Hz
  • Two 10 Gbps SFP+ ports with link aggregation for fast networking
  • Dual DDR5-5200 slots support up to 96 GB memory
  • M.2 2280 PCIe 4.0 slot plus U.2 adapter enable RAID 0/1 storage

Target workstation use

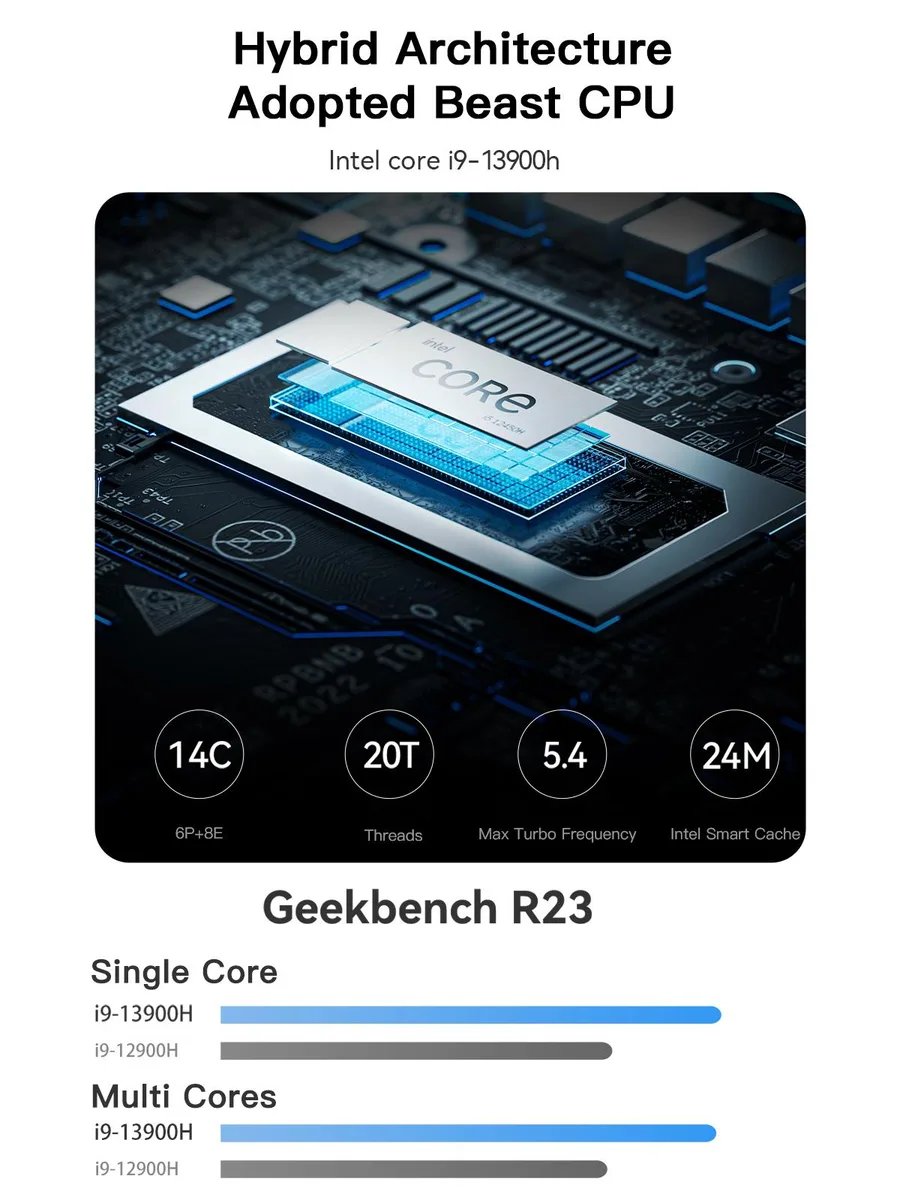

The minisforum MS-01 is a barebone mini workstation built around an Intel Core i9-13900H processor with 14 cores and 20 threads reaching 5.4 GHz. Integrated Intel Iris Xe graphics run at 1.5 GHz. It suits users who need strong multi-threaded performance in a compact chassis and plan to add their own memory and storage.

Installation notes

The unit arrives without RAM or SSDs, so builders must supply two DDR5 5200 modules up to 96 GB total and at least one M.2 2280 PCIe 4.0 drive. A U.2-to-M.2 adapter and an SSD heatsink are included in the box. The FCBGA1744 socket means the CPU cannot be swapped later.

Capacity and headroom

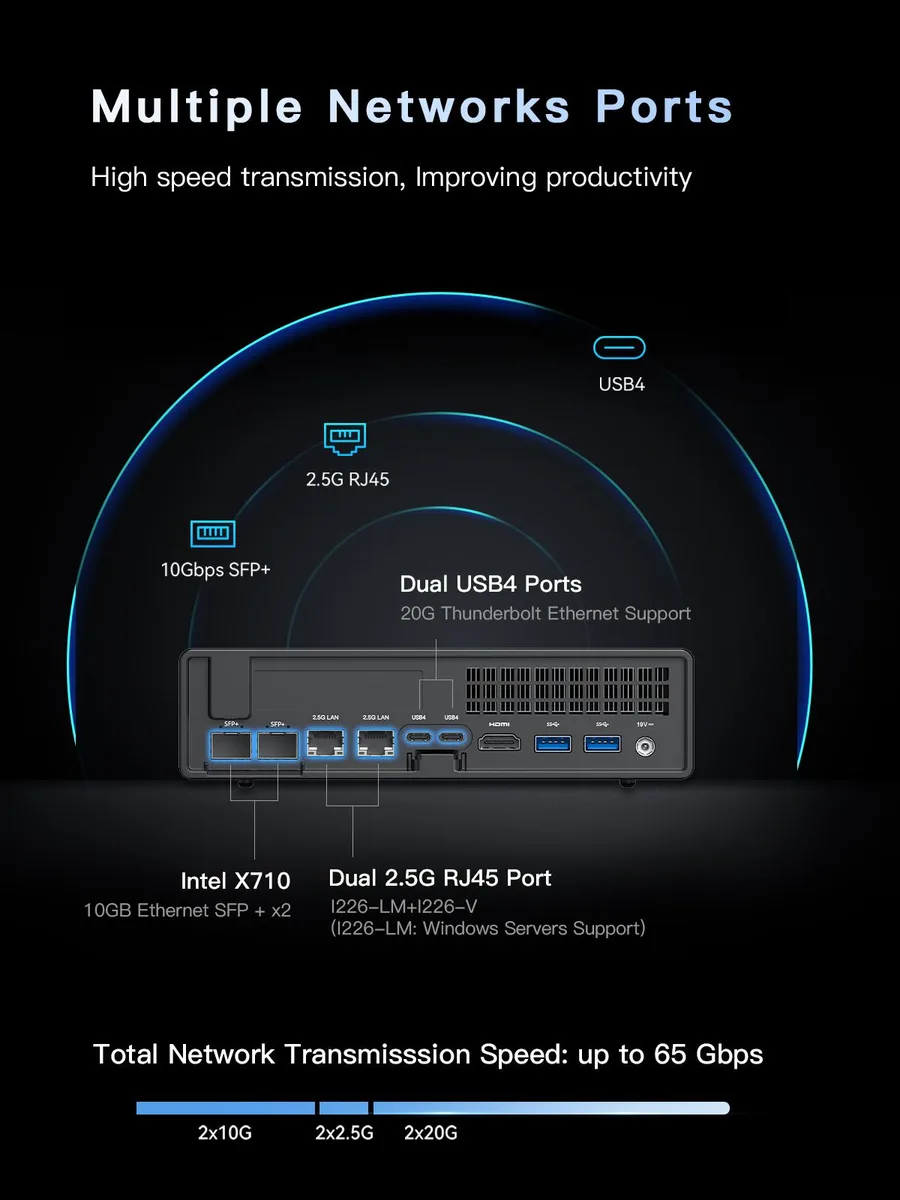

Dual-channel DDR5 supports up to 96 GB for heavy workloads. The M.2 slot handles RAID 0 or RAID 1 and accepts U.2 enterprise drives for capacities of 7.68 TB or 15.36 TB and beyond. Three video outputs — one HDMI at 4K 60 Hz and two USB4 at 8K 30 Hz or 4K 144 Hz — drive multiple displays. Dual 10 Gbps SFP+ ports and two 2.5 Gbps RJ45 ports provide high-throughput networking. Buyers who need discrete GPU power beyond the RTX 3050 class or more than three display outputs should look elsewhere.

Points forts

  • 14-core i9-13900H reaches 5.4 GHz for heavy workloads
  • Dual USB4 ports drive 8K at 30 Hz or 4K at 144 Hz
  • Two 10 Gbps SFP+ ports with link aggregation for fast networking
  • Dual DDR5-5200 slots support up to 96 GB memory
  • M.2 2280 PCIe 4.0 slot plus U.2 adapter enable RAID 0/1 storage

Caractéristiques

BrandMINISFORUM
ModelDeskMini
ColorBlack
CPU TypeIntel Core i9-13900H
CPU SocketFCBGA1744
CPU Cores14-Core (6P+8E)
Memory installedNo Memory
Memory slot2
Memory Type SupportedDDR5 5200
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Integrated GraphicsIntel Iris Xe Graphics eligible
Max LAN Speed2.5Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 6E
BluetoothYes
Front USB3
HDMI1
Rear USB2
RJ452
Power Supply19V/9.47A 180W
Dimensions7.72x7.44x1.89inch
Weight3lb

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How can I confirm the Intel Core i9-13900H is running at its 5.4 GHz boost after I finish building the minisforum MS-01?

Enter the UEFI or Windows Task Manager and watch the CPU frequency readout; the 14-core processor should hit 5.4 GHz on its performance cores under load.

The barebone unit ships without memory or storage — which DDR5 modules and M.2 SSD form factors do I need to buy separately?

Purchase two DDR5-5200 SO-DIMMs up to 96 GB total and an M.2 2280 PCIe 4.0 drive; a U.2 drive can be used with the included adapter.

I want to add a discrete GPU later — which version of the MS-01 chassis supports an RTX 3050 graphics card?

The barebone model described here includes the PCIe slot and power delivery required for an RTX 3050, so this version is the one to choose.
