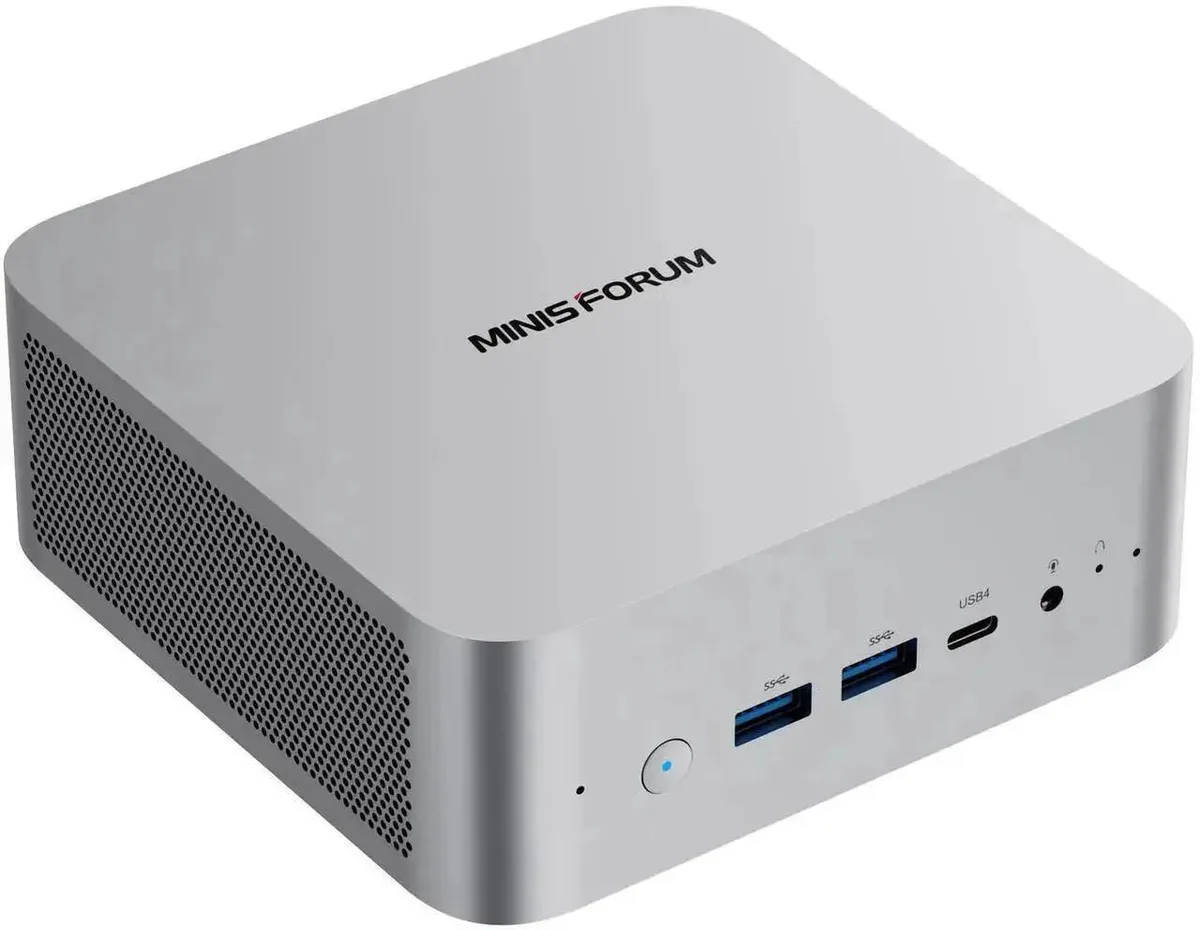

Silver cube mini PC with large ventilation grilles

minisforum

minisforum X1-470 DeskMini AMD Ryzen AI 9 HX 470 32GB DDR5 1TB barebone mini PC

SKU CH-F6F0-N89SK

Barebone mini PC with 12-core Ryzen AI 9 HX 470, 32 GB DDR5-5600, 1 TB SSD, Radeon 890M graphics, OCuLink, dual USB4, HDMI 2.1, DP 2.0, 2.5 GbE, Wi-Fi 7 and Bluetooth 5.4

  • ColorSilver
  • AI FeaturesAvailable
  • CPU TypeAMD Ryzen AI 9 HX 470
  • CPU SocketFP8
  • CPU Cores12
  • Memory installed32GB

Option X1-470 · 32+1T

Voir les 3 autres configurations

Les versions barrées existent, mais ne sont pas disponibles ici.

  • 12-core Ryzen AI 9 HX 470 delivers 24 threads for heavy multitasking
  • 32 GB DDR5-5600 dual-channel memory installed, expandable to 128 GB
  • Radeon 890M graphics drive four displays via HDMI 2.1, DP 2.0 and two USB4 ports
  • OCuLink PCIe 4.0 x4 enables external GPU faster than Thunderbolt 4
  • 5 GbE LAN, Wi-Fi 7 and Bluetooth 5.4 for high-speed networking

DeskMini X1-470 barebone

The minisforum DeskMini X1-470 is a barebone mini PC built around the AMD Ryzen AI 9 HX 470 processor with 12 cores and 24 threads. It arrives with 32GB of DDR5-5600MHz memory installed in a dual-channel configuration across two slots, supporting up to 128GB total. Integrated AMD Radeon 890M graphics handle display output.

OCuLink and multi-display I/O

A rear OCuLink port enables an external GPU connection using an M.2 2280 PCIe 4.0 x4 slot, though it is not hot-swappable. Video outputs include HDMI 2.1, DisplayPort 2.0 and two USB4 ports, driving up to four displays simultaneously. Networking uses a 2.5Gbps RTL8125BG LAN controller alongside Wi-Fi 7 and Bluetooth 5.4.

12-core Ryzen AI 9 HX 470

The processor’s 12 cores and 24 threads determine whether this unit suits heavy multitasking and AI-accelerated workloads. Memory tops out at 128GB of DDR5, and the chassis measures 7.17 by 6.26 by 4.53 inches weighing 1.43lb. Buyers needing more than two memory slots or a discrete GPU inside the case should look elsewhere.

Points forts

  • 12-core Ryzen AI 9 HX 470 delivers 24 threads for heavy multitasking
  • 32 GB DDR5-5600 dual-channel memory installed, expandable to 128 GB
  • Radeon 890M graphics drive four displays via HDMI 2.1, DP 2.0 and two USB4 ports
  • OCuLink PCIe 4.0 x4 enables external GPU faster than Thunderbolt 4
  • 5 GbE LAN, Wi-Fi 7 and Bluetooth 5.4 for high-speed networking

Caractéristiques

BrandMINISFORUM
ModelDeskMini
ColorSilver
AI FeaturesAvailable
CPU TypeAMD Ryzen AI 9 HX 470
CPU SocketFP8
CPU Cores12
Memory installed32GB
Memory slot2
Memory Type SupportedDDR5-5600MHz
Max Memory Supported128GB
Dual Channel Memory SupportedYes
Other2x PCIe4.0x4
Integrated GraphicsAMD Radeon 890M
LANRTL8125BG
Max LAN Speed2.5Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 7
BluetoothBluetooth 5.4
Slim ODD2
Front USB3
Front Audio Ports1 jacks
HDMI1
DisplayPort1 x DisplayPort
RJ451
Dimensions7.17x6.26x4.53inch
Weight1.43lb

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What DDR5-5600 memory can I add later without removing the factory 32 GB?

The board has two DDR5-5600 slots and supports up to 128 GB; the installed 32 GB occupies one slot, so a single module up to the per-slot maximum can be added.

What limits the Radeon 890M first during long workloads — thermals or power?

Large vents and 3D airflow are designed to dissipate heat during intensive tasks, so the thermal solution addresses sustained loads on the integrated graphics.

How loud and hot does the X1-470 get when it runs all day?

Efficient cooling with large vents and 3D airflow maintains performance during intensive tasks, keeping noise and temperature controlled for continuous operation.
