Small black fanless mini PC with VESA mount

MINIX

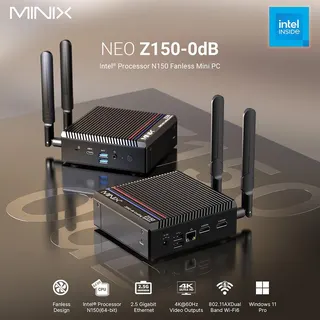

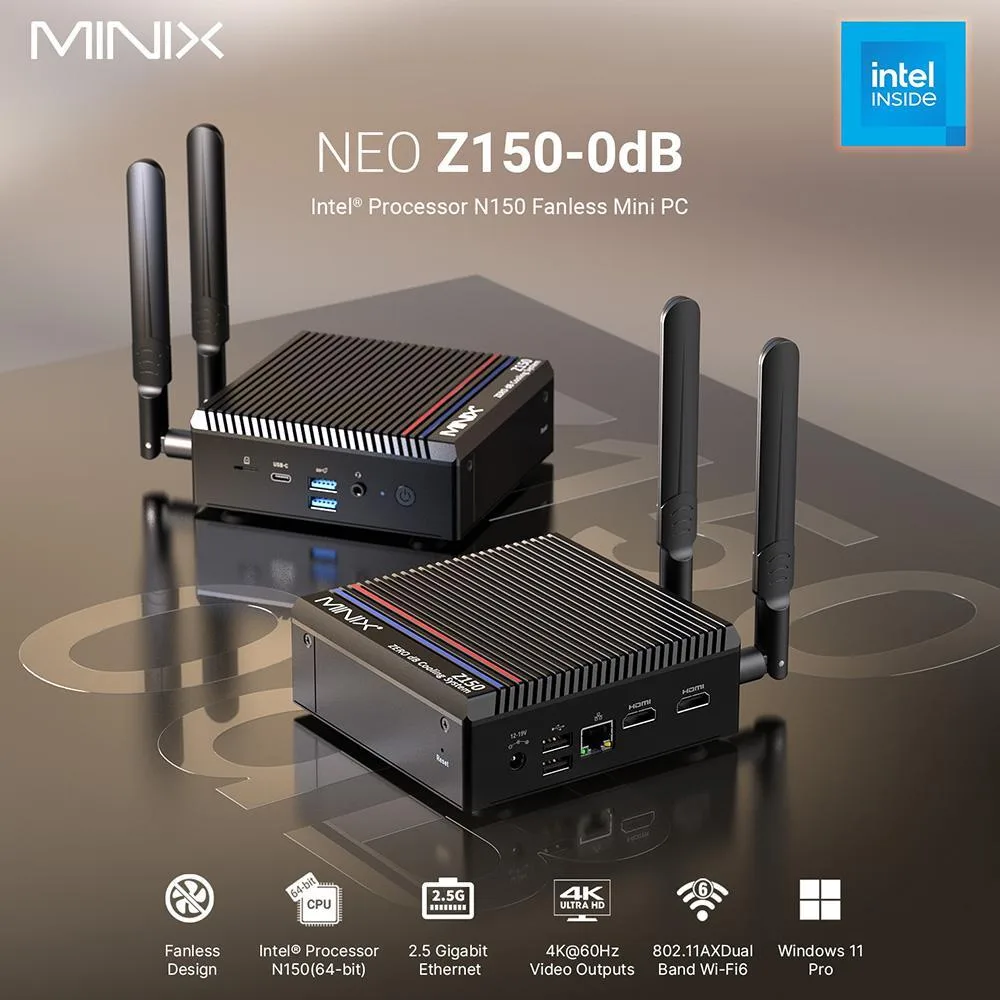

MINIX Z150-0dB barebone mini PC, Intel N150, 8GB DDR4, 256GB, Windows 11 Pro

SKU CH-3X9J-P7R5Y MPN Z150-0dB

Fanless mini PC with Intel N150, 8GB DDR4, 256GB SSD, dual HDMI 4K@60Hz, WiFi 6, Bluetooth 5.2 and Windows 11 Pro

  • ColorBlack
  • Form FactorMini PC
  • AI FeaturesNone
  • CPU TypeIntel Twin Lake Processor N150
  • CPU SocketIntel Socket BGA
  • CPU Cores4 Cores / 4 Threads

content Intel N150-0dB 8GB+256GB

  • Fanless 0 dB cooling for silent operation in offices and studios
  • Intel Twin Lake N150 four-core processor up to 3.6 GHz for responsive daily computing
  • 8 GB DDR4 3200 MHz memory and 256 GB M.2 PCIe SSD for fast application loading
  • Dual HDMI 4K 60 Hz outputs enable two-monitor productivity setups
  • WiFi 6 Bluetooth 5.2 and 2.5 G Ethernet deliver stable high-speed connectivity

Silent Fanless Operation

The MINIX Z150-0dB is a barebone mini PC cooled without a fan for true 0dB silent running. It suits offices, libraries and home theatres where any audible noise is unacceptable. An Intel Twin Lake N150 processor with four cores and four threads up to 3.6GHz drives everyday productivity and 4K media playback.

Upgrade From Older Entry Systems

This unit replaces ageing nettops or basic laptops that struggle with modern multitasking. The jump is worth it when you need 6%-10% more speed than an N100 class chip and 15% more than an N95 class chip. Eight gigabytes of DDR4 3200MHz memory and a 256GB M.2 PCIe SSD handle document editing and light creative work.

Single Channel Memory And Display Limits

Memory runs in single channel mode because only one SO-DIMM slot is provided, capping expansion at 32GB. Dual HDMI outputs deliver 4K at 60Hz for two screens but no higher refresh rate or resolution is supported. Connectivity relies on WiFi 6, Bluetooth 5.2 and 2.5G Ethernet for stable networking.

Points forts

  • Fanless 0 dB cooling for silent operation in offices and studios
  • Intel Twin Lake N150 four-core processor up to 3.6 GHz for responsive daily computing
  • 8 GB DDR4 3200 MHz memory and 256 GB M.2 PCIe SSD for fast application loading
  • Dual HDMI 4K 60 Hz outputs enable two-monitor productivity setups
  • WiFi 6 Bluetooth 5.2 and 2.5 G Ethernet deliver stable high-speed connectivity

Caractéristiques

BrandMINIX
SeriesMINIX Z Series
ModelZ150-0dB
Part NumberZ150-0dB
ColorBlack
Form FactorMini PC
AI FeaturesNone
CPU TypeIntel Twin Lake Processor N150
CPU SocketIntel Socket BGA
CPU Cores4 Cores / 4 Threads
FSBNO
North BridgeIntegrated
South BridgeIntegrated
Memory installed8GB DDR4 3200MHz
Memory slot1 x DDR4 SO-DIMM
Memory Type SupportedDDR4 3200MHz SO-DIMM
Max Memory Supported32GB
Dual Channel Memory SupportedNO
PCI Express 4.0 x16None
PCI Express 3.0 x16None
PCI Express 2.0 x16None
PCI Express x16None
PCI Express x1None
PCINO
Other3.5mm Audio Jack; TF Card Slot (Up to 2TB); External Wi-Fi Antennas; Clear CMOS Button
Storage Installed256GB M.2 PCIe 3.0 x4 NVMe SSD
IDE ATANone
Serial ATANone
M.2 Slot1 x M.2
SATA RAIDNone
Discrete Graphic CardNone
Integrated GraphicsIntel UHD Graphics
Onboard AudioIntegrated HD Audio with 3.5mm 2-in-1 Jack
Channel2.4GHz/5GHz Dual Band Wi-Fi
LAN1 x 2.5G Ethernet
Max LAN Speed2.5Gbps
Wireless LAN802.11ax (Wi-Fi 6) Dual Band 2.4GHz/5GHz
WiFi GenerationWi-Fi 6
BluetoothBluetooth 5.2
IrDANO
Slim ODDNone
Front USB1 x USB 3.2 Gen 2 Type-C (10Gbps, Data Only)
Front IEEE 1394None
Front Audio Ports1 x 3.5mm Combo Jack
Front S/PDIF InNone
Front S/PDIF OutNone
Card Reader1 x TF (MicroSD) Card Slot (Up to 2TB)
Other Front Ports1 x USB 3.2 Gen 2 Type-C (10Gbps, Data Only); 1 x TF (MicroSD) Card Slot
PS/2NO
COMNO
LPTNO
VGANO
DVINO
HDMI2 x HDMI 2.1 supporting 4K@60Hz
DisplayPortNone
ThunderboltNone
Thunderbolt 3None
Rear USB2 x USB 3.2 Gen 2 Type-A (10Gbps); 2 x USB 2.0
Rear IEEE 1394None
RJ451 x 2.5G Ethernet RJ45
Rear S/PDIF InNone
Rear S/PDIF OutNone
Rear Audio PortsNone

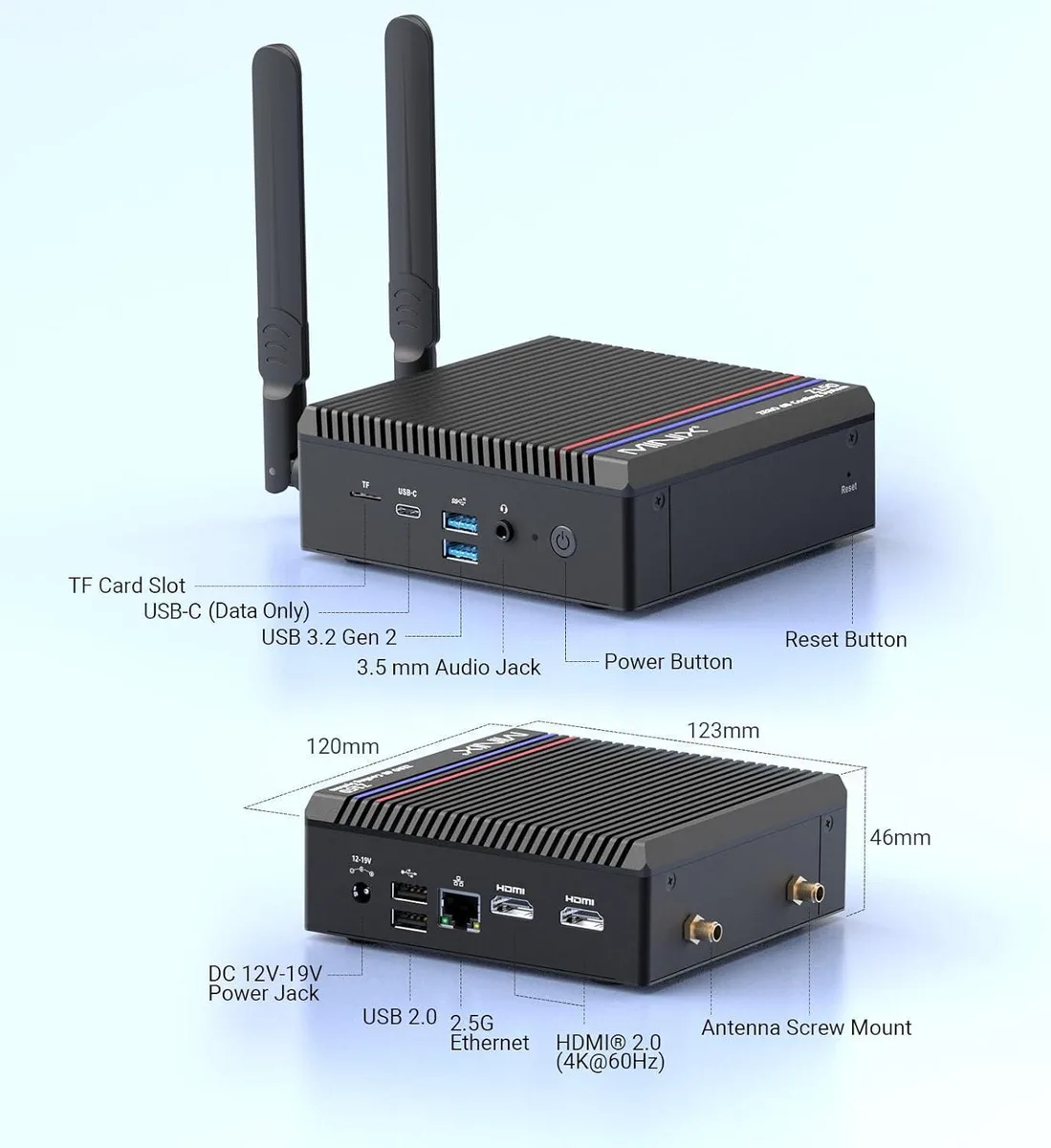

Other Rear Ports1 x RJ45 2.5G Ethernet; 2 x USB 3.2 Gen 2 Type-A; 2 x USB 2.0; 2 x HDMI 2.1; 1 x 12V-19V DC-IN; 2 x Wi-Fi Antenna Connectors; 1 x Clear CMOS Button
Internal Connectors1 x DDR4 SO-DIMM Slot; 1 x M.2 2280 PCIe 3.0 x4 NVMe Slot
Input12V-19V DC-IN
Power SupplyExternal DC 12V/3A
Dimensions4.84 x 4.72 x 1.81 in
Weight1.96 lbs
MaterialPlastic & Metal Composite
Remote ControlNone
FeaturesFanless Cooling (0dB Operation); Expandable RAM (Up to 32GB); Expandable SSD (Up to 4TB); VESA Mountable
Packaging1 x Mini PC, 1 x Adapter, 1 x HDMI Cable, 1 x VESA Mount, 2 x Dual Band Antenna

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What VESA mounting pattern does the Z150-0dB use?

The unit includes a VESA mount bracket that attaches to standard 75 mm or 100 mm hole patterns on the back of a monitor or wall plate.

Which step is most often missed when adding a second SO-DIMM to the single DDR4 slot?

The board has only one DDR4 SO-DIMM slot supporting up to 32 GB at 3200 MHz; there is no second slot, so a dual-channel upgrade is not possible.

How do I replace the 256 GB M.2 drive when I need more storage?

Remove the bottom cover, unscrew the existing M.2 PCIe SSD, insert the new drive at the same angle, secure it with the screw, then reinstall Windows 11 Pro.
