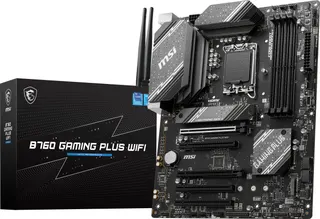

MSI B760 GAMING PLUS WIFI LGA 1700 DDR5 ATX Intel motherboard
An LGA 1700 ATX board for 12th, 13th and 14th Gen Intel CPUs with four DDR5 slots up to 192 GB, two PCIe 4.0 M.2 sockets, 2.5 G LAN, Wi-Fi 6E and Bluetooth 5.3
- CPU Socket TypeLGA 1700
- CPU TypeSupport Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pe
- ChipsetIntel B760
- Number of Memory Slots4x288pin (DDR5)
- Memory Standard4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6
- Maximum Memory Supported192GB
- Supports 12th 13th 14th Gen Intel Core Pentium Celeron processors via LGA 1700 socket
- Four DDR5 slots reach 6800 MHz overclock with XMP 3.0 up to 192 GB capacity
- Two PCIe 4.0 x16 slots plus three PCIe 3.0 x1 slots for graphics and add-in cards
- Two M.2 sockets up to PCIe 4.0 x4 with Shield Frozr heatsink for 22110 2280 2260 2242 drives
- 5G LAN Wi-Fi 6E Bluetooth 5.3 plus HDMI 2.1 DisplayPort 1.4 USB 3.2 Gen 2 Type-A and Type-C 10 Gbps
B760 ATX motherboard with DDR5 and Wi‑Fi 6E

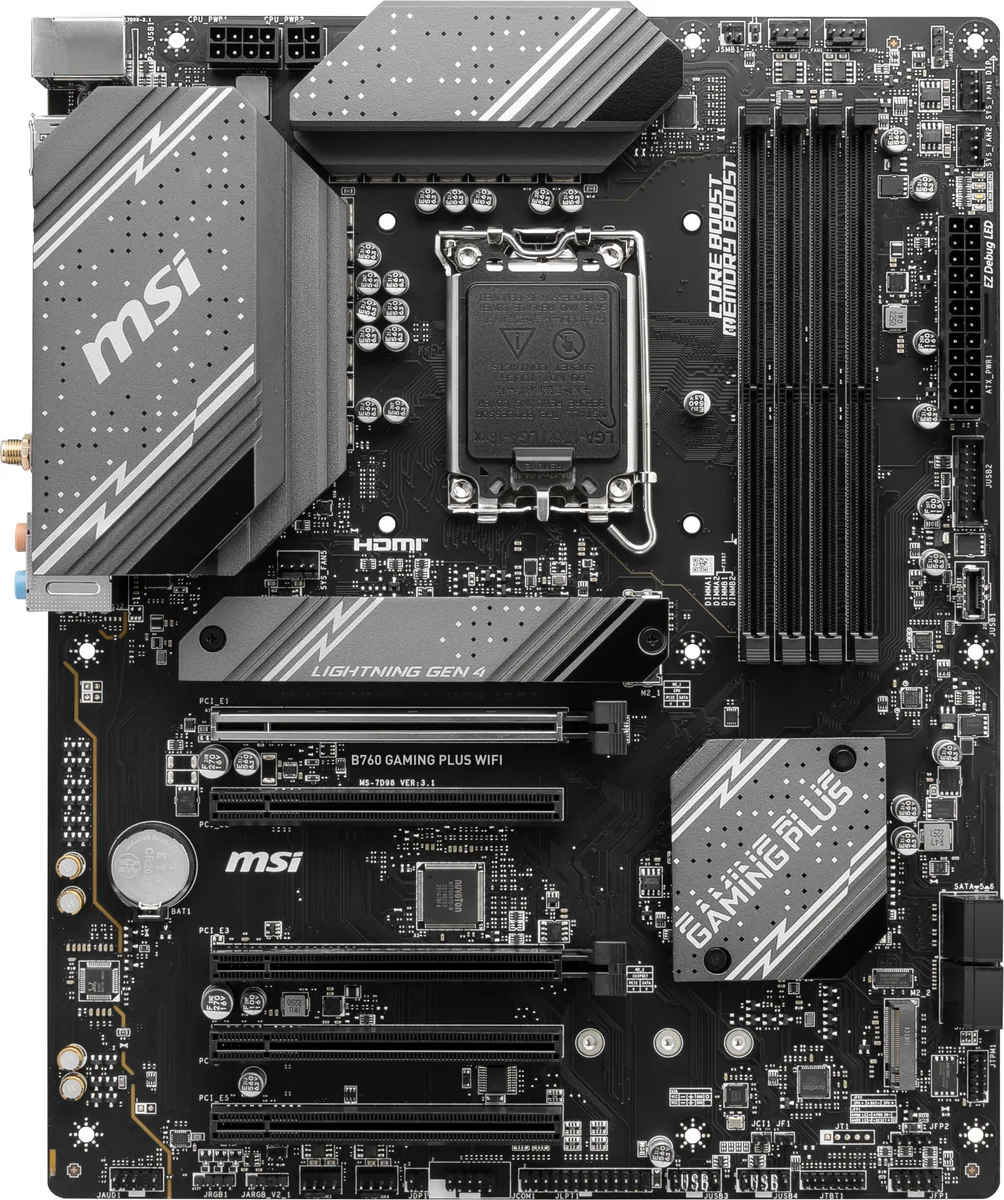

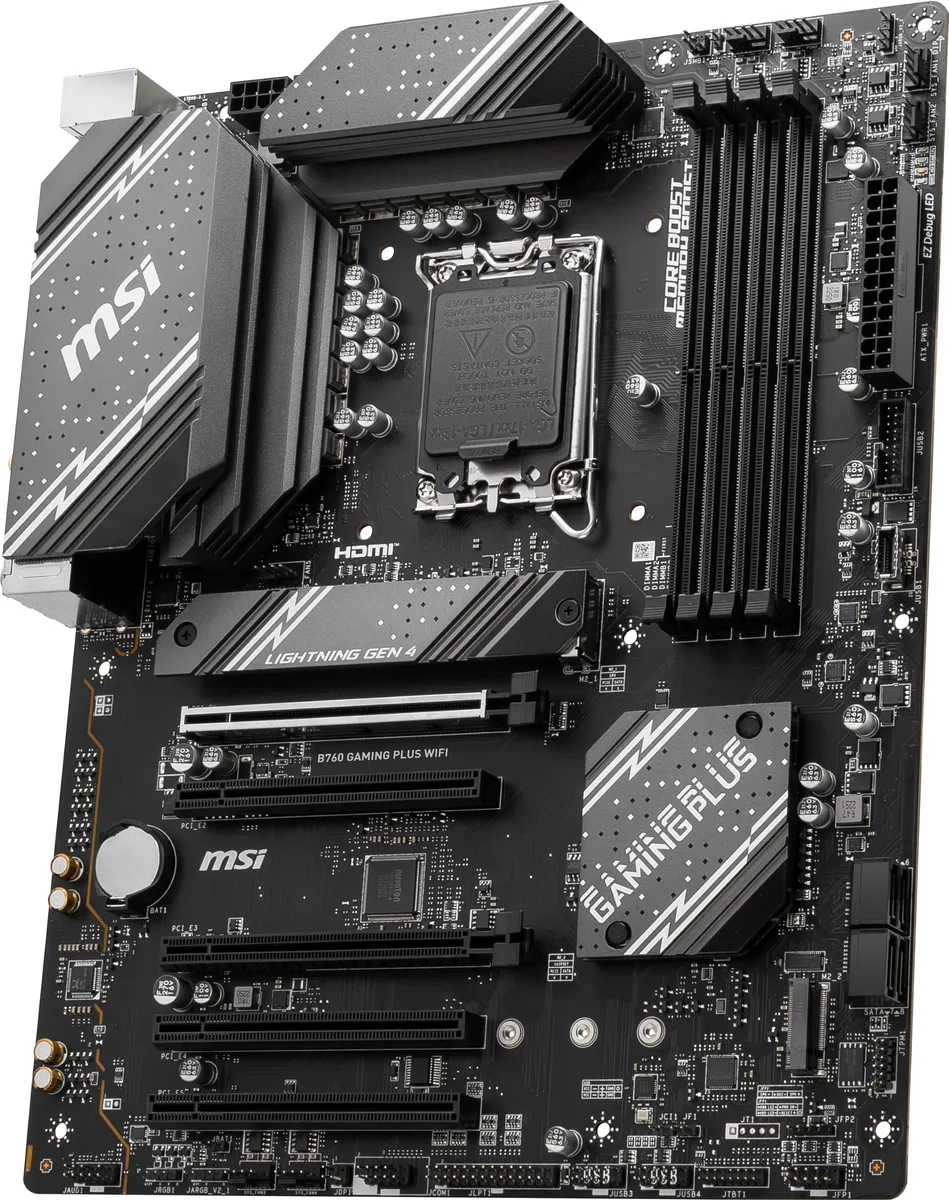

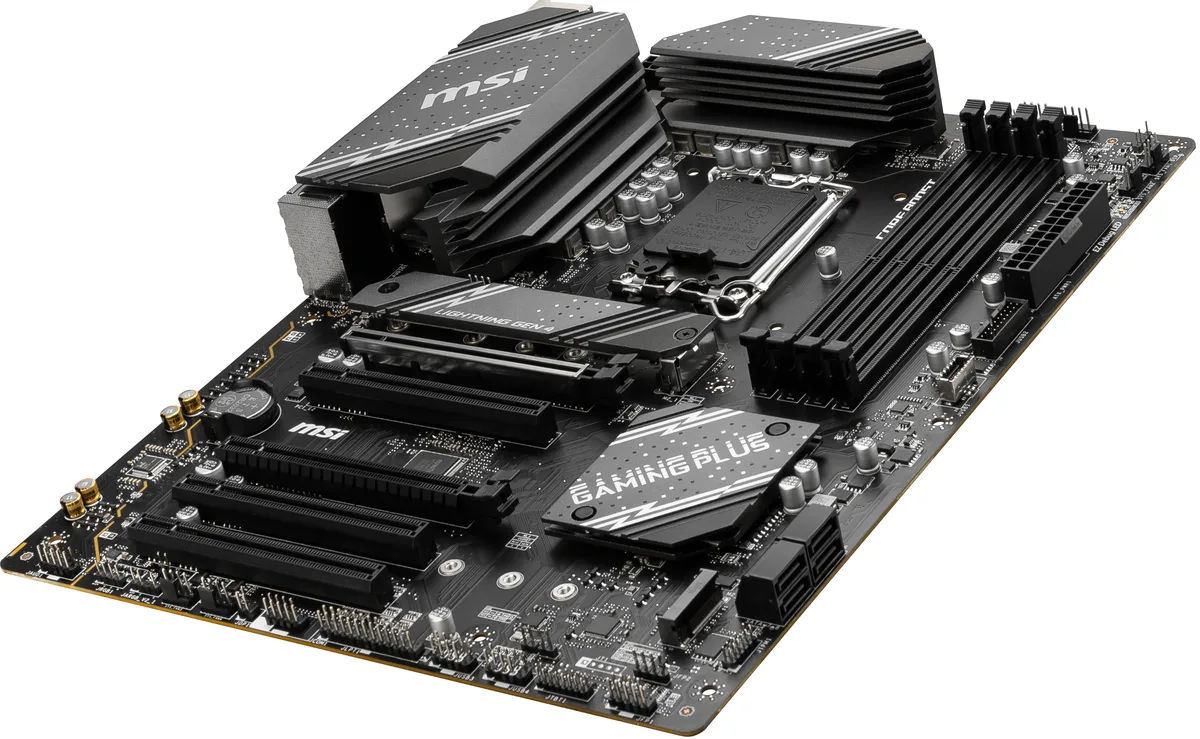

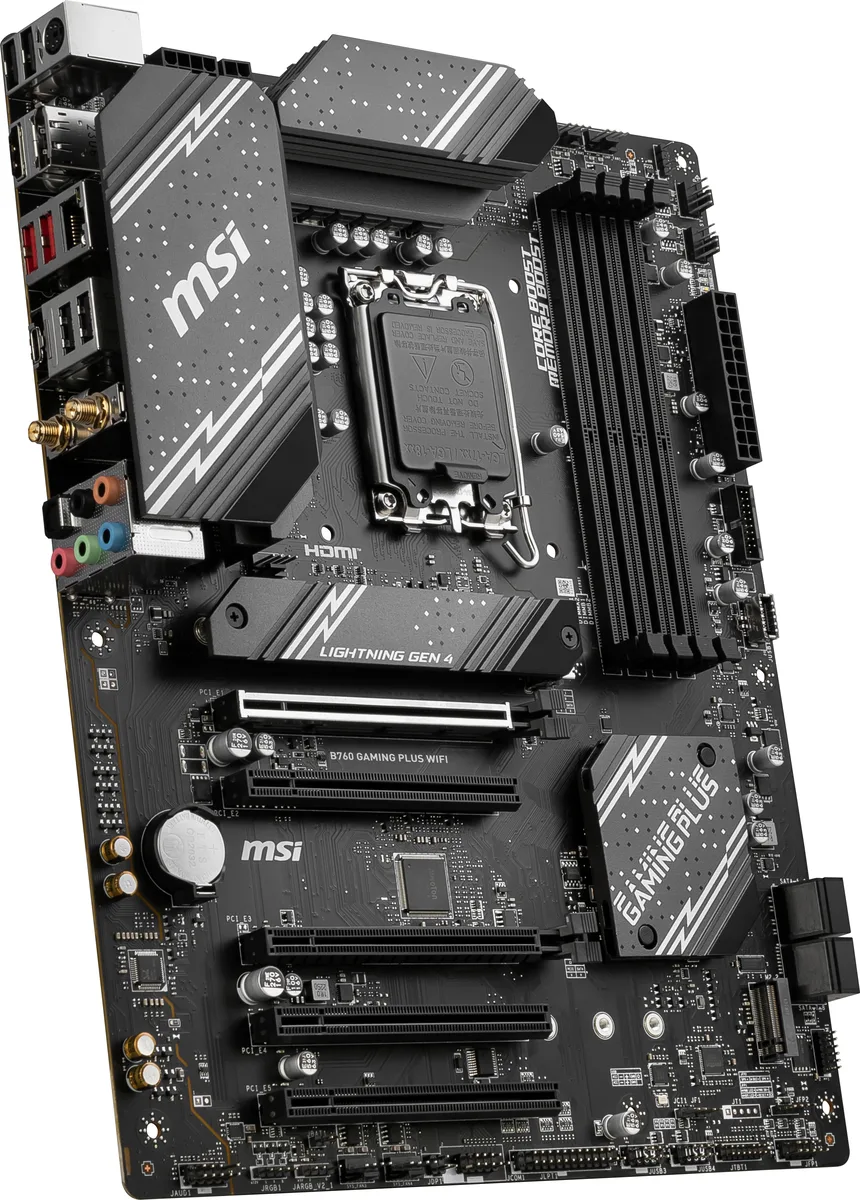

The MSI B760 GAMING PLUS WIFI is an ATX board built on the Intel B760 chipset for LGA 1700 processors. It supports 12th, 13th and 14th generation Core CPUs along with Pentium Gold and Celeron models. Four DDR5 slots accept up to 192 GB of memory with XMP 3.0 profiles. Wireless connectivity includes Wi‑Fi 6E and Bluetooth 5.3.
Suits DDR5 builders needing 2.5 GbE
This board fits users who want dual‑channel DDR5, two full‑length PCIe 4.0 x16 slots and a 2.5 GbE LAN port. It also provides two M.2 sockets with PCIe 4.0 x4 wiring and four SATA 6Gb/s ports. Builders requiring more than two M.2 sockets, 10 GbE networking or a smaller form factor should consider other models.
Deciding spec: two PCIe 4.0 x16 slots on a B760
The presence of two PCIe 4.0 x16 slots is unusual for a B760 board and determines whether multi‑GPU or add‑in card layouts are possible. If a build needs only one full‑speed slot, a less expensive B760 model may suffice. If dual x16 electrical wiring is required, this board meets that requirement.
Points forts
- Supports 12th 13th 14th Gen Intel Core Pentium Celeron processors via LGA 1700 socket
- Four DDR5 slots reach 6800 MHz overclock with XMP 3.0 up to 192 GB capacity
- Two PCIe 4.0 x16 slots plus three PCIe 3.0 x1 slots for graphics and add-in cards
- Two M.2 sockets up to PCIe 4.0 x4 with Shield Frozr heatsink for 22110 2280 2260 2242 drives
- 5G LAN Wi-Fi 6E Bluetooth 5.3 plus HDMI 2.1 DisplayPort 1.4 USB 3.2 Gen 2 Type-A and Type-C 10 Gbps
Caractéristiques
| Brand | MSI |
|---|---|
| Model | B760 GAMING PLUS WIFI |
| CPU Socket Type | LGA 1700 |
| CPU Type | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors |
| Chipset | Intel B760 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| PCI Express 4.0 x16 | 2 x PCI Express 4.0 x16 |
| PCI Express x1 | 3x PCIe 3.0 x1 slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio Channels | 8-Channel (7.1) HD Audio with Audio Boost |
| Max LAN Speed | Realtek® RTL8125BG 2.5G LAN |
| Wireless LAN | ntel® Wi-Fi 6E |
| Bluetooth | , Bluetooth 5.3 |

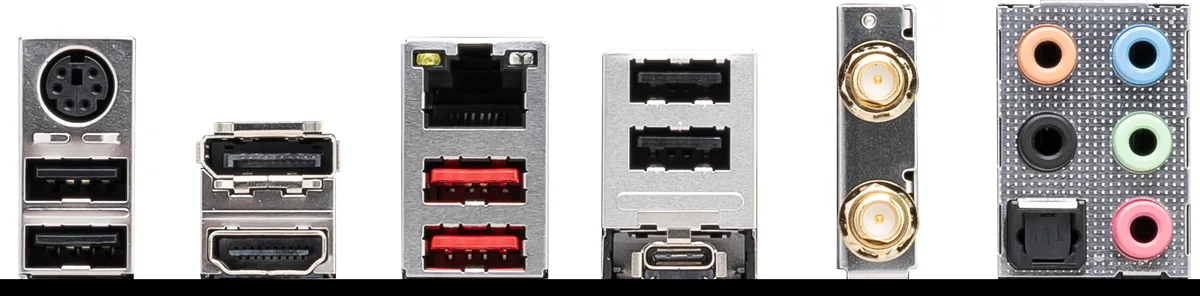

| Back I/O Ports | Keyboard/Mouse, Displayport 1.4, 2.5G LAN, USB2.0, Wi-fi/Bluetooth, HD Audio Connectors, USB2.0, HDMI 2.1 Port, USB 3.2 Gen 2 10Gbps (type-A), USB 3.2 Gen 2 10Gbps(Type C), Optical S/PDIF-Out. |
| Other Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
| Windows 11 | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | ATX |
| Dimensions (W x L) | 243.84mmx304.8mm |
| Features | Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC) Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G 2.5G LAN with Wi-Fi |
| Poids d’expédition | 2.27 kg |
| Dimensions du colis | 346 × 269 × 71 mm |
Questions sur cet article
Will the M.2 Shield FROZR heatsink need to be removed or replaced when upgrading the M.2_1 SSD?
The built-in M.2 Shield FROZR covers the M.2_1 slot and can be lifted off to swap a 22110, 2280, 2260 or 2242 drive without replacing the heatsink itself.
What limits sustained PCIe 4.0 x4 throughput on the M.2_1 slot first — thermal throttling or the four-lane CPU link?
The M.2_1 slot runs at PCIe 4.0 x4 directly from the CPU, so the four-lane link is the hard ceiling; the Shield FROZR heatsink is designed to keep the SSD below its throttle point.
How loud does the VRM heatsink area get when the board runs a 14th Gen Core i7 all day?
The extended PWM heatsink is passive, so it adds no fan noise; only the CPU cooler and case fans will be audible under continuous load.
