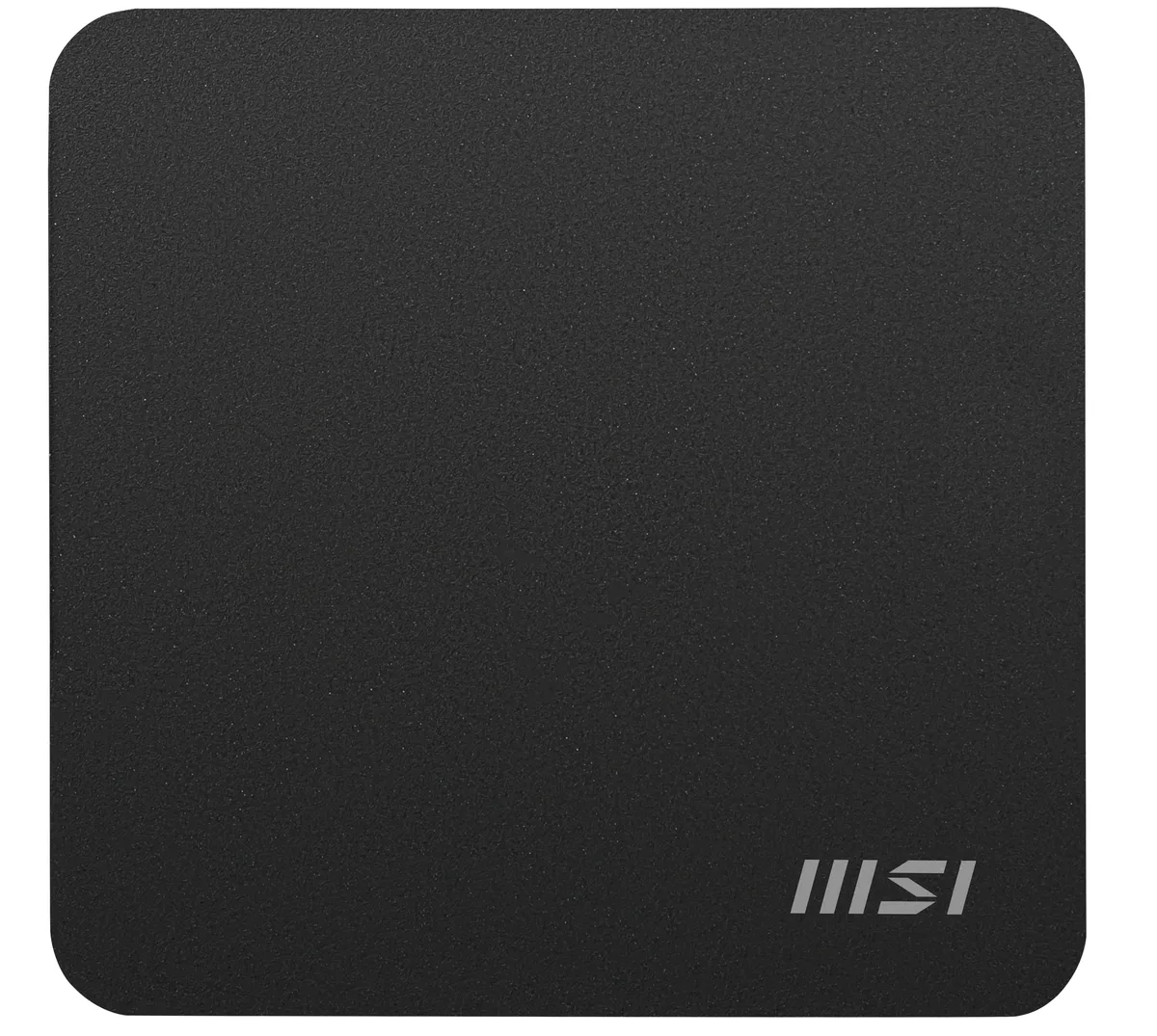

Black compact barebone mini PC, square chassis, no RAM or storage installed

MSI

MSI Cubi NUC 1M-009BUS barebone mini PC Intel Core 7 150U DDR5 64GB

SKU CH-5958-4EBJT MPN Cubi NUC 1M-009BUS

Barebone mini PC with Intel Core 7 150U, dual 2.5G LAN, Thunderbolt 4, quadruple display support and DDR5 slots for up to 64GB

  • ColorBlack
  • CPU TypeIntel Core 7 150U
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR5 5200
  • Max Memory Supported64GB

CPU Type Intel Core 7 150U

  • Intel Core 7 150U processor powers demanding professional workloads
  • Thunderbolt 4 delivers up to 40Gbps transmission speed and 100W power delivery
  • Dual Intel 2.5G LAN ports provide high-speed wired network connectivity
  • Supports up to 64GB DDR5 5200 memory across two SO-DIMM slots
  • Quadruple display output via HDMI and Thunderbolt 4 enhances multitasking

Compact Barebone for Business Deployments

The MSI Cubi NUC 1M-009BUS is a mini PC barebone built around an Intel Core 7 150U processor. It arrives without memory or storage so IT teams can populate two DDR5 5200 SO-DIMM slots up to 64GB and choose an M.2 2280 or 2242 SSD plus a 2.5-inch drive. Dual Intel 2.5G LAN ports, Wi-Fi 6E AX211 and Bluetooth 5.3 handle wired and wireless connectivity.

Suits Managed Fleets; Not for High-End Graphics

This unit fits offices that need vPro-class manageability, quadruple display output via HDMI and Thunderbolt 4, and MSI Power Link to switch the PC on through a monitor. Buyers who want discrete graphics performance, more than two SO-DIMM slots, or additional M.2 slots should look at larger form factors.

Two DDR5 SO-DIMM Slots Decide the Memory Path

The board provides exactly two 262-pin SO-DIMM sockets limited to DDR5 5200 with a 64GB ceiling. Populate both slots for dual-channel bandwidth with the integrated Intel Iris Xe graphics or run a single module for Intel UHD graphics. No other memory type or capacity is supported.

Points forts

  • Intel Core 7 150U processor powers demanding professional workloads
  • Thunderbolt 4 delivers up to 40Gbps transmission speed and 100W power delivery
  • Dual Intel 2.5G LAN ports provide high-speed wired network connectivity
  • Supports up to 64GB DDR5 5200 memory across two SO-DIMM slots
  • Quadruple display output via HDMI and Thunderbolt 4 enhances multitasking

Caractéristiques

BrandMSI
ModelCubi NUC 1M-009BUS
ColorBlack
CPU TypeIntel Core 7 150U
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 5200
Max Memory Supported64GB
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 SSD
1 x M.2 2242 SSD
Integrated GraphicsIntel UHD with single memory / Intel Iris Xe Graphics (Core 5 processor above with dual-channel memory)
Onboard AudioRealtek ALC256
LAN2 x Intel I226V
Wireless LANIntel WiFi 6E AX211
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
2.5" Internal Bays1 x 2.5" HDD/SSD
Front USB2 x USB 10Gbps Type A
Front Audio Ports1 x Mic-in / Headphone-out combo
Card Reader1 x Micro-SD card Reader
HDMI2 x HDMI out (supports 4K @60Hz as specified in HDMI 2.1)
Rear USB2 x USB 10Gbps Type A
RJ452 x RJ45
Other Rear Ports2 x Thunderbolt 4 (DP 2.1 alt-mode up to 4K@60Hz / PD-out 15W / One TBT support PD-in)
Power Supply120W
Dimensions5.34" x 5.22" x 1.97"
Weight1.38 lbs.
Features1 x Kensington Lock
75x75/100x100mm
Packaging1 x Quick Guide, 1 x Power Cord
Poids d’expédition1.57 kg
Dimensions du colis224 × 206 × 97 mm

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What size M.2 slots and 2.5-inch bay does the Cubi NUC 1M-009BUS provide for storage?

The unit has one M.2 2280 slot, one M.2 2242 slot and a single 2.5-inch internal bay for a hard drive or SSD.

How do I enable MSI Power Link so the PC starts with my monitor?

Connect the monitor via Thunderbolt 4, then turn on Power Link in the BIOS; the PC will then power on and off together with the display.

What memory kits does the barebone accept and what is the maximum capacity?

It takes two 262-pin DDR5 5200 SO-DIMMs up to 64 GB total; memory is not included.
