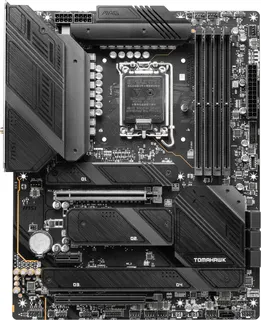

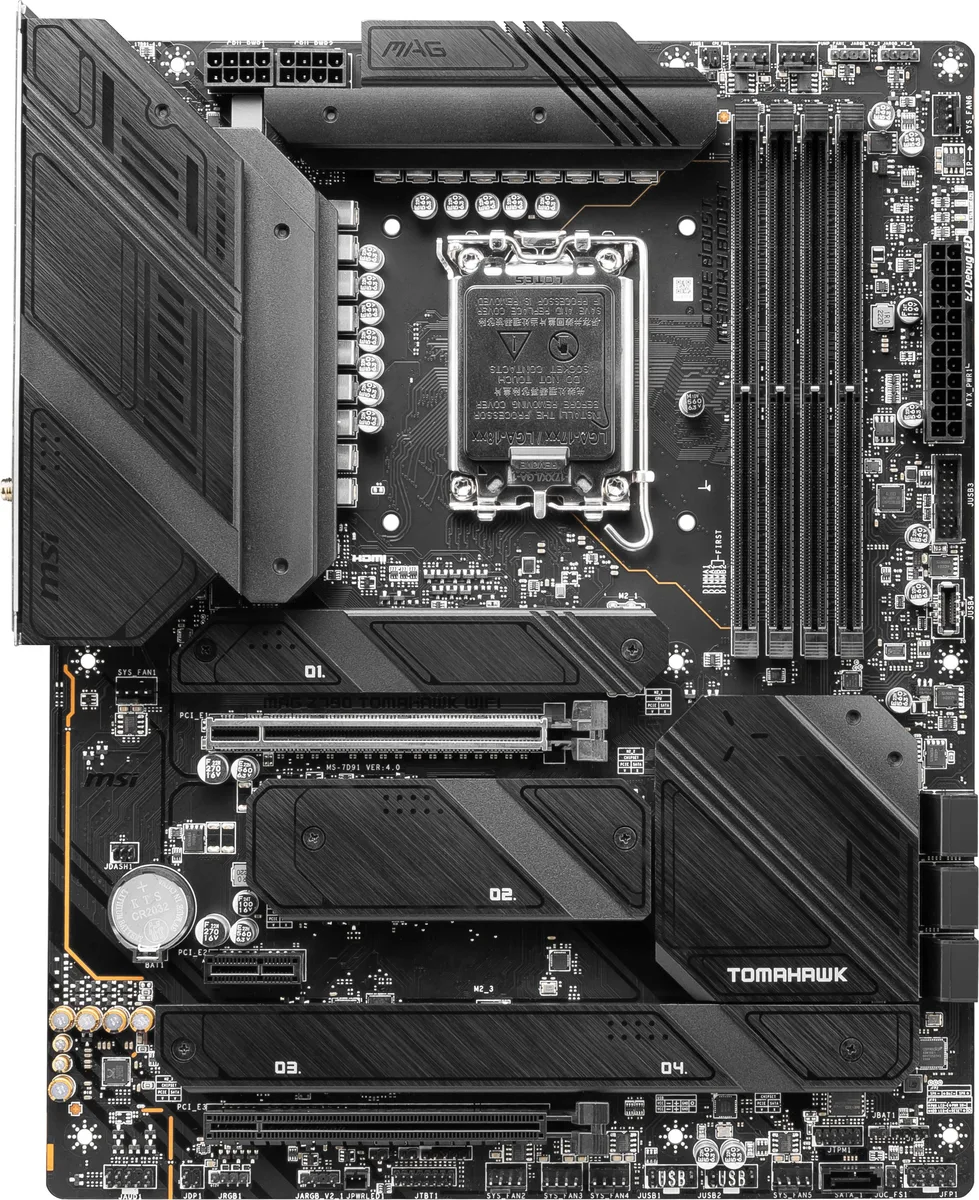

Black ATX motherboard with silver heatsinks and four DDR5 slots

MSI

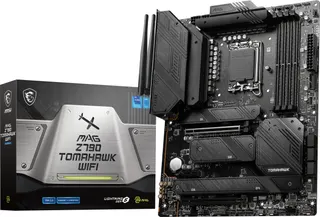

MSI MAG Z790 TOMAHAWK WIFI Intel motherboard

SKU CH-5WGG-CNEGW MPN MAG Z790 TOMAHAWK WIFI

ATX motherboard for 12th and 13th Gen Intel Core processors on LGA 1700 with Intel Z790 chipset, four DDR5 slots up to 7200 MHz OC, PCIe 5.0 x16, four M.2 slots, 2.5 Gbps LAN, Wi-Fi 6E and USB 3.2

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 13th / 12th Gen Intel Core Processors, Intel Pentiu
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports 1R 5600 MHz (by JEDEC & POR) - 1DPC 1R Max speed up
  • Maximum Memory Supported192GB

Option MAG Z790 TOMAHAWK WIFI

  • MAG Z790 TOMAHAWK MAX WIFI
  • MAG Z790 TOMAHAWK WIFI
  • MEG Z790 ACE
  • MEG Z790 ACE MAX
  • MEG Z790 GODLIKE
  • MPG Z790 CARBON WIFI
  • MPG Z790 CARBON WIFI II
  • MPG Z790 EDGE TI MAX WIFI
  • MPG Z790 EDGE WIFI
  • MPG Z790 EDGE WIFI DDR4
  • PRO Z790-P WIFI
  • PRO Z790-A WIFI
  • PRO Z790-A WIFI DDR4
  • PRO Z790-P WIFI DDR4
  • Z790 GAMING PRO WIFI
  • PRO Z790-A MAX WIFI
  • Z790-S WIFI
  • Z790 PROJECT ZERO
  • Z790 GAMING PLUS WIFI
  • PRO Z790-VC WIFI
  • PRO Z790-A WIFI II

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA 1700 socket
  • 16+1+1 Duet Rail power system with 90A Smart Power Stages for stable CPU delivery
  • Four DDR5 slots up to 7200 MHz OC with Intel XMP 3.0 support for 192 GB maximum
  • PCIe 5.0 x16 slot plus four M.2 connectors including one PCIe 4.0 x4 from CPU
  • Wi-Fi 6E and 2.5 Gbps Intel LAN with Realtek ALC4080 7.1 channel audio

Socket LGA 1700 ATX board

This ATX motherboard uses the Intel Z790 chipset and an LGA 1700 socket for 12th and 13th generation Intel Core, Pentium Gold and Celeron processors. It targets PC builders who want a full-size platform with current-gen connectivity and room for expansion.

Build quality and daily connectivity

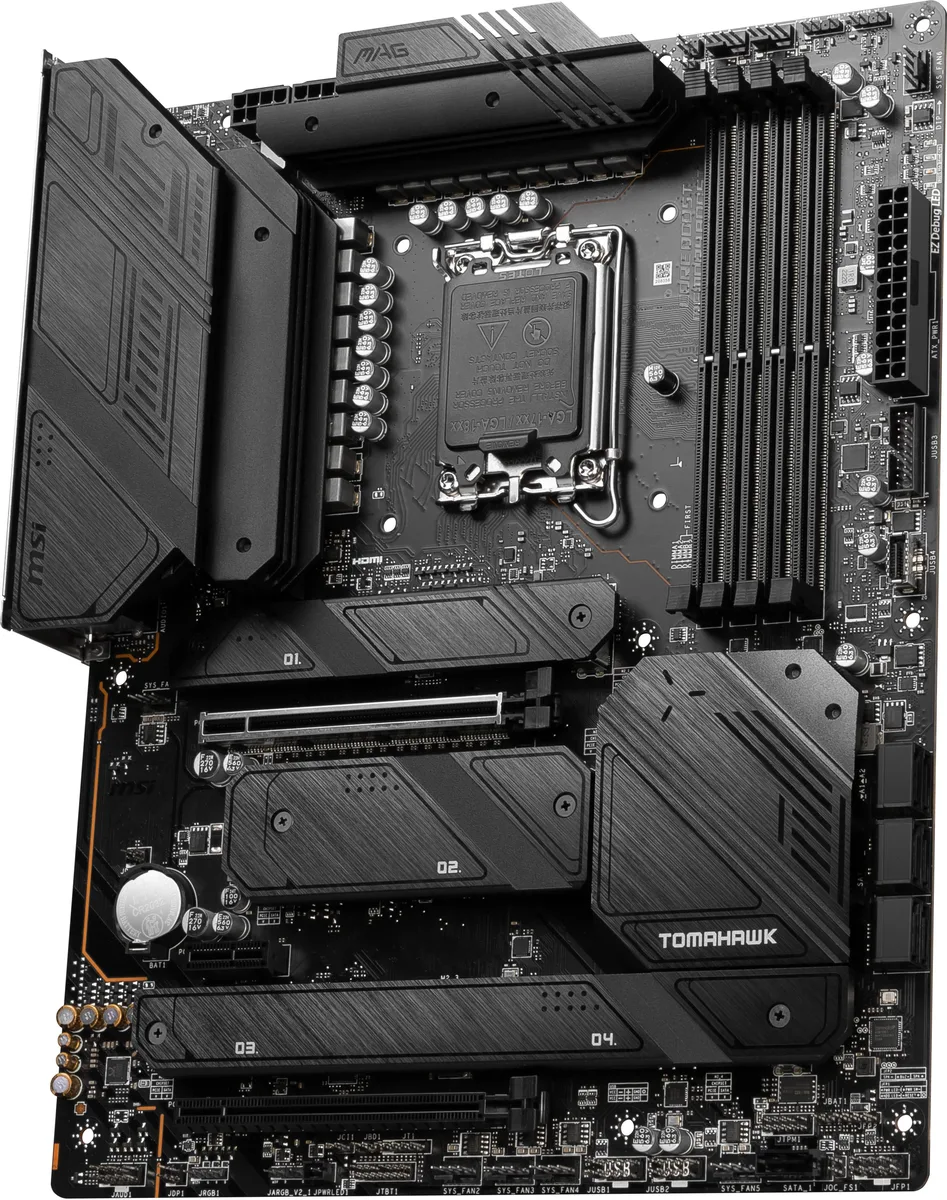

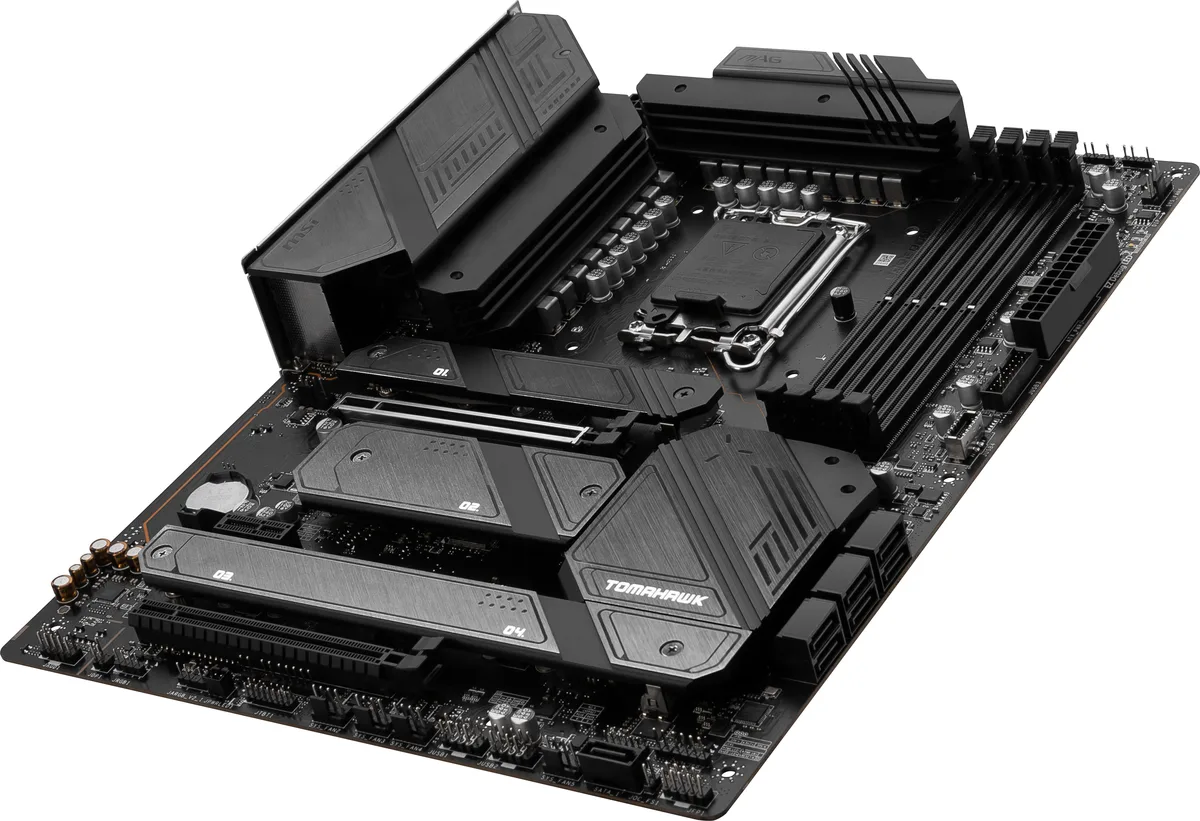

A 16+1+1 phase Duet Rail power system with 90 A smart power stages feeds the CPU through dual 8-pin connectors. The board carries an extended VRM heatsink, 7 W/mK thermal pads, a six-layer PCB with thickened copper and M.2 Shield Frozr cooling for storage. Rear I/O includes Wi-Fi 6E, 2.5 Gbps LAN, Realtek ALC4080 7.1-channel audio, USB 3.2 Gen 2x2 20 Gbps and multiple USB 3.2 Gen 1 ports.

Memory ceiling and PCIe 5.0 graphics slot

Four DDR5 slots support up to 192 GB in dual channel with XMP 3.0 profiles reaching 7200 MHz. The primary PCIe 5.0 x16 slot runs from the CPU for next-generation graphics cards, while four M.2 Key M slots and seven SATA 6 Gb/s ports provide abundant high-speed storage options.

Points forts

  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA 1700 socket
  • 16+1+1 Duet Rail power system with 90A Smart Power Stages for stable CPU delivery
  • Four DDR5 slots up to 7200 MHz OC with Intel XMP 3.0 support for 192 GB maximum
  • PCIe 5.0 x16 slot plus four M.2 connectors including one PCIe 4.0 x4 from CPU
  • Wi-Fi 6E and 2.5 Gbps Intel LAN with Realtek ALC4080 7.1 channel audio

Caractéristiques

BrandMSI
ModelMAG Z790 TOMAHAWK WIFI
CPU Socket TypeLGA 1700
CPU TypeSupports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports 1R 5600 MHz (by JEDEC & POR)
- 1DPC 1R Max speed up to 6800+ MHz
- 1DPC 2R Max speed up to 6400+ MHz
- 2DPC 1R Max speed up to 6400+ MHz
- 2DPC 2R Max speed up to 5600+ MHz
Supports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
PCI Express 5.0 x16PCI_E1 slot (From CPU)
- Supports up to PCIe 5.0 x16
PCI Express 4.0 x16PCI_E3 slot (From Z790 Chipset)
- Supports up to PCIe 4.0 x4
PCI Express x1PCI_E2 slot (From Z790 Chipset)
- Supports up to PCIe 3.0 x1
Serial ATA (SATA)7x SATA 6Gb/s ports
- SATA_1& SATA_5_6& SATA_7_8 (From Z790 chipset)
- SATA_A1_A2 (From ASM1061)
M.21 x Key M (CPU) + 1 x Key M (PCIe/SATA) + 2 x Key M (PCIe) + 1 x Key E (WiFi/BT)
4x M.2 slots (Key M)
M2_1 slot (From CPU)
- Supports up to PCIe 4.0 x4
- Supports 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z790 chipset)
- Supports up to PCIe 4.0 x4
- Supports 2260/ 2280 storage devices
M2_3 slot (From Z790 chipset)
- Supports up to PCIe 4.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (From Z790 chipset)
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280 storage devices
* SATA_1 will be unavailable when installing M.2 SATA SSD in t
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC4080
Audio Channels7.1 Channels
LAN Chipset1x Intel 2.5Gbps LAN controller
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz*(160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
BluetoothSupports Bluetooth 5.2*, FIPS, FISMA
* Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

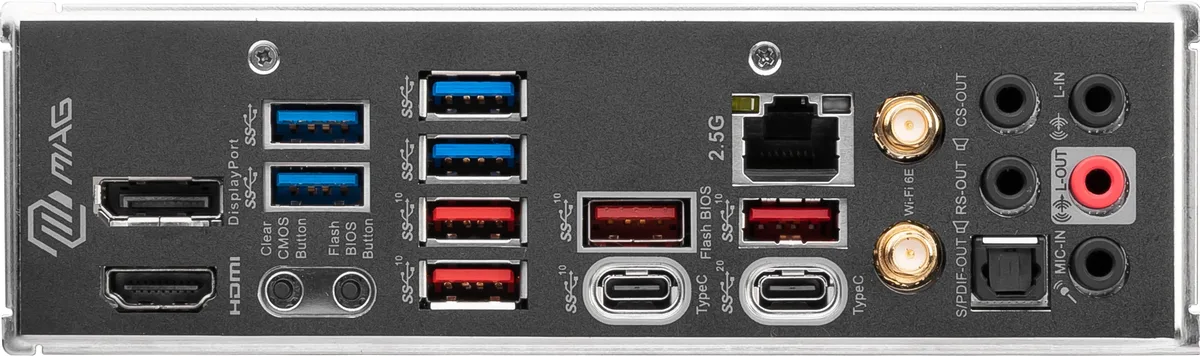

Back I/O Ports1x DisplayPort
1x HDMI port
1x Clear CMOS button
1x Flash BIOS button
4x USB 3.2 Gen 1 5Gbps Type-A ports (From Hub GL3523)
4x USB 3.2 Gen 2 10Gbps Type-A ports (From Z790 chipset)
1x USB 3.2 Gen 2 10Gbps Type-C port (From Z790 chipset)
1x USB 3.2 Gen 2x2 20Gbps Type-C port (From Z790 chipset)
1x 2.5Gbps LAN (RJ45) jack
2x Wi-Fi Antenna connectors
5x Audio jacks
1x Optical S/PDIF Out connector
Onboard USB1x USB 3.2 Gen 2 10Gbps Type-C front panel connector (From Z790 chipset)
1x USB 3.2 Gen 1 5Gbps connector (From Hub GL3523)
- Support additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From Hub GL850G)
- Supports additional 4 USB 2.0 ports
Other ConnectorsFan Connectors
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
System Connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Tuning Controller connector
1x TBT connector (Supports RTD3)
Jumpers
1x Clear CMOS jumper
1x OC force enter BIOS jumper (Supports lower PCIe mode)
LED Features
1x 4-pin RGB LED connector
3x 3-pin ARGB Gen2 LED connectors
4x EZ Debug LED
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1x 24-pin ATX main power connector
2x 8-pin +12V power connectors
FeaturesMSI Center Features
- Gaming Mode
- Smart Priority
- Game Highlights
- Mystic light
- Ambient Devices
- Frozr AI Cooling
- User Scenario
- True Color
- Live Update
- Hardware Monitoring
- Super Charger
- Devices Speed Up
- Smart Image Finder
- MSI Companion
- System Diagnosis
- System Info
- Microsoft App
- My Device
- MSI Display kit
Thermal Features
- Extended Heatsink Design
- M.2 Shield Frozr
- K7 MOSFET thermal pad / Extra choke pad
- Fan headers (CPU + PUMP + SYSTEM)
Performance
- Core Boost
- VRM Power Design (VCPU / VGT / AUX)
- Dual CPU Power
- Memory Boost
- Lightning Gen 5
Poids d’expédition2.27 kg
Dimensions du colis342 × 268 × 70 mm

Autres versions de ce modèle

4 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What speed does the PCIe 5.0 x16 slot deliver in practice?

The PCI_E1 slot runs at PCIe 5.0 x16 directly from the CPU, providing up to 128 GB/s bandwidth for graphics cards.

What clearance and form factor does the board need to fit in a case?

The ATX form factor requires a case with ATX mounting holes and enough height for the extended VRM heatsink and M.2 shields.

How is the BIOS updated and which step is often missed?

Use the rear Flash BIOS Button with a USB drive inserted in the dedicated BIOS port; the step often missed is renaming the BIOS file to the exact name required by the board.
