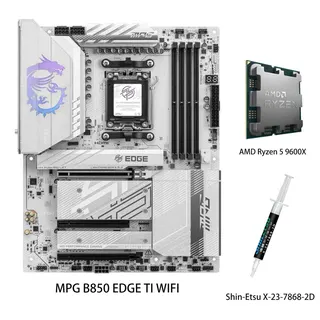

White ATX motherboard with silver heatsinks and Ryzen 5 9600X CPU in socket

MSI

MSI MPG B850 EDGE TI WIFI White AMD motherboard & Ryzen 5 9600X CPU combo

SKU CH-MNZZ-4FKR3

A B850 board paired with a six-core Ryzen 9600X, supporting DDR5 up to 8400 MT/s, PCIe 5.0 graphics, Wi-Fi 7, 5 Gbps LAN and four M.2 slots

  • CPU Socket TypeAM5
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to DDR5 8400+ MT/s (OC)
  • PCI Express 5.0 x161 x PCI Express 5.0 x16
  • PCI Express 4.0 x161 x PCI Express 4.0 x16

+ cpu R5 9600X

  • Ryzen 5 9600X delivers 6 cores and 12 threads for smooth 100+ FPS gaming
  • DDR5 memory runs up to 8400 MT/s OC for responsive multitasking
  • Extended PWM heatsink keeps high-end processors at full speed under load
  • PCIe 5.0 x16 and quadruple M.2 slots provide up to 128GB/s bandwidth
  • Wi-Fi 7 with 320 MHz channel reaches 5.8Gbps, 2.4 times faster than Wi-Fi 6

Combo build for AM5 platforms

The bundle pairs an MPG B850 EDGE TI WIFI motherboard with a Ryzen 5 9600X processor, delivering a ready-to-run foundation for AM5 systems. The board supports Ryzen 7000, 8000 and 9000 series CPUs, while the included 6-core 12-thread chip reaches a 5.4 GHz max boost clock. It targets builders who want a matched CPU and board without separate compatibility checks.

DDR5 8400 MT/s headroom and 80 A VRM

Four 288-pin slots accept DDR5 up to 8400+ MT/s when overclocked, giving ample bandwidth for memory-sensitive workloads. The 80 A SPS VRM with extended heatsinks keeps power delivery stable even when high-end processors run at full speed. Headroom narrows only when pushing extreme memory frequencies or sustained all-core loads beyond the VRM thermal capacity.

PCIe 5.0 and Wi-Fi 7 interface limits

A single PCIe 5.0 x16 slot provides up to 128 GB/s bandwidth for graphics or accelerators, while a second slot runs at PCIe 4.0 x16 and a third at PCIe 3.0 x1. Wireless uses Wi-Fi 7 with 320 MHz channels for a 5.8 Gbps peak, 2.4 times faster than Wi-Fi 6, and wired LAN caps at 5 Gbps. Four SATA 6 Gb/s ports and quadruple M.2 connectors complete the storage mix.

Points forts

  • Ryzen 5 9600X delivers 6 cores and 12 threads for smooth 100+ FPS gaming
  • DDR5 memory runs up to 8400 MT/s OC for responsive multitasking
  • Extended PWM heatsink keeps high-end processors at full speed under load
  • PCIe 5.0 x16 and quadruple M.2 slots provide up to 128GB/s bandwidth
  • Wi-Fi 7 with 320 MHz channel reaches 5.8Gbps, 2.4 times faster than Wi-Fi 6

Caractéristiques

BrandMSI
ModelMPG B850 EDGE TI WIFI+R5 9600X
CPU Socket TypeAM5
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to DDR5 8400+ MT/s (OC)
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express x11 x PCI Express 3.0 x1
Serial ATA (SATA)4 x SATA 6Gb/s
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Form FactorATX

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will my DDR5-8400 memory kit reach its rated speed on the MPG B850 EDGE TI WIFI?

The board supports DDR5 up to 8400+ MT/s when overclocked, so a kit rated at that speed can run at its full specification with the correct BIOS settings.

How can I verify the Wi-Fi 7 link is operating at 5.8 Gbps after setup?

Open the Wi-Fi 7 adapter properties in Windows and confirm the link speed shows 5.8 Gbps on a 320 MHz channel; the Bluetooth 5.4 version will also be listed in Device Manager.

Does the combo include a CPU cooler or must I buy one separately?

The bundle contains the motherboard and the Ryzen 5 9600X processor only; a compatible AM5 cooler is not included and must be purchased separately.
