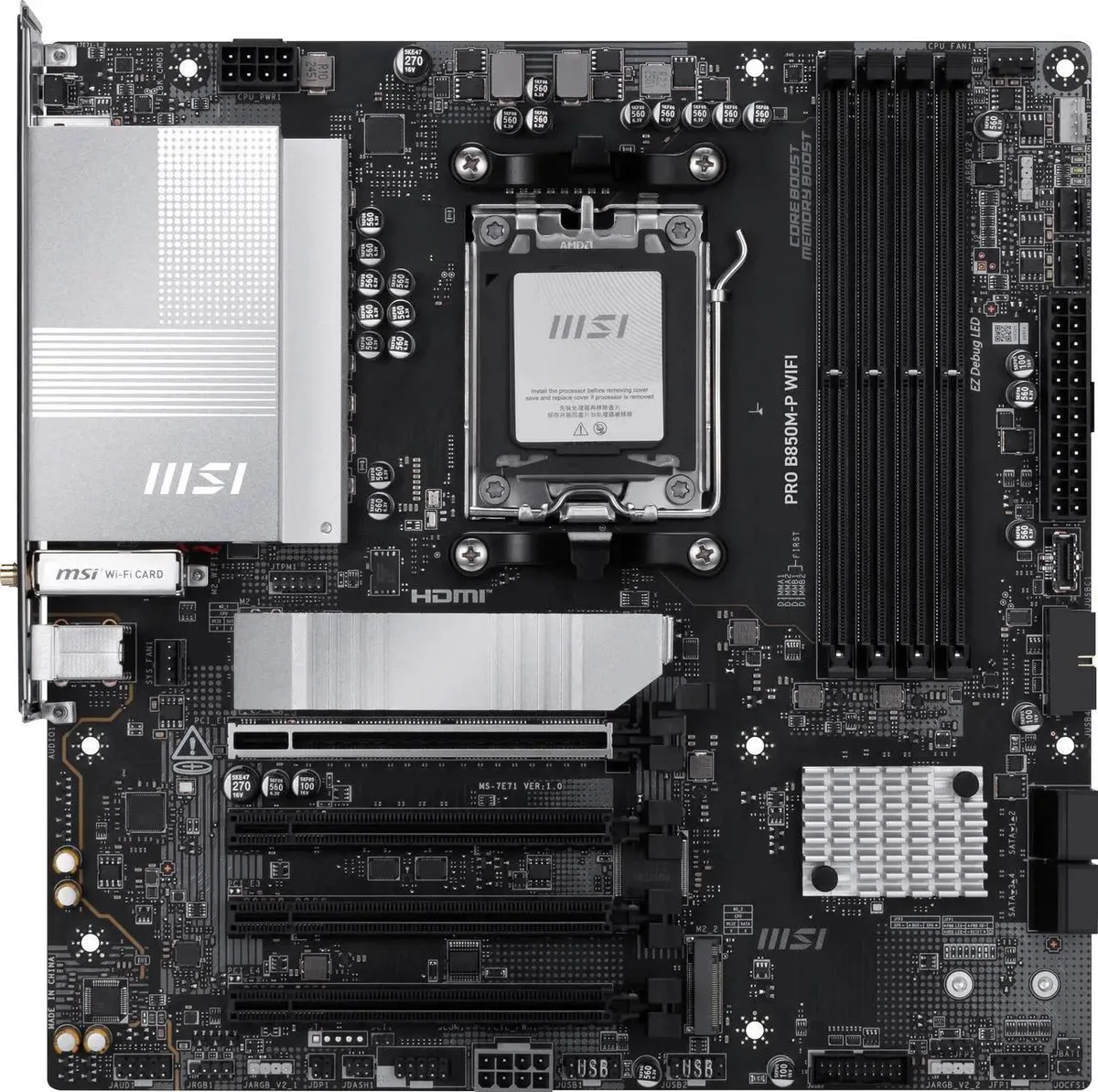

Micro-ATX motherboard in dark finish with AM5 socket and Ryzen 5 9600X CPU installed

MSI

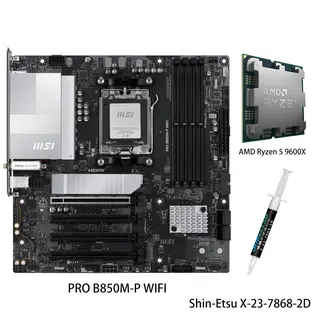

MSI PRO B850M-P WIFI + Ryzen 5 9600X AMD motherboard CPU combo

SKU CH-K7MJ-47MYE

Ready-to-install AM5 combo with a 6-core Ryzen 5 9600X, B850 chipset, Wi-Fi 7, 5 Gb LAN and DDR5 support up to 256 GB

  • CPU Socket TypeAM5
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • PCI Express 5.0 x161 x PCI Express 5.0 x16

+CPU +Ryzen 5 9600X

  • 6 cores and 12 threads for smooth multitasking
  • 4 GHz max boost clock speeds up heavy workloads
  • 38 MB cache reduces latency in games and apps
  • DDR5 memory up to 8200 MT/s overclocked for high bandwidth
  • Wi-Fi 7 and 5G LAN deliver fast wireless and wired connectivity

Combo foundation

The MSI PRO B850M-P WIFI motherboard paired with the Ryzen 5 9600X delivers a ready-to-run AM5 platform. The board uses the AMD B850 chipset in a Micro ATX layout and provides four DDR5 slots supporting up to 256 GB in dual-channel mode. Connectivity includes Wi-Fi 7, Bluetooth 5.4, Realtek 8126 5G LAN, HDMI, DisplayPort 1.4, four SATA 6Gb/s ports, one PCIe 5.0 x16 slot, three PCIe 3.0 x1 slots, and a mix of USB 5 Gbps, 10 Gbps Type-A, 10 Gbps Type-C and USB 2.0 ports.

Ideal for mainstream builds

This combo suits builders who want a modern six-core, twelve-thread Zen 5 CPU with a 5.4 GHz max boost and 38 MB cache without selecting parts separately. It works well for 1080p and 1440p gaming, productivity and general multitasking. Users needing more than four SATA drives, additional PCIe 5.0 M.2 slots, or a higher-core-count processor for heavy rendering should consider a different motherboard or CPU.

Memory and graphics headroom

The board supports DDR5 up to 8200 MT/s overclocked, giving plenty of bandwidth headroom for the Ryzen 5 9600X which officially runs DDR5-5600. Integrated graphics in the CPU drive 4K at 60 Hz over HDMI 2.1 or DisplayPort 1.4 for display output without a discrete card. The single PCIe 5.0 x16 slot handles current and near-future GPUs, while the three PCIe 3.0 x1 slots add expansion for capture cards, extra networking or audio.

Points forts

  • 6 cores and 12 threads for smooth multitasking
  • 4 GHz max boost clock speeds up heavy workloads
  • 38 MB cache reduces latency in games and apps
  • DDR5 memory up to 8200 MT/s overclocked for high bandwidth
  • Wi-Fi 7 and 5G LAN deliver fast wireless and wired connectivity

Caractéristiques

BrandMSI
ModelPRO B850M-P WIFI+R5 9600X
Part NumberPRO B850M-P WIFI+R5 9600X
CPU Socket TypeAM5
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express x13 x PCIe 3.0 x1 slots
Serial ATA (SATA)4 x SATA 6Gb/s
LAN ChipsetRealtek 8126 5G LAN
Wireless LANWi-Fi 7 Solution
BluetoothBluetooth 5.4
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.12 x USB 5Gbps Type-A
1 xUSB 10Gbps Type-A
USB 1.1/2.04 x USB 2.0
USB Type-C1xUSB 10Gbps Type-C
Audio Ports3 Ports
Onboard USB1 x AMD Ryzen 5 9600X CPU
1 x Shin-Etsu X-23-7868-2D (1.8g)
4 x USB 2.0
4 x USB 5Gbps Type-A
1 x USB 10Gbps Type-C
Form FactorMicro ATX

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What DDR5 memory must I already have for this board to run the Ryzen 5 9600X?

The board has four 288-pin DDR5 slots supporting up to 256 GB in dual-channel mode; the CPU officially supports DDR5-5600 while the motherboard can run DDR5-8200+ MT/s when overclocked.

Will my existing PCIe 3.0 add-in cards work in the three x1 slots on this B850 board?

Yes, the three PCIe 3.0 x1 slots accept older PCIe 3.0 cards, while the primary PCIe 5.0 x16 slot also runs earlier-generation graphics cards at their native speed.

How can I confirm the Wi-Fi 7 and 5 GbE LAN are active after I finish building?

Open Windows Device Manager or your OS network settings; you should see a Realtek 8126 5G LAN adapter and a Wi-Fi 7 wireless adapter both listed as working properly.
