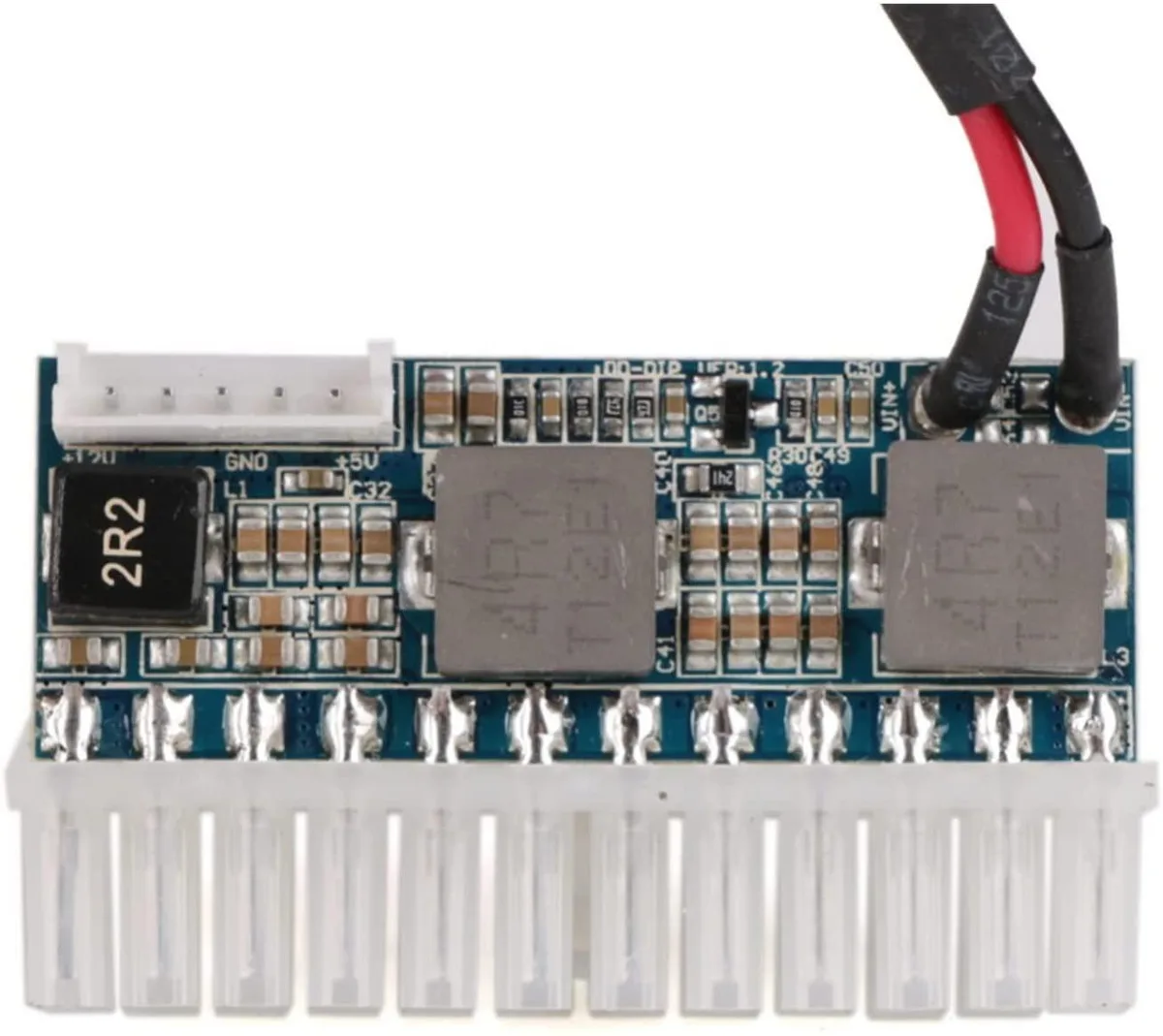

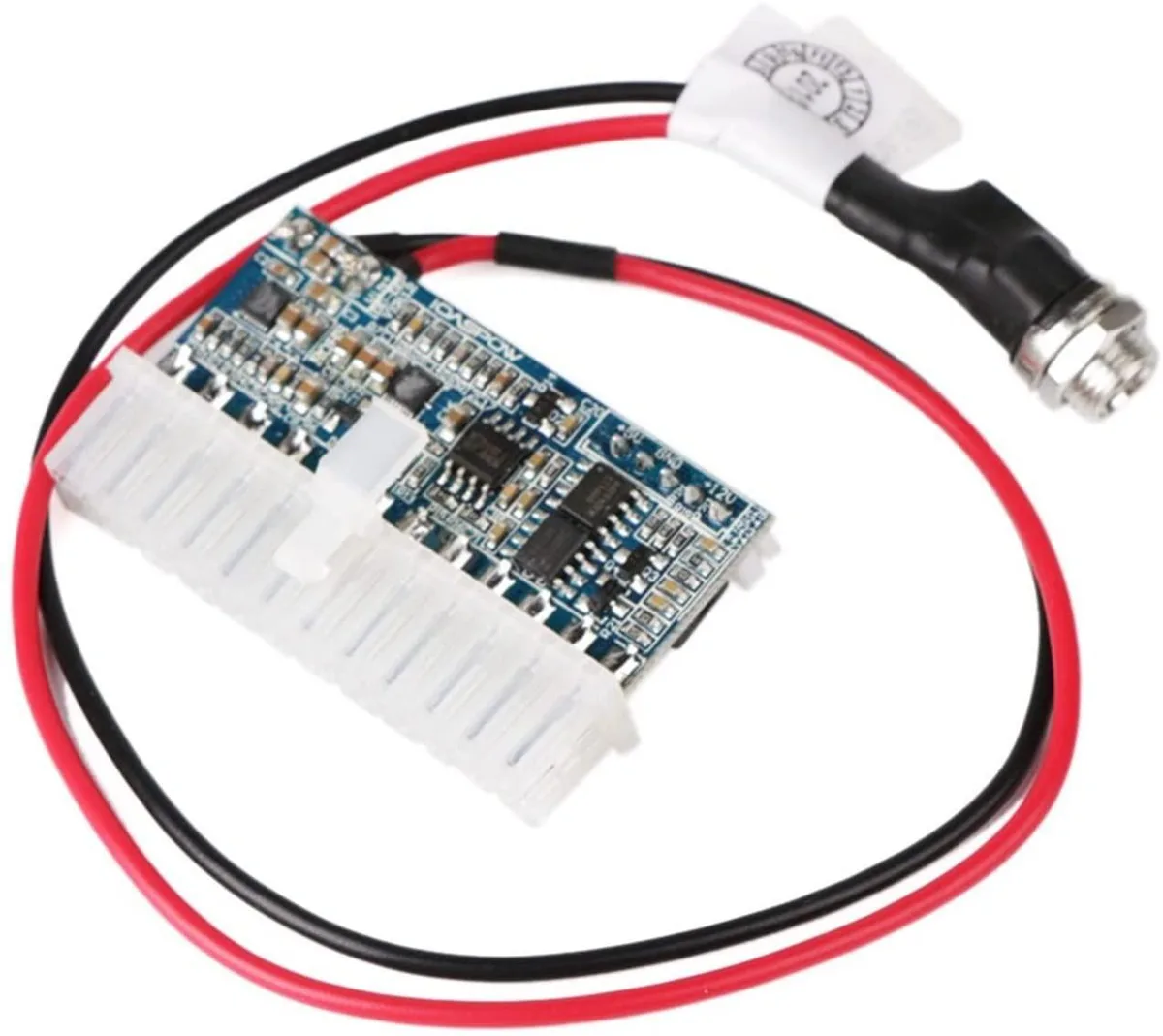

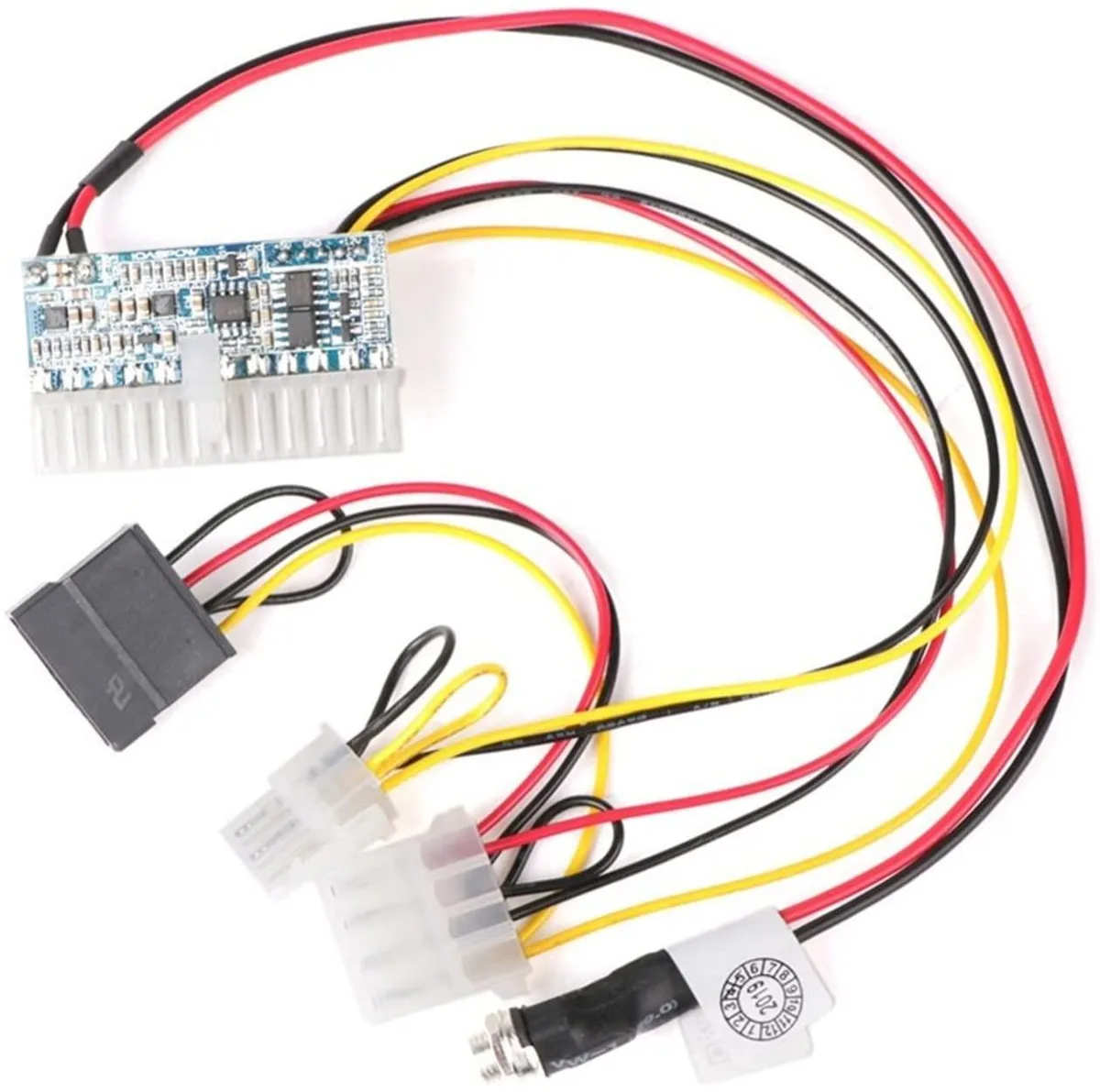

Small rectangular Pico ATX power module with solid capacitors fanless design 5.4 by 3.3 cm

myVolts

myVolts 160W 12V Pico ATX Power Supply

SKU CH-ZKGY-58CD4

Fanless 160 W Pico ATX module runs from a 12 V source and fits mini-ITX or 1U cases

  • TypeAT
  • Fanless design runs 100% silent
  • 160W output from 12V input with 92% efficiency
  • Industrial solid capacitors handle 0-40°C operation
  • Fits mini-ITX and 1U cases at 5.4x3.3cm
  • Requires 12V 12.5A adapter for full power

160 W Pico ATX Module

The myVolts 160 W Pico ATX power supply is a compact DC-to-ATX module built for mini-ITX and 1U systems. It delivers up to 160 W of continuous power from a 12 V external adapter, making it suited to small-form-factor PCs, POS terminals, digital signage players and similar embedded applications.

12 V Input and 92% Efficiency

The unit accepts a 12 V DC input between 11.4 V and 12.6 V with a maximum draw of 17 A. The companion adapter must supply at least 12.5 A. Efficiency reaches 92 percent, and the fanless design relies on passive cooling within an operating range of 0 to 40 degrees Celsius.

5.4 cm by 3.3 cm Footprint

The board measures 5.4 cm by 3.3 cm, allowing installation in tight chassis where conventional ATX units cannot fit. It provides 160 W headroom for low-power CPUs and integrated graphics, but systems with discrete GPUs or many drives will exceed its capacity. Storage temperature tolerance spans -20 to 80 degrees Celsius.

Points forts

  • Fanless design runs 100% silent
  • 160W output from 12V input with 92% efficiency
  • Industrial solid capacitors handle 0-40°C operation
  • Fits mini-ITX and 1U cases at 5.4x3.3cm
  • Requires 12V 12.5A adapter for full power

Caractéristiques

TypeAT

Questions sur cet article

Should I pick a 12 V 12.5 A adapter or something larger for the 160 W pico PSU?

The module requires a 12 V source capable of 12.5 A; at the 11.4 V minimum input it can draw up to 17 A, so choose an adapter rated for at least 12.5 A at 12 V to stay within the specified input window.

What does the 160 W rating mean once the board is installed in a mini-ITX build?

It is the maximum continuous output the DC-ATX module can deliver to the motherboard and drives when fed with a 12 V input between 11.4 V and 12.6 V, at up to 92 percent efficiency.

What connector standard does the DC-ATX-160W use and what does it limit?

It accepts a 12 V DC input (11.4 V–12.6 V) and provides standard ATX output rails; the 17 A input current limit and 160 W output cap define the maximum system power the module can support.
