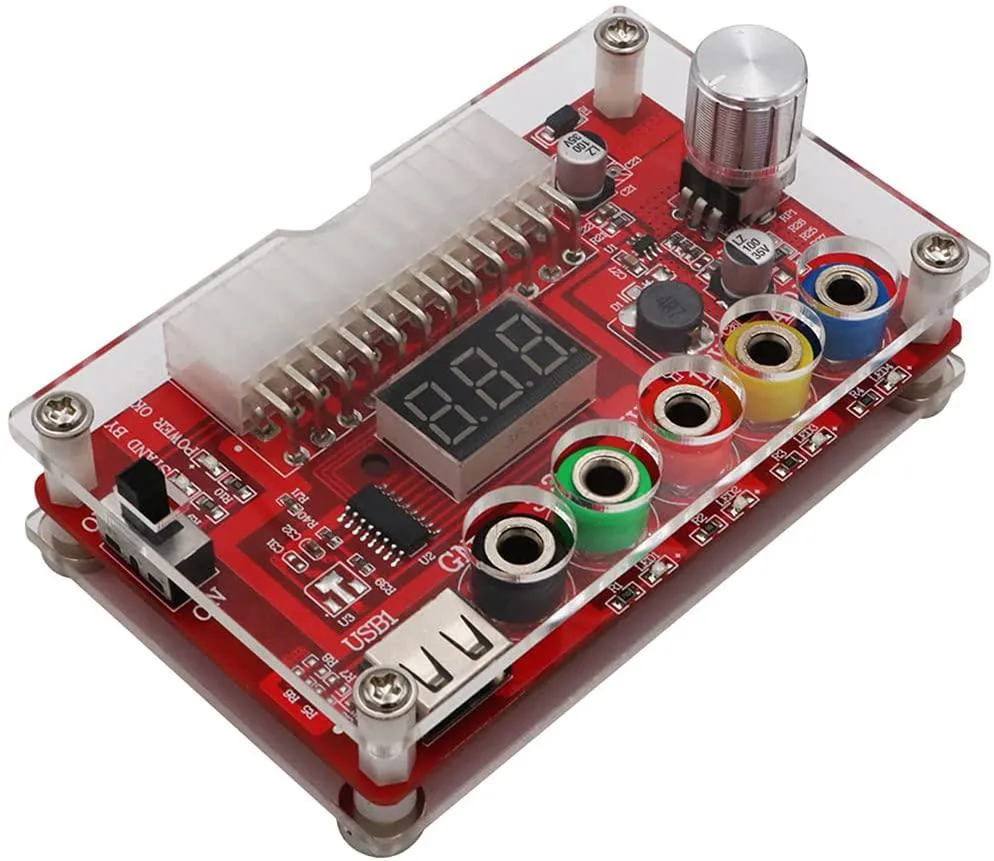

Red ATX 24 pin breakout board with adjustable voltage knob inside clear acrylic case

myVolts

myVolts ATX 24 Pin Breakout Board & Acrylic Case Kit

SKU CH-5GVT-GR96S

An ATX 24 Pin breakout board with adjustable 1.8V to 10.8V output plus fixed 3.3V, 5V and 12V rails, supplied with an acrylic case kit

  • TypeAT
  • Adjustable 1.8-10.8V output powers diverse prototypes
  • Fixed 3.3V, 5V, 12V rails feed common boards
  • Screw terminals give secure connections for each rail
  • Acrylic case kit protects the breakout board
  • ATX 24-pin plug draws power from standard PSUs

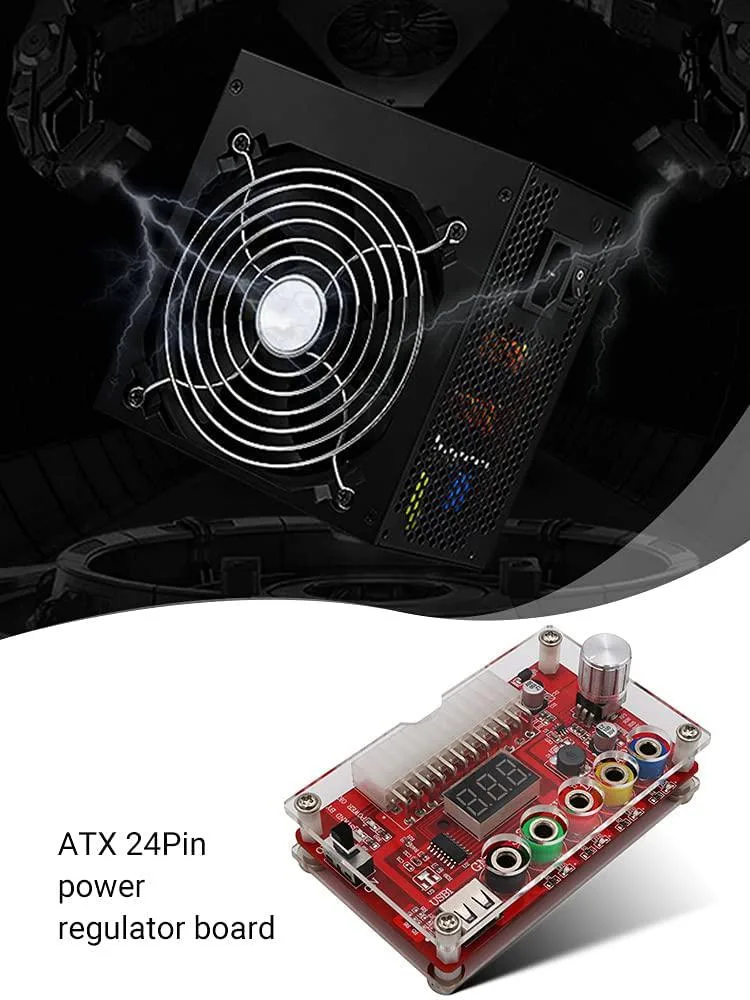

Breakout board for ATX power supplies

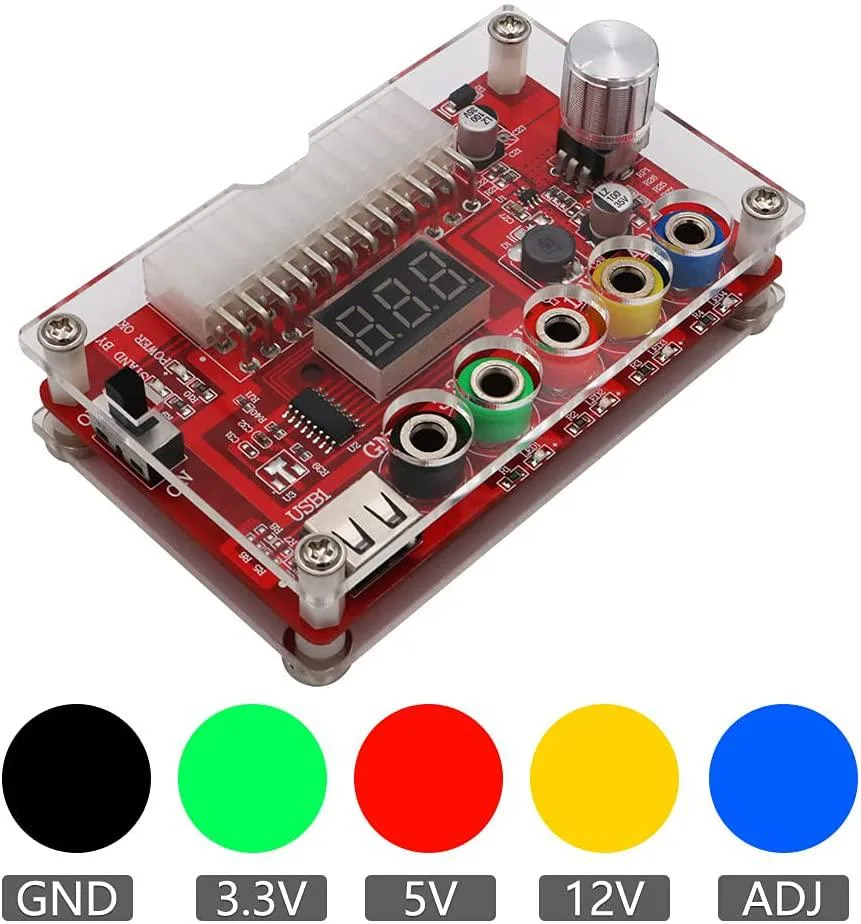

This board converts a standard ATX 24-pin connector into labelled screw terminals for 3.3V, 5V, 12V and an adjustable 1.8V to 10.8V rail. It is aimed at hobbyists and engineers who need bench power from a spare computer supply.

Red ABS board with acrylic enclosure kit

The 60x99mm PCB is housed in a clear acrylic case that protects the components while keeping terminals accessible. Fixed-voltage outputs and the adjustable rail each have dedicated screw terminals for secure wiring.

Adjustable rail limited to low-power loads

The 1.8V to 10.8V output is rated for devices drawing less than 24W, so it cannot drive larger motors or high-current heaters. Fixed 3.3V, 5V and 12V rails follow the ATX supply's own current limits.

Points forts

  • Adjustable 1.8-10.8V output powers diverse prototypes
  • Fixed 3.3V, 5V, 12V rails feed common boards
  • Screw terminals give secure connections for each rail
  • Acrylic case kit protects the breakout board
  • ATX 24-pin plug draws power from standard PSUs

Caractéristiques

TypeAT

Questions sur cet article

What fixed voltages and adjustable range does the ATX 24 Pin breakout board provide?

The board supplies fixed 3.3 V, 5 V and 12 V rails plus an adjustable output that can be set from 1.8 V to 10.8 V using the onboard knob.

What are the board dimensions and what mounting hardware is included?

The PCB measures 60 mm by 99 mm and the kit includes an acrylic case that encloses the board for bench use.

How do you connect a load to the adjustable 1.8 V-10.8 V output without damaging the regulator?

Plug the ATX 24 Pin connector into a live supply, turn the knob to the desired voltage, then attach wires to the corresponding screw terminals before powering the load.
