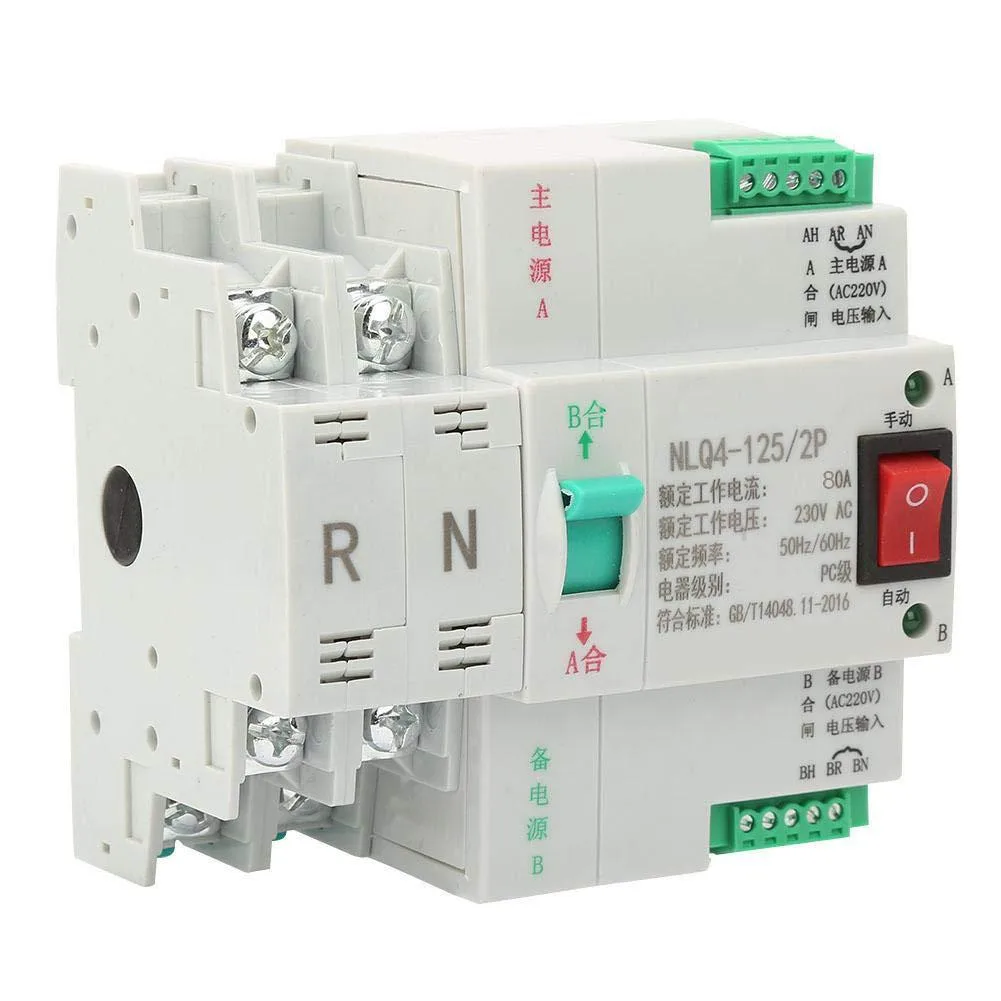

Compact grey DIN-rail automatic transfer switch with toggle lever and terminal block

myVolts

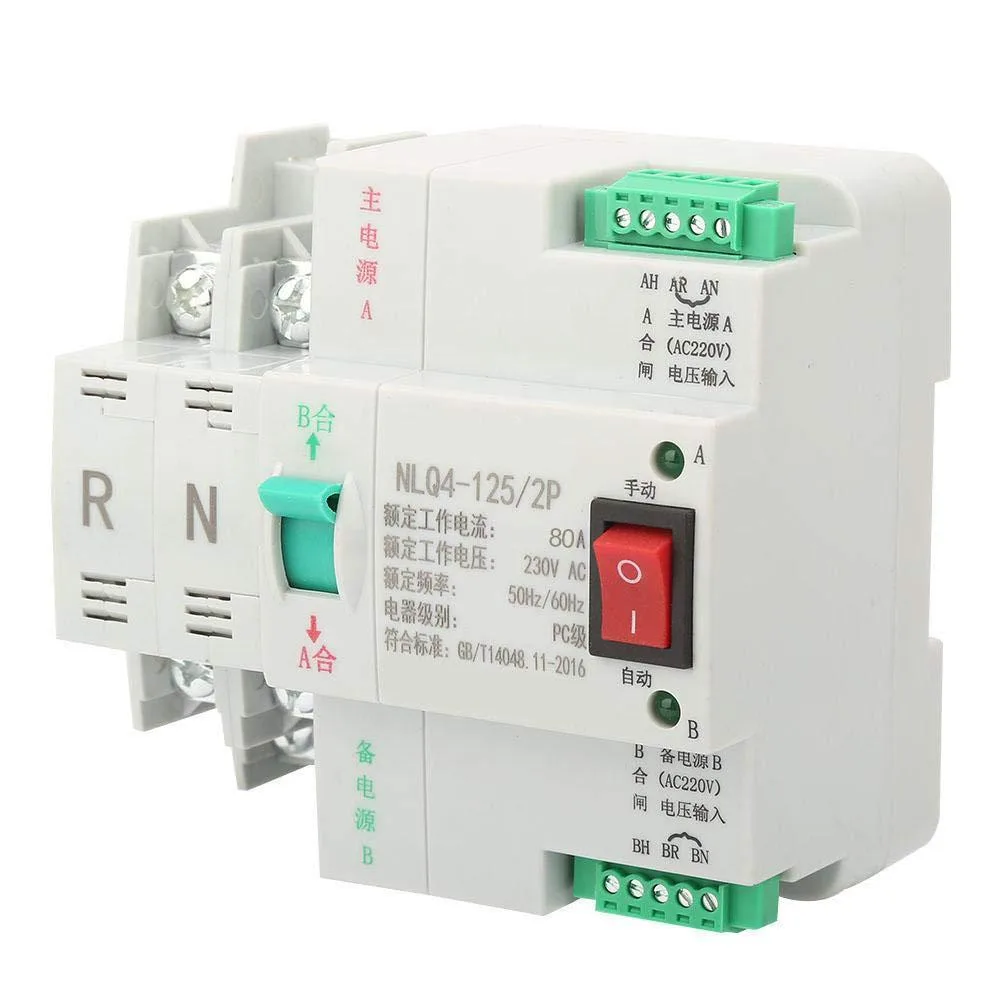

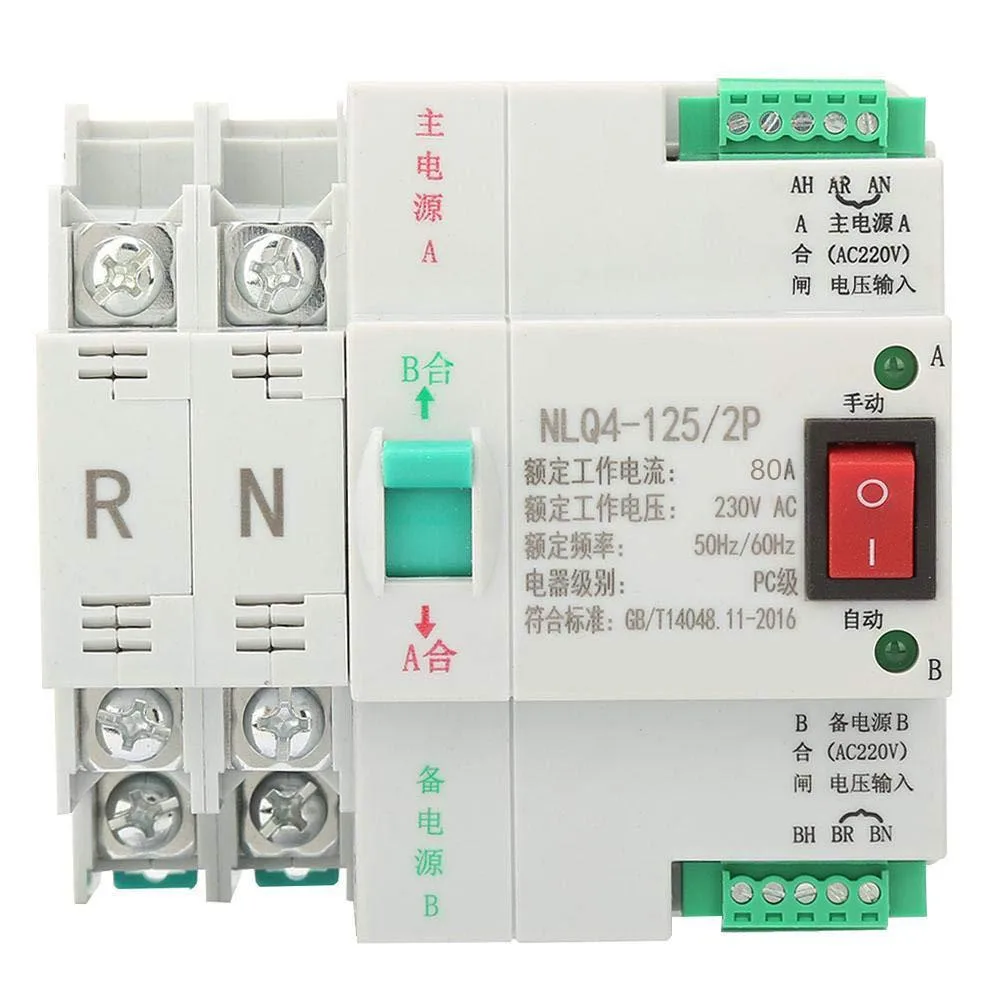

myVolts DIN-Rail Dual Power Transfer Switch 80A 230V 2P

SKU CH-FWZV-C13R2

DIN-rail mounted automatic transfer switch rated 80 A at 230 V AC with 2-pole operation and millisecond changeover between main and backup supplies

  • TypeAT
  • DIN-rail mount enables quick cabinet installation
  • Flame-retardant casing resists high temperatures for safer operation
  • Millisecond automatic changeover keeps equipment running during mains failure
  • Manual override option gives full control in special cases
  • Silent switching with no moving-part noise in the enclosure

DIN-Rail Automatic Transfer Switch

The myVolts DIN-Rail Dual Power Transfer Switch 80A 230V 2P automatically switches between a common and standby AC supply when the primary source fails. It mounts on a standard rail for simple installation in electrical cabinets. The unit handles rated currents of 63A, 80A, or 100A at 230V AC. Flame-retardant casing and millisecond switching protect connected equipment.

230V AC 2-Pole Interface Limits

The switch operates on single-phase 230V AC at 50Hz or 60Hz with a 690V insulation rating. Its PC-class electrical rating and two-pole design suit standard mains distribution. Automatic transfer occurs only within these voltage and frequency parameters. Manual override is available when automatic switching is not desired for specific operational cases.

Upgrades Manual Changeover Panels

This unit replaces manual transfer switches or basic contactor setups that require operator intervention during outages. The jump is worth it for installations needing unattended failover between utility and generator sources. It is not suited for three-phase loads, DC circuits, or applications requiring programmable logic control beyond simple voltage-loss detection.

Points forts

  • DIN-rail mount enables quick cabinet installation
  • Flame-retardant casing resists high temperatures for safer operation
  • Millisecond automatic changeover keeps equipment running during mains failure
  • Manual override option gives full control in special cases
  • Silent switching with no moving-part noise in the enclosure

Caractéristiques

TypeAT

Questions sur cet article

Should I pick the 63A, 80A or 100A version for my load?

Choose the rating that matches or exceeds your circuit's maximum continuous current; the 80A model handles up to 80 amps at 230 V AC.

What does the 230 V AC rating mean once the switch is installed?

It is the nominal single-phase mains voltage the switch is designed to monitor and transfer between two sources.

How does the 2-pole layout affect what the switch can transfer?

The 2P configuration switches both live and neutral conductors simultaneously for a complete single-phase transfer.
