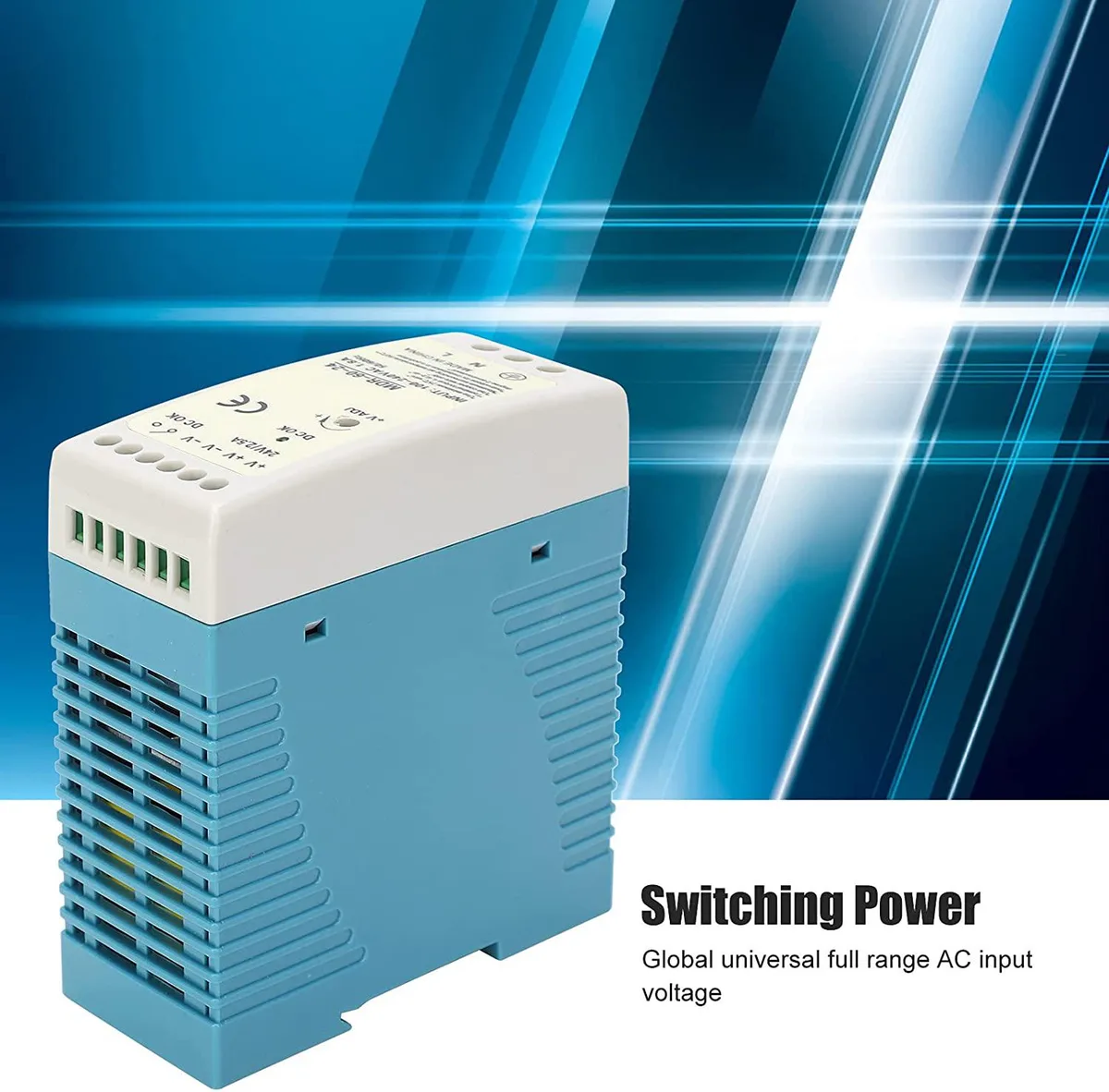

Compact DIN-rail power supply in light grey ABS housing, 100 x 40 x 90 mm

myVolts

myVolts DIN-Rail Power Supply 60W 24V 2.5A

SKU CH-VR2X-CK8GT

DIN-rail switching supply delivers 60 W at 24 V with 88 % efficiency and full protection suite

  • TypeAT
  • 60 W output powers industrial PLC equipment reliably
  • 100-240 VAC universal input works worldwide without adapters
  • DIN-rail TS35 mounting installs in seconds on standard rails
  • 88 % efficiency reduces heat and energy waste
  • Built-in short-circuit, overload, overvoltage and overheat protection safeguards connected devices

Industrial DIN-Rail Power Supply

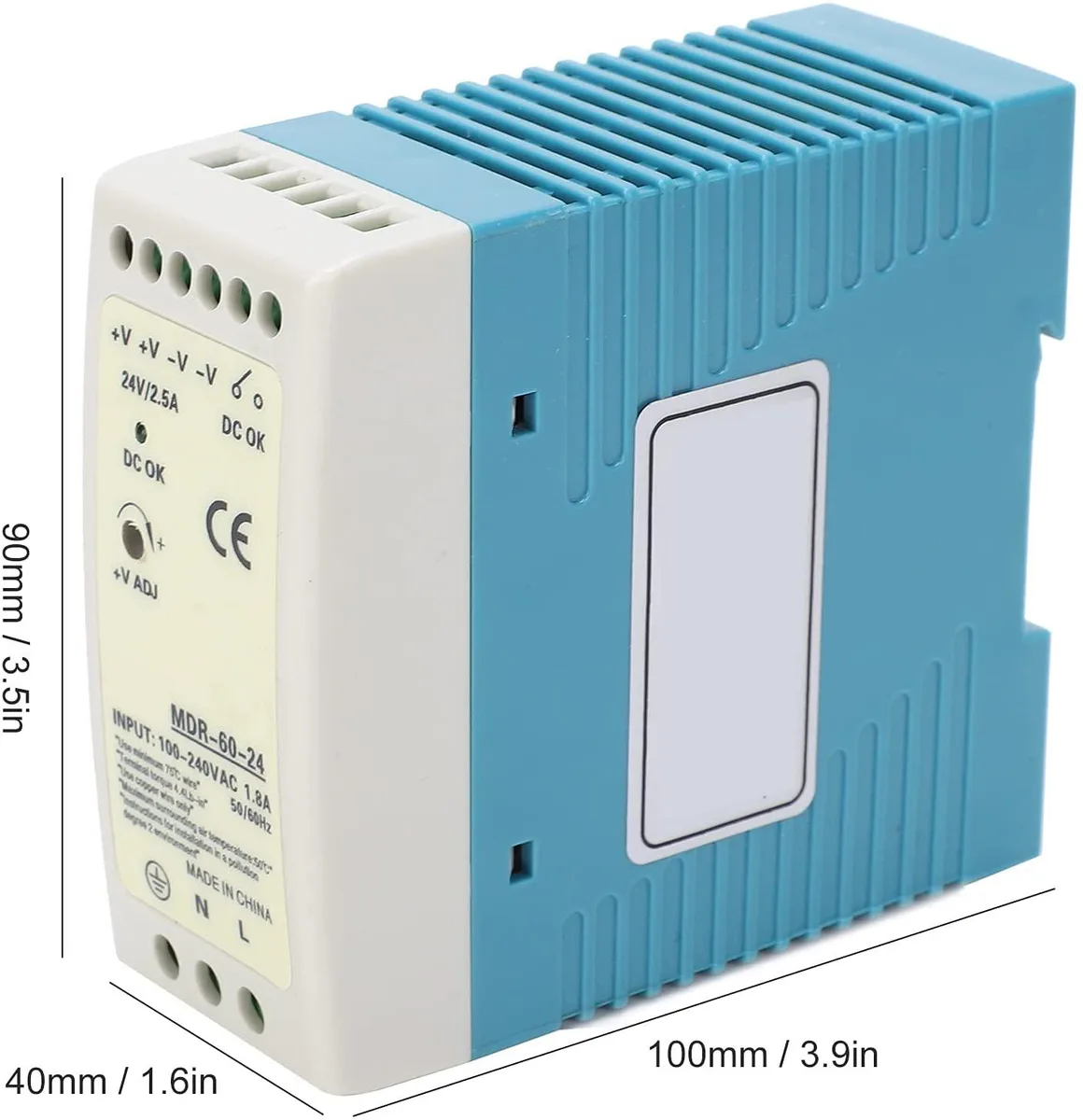

The myVolts DIN-Rail Power Supply delivers 60W at 24V and 2.5A for industrial PLC and automation systems. It accepts a universal 100-240VAC input and mounts on standard TS35/7.5 or TS35/15 DIN rails. The unit measures approximately 100 x 40 x 90mm and operates at 88% efficiency with ±1% output voltage accuracy. It is built from ABS material with a chassis number of 962A.

Simple Rail Mounting and Setup

Installation uses the DIN rail mode for quick attachment to compatible TS35 rails. Users must verify the input voltage matches the connected supply (110VAC, 220VAC or 380VAC) before powering on. Do not apply a load during the first power-on; confirm the 24V output matches the connected equipment first. Ensure the ground wire is properly connected and the unit is placed in a well-ventilated location for heat dissipation.

Sustained Load Behaviour and Protection

The power supply features overload protection that triggers between 105% and 150% of rated current, automatically restoring via constant current limiting. Overvoltage protection shuts down the unit at 125% to 150% of rated voltage with automatic restart and recovery. Output voltage is adjustable from 0 to +20% of the rated value. Ripple is specified at 150mV. In high ambient temperatures, poor airflow or with excessive inductive loads, the available output current may be reduced below the 2.5A rating.

Points forts

  • 60 W output powers industrial PLC equipment reliably
  • 100-240 VAC universal input works worldwide without adapters
  • DIN-rail TS35 mounting installs in seconds on standard rails
  • 88 % efficiency reduces heat and energy waste
  • Built-in short-circuit, overload, overvoltage and overheat protection safeguards connected devices

Caractéristiques

TypeAT

Questions sur cet article

How do I confirm the unit is running correctly after wiring it to a DIN rail?

Measure the DC output with a multimeter; it should read 24 V ±1 % with no more than 150 mV ripple while the load draws up to 2.5 A.

What comes in the box and what must I source separately?

The power supply itself is included; you will need to provide a TS35/7.5 or TS35/15 DIN rail, AC input wiring and the DC load cables.

Should I choose the 60 W 2.5 A version or a different capacity?

Select this 60 W model when your 24 V load stays at or below 2.5 A; higher loads require a larger unit.
