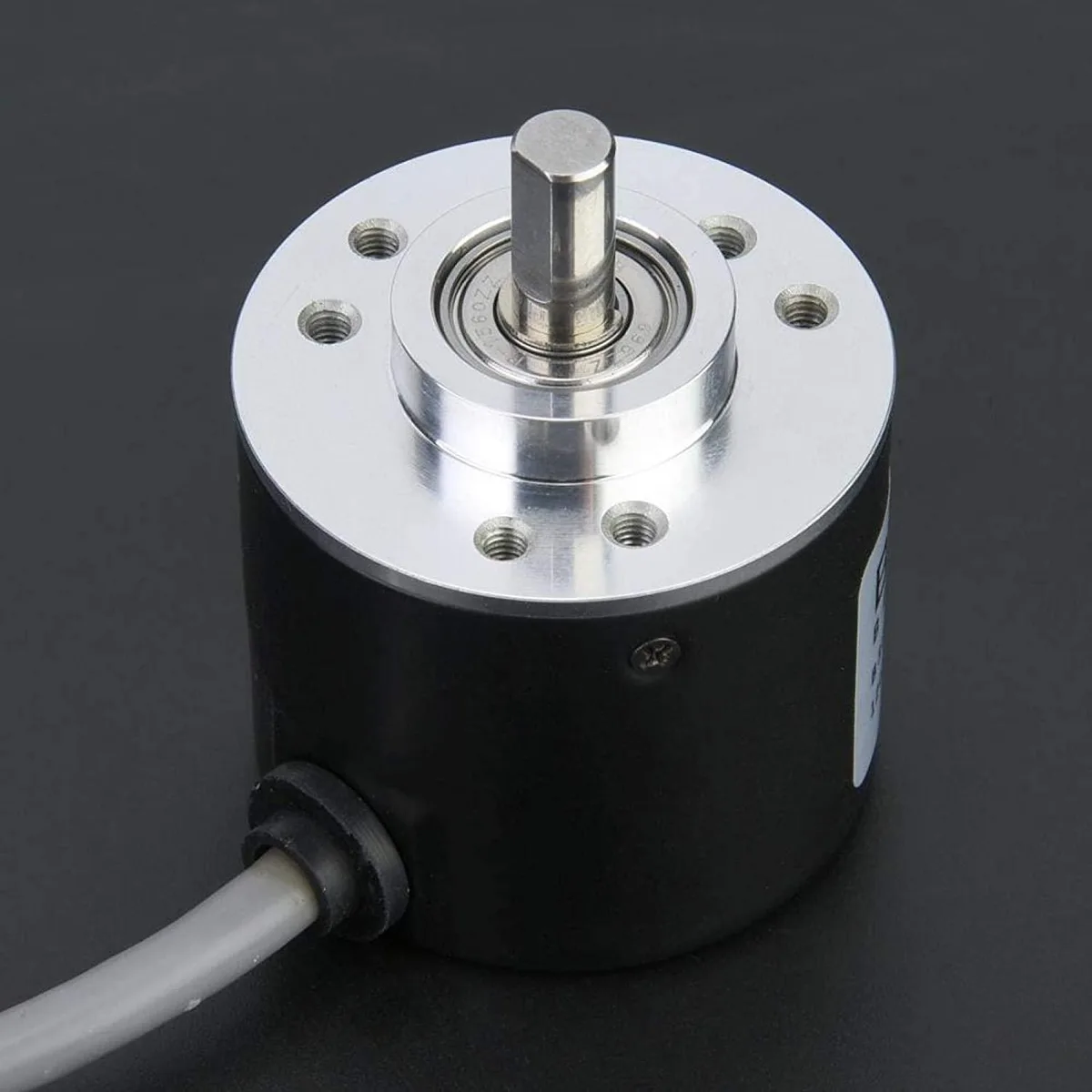

Small cylindrical encoder, 38 mm metal body, stainless spindle, 2 m cable

myVolts

myVolts E6B2-CWZ6C Incremental Encoder 38 mm 1200 P/R

SKU CH-GYSN-DFXZZ MPN E6B2-CWZ6C

38 mm incremental encoder delivering 1200 pulses per revolution with DC5–26 V supply, multiple output modes and built-in short-circuit plus reverse-wiring protection

  • TypeAT
  • Precise positioning with 1200 pulses per revolution
  • Reliable operation via internal ASIC anti-interference design
  • Durable stainless steel spindle resists impact and wear
  • Flexible integration with DC 5 to 26 V supply range
  • Protected against short circuits and reverse wiring faults

38 mm Incremental Encoder

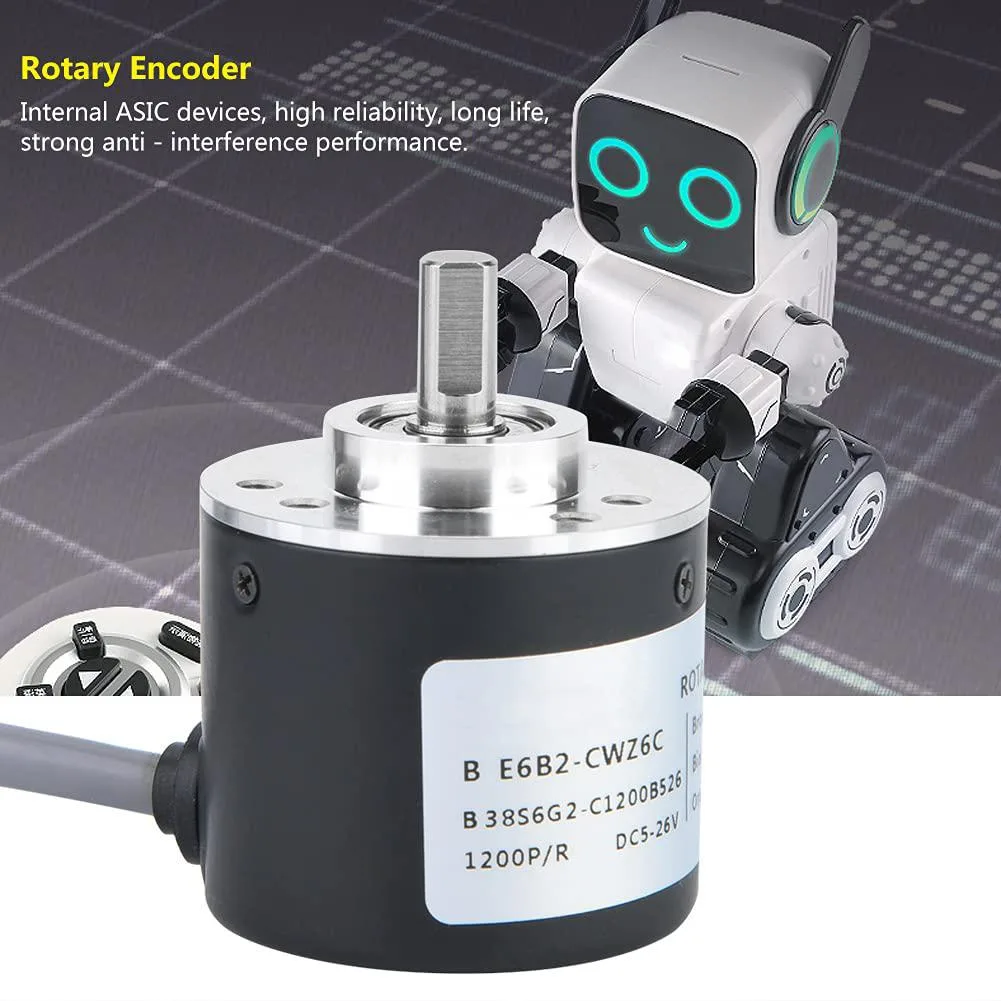

The myVolts E6B2-CWZ6C is a 38 mm diameter incremental encoder built for industrial motion-control systems. It delivers 1200 pulses per revolution with selectable resolutions from 100 to 5000 P/R. The alloy shell and stainless steel spindle resist shock and vibration. An internal ASIC provides strong anti-interference performance across a DC 5 V to 26 V supply range.

Suits precision positioning, not high-speed counting

Engineers needing accurate shaft feedback for servo loops, CNC axes or robotics will find the 1200 P/R resolution and multiple output modes useful. The 30 N radial and 20 N axial load ratings cover typical light-duty couplings. Buyers who require hollow-shaft mounting, absolute positioning data or resolutions above 5000 P/R should look at alternative encoder types.

1200 P/R resolution decides fit

The fixed 1200 pulses per revolution determines the smallest angular step the control system can resolve. If the application demands finer granularity, a higher P/R variant from the optional range must be specified. If coarser feedback is acceptable, lower P/R models reduce controller bandwidth requirements.

Points forts

  • Precise positioning with 1200 pulses per revolution
  • Reliable operation via internal ASIC anti-interference design
  • Durable stainless steel spindle resists impact and wear
  • Flexible integration with DC 5 to 26 V supply range
  • Protected against short circuits and reverse wiring faults

Caractéristiques

TypeAT

Questions sur cet article

Does the E6B2-CWZ6C run hot or draw much power during continuous 24-hour operation at 1200 P/R?

The encoder accepts DC 5 to 26 V open-collector supply and includes short-circuit and reverse-wiring protection; no thermal or continuous-draw figures are published.

What must I already have to install and power the 38 mm E6B2-CWZ6C encoder?

You need a DC 5–26 V power source, a 6 mm shaft coupling or mount, and a controller able to read A, B, Z phase signals in voltage, collector, complementary, push-pull, line-driver, differential or fork output modes.

Will the 2 m cable and 6 mm shaft of the E6B2-CWZ6C connect directly to my existing Omron PLC high-speed counter module?

The brown, blue and black leads provide DC 5–26 V, 0 V and signal outputs respectively; match the PLC input wiring to the chosen output mode and verify the 30 N radial and 20 N axial load limits suit your mechanical setup.
