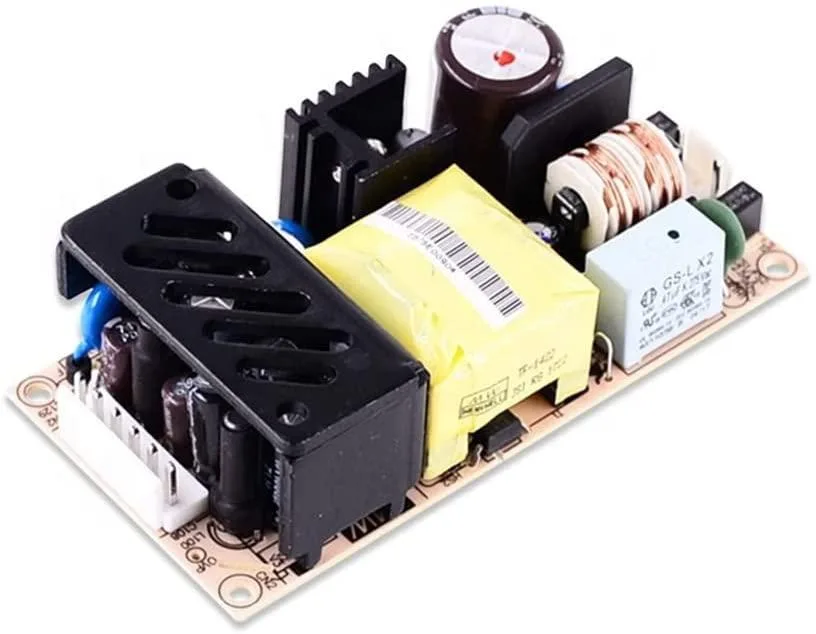

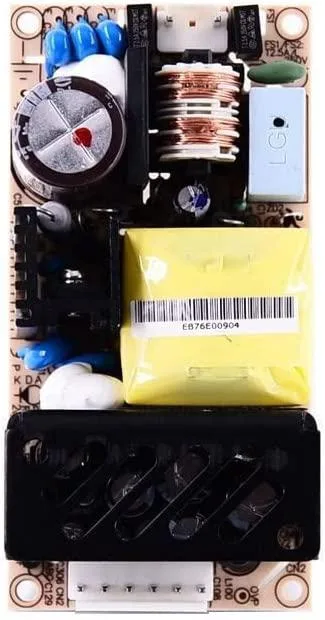

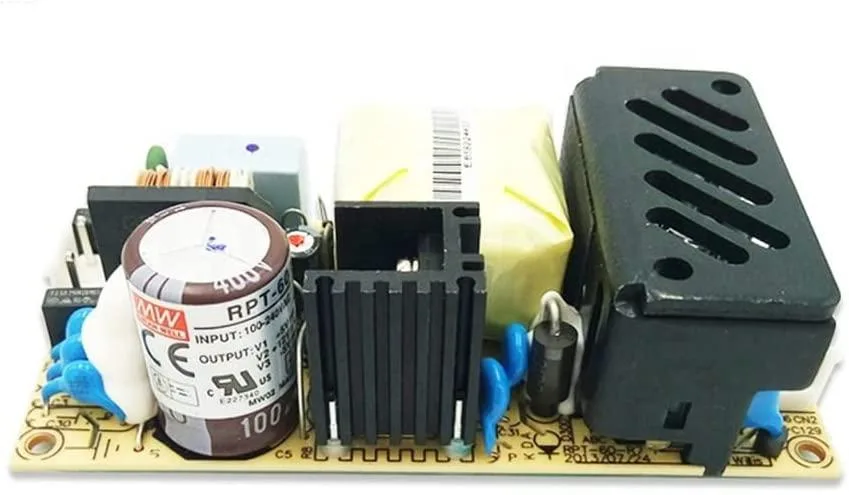

Green open-frame PCB power supply, 4 by 2 inches, triple output connectors

myVolts

myVolts RPT-60A 60 W Triple Output Medical Power Supply

SKU CH-T9ZG-WZASZ

A 60 W medical-grade open-frame supply delivering triple outputs with 2×MOPP safety approval and extremely low leakage current

  • TypeAT
  • Medical-grade safety with 2 x MOPP certification
  • Compact 4"×2" PCB footprint saves space in equipment
  • Triple-output rails: 5 V 4.4 A, 12 V 2.2 A, 15 V 0.65 A
  • Low leakage current under 150 µA for patient-connected devices
  • Wide 90–264 Vac input suits global installations

Medical-grade power for critical devices

The myVolts RPT-60A delivers 60 W across three regulated rails, providing 5 V at 4.4 A, 12 V at 2.2 A and either -5 V, -12 V or -15 V at 0.55 A. It is built for equipment such as oral irrigators, hemodialysis machines, medical monitors and sleep-apnea devices that require 2 x MOPP isolation.

Steady output under continuous load

Cooling relies on free-air convection with no moving parts, so output remains stable during prolonged operation in enclosed medical cabinets. Protections against short circuit, overload, over-voltage and over-temperature engage automatically, while leakage current stays below 150 µA to meet BF-application requirements.

Open-frame PCB with Class B EMI

The 4" × 2" board fits tight chassis spaces and carries dual-fuse input for 90–264 VAC mains worldwide. Mounting holes accept standard standoffs for secure installation, and screw terminals simplify wiring without special tools. Compliance covers ANSI/AAMI ES60601-1, IEC/EN60601-1 and EMC standard EN55011.

Points forts

  • Medical-grade safety with 2 x MOPP certification
  • Compact 4"×2" PCB footprint saves space in equipment
  • Triple-output rails: 5 V 4.4 A, 12 V 2.2 A, 15 V 0.65 A
  • Low leakage current under 150 µA for patient-connected devices
  • Wide 90–264 Vac input suits global installations

Caractéristiques

TypeAT

Questions sur cet article

How much heat and noise does the 60 W triple-output unit produce when running continuously?

It uses free-air convection cooling with no fan, so it runs silently and generates only the heat normal for a 60 W supply.

What mains wiring and mounting hardware must I already have to install this open-frame PCB supply?

You need a 90–264 V AC input connection, a chassis or bracket for the 4"×2" board, and cables for the three output rails.

Will the 5 V, 12 V and –12 V rails work reliably with legacy ISA or AT-era expansion cards?

The 5 V/4.4 A, 12 V/2.2 A and –12 V/0.55 A outputs match classic AT voltages, and the 2×MOPP insulation meets medical-grade isolation requirements.
