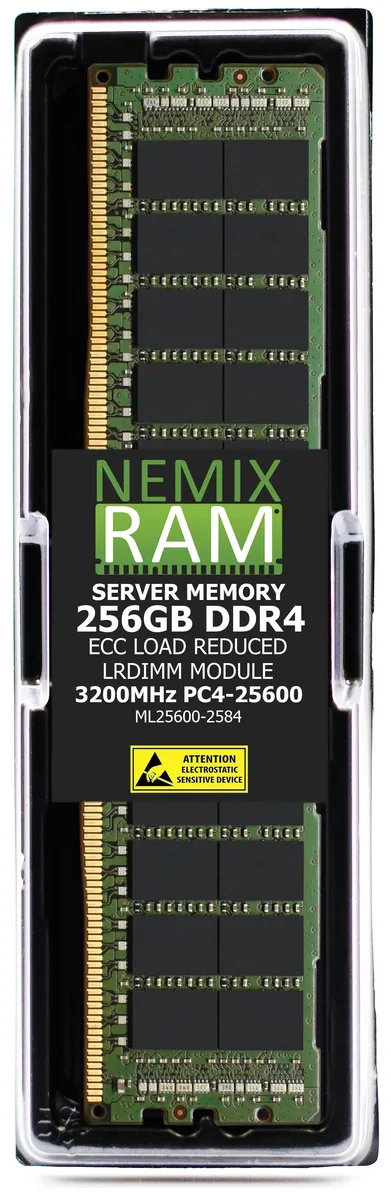

Green printed circuit board with black memory chips and gold edge connectors

NEMIX RAM

NEMIX RAM ML25600-2584K1-SM-AS-2014S-TR 256GB DDR4 3200 ECC LRDIMM server RAM

SKU CH-JZJR-MQFF2

A single 256 GB DDR4 3200 LRDIMM with ECC, 8Rx4 organisation and 1.2 V operation for high-density server memory upgrades

  • SpeedDDR4 3200 (PC4 25600)
  • CAS Latency22
  • Voltage1.2V
  • ECCYes
  • Buffered/RegisteredLoad Reduced
  • Rank8Rx4
  • 256 GB single module maximises server capacity
  • DDR4 3200 speed delivers high bandwidth for data-intensive workloads
  • ECC protection detects and corrects memory errors automatically
  • Load-reduced design lowers electrical load on the memory bus
  • 2 V operation reduces power draw per gigabyte

Single-module 256GB server upgrade

This NEMIX RAM kit delivers 256GB in a single DDR4 3200 PC4-25600 LRDIMM. The module runs at 1.2V with CAS latency 22 and uses an 8Rx4 load-reduced design. It targets server platforms that require ECC registered memory at this density.

Verify DDR4 3200 LRDIMM support

Confirm the motherboard accepts 288-pin DDR4 LRDIMMs at 3200MT/s and can address an 8Rx4 rank configuration. ECC must be enabled in the BIOS for error correction to function. Standard desktop boards and non-ECC platforms will not recognise this module.

OEM chips in load-reduced form factor

Major-brand Samsung Micron or Hynix ICs populate the 288-pin stick, lowering electrical load on the memory bus. The LRDIMM buffer allows higher capacity per slot than standard RDIMMs. Handle by the edges and seat firmly until the retention clips lock.

Points forts

  • 256 GB single module maximises server capacity
  • DDR4 3200 speed delivers high bandwidth for data-intensive workloads
  • ECC protection detects and corrects memory errors automatically
  • Load-reduced design lowers electrical load on the memory bus
  • 2 V operation reduces power draw per gigabyte

Caractéristiques

BrandNEMIX RAM
ModelPart#: ML25600-2584K1-SM-AS-2014S-TR
Part NumberPart#: ML25600-2584K1-SM-AS-2014S-TR
SpeedDDR4 3200 (PC4 25600)
CAS Latency22
Voltage1.2V
ECCYes
Buffered/RegisteredLoad Reduced
Rank8Rx4
ChipsetMajor OEM Samsung, Micron, Hynix

Questions sur cet article

What comes in the box and do I need anything else to install this 256GB DDR4 3200 ECC LRDIMM?

The kit includes one 256GB module with 288 pins. No extra parts are required for installation in a compatible DDR4 server slot.

Should I pick the 8Rx4 256GB version or a lower-capacity alternative for my server?

Choose this 8Rx4 256GB module when your platform supports Load Reduced DIMMs at 3200MT/s and you need maximum density per slot.

What does the 3200MHz PC4-25600 rating mean once the module is running in my machine?

It indicates a 3200MT/s data rate with 25600MB/s peak bandwidth at CAS 22 and 1.2V, provided the server memory controller operates at that speed.
