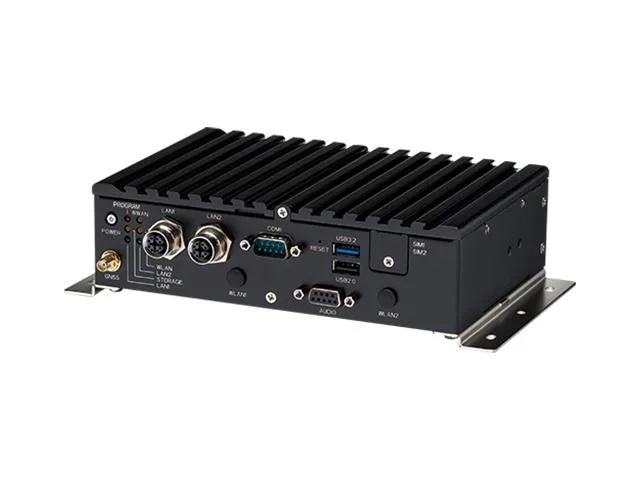

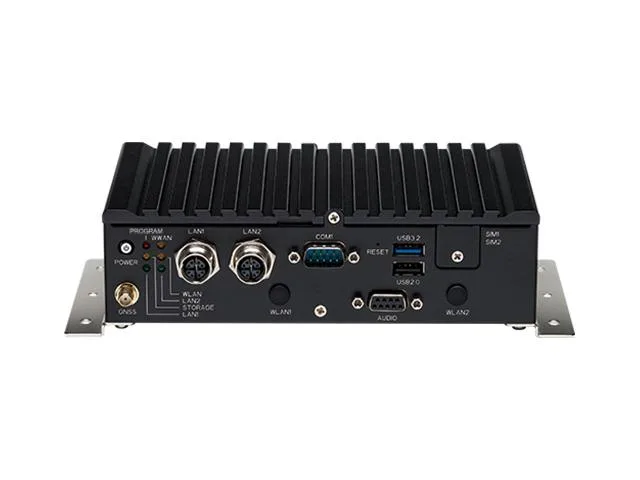

Compact fanless embedded mini PC with rugged metal enclosure, front USB ports, M12 LAN connectors and LED indicators

Nexcom

Nexcom nROK 1030 Fanless Embedded Computer

SKU CH-VYXY-EGHQK

Fanless embedded computer with Intel Atom dual-core processor, 4 GB DDR4, 2.5 GbE M12 LAN, Wi-Fi 6 and GNSS for vehicle and railway deployments

  • CPU TypeIntel Atom
  • CPU CoresDual-Core
  • Memory installed4GB
  • Memory slot1 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 2666
  • Max Memory Supported32GB
  • Intel Atom x6211E dual-core 1.3GHz burst 3GHz 6W TDP for efficient transport computing
  • Fanless rugged enclosure certified for vehicle and railway environments
  • Dual 2.5GbE M12 X-coded LAN plus Wi-Fi 6 wireless connectivity
  • Built-in GNSS receiver and CAN bus 2.0B with optional SAE J1939 support
  • 1 mini-PCIe plus 2 M.2 sockets with dual display outputs for flexible expansion

Transport-ready fanless barebone

The Nexcom nROK 1030 is a compact, fanless embedded computer built for vehicle and railway deployments. It runs on an Intel Atom x6211E dual-core processor with a 6 W TDP and ships with 4 GB of DDR4 memory in a single SO-DIMM slot. The rugged enclosure supports 5G NR, Wi-Fi 6 and GNSS for mobile connectivity.

Sustained low-power operation

With a 6 W thermal design power and no moving parts, the system maintains its 1.3 GHz base frequency continuously without throttling. The 3 GHz burst capability handles short spikes, while the fanless chassis dissipates heat passively across the full operating temperature range required for rolling stock certification.

Expands from legacy vehicle gateways

The platform replaces older in-vehicle PCs that lack 2.5 GbE M12 X-coded LAN, dual display outputs or integrated CAN bus 2.0B with optional SAE J1939 support. The jump is worthwhile when a project needs ignition-controlled power management, dual micro-SIM slots and Mini-PCIe plus M.2 expansion in a certified railway form factor.

Points forts

  • Intel Atom x6211E dual-core 1.3GHz burst 3GHz 6W TDP for efficient transport computing
  • Fanless rugged enclosure certified for vehicle and railway environments
  • Dual 2.5GbE M12 X-coded LAN plus Wi-Fi 6 wireless connectivity
  • Built-in GNSS receiver and CAN bus 2.0B with optional SAE J1939 support
  • 1 mini-PCIe plus 2 M.2 sockets with dual display outputs for flexible expansion

Caractéristiques

BrandNEXCOM
SeriesnROK
ModelnROK 1030
Part Number10A00103000X0
CPU TypeIntel Atom
CPU CoresDual-Core
Memory installed4GB
Memory slot1 x 260Pin SO-DIMM
Memory Type SupportedDDR4 2666
Max Memory Supported32GB
Other1 x Full-size Mini-PCIe
1 x M.2 2230 Key E
1 x M.2 3042/3050/3052 Key B
Serial ATA1 x 2.5" SATA 3.0 internal drive bay
M.2 Slot2 x M.2
Integrated GraphicsIntel® integrated graphics
LAN2 x M12 X-coded (Intel I225-IT)
Max LAN Speed2.5GbE
WiFi GenerationWi-Fi 6
2.5" Internal Bays1
Front USB1 x USB 3.2 Gen 2
1 x USB 2.0
Other Front Ports2 x external micro-SIM
1 x DB9 (COM1)
6 x LED indicators
COM1 x RS232/422/485 (COM2)
VGA1 x DisplayPort
HDMI1

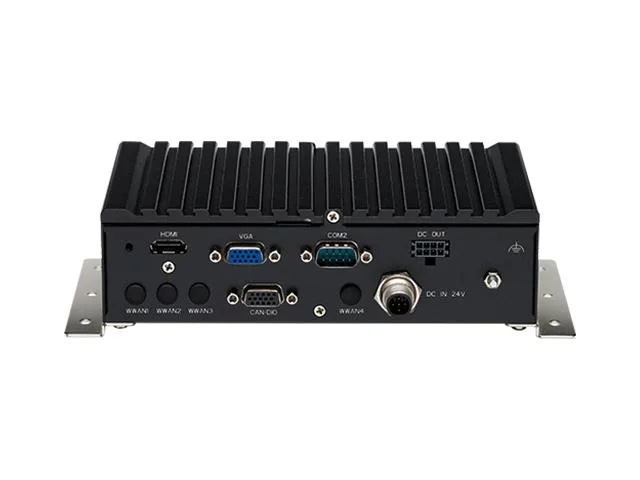

Other Rear PortsDB15 for CAN/DIO
M12 5-pin DC input
4 x SMA holes (WWAN)
1 x SMA (GNSS)
1 x Ground connector
Input24VDC
Dimensions185mm (W) x 120mm (D) x 50mm (H)
Weight1.25kg

Questions sur cet article

Does the fanless nROK 1030 stay cool enough when the Intel Atom x6211E runs at its 6 W TDP all day?

Yes, the compact enclosure is designed for passive cooling at the processor's rated 6 W thermal design power, so it runs silently without throttling under continuous load.

Which storage drive and wireless modules do I need to add before the nROK 1030 can boot?

You must supply a 2.5-inch SATA 3.0 drive for the internal bay and populate the M.2 2230 Key E and M.2 3042/3050/3052 Key B slots with Wi-Fi 6 or 5G modules; a SO-DIMM is already installed.

Can the dual M12 X-coded 2.5GbE ports link directly to older 1 GbE switches in my vehicle rack?

The Intel I225-IT controllers support standard Ethernet speeds, so the M12 ports will connect to existing Gigabit infrastructure without extra converters.
