Brown 60mm square fan with beige blades and black frame, 25mm thick, 4-pin PWM connector visible

Noctua

Noctua NF-A6x25 PWM 60x25mm 4-pin case fan

SKU CH-TZFM-8MKJY MPN NF-A6x25 PWM

A 60 mm PWM case fan with Flow Acceleration Channels and SSO2 bearing runs 550 to 3000 rpm at up to 19.3 dB(A)

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size60mm
  • Fan Thickness8.5 L x 1.5 W x 6 H inches

LED No

  • Non-LED
  • No

Les versions barrées existent, mais ne sont pas disponibles ici.

Model PWM

  • PWM
  • FLX
  • 5V PWM
  • 5V

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Quiet cooling at 19.3 dB(A) maximum noise
  • Wide 550-3000 RPM speed range via 4-pin PWM control
  • Flow Acceleration Channels improve airflow efficiency at blade tips
  • SSO2 bearing rated for over 150,000 hours MTTF
  • Includes Low-Noise Adaptor, anti-vibration mounts and extension cables

Compact 60x25mm PWM case fan

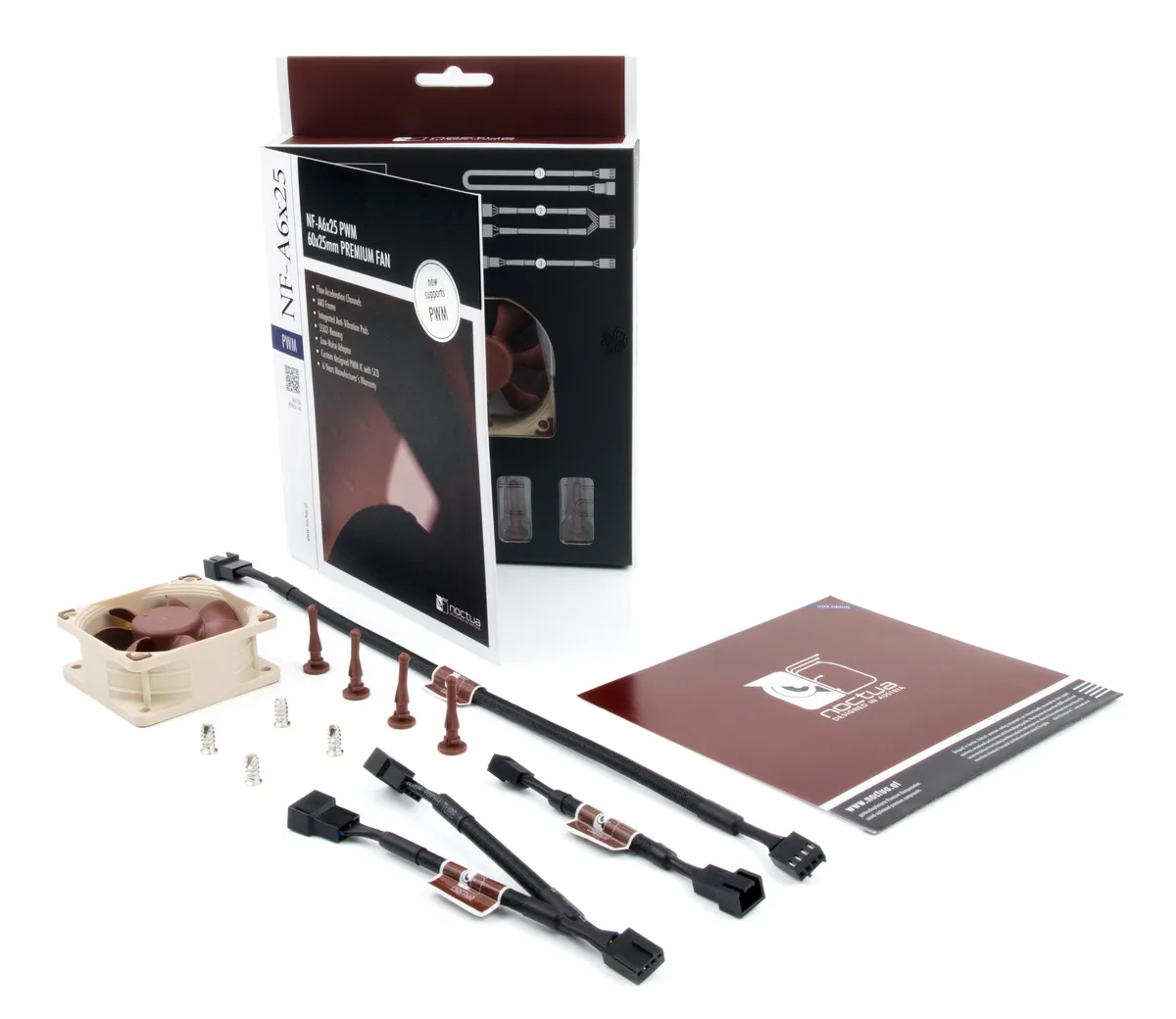

The Noctua NF-A6x25 PWM is a premium quiet 60x60x25mm 12V fan with a 4-pin PWM connector and SSO2 bearing. It runs from 550 to 3000 RPM and produces up to 19.3 dB(A) at full speed. Flow Acceleration Channels and an Advanced Acoustic Optimisation frame improve airflow quality while keeping noise low. Supplied accessories include anti-vibration mounts, screws, a Low-Noise Adaptor, an extension cable and a y-cable for two fans on one header.

Ideal for tight spaces and noise-sensitive gear

This fan suits DVRs, NAS units, network switches, storage devices and 3D printers that use a 60x25mm mounting pattern and benefit from automatic speed control. The broad PWM range and Low-Noise Adaptor let the system balance cooling and silence. Buyers who need a different mounting hole spacing or a larger frame size should look elsewhere.

60x60x25mm mounting footprint

The single specification that decides fit is the 60x60x25mm frame with standard 60mm screw-hole spacing. If your device or case calls for that exact footprint and a 4-pin PWM header, this fan will install directly. Any other frame dimensions or connector type means this model will not fit.

Points forts

  • Quiet cooling at 19.3 dB(A) maximum noise
  • Wide 550-3000 RPM speed range via 4-pin PWM control
  • Flow Acceleration Channels improve airflow efficiency at blade tips
  • SSO2 bearing rated for over 150,000 hours MTTF
  • Includes Low-Noise Adaptor, anti-vibration mounts and extension cables

Caractéristiques

BrandNoctua
SeriesPWM A-Series
ModelNF-A6x25 PWM
Part NumberNF-A6x25 PWM
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size60mm
Fan Thickness8.5 L x 1.5 W x 6 H inches
Bearing TypeSSO2
RPMRotational Speed (+/- 10%): 3000 RPM
Rotational Speed with L.N.A. (+/- 10%): 2300 RPM
Min. Rotational Speed (PWM, +/-20%): 550 RPM
Air FlowAirflow: 29,2 m³/h
Airflow with L.N.A.: 22,6 m³/h
Noise LevelAcoustical Noise: 19,3 dB(A)
Acoustical Noise with L.N.A.: 13,7 dB(A)
Power Connector4 Pin
ColorBeige,Brown
LEDNo
FeaturesFlow Acceleration Channels

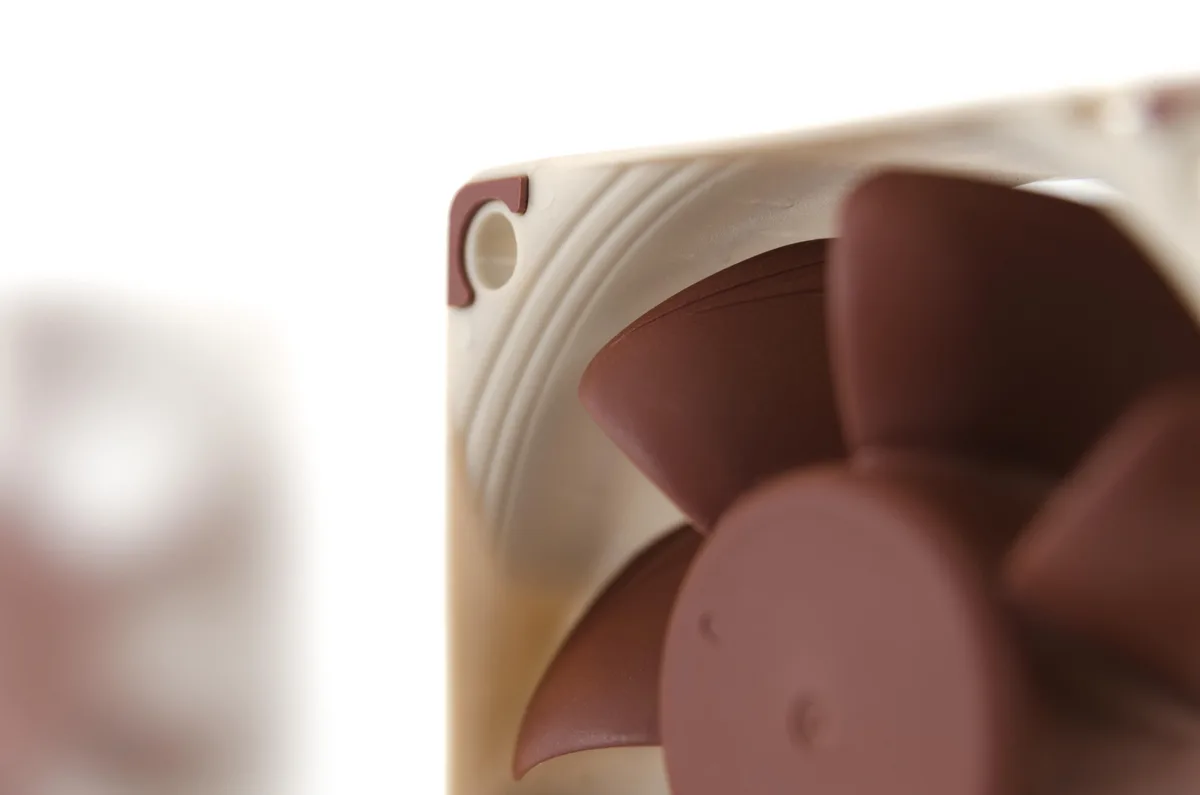

The NF-A6x25 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
Reduced Motor Hub Size

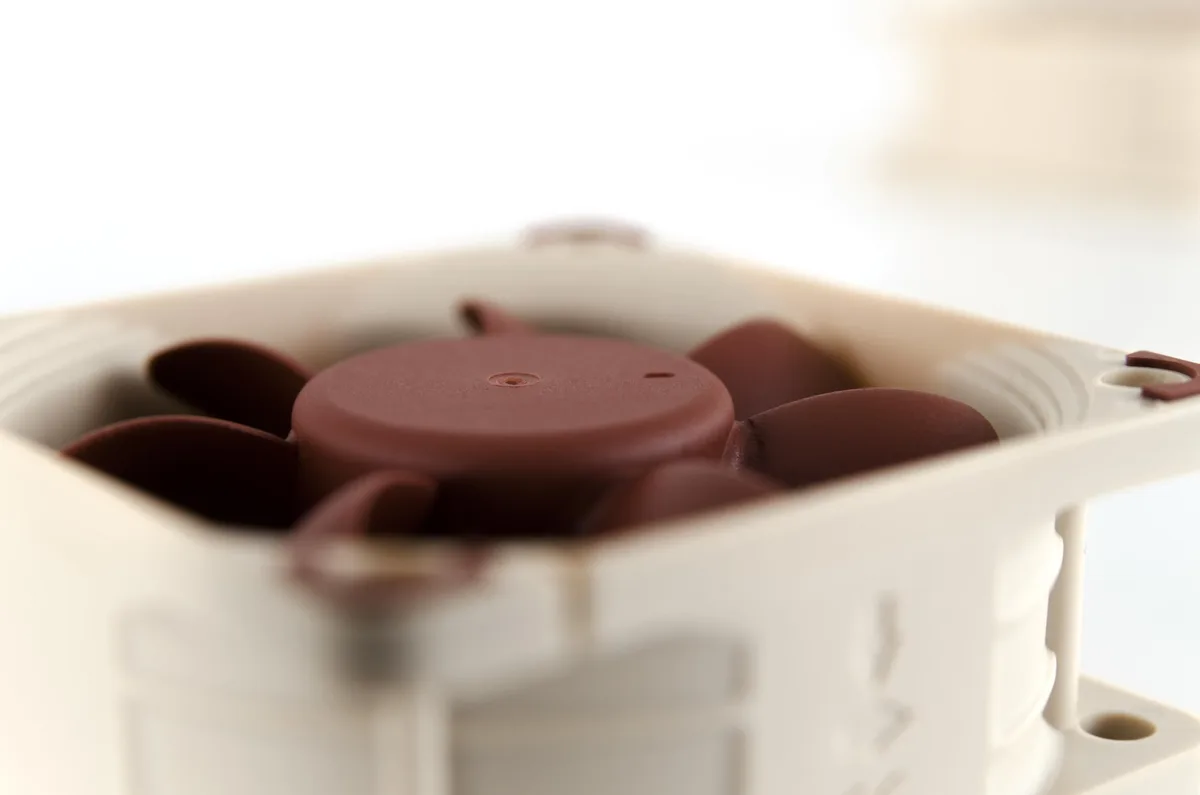

Thanks to its streamlined, compact motor design, the NF-A6x25’s motor hub is smaller than with conventional 6cm fans. This allows for more blade surface area and thus contributes to the NF-A6x25’s superior airflow and pressure performance.
AAO Frame
Noctua’s AAO (Advanced Acoustic Optimisation)
Dimensions60 x 60 x 25mm
Poids d’expédition0.20 kg
Dimensions du colis210 × 152 × 36 mm

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How long is the SSO2 bearing rated to last before replacement?

The manufacturer specifies an MTTF of more than 150000 hours for the SSO2 bearing, indicating a very long service life under normal conditions.

What is the maximum airflow the fan can sustain at full 3000 RPM speed?

At the maximum rotational speed of 3000 RPM the fan delivers 292 m³/h of airflow, which is the highest sustained output it can provide.

How loud does the fan get when running continuously at its top PWM speed?

At the full 3000 RPM PWM speed the acoustical noise is 19.3 dB(A), a level Noctua describes as premium quiet performance.
