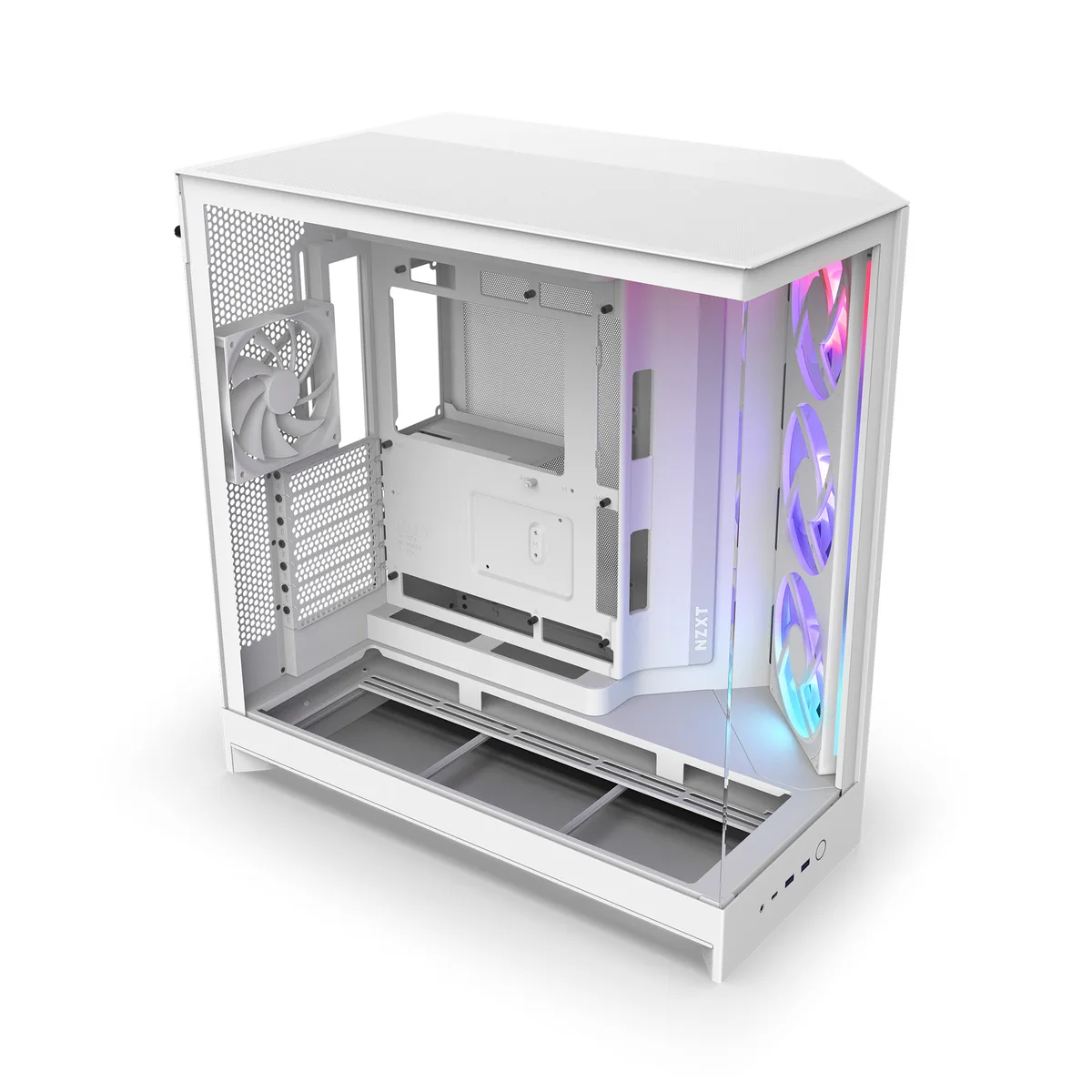

White mid-tower case with tempered glass side panels

NZXT

NZXT CM-H92FW-R1 White PC case

SKU CH-XYHK-JVMNK MPN CM-H92FW-R1

White mid-tower case with dual tempered-glass panels holds ATX or E-ATX boards, fits GPUs to 459 mm, CPU coolers to 165 mm and PSUs to 200 mm, and includes four 140 mm and one 120 mm fan

  • ColorWhite
  • Case MaterialSGCC / Tempered Glass
  • Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
  • Side Panel2 x Sides Tempered Glass Panel
  • Internal 3.5" Drive Bays2
  • Internal 2.5" Drive Bays6

Model H9 Flow RGB (2025)

  • White mid-tower with dual tempered glass panels for a clean showcase build
  • Supports ATX, E-ATX, Micro-ATX and Mini-ITX motherboards for flexible platform choice
  • Four 140 mm and one 120 mm fans pre-installed for strong airflow out of the box
  • Fits graphics cards up to 459 mm long and CPU coolers up to 165 mm tall
  • Two 3.5-inch and six 2.5-inch drive bays plus seven expansion slots for ample storage and add-in cards

Mid-tower case for ATX and E-ATX builds

The NZXT CM-H92FW-R1 is a white mid-tower chassis built from SGCC steel with tempered glass panels on two sides. It accepts ATX, E-ATX, Micro-ATX and Mini-ITX motherboards, making it suitable for a wide range of desktop assemblies. Fourteen drive bays and seven expansion slots give ample room for storage and add-in cards.

Cooling limits defined by fan thickness

Pre-installed fans include one 120 mm rear unit and three 140 mm side units. Mounting points support up to three 120 mm or three 140 mm fans at the top and bottom, plus a single 120 mm rear fan. Graphics card clearance reaches 459 mm with slim front-right fans under 56 mm thick, but drops to 410 mm when a 420 mm radiator and 56 mm fans occupy that space. CPU cooler height is capped at 165 mm and power supply length at 200 mm.

GPU length clearance is the decisive fit check

The 459 mm maximum applies only when front-right fans are thinner than 56 mm; thicker fans or a 420 mm liquid cooling radiator reduce the limit to 410 mm. Builders planning long graphics cards must verify their cooler thickness against these two figures before purchase.

Points forts

  • White mid-tower with dual tempered glass panels for a clean showcase build
  • Supports ATX, E-ATX, Micro-ATX and Mini-ITX motherboards for flexible platform choice
  • Four 140 mm and one 120 mm fans pre-installed for strong airflow out of the box
  • Fits graphics cards up to 459 mm long and CPU coolers up to 165 mm tall
  • Two 3.5-inch and six 2.5-inch drive bays plus seven expansion slots for ample storage and add-in cards

Caractéristiques

BrandNZXT
ModelCM-H92FW-R1
ColorWhite
Case MaterialSGCC / Tempered Glass
Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
Side Panel2 x Sides Tempered Glass Panel
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays6
Expansion Slots7
Fan OptionsBottom - 3 x 120mm / Bottom - 3 x 140mm / Rear - 1 x 120mm / Top - 3 x 120mm / Top - 3 x 140mm
Pre-installed FansRear - 1 x 120mm / Side - 3 x 140mm
Max GPU Length"Up to 459 mm (with <56 mm thickness fans installed at the front-right)
Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)"
Max CPU Cooler Height165 mm
Max PSU Length200 mm
Dimensions19.9" x 12.4" x 18.9"
Poids d’expédition16.24 kg
Dimensions du colis584 × 572 × 394 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Which motherboard sizes fit the CM-H92FW-R1?

The case supports ATX, E-ATX, Micro ATX and Mini ITX boards, so you can match any current desktop platform without checking separate compatibility lists.

What does the 459 mm maximum GPU length mean for my graphics card choice?

A card up to 459 mm fits when front fans are thinner than 56 mm; if you run a 420 mm AIO with 56 mm fans the limit drops to 410 mm, so measure your cooler stack first.

How do the front-panel USB and audio connections work with my motherboard?

The front I/O connects to standard internal USB 3.0, USB 2.0 and HD audio headers on the motherboard, giving full headset and peripheral support without adapters.
