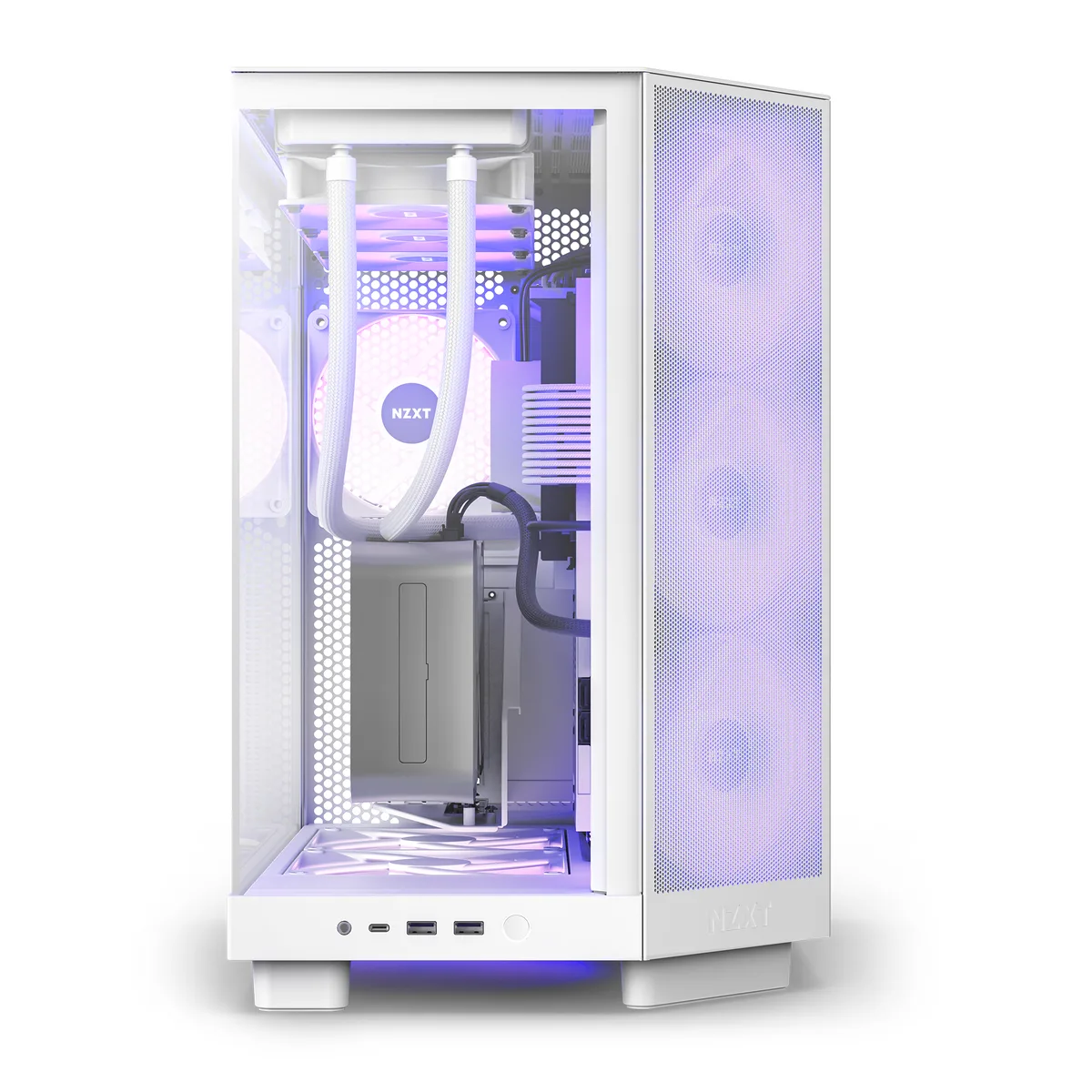

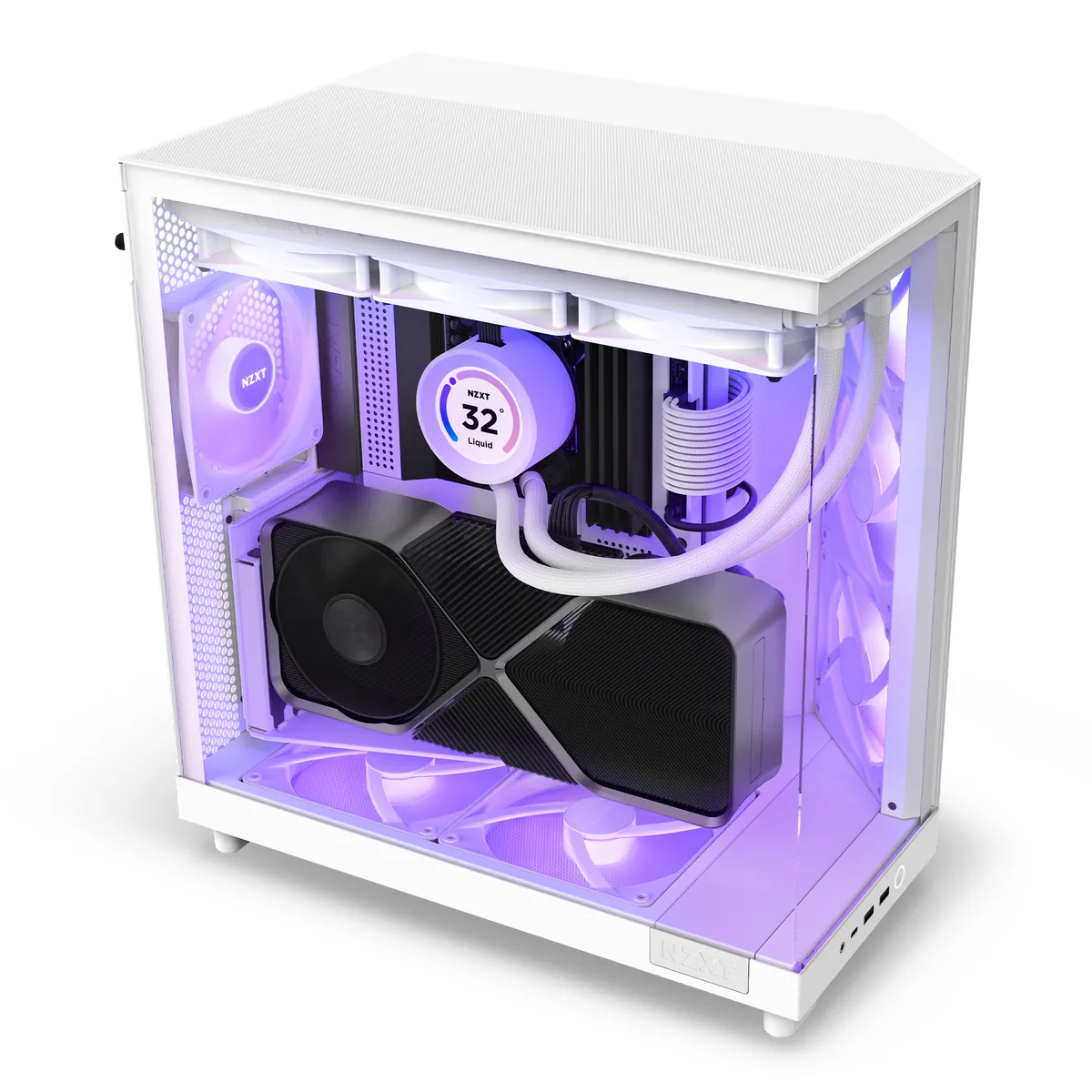

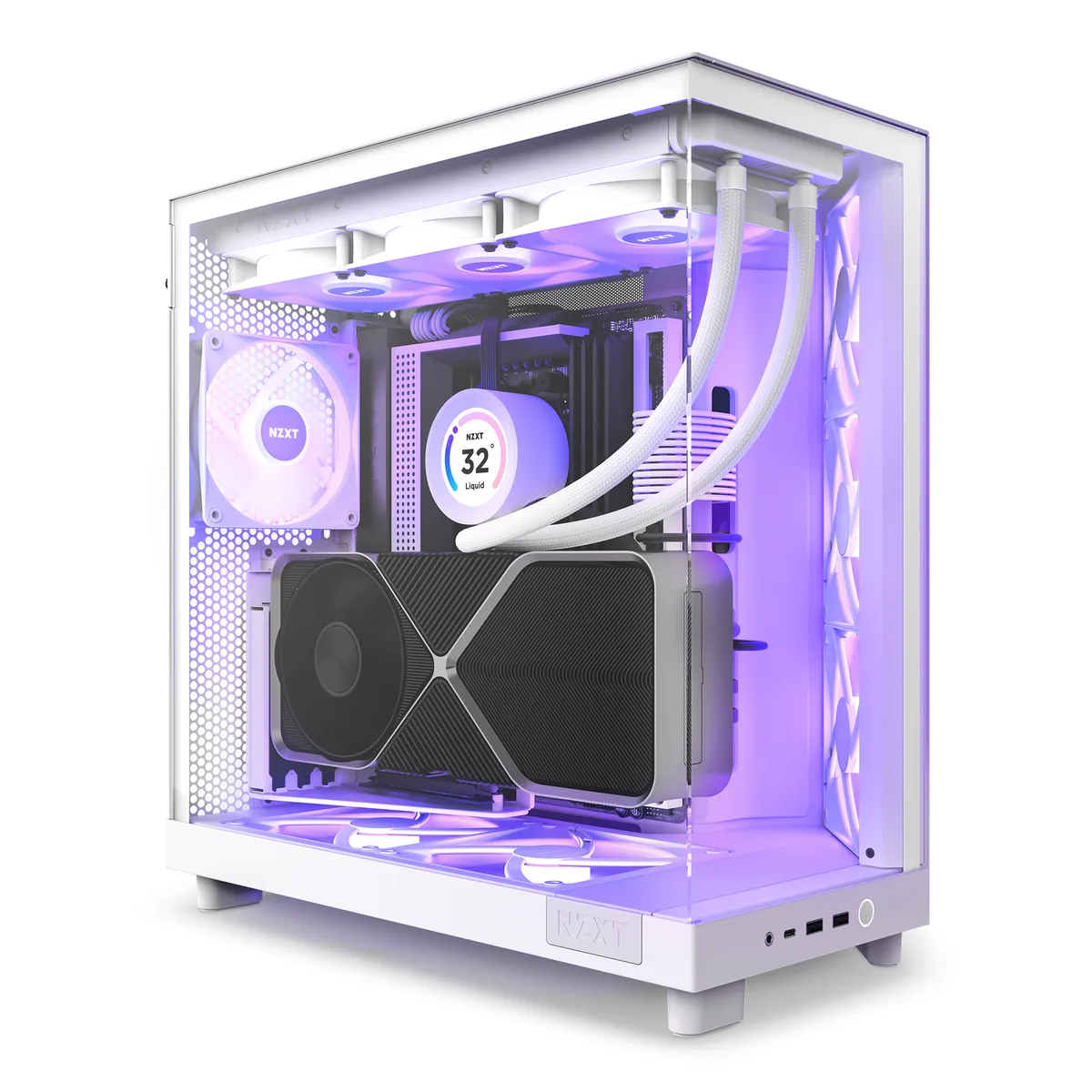

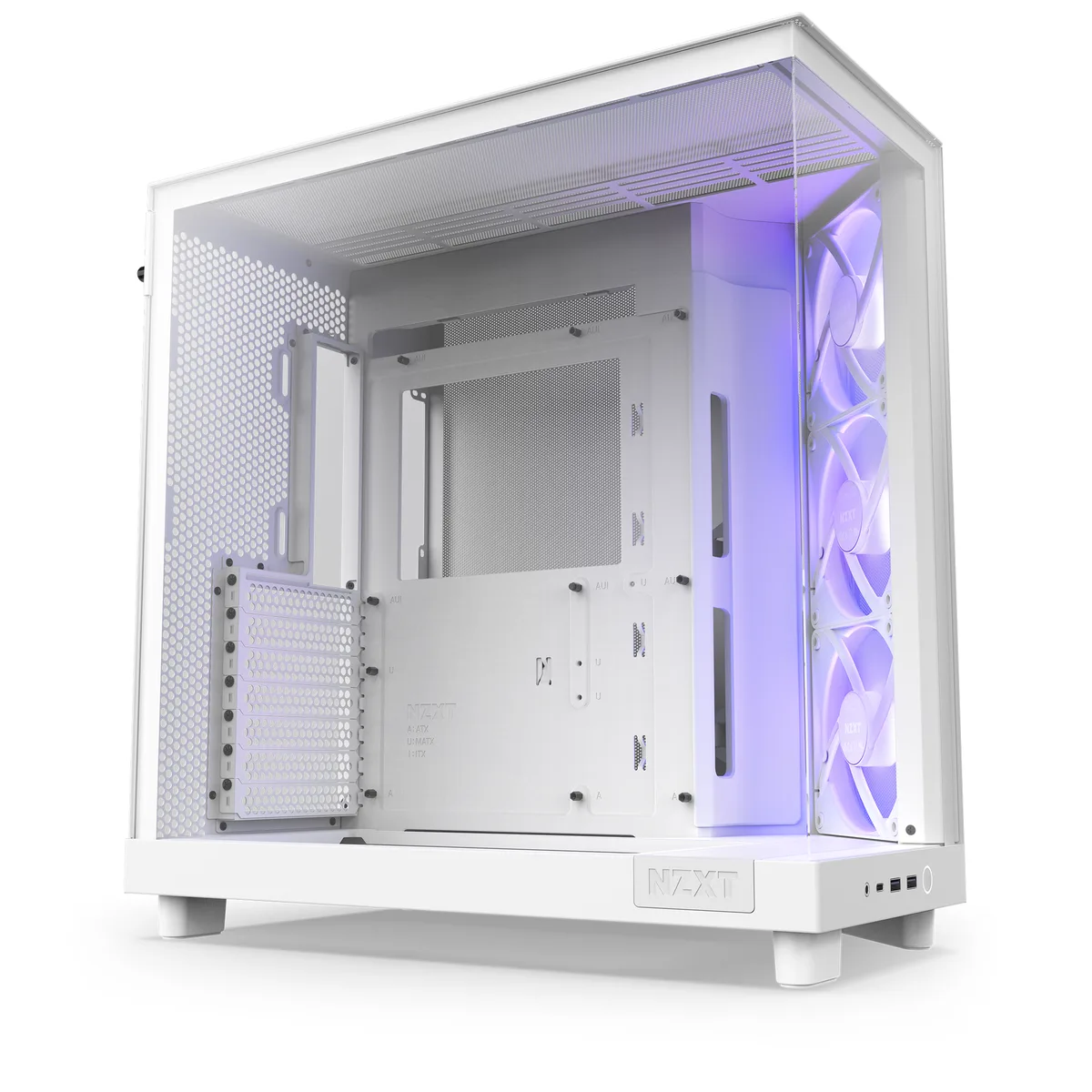

White mid-tower case with dual tempered-glass panels and three front RGB fans

NZXT

NZXT H6 Flow RGB Mid-Tower PC Case White CC-H61FW-R1

SKU CH-FZSG-9PPM2 MPN CC-H61FW-R1

A compact dual-chamber mid-tower with panoramic tempered glass, three pre-installed 120 mm RGB fans angled for GPU cooling, and support for a 360 mm top radiator

  • Motherboard CompatibilityATX / Micro ATX / Mini ITX
  • ColorWhite
  • Case MaterialSGCC Steel, Ultra-Clear Tempered Glass
  • TypeMid Tower
  • Side Panel2 x Sides Tempered Glass Panel
  • Front Ports2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x Audi

Options H6 Flow RGB (White)

  • Angled front fans target GPU heat with three 120 mm units
  • Dual-chamber layout hides PSU and drives for a clean interior
  • Panoramic tempered glass on two sides shows every component

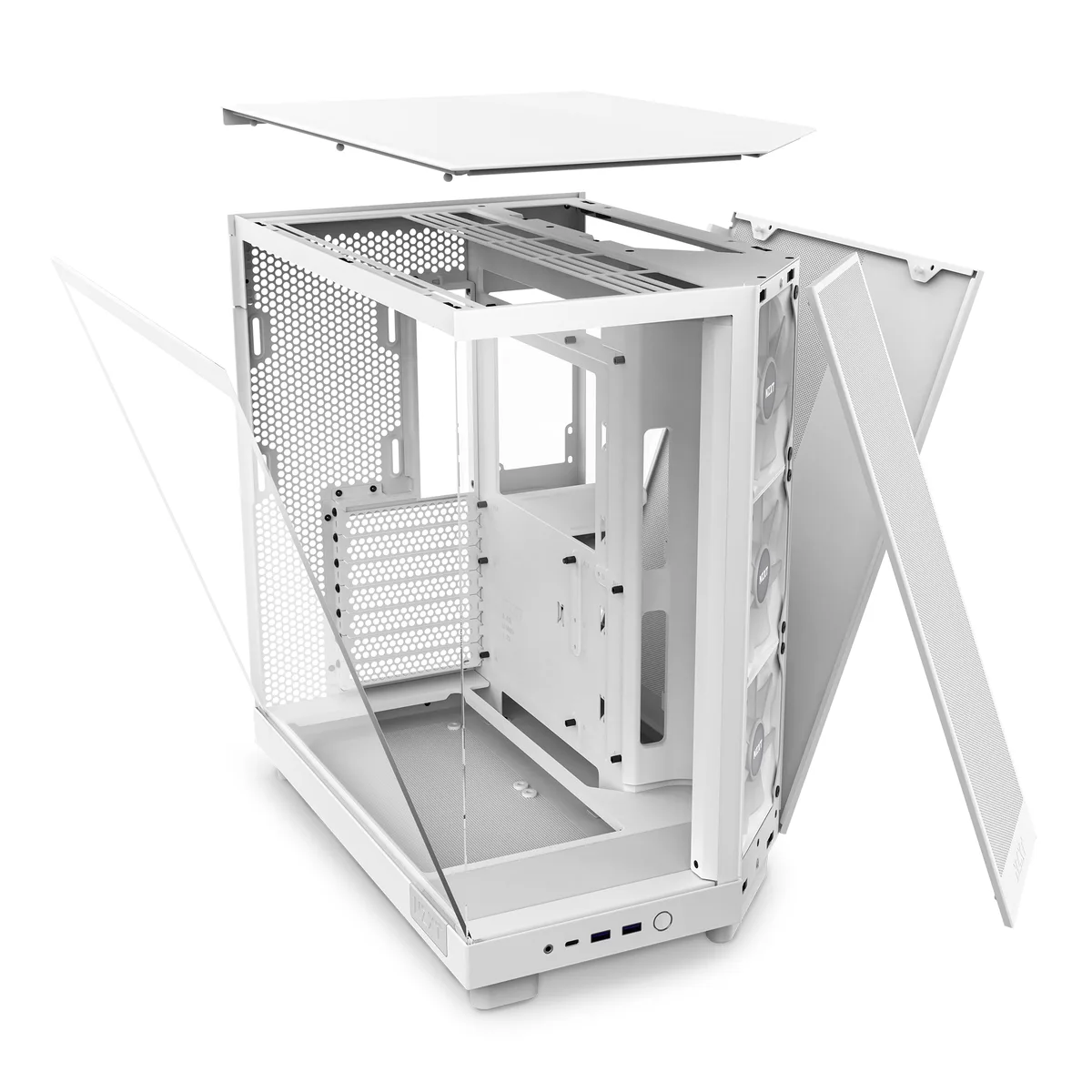

  • Tool-free top and side panels make upgrades fast
  • Supports 360 mm top radiator for high-capacity liquid cooling

Compact Dual-Chamber Layout

The NZXT H6 Flow RGB is a mid-tower case built around a dual-chamber layout that separates the power supply and storage from the main component area. It accepts ATX, Micro-ATX and Mini-ITX motherboards and ships in a white finish with tempered glass on the front and left side. Three 120 mm RGB fans come pre-installed in the angled front-right corner.

Sustained Thermal Behaviour

The angled front intake targets the graphics card and CPU zone with a steady stream of air, while perforated panels on the top, bottom and rear maintain a consistent pressure differential. Support for up to a 360 mm radiator at the top and a 120 mm radiator at the rear lets a liquid loop reject heat continuously without recirculation. Additional 140 mm mounts beneath the GPU provide a direct path for fresh air during prolonged loads.

Interface And Expansion Limits

The front I/O panel delivers two USB 3.2 Gen 1 Type-A ports and one USB 3.2 Gen 2 Type-C port alongside a single audio jack. Internally the case offers one 3.5-inch bay and two 2.5-inch bays, while seven expansion slots accommodate graphics cards up to 365 mm long. The power-supply cavity fits units up to 200 mm deep, and the CPU cooler clearance stops at 163 mm.

Points forts

  • Angled front fans target GPU heat with three 120 mm units
  • Dual-chamber layout hides PSU and drives for a clean interior
  • Panoramic tempered glass on two sides shows every component
  • Tool-free top and side panels make upgrades fast
  • Supports 360 mm top radiator for high-capacity liquid cooling

Caractéristiques

Motherboard CompatibilityATX / Micro ATX / Mini ITX
ColorWhite
Case MaterialSGCC Steel, Ultra-Clear Tempered Glass
TypeMid Tower
Side Panel2 x Sides Tempered Glass Panel
Front Ports2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x Audio,
BrandNZXT
ModelCC-H61FW-R1
Part NumberCC-H61FW-R1
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays2
Expansion Slots7
Fan OptionsFront-Right: 3 x 120 mm (3 x F120 RGB Core Fan Case Version)
Top: 3 x 120 mm / 2 x 140 mm
Bottom: 2 x 140 mm
Rear: 1 x 120 mm
Filters: High-Performance Mesh
Pre-installed FansFront - 3 x 120mm
Radiator OptionsTop: Up to 360 mm
Rear: Up to 120 mm
Max GPU Length365 mm
Max CPU Cooler Height163 mm
Max PSU Length200 mm
Dimensions17.13" x 11.3" x 16.34"
Weight20.72 lbs.
FeaturesFan Specs
Model: F120 RGB Core Fan (Case Version)
Speed: 300 ± 130 RPM
Airflow: 55.17 CFM
Static Pressure: 1.27 mm-H2O
Noise: 26.1 dBA
Fan Connector: 3-pin
Package Content1 x H6 Flow
3 x F120 RGB Core Fan (Case Version)
1 x Installation Accessories
1 x User Guide
Poids d’expédition11.00 kg
Dimensions du colis511 × 508 × 358 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will my ATX motherboard fit with a 365 mm graphics card and a 163 mm CPU cooler?

The case accepts ATX boards and clears graphics cards up to 365 mm and CPU coolers up to 163 mm, so that combination fits.

What front-panel ports are available for headsets and fast USB drives?

Two USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2 Type-C port and a 3.5 mm audio jack are built into the front panel.

Can I mount a 360 mm radiator on the top and still use the three pre-installed front fans?

The top supports radiators up to 360 mm and the three 120 mm front fans are already installed, so both can be used together.
