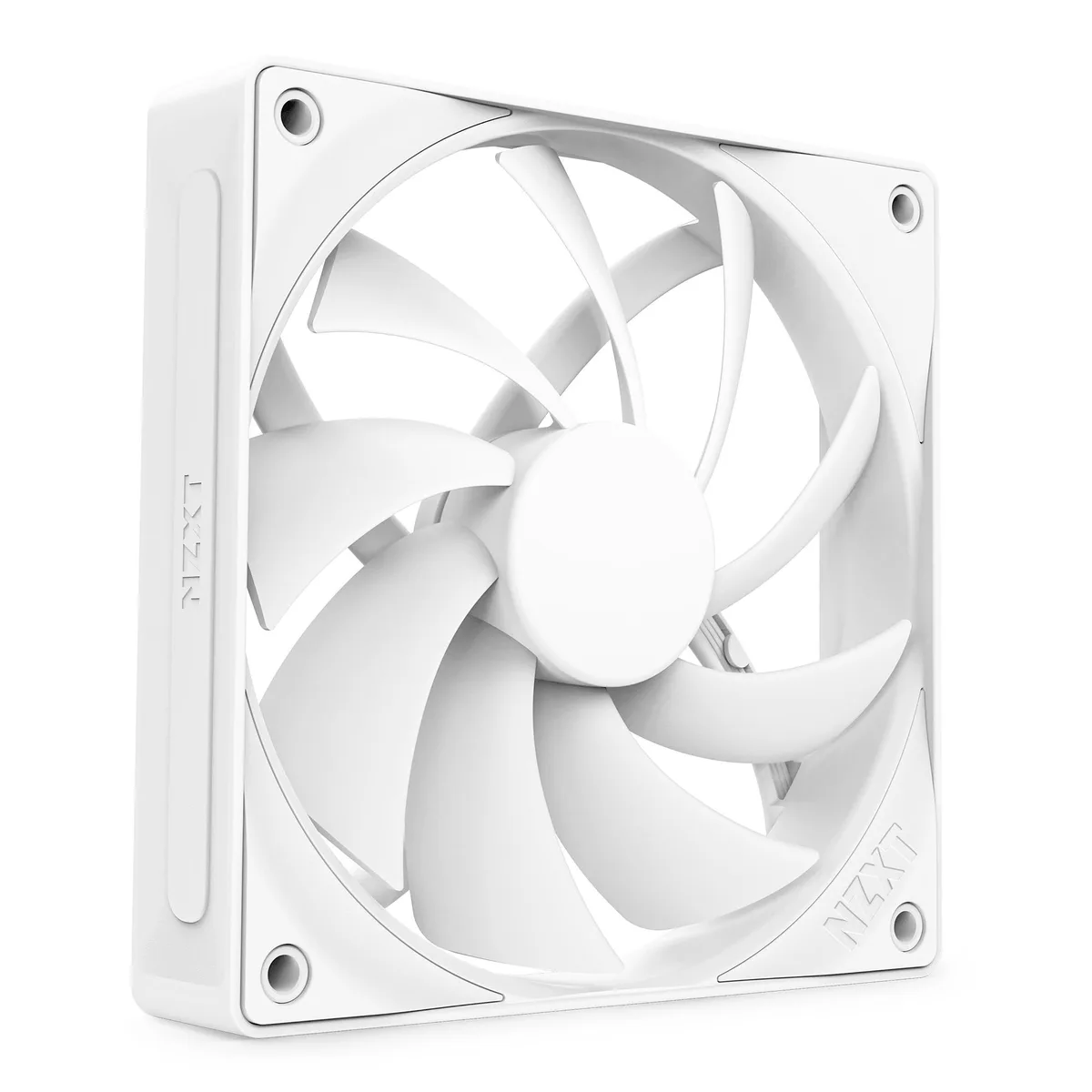

White 120mm square case fan with nine sickle blades and no LED lighting

NZXT

NZXT RF-Q12SF-W2 F120 Q 120mm White Non-LED PWM Case Fan

SKU CH-0ZPQ-8XNGY MPN RF-Q12SF-W2

A 120 mm PWM case fan with fluid dynamic bearing delivers 74.26 CFM at 25.1 dBA

  • Fan Counts1 Fan
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size120mm
  • Fan Thickness25mm
  • Bearing TypeFluid Dynamic Bearing

Fan Size 120mm

  • 140mm
  • 120mm

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Quiet cooling at 25.1 dBA with fluid dynamic bearing
  • PWM speed control from 500 to 1700 RPM with 200 RPM tolerance
  • High airflow of 74.26 CFM for effective case ventilation
  • Static pressure of 1.43 mm H2O suits radiators and filters
  • White 120 mm non-LED design fits clean builds

120 mm PWM case fan for quiet builds

The NZXT F120 Q is a single 120 mm case fan with a white frame and no lighting. A fluid dynamic bearing and PWM control allow the speed to vary between 500 and 1700 RPM while keeping noise low. It suits builders who want effective airflow without audible distraction.

4-pin PWM control limits

The fan connects through a standard 4-pin PWM header so the motherboard can adjust speed automatically. Minimum speed is 500 RPM and the maximum is 1700 RPM with a tolerance of 200 RPM. Systems without a PWM header cannot regulate the fan speed.

74.26 CFM airflow and 25.1 dBA noise

At full speed the fan moves 74.26 CFM of air with a static pressure of 1.43 mm H2O. The stated noise level is 25.1 dBA, which remains modest for most chassis. Builds that demand higher static pressure or greater airflow than these figures provide will need a different solution.

Points forts

  • Quiet cooling at 25.1 dBA with fluid dynamic bearing
  • PWM speed control from 500 to 1700 RPM with 200 RPM tolerance
  • High airflow of 74.26 CFM for effective case ventilation
  • Static pressure of 1.43 mm H2O suits radiators and filters
  • White 120 mm non-LED design fits clean builds

Caractéristiques

BrandNZXT
ModelF120 Q
Part NumberRF-Q12SF-W2
Fan Counts1 Fan
TypeCase Fan
CompatibilityCase
Fan Size120mm
Fan Thickness25mm
Bearing TypeFluid Dynamic Bearing
RPM500-1700 +/- 200 RPM
Air Flow74.26 CFM
Air Pressure1.43 mm H2O
Noise Level25.1 dBA
Power Connector4-pin PWM
ColorWhite
LEDNon-LED
FeaturesAIRFLOW MASTERY
Nine sickle-style blades provide powerful airflow for both intake or exhaust. Minimal blade-to-frame gap leads to better performance, while the chamfered frame directs air for concentrated cooling.
SILENT. SMOOTH. STABLE.

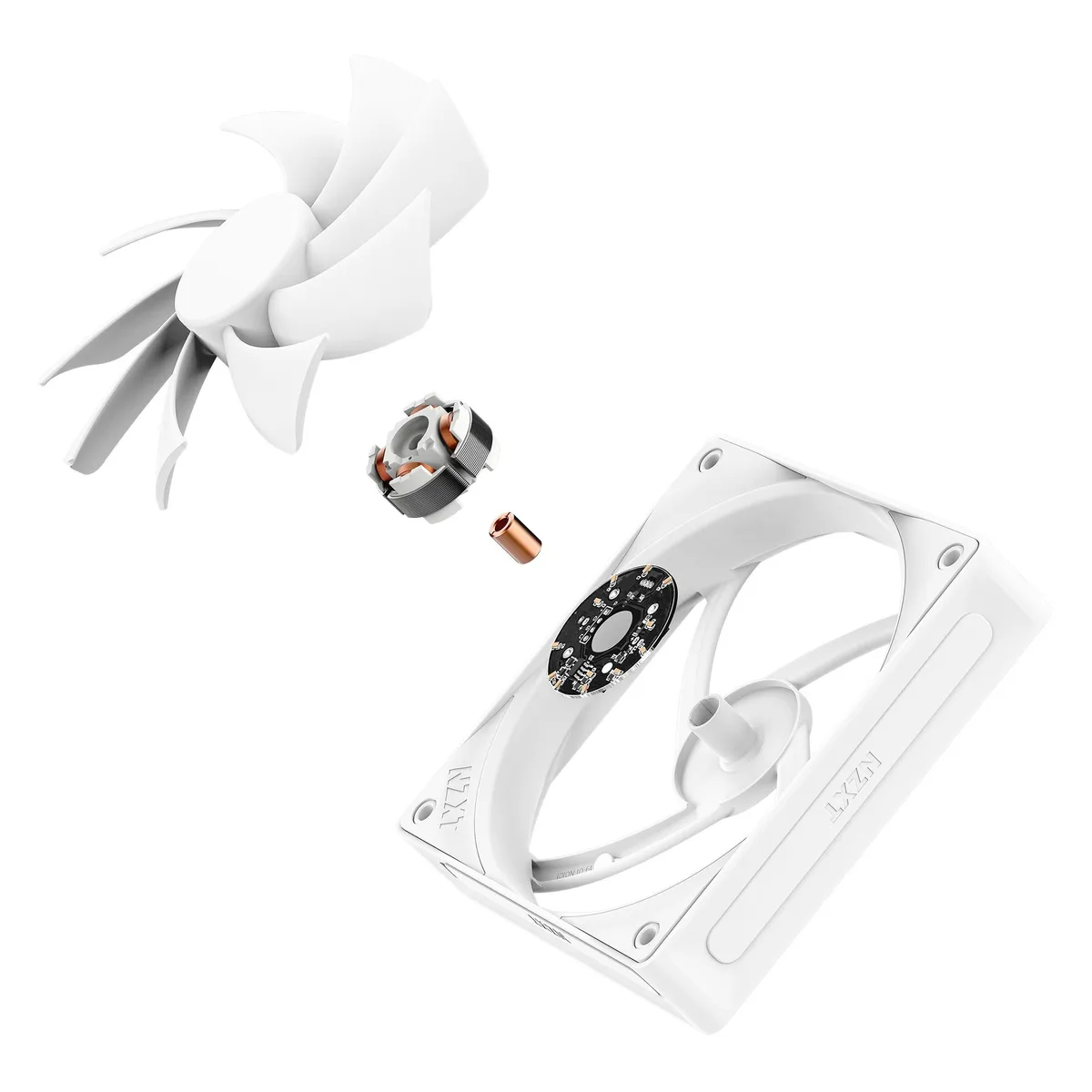

Fluid dynamic bearings ensure quiet, smooth operation. Rubber corners and a sturdy frame absorb vibrations, enhancing stability and reducing noise for a distraction-free gaming setup.
WORKS SMARTER, LASTS LONGER
PWM control adjusts fan speed based on system temperatures, and fluid dynamic bearings ensure an impressive 60,000-hour fan lifespan.
Dimensions120 x 120 x 25 mm
Poids d’expédition0.27 kg
Dimensions du colis152 × 133 × 38 mm

Questions sur cet article

Should I pick a single 120 mm white non-LED fan or look for a multi-fan kit?

The listing is for one 120 mm white non-LED fan; buy multiple units if your case has several 120 mm mounts.

What does the 74.26 CFM airflow rating deliver inside a case?

At up to 1700 RPM the fan moves 74.26 CFM, giving strong directed airflow through radiators or mesh panels while staying at 25.1 dBA.

How does the 4-pin PWM connector control speed in practice?

The 4-pin PWM header lets the motherboard vary speed between 500 and 1700 RPM with a ±200 RPM tolerance, matching cooling to load automatically.
