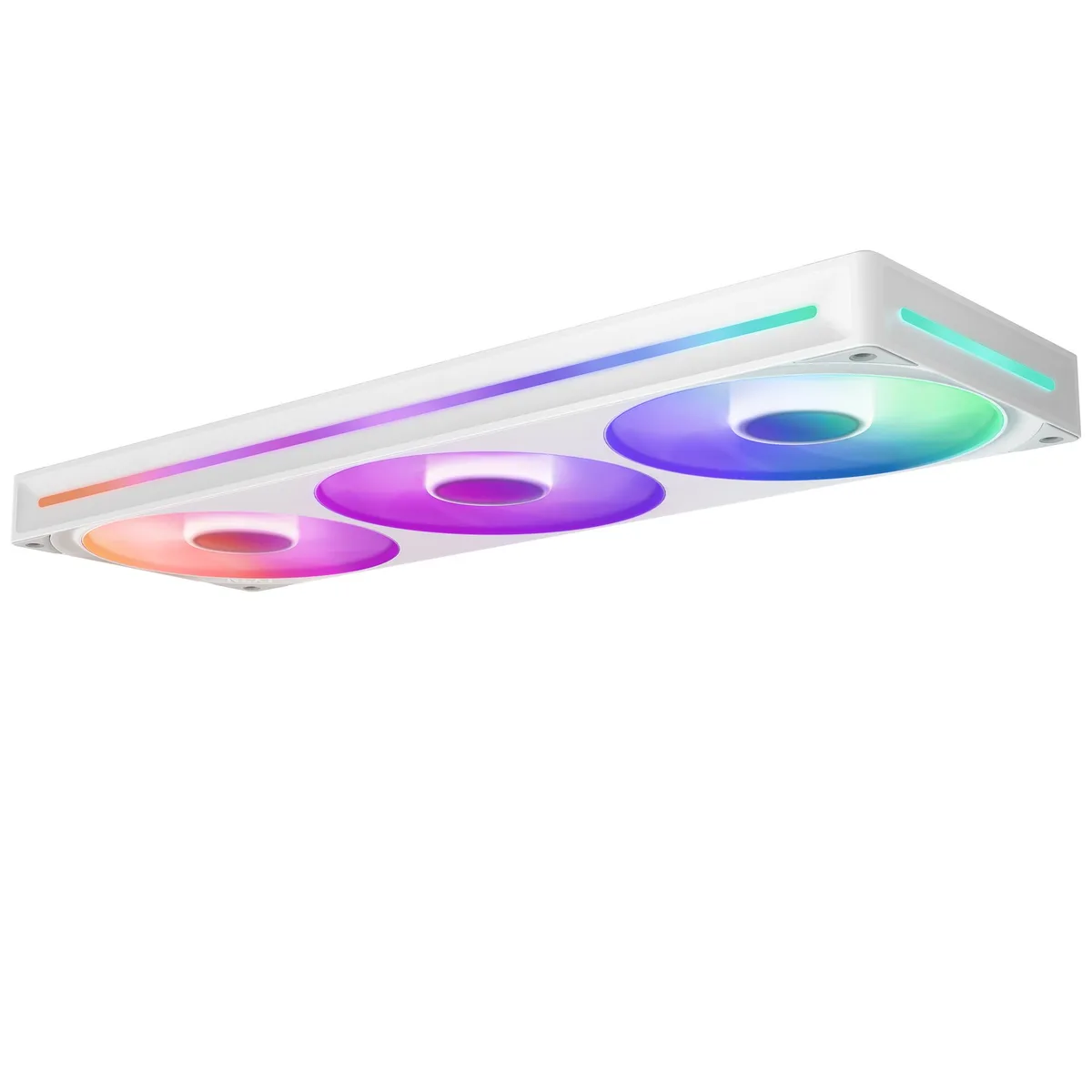

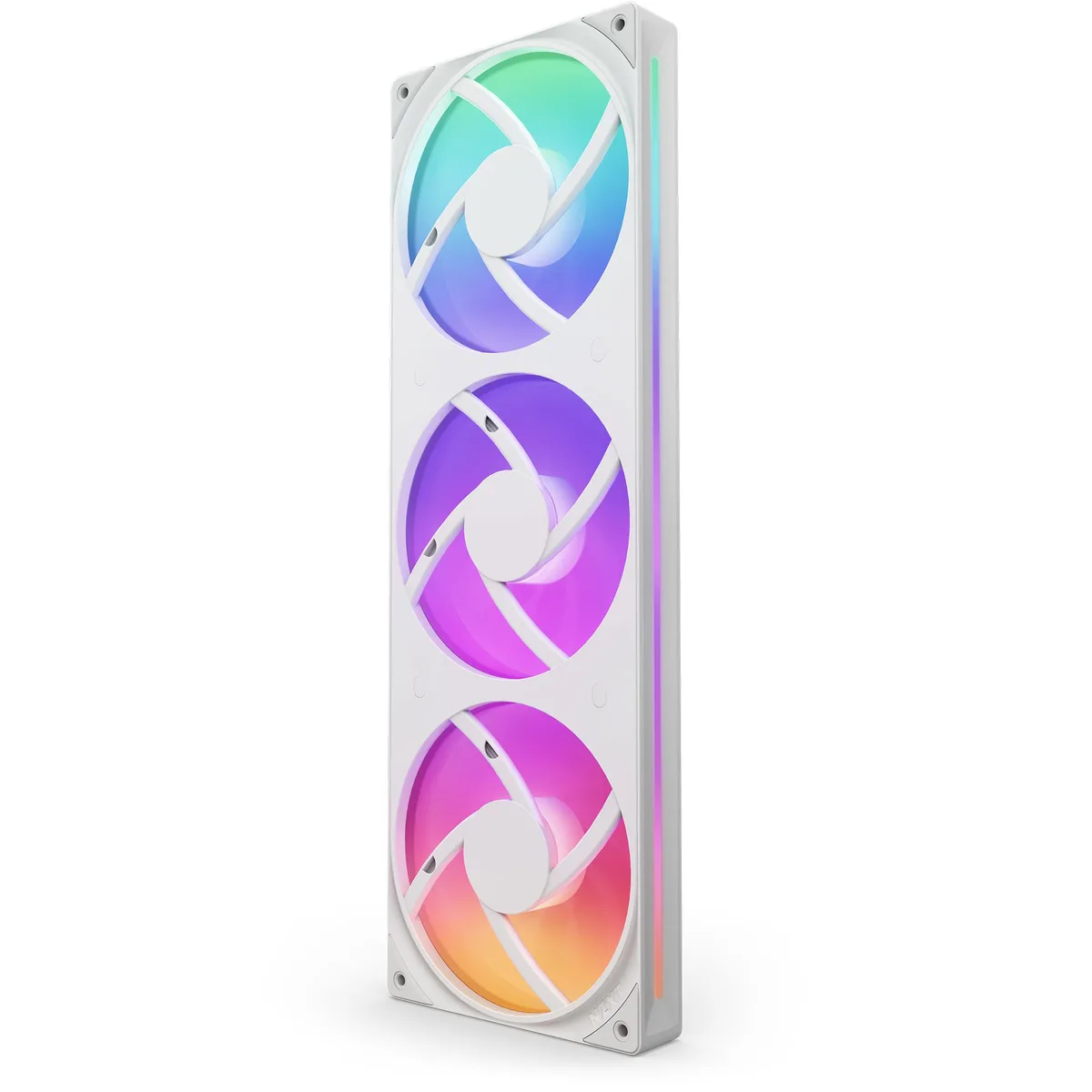

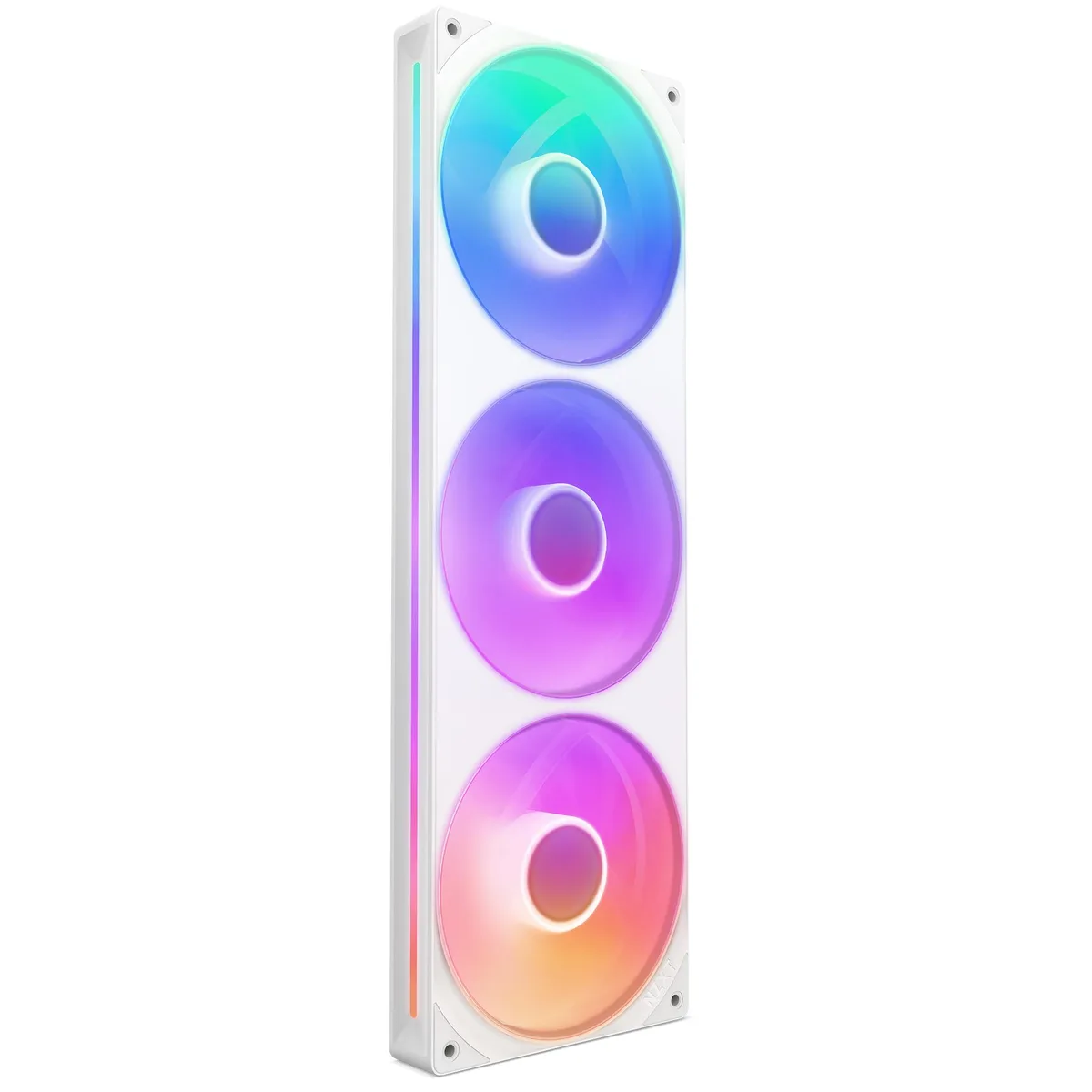

White 360 mm single-frame RGB fan unit with three integrated fans and semi-translucent blades

NZXT

NZXT RF-U36HF-W1 F360 RGB Core 360 mm case fan

SKU CH-Q9BN-X4PVF MPN RF-U36HF-W1

Three 360 mm RGB fans in a single white frame deliver 75.12 CFM airflow at up to 2400 RPM with fluid dynamic bearings and 30 dBA noise

  • Fan Size360mm
  • LEDRGB
  • TypeCase Fan
  • Bearing TypeFluid Dynamic Bearing
  • RPM500 - 2400 +/- 250 RPM per fan
  • Air Flow75.12 CFM per fan

Fan Size 360mm

  • 360 mm single-frame design simplifies installation with one cable
  • Three integrated fans deliver 75.12 CFM each for strong airflow
  • Fluid dynamic bearings with Zero RPM mode run as quiet as 30 dBA
  • Eight RGB LEDs per fan light semi-translucent blades for vivid colour
  • 500–2400 RPM range balances high static pressure and low noise

360 mm single-frame RGB fan unit

The NZXT F360 RGB Core is a 360 mm single-frame unit that contains three 120 mm fans with RGB LEDs. It is aimed at builders who want high airflow and synchronised lighting in a white-themed system without managing separate fans.

Installation uses one 8-pin cable for PWM and RGB

A single 8-pin connector carries both PWM control and RGB signals to an NZXT RGB & Fan Controller, which is sold separately. A supplied splitter also allows motherboard connection. The single-frame design reduces cable clutter, but the unit requires the external controller for full CAM software integration.

Three fans deliver 75.12 CFM each at up to 2400 RPM

At maximum speed the array moves 75.12 CFM per fan with 3.3 mm H2O static pressure while producing 30 dBA per fan. Fluid dynamic bearings and a zero-RPM mode keep noise low at idle. The 26 mm thick frame fits standard 360 mm radiator mounts, but total airflow may be insufficient for heavily overclocked multi-GPU setups.

Points forts

  • 360 mm single-frame design simplifies installation with one cable
  • Three integrated fans deliver 75.12 CFM each for strong airflow
  • Fluid dynamic bearings with Zero RPM mode run as quiet as 30 dBA
  • Eight RGB LEDs per fan light semi-translucent blades for vivid colour
  • 500–2400 RPM range balances high static pressure and low noise

Caractéristiques

BrandNZXT
SeriesF360 RGB CORE
ModelRF-U36HF-W1
Part NumberRF-U36HF-W1
Fan Size360mm
LEDRGB
TypeCase Fan
Bearing TypeFluid Dynamic Bearing
RPM500 - 2400 +/- 250 RPM per fan
Air Flow75.12 CFM per fan
Noise Level30 dBA per fan
Power Connector8-pin for PWM & RGB
ColorWhite
Fan Counts3 Fans
Fan Thickness26mm
Air Pressure3.3 mm H2O per fan
FeaturesHIGH PERFORMANCE. LOW NOISE.
Optimized for cooling, the integrated fans balance airflow and static pressure. Minimal blade-to-edge gap boosts efficiency. Fluid dynamic bearings with Zero RPM Mode* ensure quiet, durable operation.
*Requires an NZXT RGB & Fan Controller or NZXT motherboard, each sold separately.
SIMPLE INSTALLATION
Single-frame design simplifies installation and digital control. Connect a single cable to an NZXT RGB & Fan Controller (sold separately) to use CAM software or use the included splitter for motherboard connection.

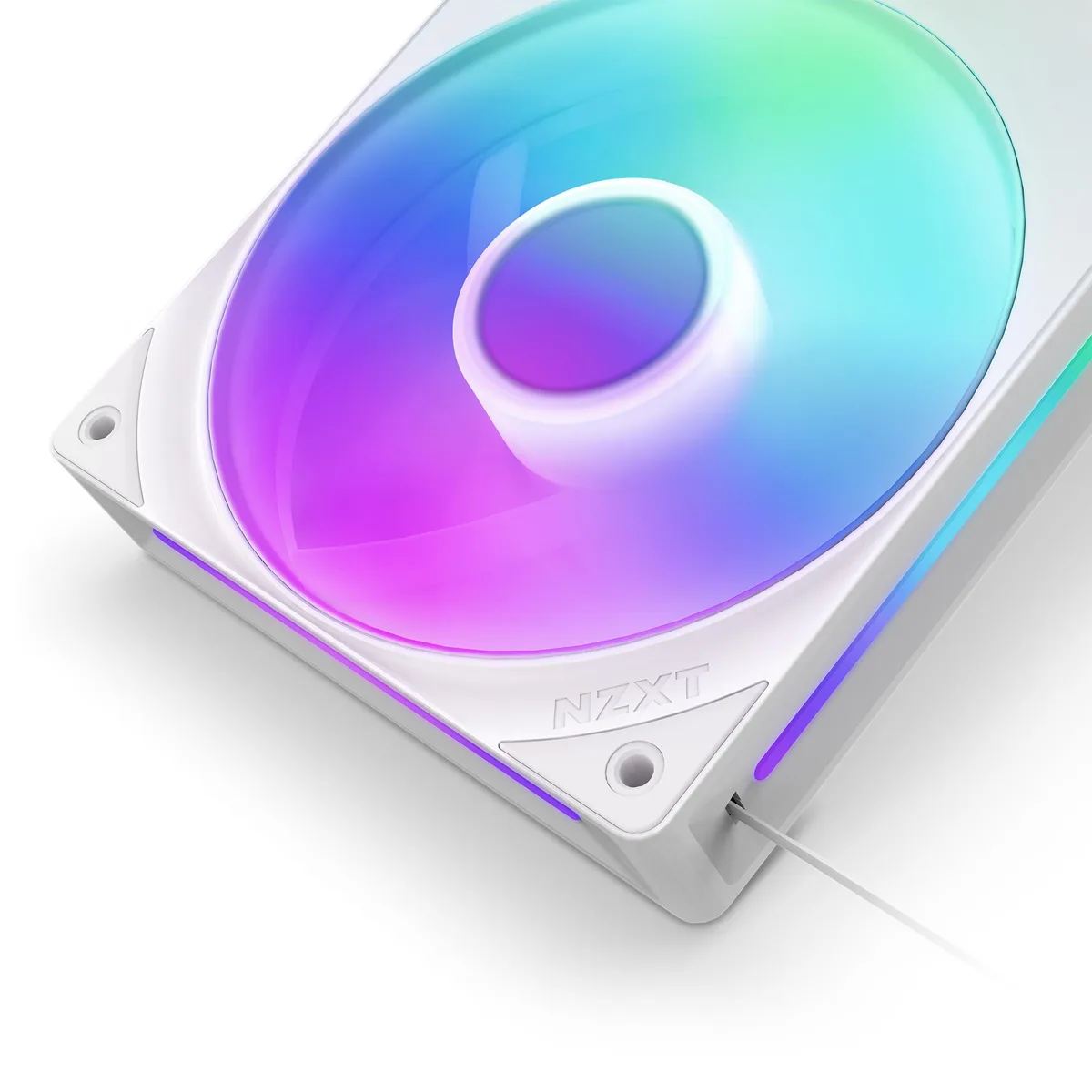

RADIANT RGB
Eight RGB LEDs per fan illumina
Dimensions360 x 120 x 26 mm
Package Contents4-pin PWM Fan Cable - 1 x 300 mm
5V RGB & 4-pin NZXT RGB Cable - 1 x 100 mm
Poids d’expédition0.64 kg
Dimensions du colis406 × 127 × 32 mm

Autres versions de ce modèle

4 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How can I confirm the three fans are running at the correct 500 to 2400 RPM range after installation?

Use CAM software or your motherboard BIOS to monitor each fan's RPM; the integrated design reports individual speeds so you can verify they stay within the 500 to 2400 RPM specification.

What cables come in the box and what must I purchase separately to control RGB and PWM?

The package includes a 300 mm 4-pin PWM fan cable and a 100 mm 5V RGB plus 4-pin NZXT RGB cable; an NZXT RGB & Fan Controller or compatible NZXT motherboard is required for full digital control and is sold separately.

Which version should I choose if my case only supports a 360 mm radiator mount?

This model is a single 360 mm frame containing three 120 mm fans, designed specifically for 360 mm radiator or case mounts, so it matches that exact form factor.
