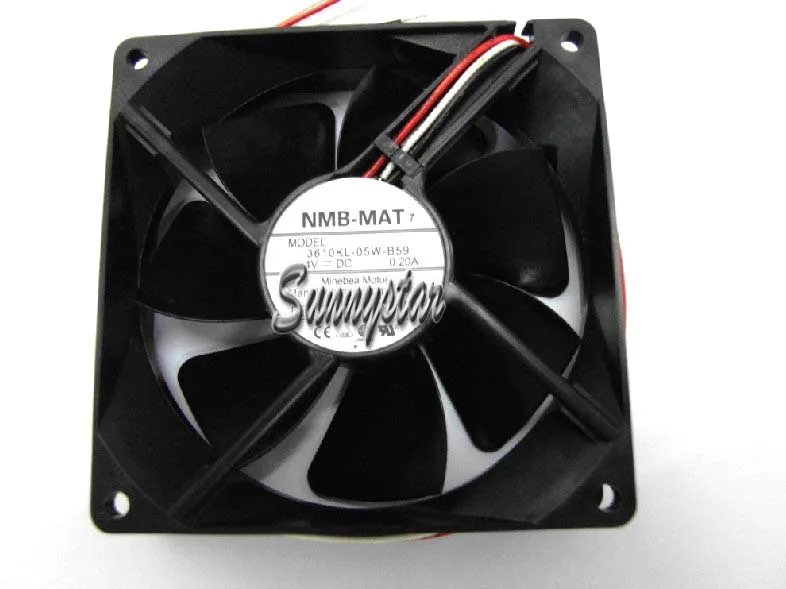

OEM Industries 3610KL-05W-B59 92mm 24V .2A 3-Wire Fan
92 mm square fan with 24 V .2 A three-wire power and dual-ball bearing
- ColorBlack
- TypeFan only
- Fan Size92mm
- Bearing Type2 Ball
- Power Connector3 Wires
- LEDNo
- 92 mm square frame fits tight CPU-cooler spaces
- 24 V .2 A rating keeps power draw low
- Dual ball-bearing design extends operating life
- Three-wire connector enables speed monitoring and control
- Black 25 mm profile suits standard case-fan mounts
92 mm 24 V 3-Wire Fan
This 92 mm square cooler operates on a 24 V supply and draws 0.2 A through a three-wire connector. It uses a two-ball bearing for reliable rotation. The unit is intended for chassis airflow or inverter converter cooling where a compact DC fan is required.
Sustained Load Behaviour
The two-ball bearing maintains consistent speed during continuous operation without the friction increase seen in sleeve designs. At 24 V the motor delivers steady airflow for extended periods in converter or case environments. No thermal throttling or speed drop is specified for prolonged duty cycles.
Three-Wire Interface Limits
The three-wire connector supplies power and a tachometer signal but does not support PWM control. Voltage must remain at 24 V for correct speed reporting; lower voltages will reduce rpm and may stop the fan. The interface cannot accept four-wire PWM commands or variable-voltage regulation beyond the rated input.
Points forts
- 92 mm square frame fits tight CPU-cooler spaces
- 24 V .2 A rating keeps power draw low
- Dual ball-bearing design extends operating life
- Three-wire connector enables speed monitoring and control
- Black 25 mm profile suits standard case-fan mounts
Caractéristiques
| Model | 3610KL-05W-B59 |
|---|---|
| Color | Black |
| Type | Fan only |
| Fan Size | 92mm |
| Bearing Type | 2 Ball |
| Power Connector | 3 Wires |
| LED | No |
Questions sur cet article
How loud is the 3610KL-05W-B59 when it runs continuously at 24 V?
The 2-ball bearing and 25 mm thickness keep mechanical noise low during all-day operation at the rated 24 V .2 A draw.
What power source must I already have to run this 92 mm fan?
A 24 V DC supply capable of at least .2 A with a 3-wire header is required to power the 3610KL-05W-B59.
Will the 92*25 mm frame fit the mounting holes on my older 92 mm cooler?
Yes, the standard 92 mm square frame with 25 mm depth matches legacy 92 mm mounting patterns.
