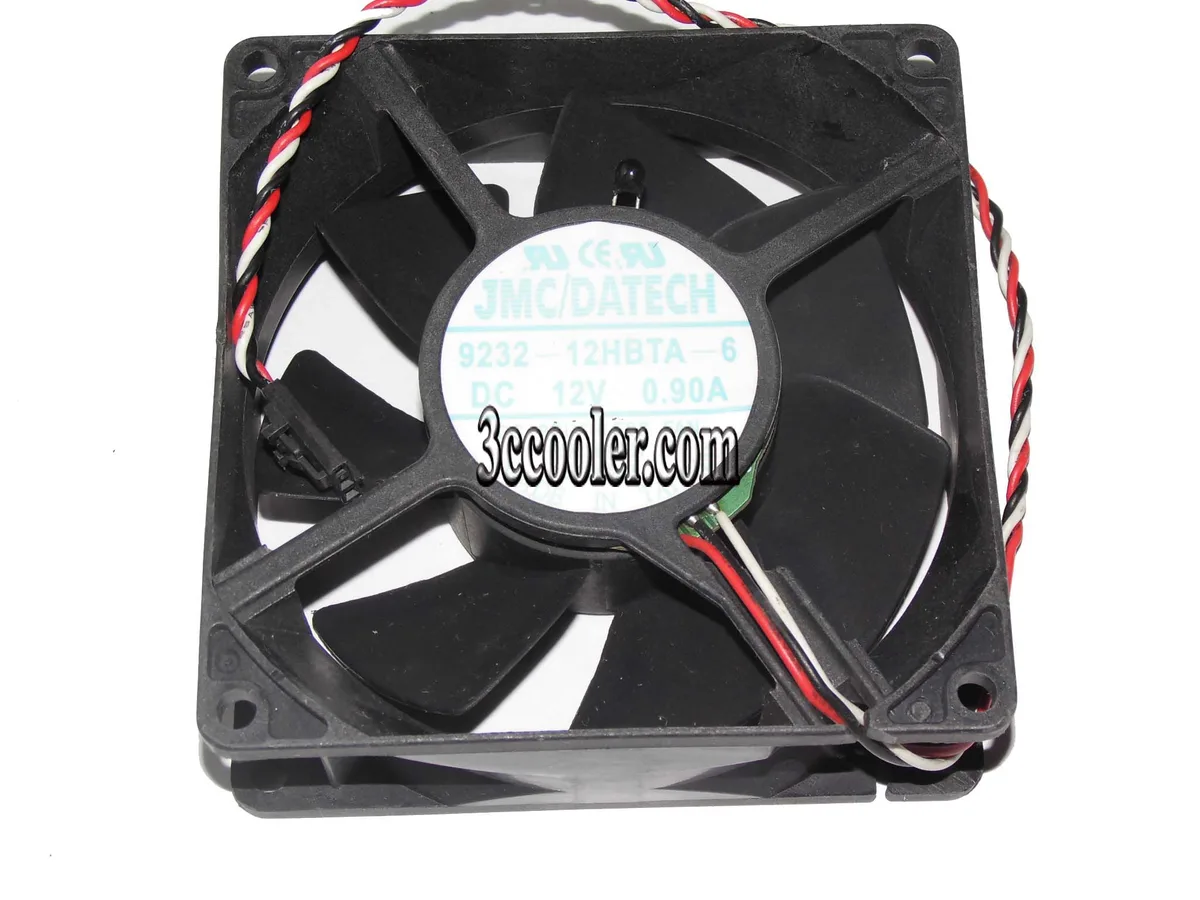

Black 92mm square fan with 32mm depth and 3-pin connector

OEM Industries

OEM Industries 9232-12HBTA-6 92mm 32mm 12V 0.9A 3-Pin CPU cooler

SKU CH-NV8X-57612

A 92 mm square fan with ball bearing, 12 V .9 A draw and a 3-pin connector for server or case cooling

  • ColorBlack
  • TypeFan only
  • Fan Size92mm*32mm
  • Bearing TypeBall
  • Power Connector3 Pin
  • 92 mm square frame fits tight server bays
  • 32 mm thick profile moves air through dense heatsinks
  • Ball bearing design extends operating life
  • 12 V .9 A draw keeps power budget low
  • 3-pin connector enables motherboard speed control

What it is

The OEM Industries 9232-12HBTA-6 is a 92 mm square fan with a 32 mm frame. It runs on 12 V and draws 0.9 A through a three-pin power connector. Ball bearings support the rotor. The unit is supplied new and is intended for server or workstation chassis cooling.

Who it suits

This cooler fits builds that accept a 92 mm by 32 mm form factor and a three-pin header. Buyers who need PWM speed control or a different frame thickness should look elsewhere. It is also not suited for systems that require a larger fan diameter or a heatsink assembly.

Deciding specification

The 32 mm frame depth is the critical dimension. Verify that your chassis or mounting bracket has clearance for this thickness before ordering. The three-pin connector provides voltage-based speed regulation only.

Points forts

  • 92 mm square frame fits tight server bays
  • 32 mm thick profile moves air through dense heatsinks
  • Ball bearing design extends operating life
  • 12 V .9 A draw keeps power budget low
  • 3-pin connector enables motherboard speed control

Caractéristiques

Model9232-12HBTA-6
ColorBlack
TypeFan only
Fan Size92mm*32mm
Bearing TypeBall
Power Connector3 Pin

Questions sur cet article

Which 9232-12HBTA-6 version should I pick if my chassis only has 32mm of clearance?

This unit is a single 92mm by 32mm fan with a ball bearing and 3-pin connector, so there are no alternate heights or bearing options to choose from.

What does the 0.9A rating mean once the fan is running in my server?

At 12V the fan draws 0.9A, which determines the current your fan header or power supply must provide for the ball-bearing motor to reach its rated speed.

What does the 3-pin connector limit compared to a 4-pin PWM header?

The 3-pin connector supplies power and a tachometer signal but lacks the PWM control wire, so speed is regulated by voltage changes rather than a duty-cycle signal.
