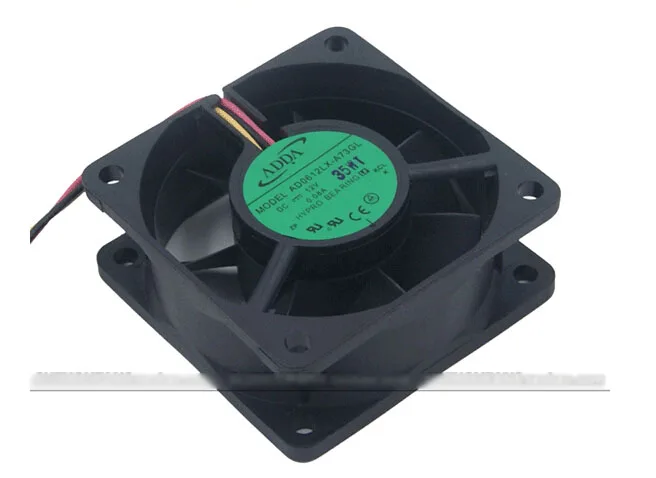

Black 60mm square cooling fan with 3-pin connector

OEM Industries

OEM Industries AD0612LX-A73GL 60mm CPU cooler 12V 0.08A 2500 RPM

SKU CH-F6K3-DQVKA MPN AD0612LX-A73GL

A 60 mm hydraulic-bearing fan running at 2500 RPM with a 3-pin 12 V connector, rated for 50000 hours

  • ColorBlack
  • TypeFan only
  • Fan Size60mm
  • Bearing TypeHydraulic
  • Power Connector3 Wires
  • LEDNo
  • Hydraulic bearing extends fan lifespan to 50000 hours
  • 2500 RPM airflow cools CPU efficiently
  • 12V 0.08A power draw keeps energy use low
  • 60mm compact size fits tight build spaces
  • Three-wire connector enables speed monitoring and control

Compact 60 mm CPU fan for tight builds

The AD0612LX-A73GL is a 60 mm square fan rated at 12 V and 0.08 A, spinning at 2500 RPM with a hydraulic bearing. It uses a three-wire connector for speed reporting and draws minimal power. The unit is sold as a fan only, without heatsink or mounting hardware.

Suited for legacy or small-form-factor systems

Builders repairing OEM chassis, 1U servers or compact industrial boards where a 6025 footprint is mandatory will find this a direct replacement. Systems that require PWM control, higher static pressure or a larger frame should look elsewhere.

Three-wire 12 V connector decides fit

The 3-pin header provides tachometer feedback but no PWM duty-cycle input, so motherboard fan curves are limited to voltage regulation. Verify that the target board supplies a 12 V three-pin header before ordering.

Points forts

  • Hydraulic bearing extends fan lifespan to 50000 hours
  • 2500 RPM airflow cools CPU efficiently
  • 12V 0.08A power draw keeps energy use low
  • 60mm compact size fits tight build spaces
  • Three-wire connector enables speed monitoring and control

Caractéristiques

ModelAD0612LX-A73GL
ColorBlack
TypeFan only
Fan Size60mm
Bearing TypeHydraulic
Power Connector3 Wires
LEDNo

Questions sur cet article

How do I mount the 60mm fan and what orientation mistake should I avoid?

Align the four corner screw holes with your heatsink or case mount, then secure with 60mm-spaced screws; the step often missed is confirming airflow direction — the label side is intake, so point it toward the heatsink fins, not away.

What part will wear out first and when should I plan a replacement?

The hypro alloy bearing is rated for 50000 hours of continuous running; after that interval the bearing is the component most likely to need replacement.

At sustained load what limit appears first — noise, vibration or thermal throttling?

At the rated 2500 RPM the fan moves a fixed air volume; if the heatsink cannot dissipate the CPU heat at that airflow, thermal throttling becomes the first limit.
