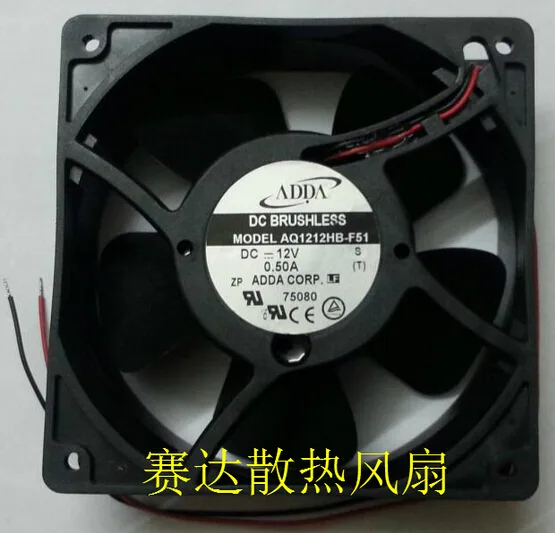

Black 120mm square frame fan, 38mm thick, two-wire power lead

OEM Industries

OEM Industries AQ1212HB-F51 120x38mm 12V .5A 2-Wire CPU cooler

SKU CH-QJQB-KEMNC

A 120 mm dual-ball-bearing fan moves air through a 38 mm frame using 12 V at .5 A over two wires

  • ColorBlack
  • TypeFan only
  • Fan Size120mm
  • Bearing Type2 Ball
  • Power Connector2 Wires
  • LEDNo
  • DC brushless motor reduces friction for longer life
  • 2-ball bearing design withstands continuous server duty cycles
  • 120 mm × 38 mm frame fits standard 120 mm mounts
  • 12 V 0.5 A draw keeps power budget low
  • Two-wire power connector simplifies installation in any chassis

120 mm DC brushless cooler

The OEM Industries AQ1212HB-F51 is a 120 mm by 38 mm DC brushless fan rated for 12 V and 0.5 A. It uses a two-wire power connector and a dual-ball bearing for continuous operation in server chassis or workstation enclosures.

Suited for 12 V two-wire headers

This cooler fits builds that require a 120 mm fan with a standard two-wire connection and 0.5 A current draw. It is not intended for systems that need PWM speed control, three- or four-pin headers, integrated LED lighting, or a heatsink assembly bundled with the fan.

Verify header and clearance

Confirm the motherboard or fan controller provides a 12 V two-pin header rated for at least 0.5 A. Ensure the 38 mm thickness clears surrounding components and that the mounting holes match a 120 mm pattern before ordering.

Points forts

  • DC brushless motor reduces friction for longer life
  • 2-ball bearing design withstands continuous server duty cycles
  • 120 mm × 38 mm frame fits standard 120 mm mounts
  • 12 V 0.5 A draw keeps power budget low
  • Two-wire power connector simplifies installation in any chassis

Caractéristiques

ModelAQ1212HB-F51
ColorBlack
TypeFan only
Fan Size120mm
Bearing Type2 Ball
Power Connector2 Wires
LEDNo

Questions sur cet article

Will the 12 V, 0.5 A rating let me run this fan from a standard motherboard CPU fan header?

Yes, the fan draws 0.5 A at 12 V, which is within the typical 1 A limit of most motherboard CPU fan headers.

Can I use the existing two-wire power lead from my old 120 mm fan to connect this AQ1212HB-F51?

Yes, this cooler uses a two-wire power connector, so it will plug directly into the same two-wire header or adapter you already have.

How can I confirm the 2-ball bearing fan is spinning correctly after installation?

Power the system, enter the BIOS hardware monitor or use a monitoring utility, and verify the CPU fan RPM reads a steady value above zero.
