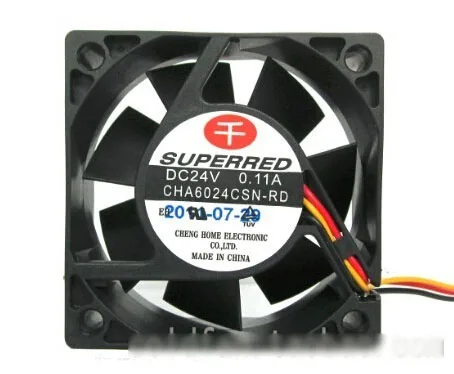

Small black 60mm square cooling fan with three-pin connector

OEM Industries

OEM Industries CHA6024CSN-RD 60mm Ball 3 Pin CPU cooler

SKU CH-2FEK-KK73W

A 60 mm ball-bearing fan with a 3-pin connector runs on 24 V at 0.11 A for compact CPU cooling

  • ColorBlack
  • TypeFan only
  • Fan Size60mm
  • Bearing TypeBall
  • Power Connector3 Pin
  • LEDNo
  • Compact 60 mm fan fits tight CPU spaces
  • Ball bearing reduces friction for longer life
  • 24 V 0.11 A draws minimal power
  • 3-pin connector enables speed monitoring
  • 25 mm thickness suits standard 6025 mounting

Compact 60 mm CPU fan

The OEM Industries CHA6024CSN-RD is a 60 mm ball-bearing fan designed for CPU air cooling in tight spaces. It draws 0.11 A at 24 V and connects via a standard three-pin header. Builders working with small-form-factor or industrial boards will find the 6025 frame size a direct fit.

Sustained-load behaviour

Ball bearings maintain consistent rotational stability when the fan runs continuously at full voltage. The sleeve-bearing reference in the supplier title does not apply to this model; the ball design resists wear under prolonged thermal cycles. No LED lighting means no extra heat or current draw during extended operation.

Three-pin interface limits

The three-pin connector supplies power and tachometer feedback but lacks PWM control, so speed varies only with voltage changes. Motherboards that regulate solely through PWM headers cannot modulate this fan automatically. Systems requiring software-defined curves need a voltage-adjustable header or external controller.

Points forts

  • Compact 60 mm fan fits tight CPU spaces
  • Ball bearing reduces friction for longer life
  • 24 V 0.11 A draws minimal power
  • 3-pin connector enables speed monitoring
  • 25 mm thickness suits standard 6025 mounting

Caractéristiques

ModelCHA6024CSN-RD
ColorBlack
TypeFan only
Fan Size60mm
Bearing TypeBall
Power Connector3 Pin
LEDNo

Questions sur cet article

How much noise and heat does the CHA6024CSN-RD produce when running continuously at 24 V?

The 60 mm ball-bearing fan draws 0.11 A at 24 V, so power consumption stays low and acoustic output remains modest during all-day operation.

What existing connector must my system provide for this 3-pin fan to work?

A standard three-pin fan header delivering 24 V DC is required; the cooler has no additional wiring or adapters included.

Will the 60 mm frame and 25 mm depth fit alongside legacy coolers in an older chassis?

The compact 60×60×25 mm size matches the classic 6025 form factor, allowing it to sit beside taller heatsinks or tight drive cages without clearance issues.
