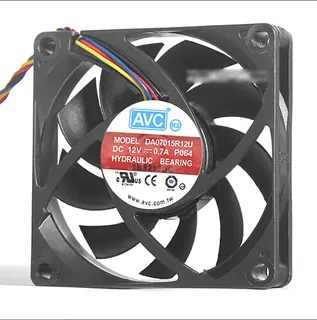

Black 70mm square fan, 15mm thick, four-pin PWM connector

OEM Industries

OEM Industries DA07015R12U 70mm CPU cooler

SKU CH-4EHG-QA7AT

A 70 mm hydraulic-bearing fan spins at 1000-5000 RPM to deliver 65 CFM airflow through a 12 V, 4-pin PWM connector

  • ColorBlack
  • TypeFan only
  • Fan Size70mm
  • Bearing TypeHydraulic
  • Power Connector4 Pin
  • LEDNo
  • 70 mm compact frame fits tight builds
  • Hydraulic bearing runs quietly across 1000 to 5000 RPM
  • 65 CFM airflow moves heat fast
  • 4 pin PWM connector enables precise speed control
  • 12 V 0.7 A draw keeps power use low

Compact 70 mm PWM fan for AMD CPU coolers

This 70 mm hydraulic-bearing fan mounts directly on AMD CPU coolers that accept a 7015 frame. It draws 0.7 A at 12 V and spins between 1000 and 5000 RPM to deliver up to 65 CFM of airflow. The four-pin PWM connector allows the motherboard to control speed automatically.

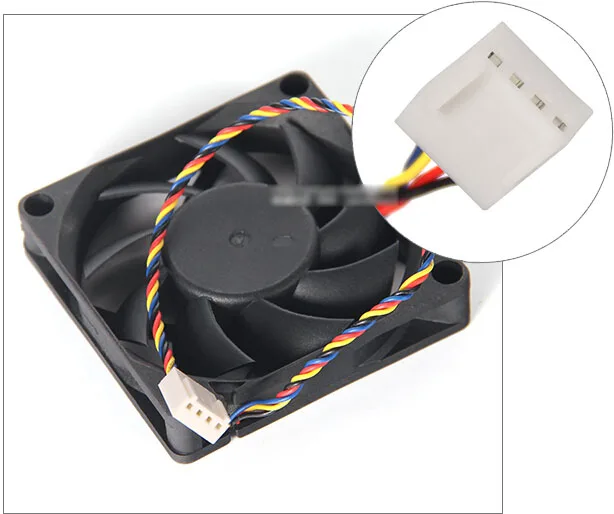

Straightforward four-pin mounting

The fan uses a standard 4-pin PWM header and screws into holes spaced 6.1 cm apart. Because the frame is only 15 mm thick, it fits tight cooler stacks, but the screw holes must line up exactly with the cooler base. Misaligned holes or a three-pin header will prevent installation.

Verify cooler frame size

Confirm that your existing CPU cooler uses a 70 mm by 70 mm fan with a 15 mm thickness and 6.1 cm mounting centres. Check that the motherboard provides a 4-pin PWM header; a 3-pin header will run the fan at full speed only. Buyers needing a larger fan, RGB lighting, or a different mounting pattern should look elsewhere.

Points forts

  • 70 mm compact frame fits tight builds
  • Hydraulic bearing runs quietly across 1000 to 5000 RPM
  • 65 CFM airflow moves heat fast
  • 4 pin PWM connector enables precise speed control
  • 12 V 0.7 A draw keeps power use low

Caractéristiques

ModelDA07015R12U
ColorBlack
TypeFan only
Fan Size70mm
Bearing TypeHydraulic
Power Connector4 Pin
LEDNo

Questions sur cet article

How can I confirm the DA07015R12U is running correctly after installation?

Check the motherboard BIOS or fan-control software to verify the 4-pin PWM signal drives the fan between 1000 and 5000 RPM under load.

What does the DA07015R12U package contain and what must I source separately?

The box includes the 70 mm hydraulic-bearing fan with a 4-pin PWM connector; a heatsink, mounting brackets and thermal paste are not included.

Which version of the DA07015R12U should I choose for my build?

Only the single black 70×70×15 mm model with 12 V, 0.7 A rating and 65 CFM maximum airflow is offered.
