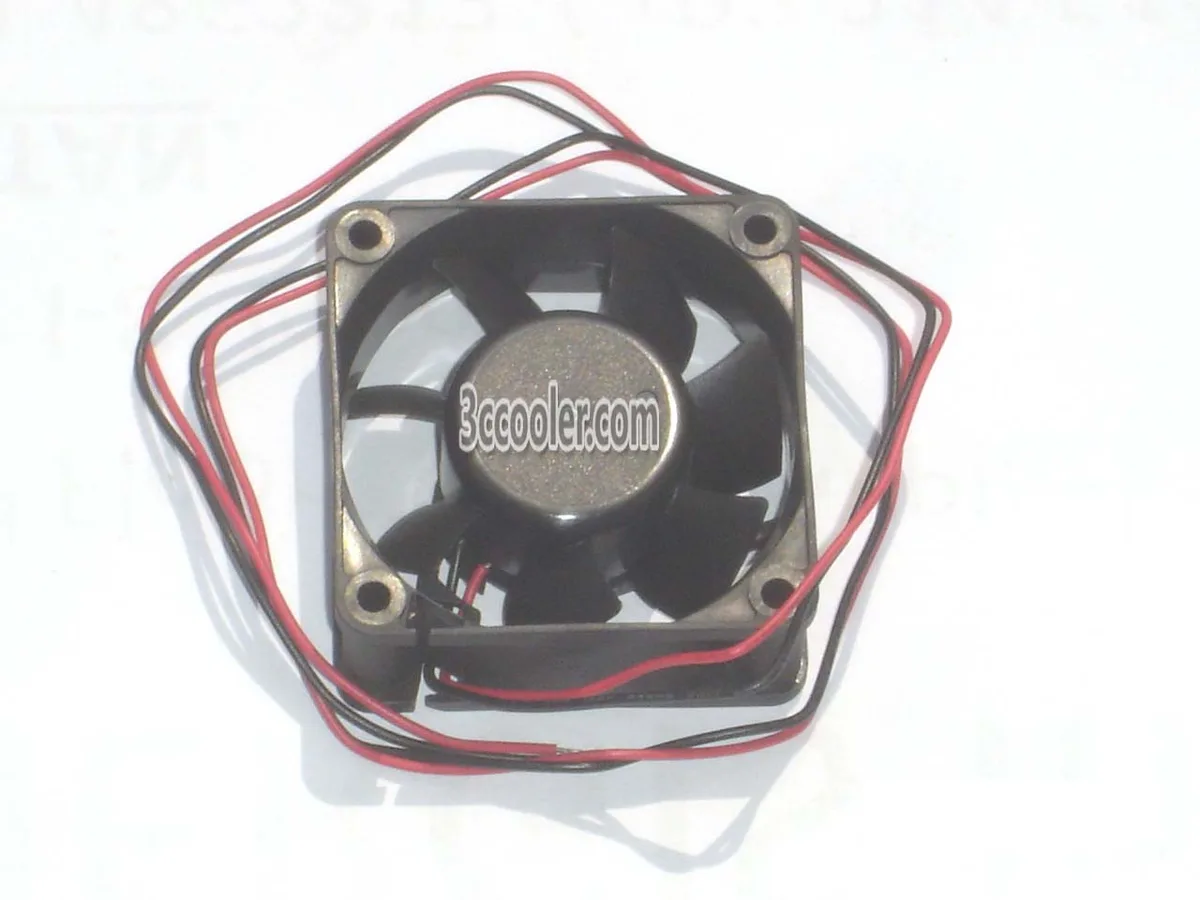

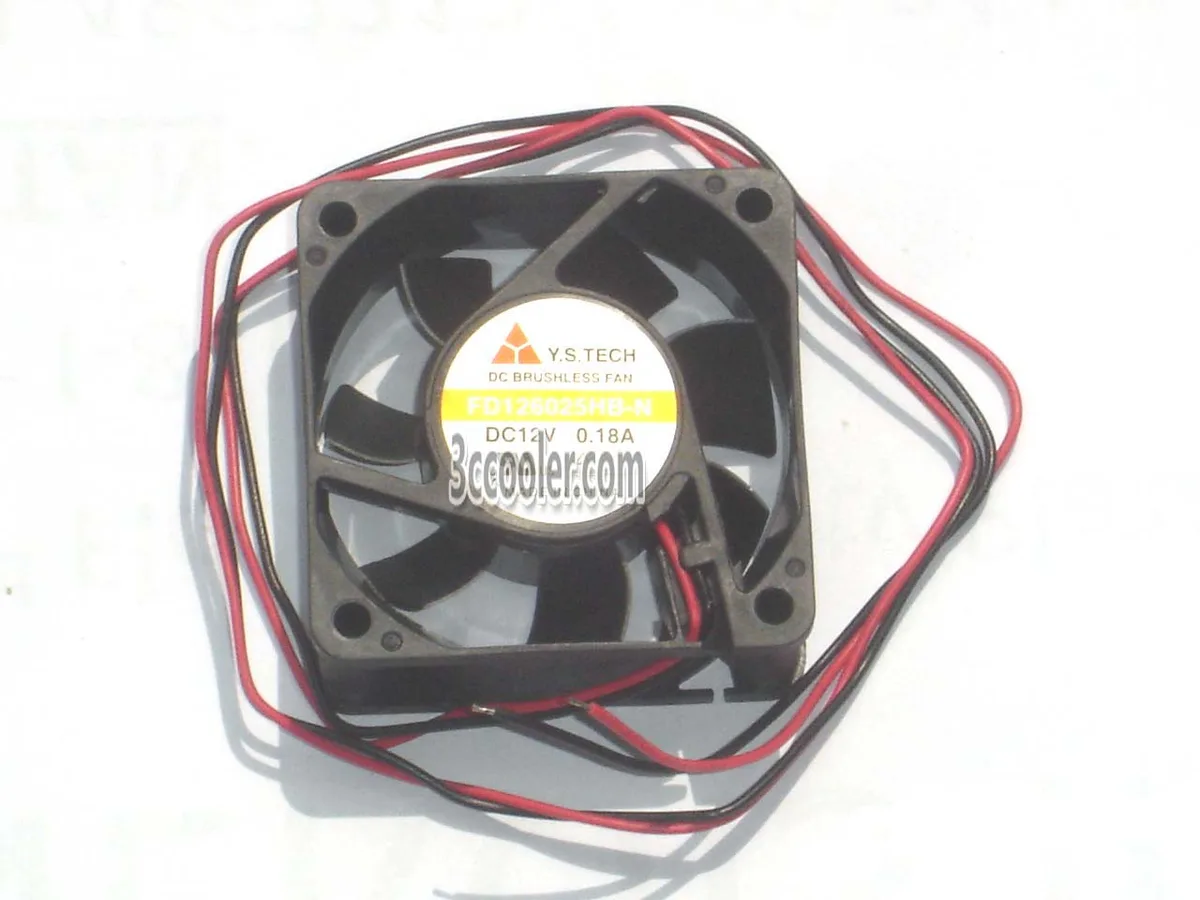

Black 60mm square fan with ball bearing, 25mm thick, two-wire 12V .18A

OEM Industries

OEM Industries FD126025HB-N 60mm 12V 0.18A Ball Bearing Fan CPU Cooler

SKU CH-34YH-2H828

A 60 mm ball-bearing fan running at 12 V and 0.18 A for CPU or case cooling

  • ColorBlack
  • TypeFan only
  • Fan Size60mm
  • Bearing TypeBall
  • LEDNo
  • Ball bearing ensures long-term reliability
  • 60 mm frame fits tight chassis spaces
  • 12 V 0.18 A draw keeps power use low
  • Two-wire design simplifies motherboard connection
  • No LED avoids unwanted light in dark builds

Compact 60mm Ball-Bearing Fan

The OEM Industries FD126025HB-N is a 60mm square frame fan designed for CPU air-cooling applications where space is limited. It runs on 12 V and draws 0.18 A through a two-wire connection, making it suitable for small-form-factor builds or as a replacement cooler on legacy socket brackets. The black plastic frame and ball-bearing motor keep the profile low at 25 mm thick.

Direct Swap for 6025 Frame Fans

This unit replaces any standard 6025 two-wire fan that has failed or become noisy, provided the mounting holes align with the 60 mm pattern. The jump is worth it when the original sleeve-bearing fan has developed rattle or reduced airflow, because the ball bearing maintains consistent speed over a longer service interval. No PWM control is present, so speed scales only with voltage.

Verify Mounting Clearance and Connector

Before ordering, confirm that your heatsink or case bracket accepts a 60 mm square fan with 25 mm thickness and that the two-pin header on the motherboard or fan controller can supply 12 V at 0.18 A. Check that no taller components or side-panel windows interfere with the fan frame, and ensure the existing wiring reaches the header without adapters.

Points forts

  • Ball bearing ensures long-term reliability
  • 60 mm frame fits tight chassis spaces
  • 12 V 0.18 A draw keeps power use low
  • Two-wire design simplifies motherboard connection
  • No LED avoids unwanted light in dark builds

Caractéristiques

ModelFD126025HB-N
ColorBlack
TypeFan only
Fan Size60mm
Bearing TypeBall
LEDNo

Questions sur cet article

Will the 60mm frame with 25mm depth fit my chassis fan mounts?

The fan measures 60mm square and 25mm thick, matching the standard 6025 mounting pattern used on many small-form-factor cases and heatsinks.

How do I connect the two-wire lead to a 12V header, and what mistake should I avoid?

Plug the 2-wire connector onto a 12V fan header observing polarity; the common error is forcing it onto a 4-pin PWM header without an adapter, which leaves the sense pin floating.

When will the ball bearing need replacement?

Ball bearings typically run for tens of thousands of hours at 12V 0.18A; expect service life to exceed several years of continuous operation before audible wear appears.
