Orico
Orico 9558U3 5-bay 3.5" SATA USB 3.0 enclosure
Holds up to five 3.5-inch SATA drives with USB 3.0 connectivity, a 150 W power adapter, an 80 mm cooling fan and individual safety locks
- ColorBlack
- Size2.5" & 3.5"
- TypeDock
- AC AdapterYes
- MaterialAluminum
- Internal InterfaceSATA I/II/III
HDD · # of Bay · Size · Model Without RAID · 5 Bay 9558U3
- Without RAID · 4 Bay · 4 Bay 9548U3 · n/a
- Without RAID · 5 Bay 9558U3
Les versions barrées existent, mais ne sont pas disponibles ici.
- Tool-free drive swaps speed up maintenance

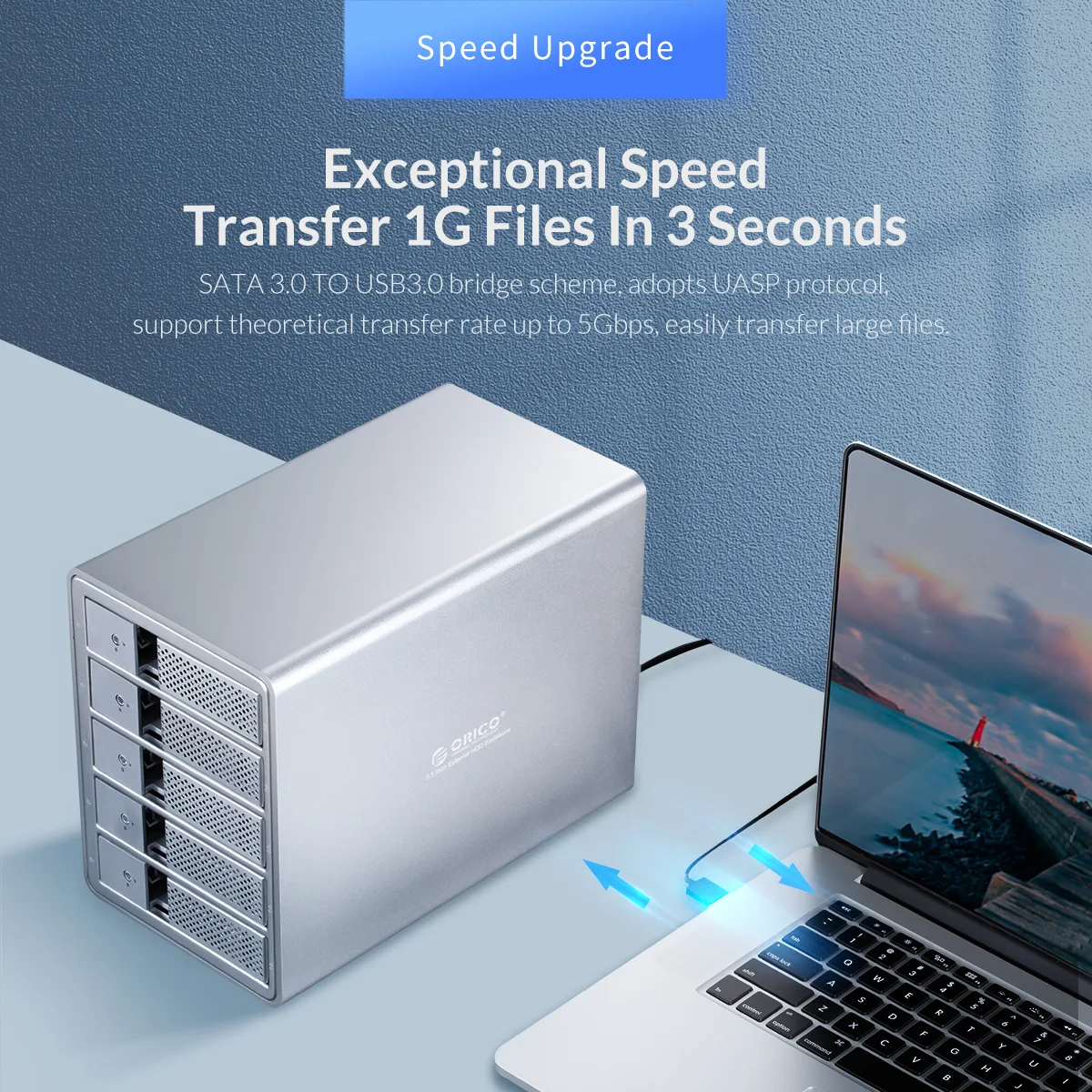

- USB 3.0 delivers 5 Gbps transfer speed
- 150 W adapter powers five drives simultaneously
- 4 mm aluminium shell and 80 mm fan cool drives
- Independent key locks prevent accidental drive removal

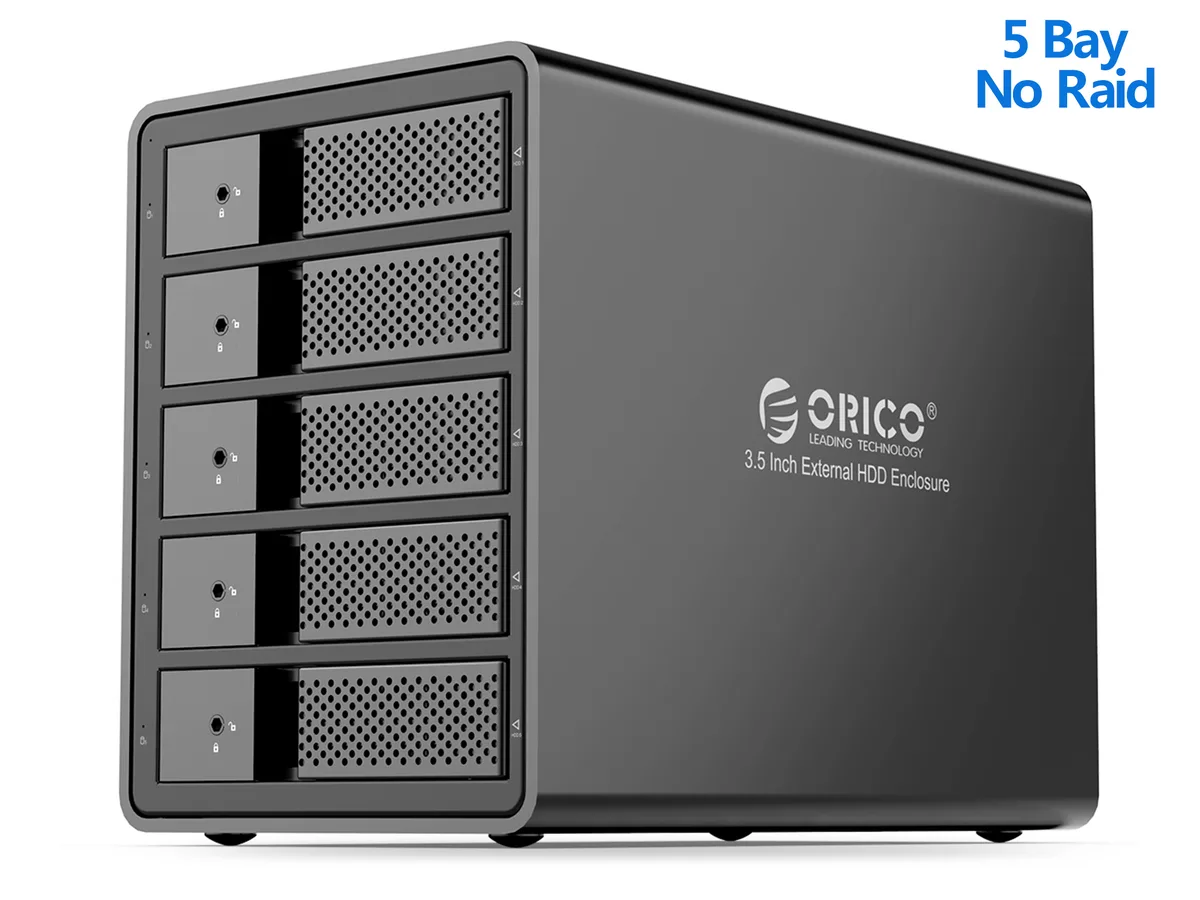

Five-bay enclosure for 3.5-inch SATA drives
The Orico 9558U3 holds up to five 3.5-inch SATA hard drives or solid-state drives, each up to 16 TB for a total of 80 TB. It connects to a host computer through a single USB 3.0 port running at 5 Gbps and requires no RAID configuration. The unit is aimed at users who need direct, high-capacity external storage without managing an array.
Aluminium shell with fan and individual drive locks
A unibody aluminium-alloy case up to 4 mm thick encloses the five drive bays, and an integrated 80 mm fan provides forced-air cooling across all installed drives. Each bay has an independent safety lock to prevent accidental removal, while LED indicators show power and activity status per drive. The tool-free tray design allows hot-swapping drives without screws or tools, and the enclosure automatically enters sleep mode after 10 minutes of inactivity.
Check host USB port and 2.5-inch drive brackets
The enclosure relies on a single USB 3.0 connection for both data and power delivery to the drives, so verify that your computer or hub can supply sufficient current for five 3.5-inch units simultaneously. The included 150 W external power adapter feeds the drives and fan, but 2.5-inch drives require separate mounting brackets that are not supplied. Compatibility spans Windows, macOS and Linux with plug-and-play operation.
Points forts
- Tool-free drive swaps speed up maintenance
- USB 3.0 delivers 5 Gbps transfer speed
- 150 W adapter powers five drives simultaneously
- 4 mm aluminium shell and 80 mm fan cool drives
- Independent key locks prevent accidental drive removal
Caractéristiques
| Brand | ORICO |
|---|---|
| Series | ORICO 9558U3 |
| Model | ORICO 9558U3 |
| Color | Black |
| Size | 2.5" & 3.5" |
| Type | Dock |
| AC Adapter | Yes |
| Material | Aluminum |
| Internal Interface | SATA I/II/III |
| External Interface | USB 3.0 |
| HDD Count Supported | Without RAID |
| Maximum Capacity (per Bay) | 5*16TB(80TB Max) |
| Dimensions | 258mm(L)*146mm(W)*196mm(H) |
Questions sur cet article
Does the USB 3.0 link on the 9558U3 limit SATA III drive speeds?
The USB 3.0 interface runs at 5 Gbps, so SATA III drives cannot reach their native 6 Gbps ceiling when connected through this enclosure.
What drive sizes and how many bays fit inside the 258 mm by 146 mm by 196 mm chassis?
Five tool-free bays accept 3.5 inch SATA drives; 2.5 inch drives also fit but require a separate bracket that is not included.
How do the independent safety locks work during a hot-swap?
Each bay has its own key lock; unlock the bay, pull the drive out, insert the replacement, then relock — drives can be swapped while the enclosure stays powered on.
