Black aluminium enclosure with USB-C port and 2-in-1 cable, supports 2230 2242 2260 2280 M.2 NVMe SATA drives

Orico

Orico M2PVM M.2 NVMe SATA enclosure USB 3.1 Gen 2 10 Gbps 2230 2242 2260 2280

SKU CH-M7K5-Q047A

Houses M.2 2230, 2242, 2260 or 2280 NVMe and SATA SSDs with USB 3.1 Gen 2 10 Gbps speed and UASP

  • ColorBlack
  • SizeM.2 2242,2260,2280
  • TypeEnclosure
  • AC AdapterNo
  • MaterialAluminum / Plastic
  • External InterfaceUSB Type C

Material Aluminum / Plastic

Interface USB Type C

  • USB 3.1 Type-C
  • USB Type C

Bay 1 Bay

  • 1
  • 1 Bay

Size M.2 NVMe / NGFF SSD

  • M.2 NVME SSD
  • M.2 NVMe / NGFF SSD
  • M.2 NGFF SSD

Model 1 Bay

  • 1 Bay
  • M.2 NVME SSD (20Gbps)

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Lightning-fast 10 Gbps transfers via USB 3.1 Gen 2 Type-C with UASP
  • Universal fit for 2230 2242 2260 2280 M.2 NVMe and SATA drives
  • Plug-and-play on Windows Mac Linux with no driver install
  • Ultra-portable 108 mm aluminium body weighs just 13.5 mm thin
  • Includes C-to-C and C-to-A cables plus thermal pad for immediate use

Orico M2PVM M.2 NVMe SATA enclosure

The Orico M2PVM is a portable single-bay enclosure that accepts M.2 NVMe and SATA SSDs in 2230, 2242, 2260 and 2280 lengths. It connects via a USB 3.1 Gen 2 Type-C interface rated for 10 Gbps and supports UASP acceleration. The aluminium and plastic housing measures 108 mm by 29.5 mm by 13.5 mm and operates without a fan or external power adapter. It is compatible with Windows, Mac and Linux systems.

Before ordering check your drive and host

Verify that your M.2 SSD uses either an M-key or B+M key layout, as the enclosure supports both NVMe PCIe and SATA protocols. Ensure your host device provides a USB-C or USB-A port capable of USB 3.1 Gen 2 speeds to reach the 10 Gbps ceiling. New drives must be partitioned and formatted before the enclosure can recognise them, and the file system must be supported by your operating system. The unit draws power entirely from the host port, so confirm the port can supply sufficient current for your chosen SSD.

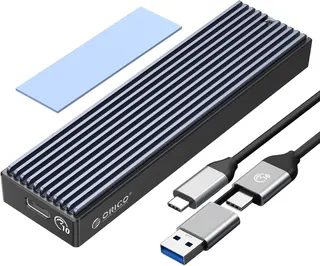

Included cables thermal pad and fasteners

The package supplies a 2-in-1 cable combining USB-C to USB-C and USB-C to USB-A connections for broad host compatibility. A thermal pad is provided to conduct heat from the SSD to the aluminium shell, improving sustained performance during heavy transfers. Two rubber fasteners secure the drive inside the tool-free chassis without screws. No separate AC adapter, software utilities or mounting brackets are included.

Points forts

  • Lightning-fast 10 Gbps transfers via USB 3.1 Gen 2 Type-C with UASP
  • Universal fit for 2230 2242 2260 2280 M.2 NVMe and SATA drives
  • Plug-and-play on Windows Mac Linux with no driver install
  • Ultra-portable 108 mm aluminium body weighs just 13.5 mm thin
  • Includes C-to-C and C-to-A cables plus thermal pad for immediate use

Caractéristiques

BrandORICO
SeriesORICO M2PVM
ModelORICO M2PVM
ColorBlack
SizeM.2 2242,2260,2280
TypeEnclosure
AC AdapterNo
MaterialAluminum / Plastic
External InterfaceUSB Type C
HDD Count SupportedSingle SSD
Number of Bay1 Bay
Maximum Capacity (per Bay)Up to 4TB
FanNo
PowerNo
Specifications1. APPLICABLE SSD: Compatible with 2230, 2242, 2260 2280 M.2 NVME and NGFF (SATA) SSD solid state drive. Compatible with Windows / Mac / Linux multi-platform operating system.
2. EXCELLENT DISSIPATION PERFORMANCE: Made of all aluminum alloy, aluminum alloy stripe high performance heat dissipation design.
3. 10GBPS HIGH-SPEED TRANSMISSION: The SSD equipped with NVMe protocol has a theoretical speed of 10Gbps, while the SSD equipped with NGFF (SATA) protocol has a theoretical speed 6Gbps.
4. POWERFUL FUNCTIONALITY: Support intelligent sleep function, energy saving and environmental pro
Operating Systems SupportedCompatible with window / Mac / Linux multi-platform operating system;
FeaturesORICO M.2 NVMe SSD Enclosure
Dimensions108mm (L) * 29.5 mm (W) * 13.5 mm (H)

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What comes in the box and do I need to buy any cables or drives separately?

The box contains the enclosure, a thermal pad, two rubber fasteners, and either a 2-in-1 cable or separate USB-C to USB-C and USB-A to USB-C cables. You must supply your own M.2 SSD.

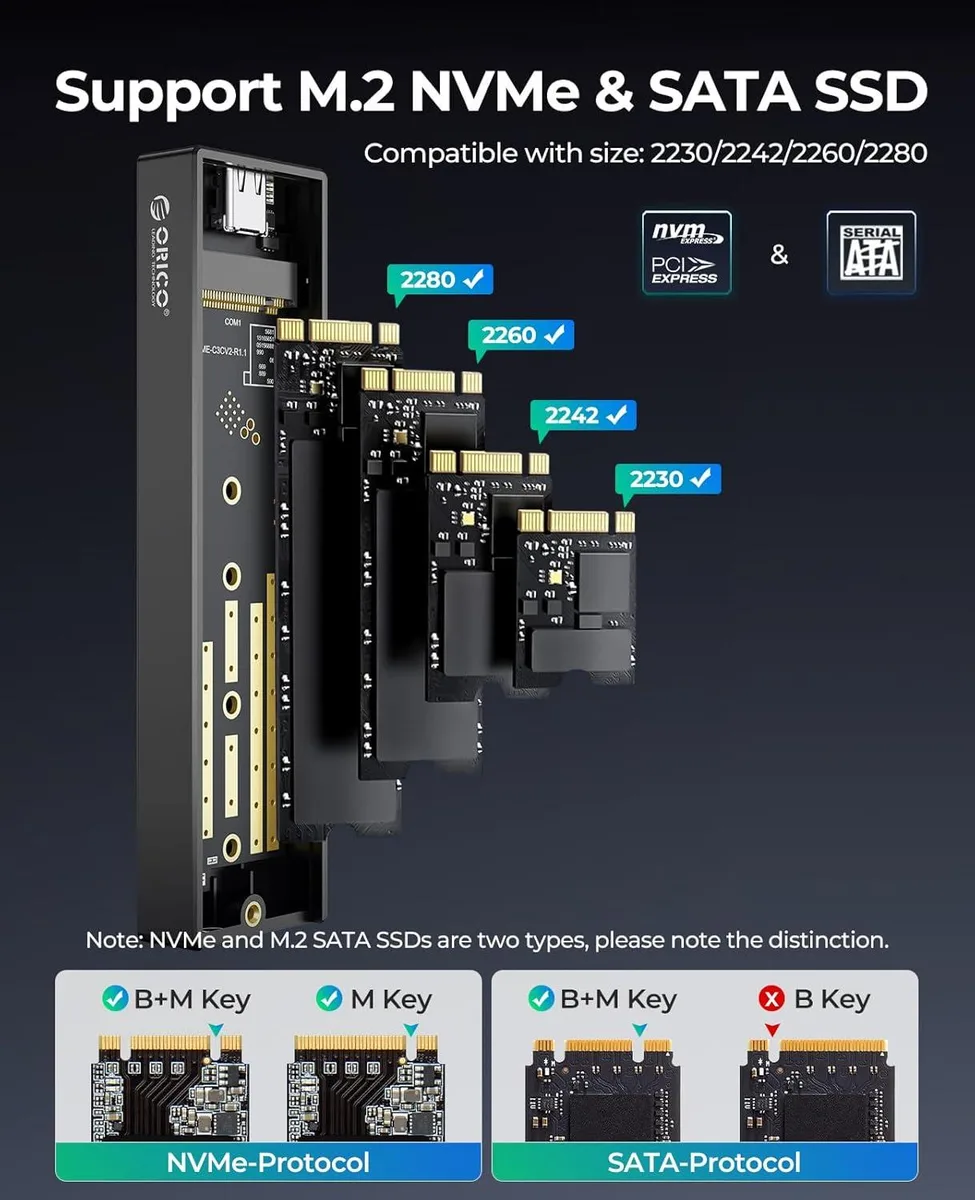

Which M.2 lengths and key types does this enclosure accept?

It fits 2230, 2242, 2260 and 2280 drives and supports both NVMe PCIe (M-Key or B-Key) and SATA/NGFF (B+M-Key) SSDs.

What does the 10 Gbps rating mean for real-world file transfers?

The USB 3.1 Gen 2 Type-C link with UASP can reach 10 Gbps, so large sequential reads and writes approach the drive's own limits rather than the bus ceiling.
