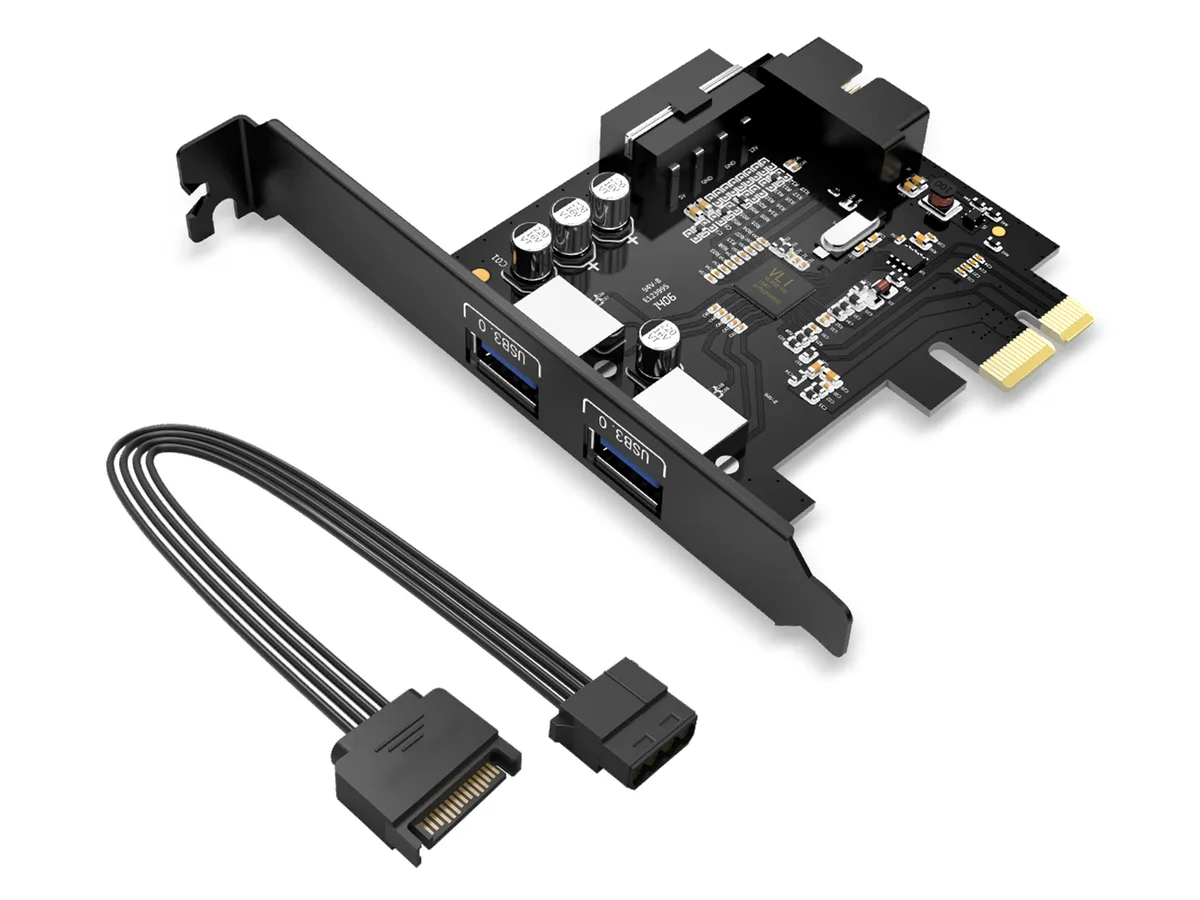

Black PCIe card with two rear USB 3.0 ports and one internal 20-pin connector, low-profile bracket included

Orico

Orico PVU3 2-Port USB 3.0 PCIe Expansion Card 20-Pin Internal Black

SKU CH-PEKE-XSDJP

Adds two rear USB 3.0 ports and a 20-pin internal header for front-panel expansion, fits any PCIe x1 to x16 slot and delivers up to 5.0 Gbps

  • TypePCI Express to USB3.0 Card
  • External USB Ports2x USB3.0 Ports
  • Internal USB PortsUSB3.0 20PIN Internal but not USB Ports Internal,Need to wor
  • External 1394 PortsNone
  • Internal 1394 PortsNone
  • External Ports2x USB3.0

External USB Ports 2x USB Ports

  • 2x USB Ports
  • 5x USB Ports

Les versions barrées existent, mais ne sont pas disponibles ici.

Model 2 Ports

  • 2 Ports
  • No

Les versions barrées existent, mais ne sont pas disponibles ici.

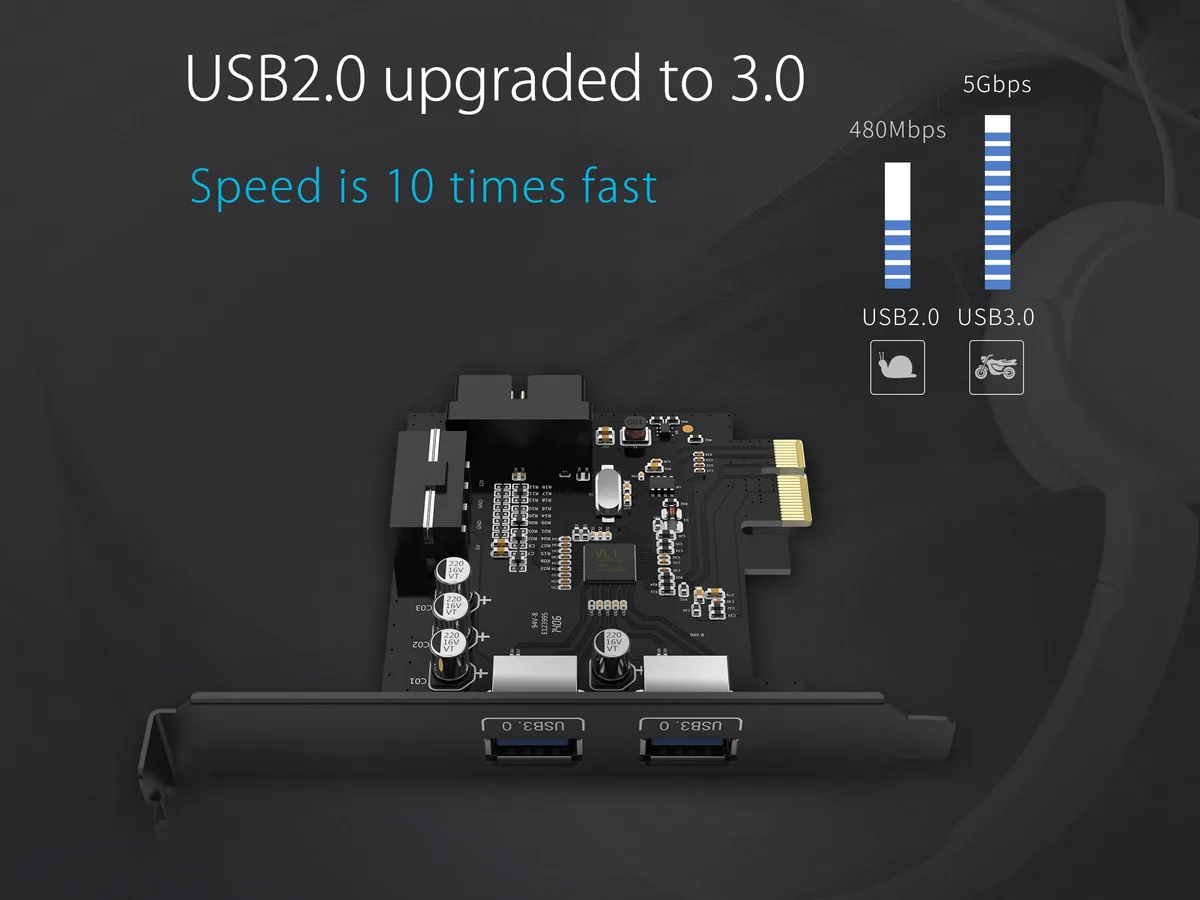

  • Add two rear USB 3.0 ports at up to 5.0 Gbps
  • Low-profile bracket fits PCIe x1 through x16 slots
  • Internal 20-pin header enables front-panel USB 3.0 expansion
  • VL805 chipset with SATA power for stable multi-device operation
  • Driver CD plus one-button install supports Windows XP onward and Linux

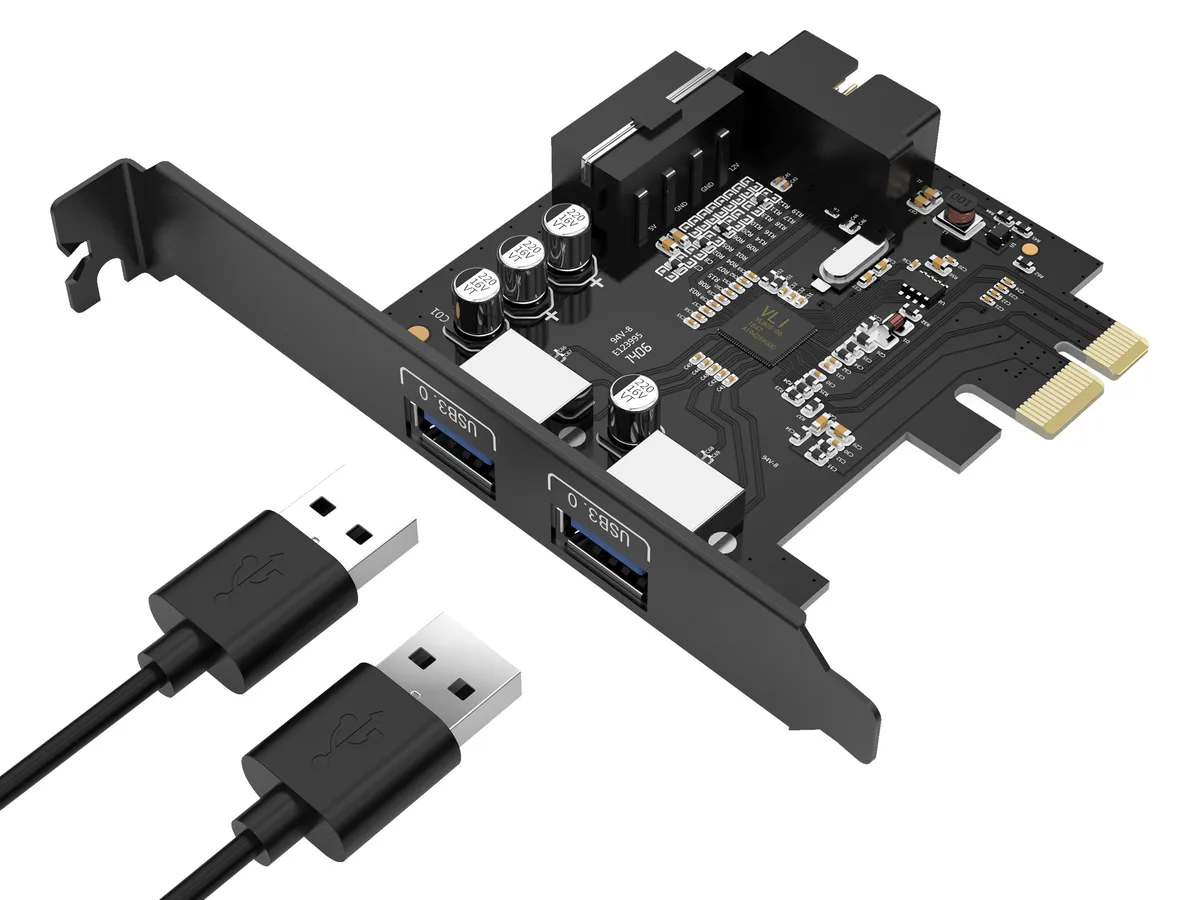

Two rear and one internal USB 3.0 ports

This PCI Express add-in card adds two external USB 3.0 ports and a single 20-pin internal header to a desktop computer. It is aimed at system builders and upgraders who need more SuperSpeed connections for peripherals or front-panel expansion. The card fits x1, x2, x4, x8 and x16 slots and includes a low-profile bracket for small-form-factor cases.

5.0 Gbps USB 3.0 data rate

The controller delivers up to 5.0 Gbps transfer speed per port, matching the USB 3.0 specification. Actual throughput depends on the attached device and system configuration. The VL805 chipset provides native PCI Express 2.0 connectivity and supports Windows XP through current versions plus Linux without extra drivers.

Powered by 15-pin SATA connector

A 15-pin to 4-pin SATA power cable supplies stable current for multiple high-draw devices simultaneously. The card draws auxiliary power only when devices are connected, keeping idle consumption low. No active cooling is required, so operation stays silent in typical desktop workloads.

Points forts

  • Add two rear USB 3.0 ports at up to 5.0 Gbps
  • Low-profile bracket fits PCIe x1 through x16 slots
  • Internal 20-pin header enables front-panel USB 3.0 expansion
  • VL805 chipset with SATA power for stable multi-device operation
  • Driver CD plus one-button install supports Windows XP onward and Linux

Caractéristiques

BrandORICO
SeriesORICO PVU3 Series
Model2 Ports
TypePCI Express to USB3.0 Card
External USB Ports2x USB3.0 Ports
Internal USB PortsUSB3.0 20PIN Internal but not USB Ports Internal,Need to work with other USB3.0 20PIN Adapter to Achieve 2x USB3.0 Ports for Front Panel
External 1394 PortsNone
Internal 1394 PortsNone
External Ports2x USB3.0
Internal Ports1x USB3.0 20PIN
StandardUSB 3.0
Data Transfer RateUp to 5.0 Gbps
Operating Systems SupportedWindows XP or Later and Linux
SpecificationsFit in both PCI-Express x1,x2,x4,x8 and x16 Socket,Offer 2x USB3.0 Ports Rear and 1x USB3.0 20 PIN Connector Internal offer Transfer Rates Up To 5Gbps
Features2x Rear USB3.0 Ports and 1x Internal USB3.0 20PIN Connector Enabled offer Transfer Rates Up To 5Gbps.Compatible with any Windows and Linux Computer,Low-Profile PCI Bracket included
Dimensions120x70x18 mm
Weight50g
Package Contents1x ORICO PVU3-2O2I , 1x Low-Profile PCI Bracket , 1x Driver CD , 1x User's Manual , 1x Warranty Card

Questions sur cet article

What does the 5.0 Gbps headline speed mean once the card is installed in a real machine?

The 5.0 Gbps figure is the USB 3.0 bus ceiling; actual throughput depends on the connected device, cable quality and system load, so sustained speeds will usually sit below that maximum.

Which PCI Express standard does the card use and what does that cap in practice?

It complies with PCI Express 2.0 and fits x1 through x16 slots; the x1 electrical link limits total bandwidth to roughly 4 Gbps, which is below the USB 3.0 5.0 Gbps rating.

What does the card physically need to fit and mount in a desktop case?

A free PCI Express slot (x1, x2, x4, x8 or x16), the included low-profile bracket for slim cases, and a SATA power connector from the PSU for the 15-pin power input.
